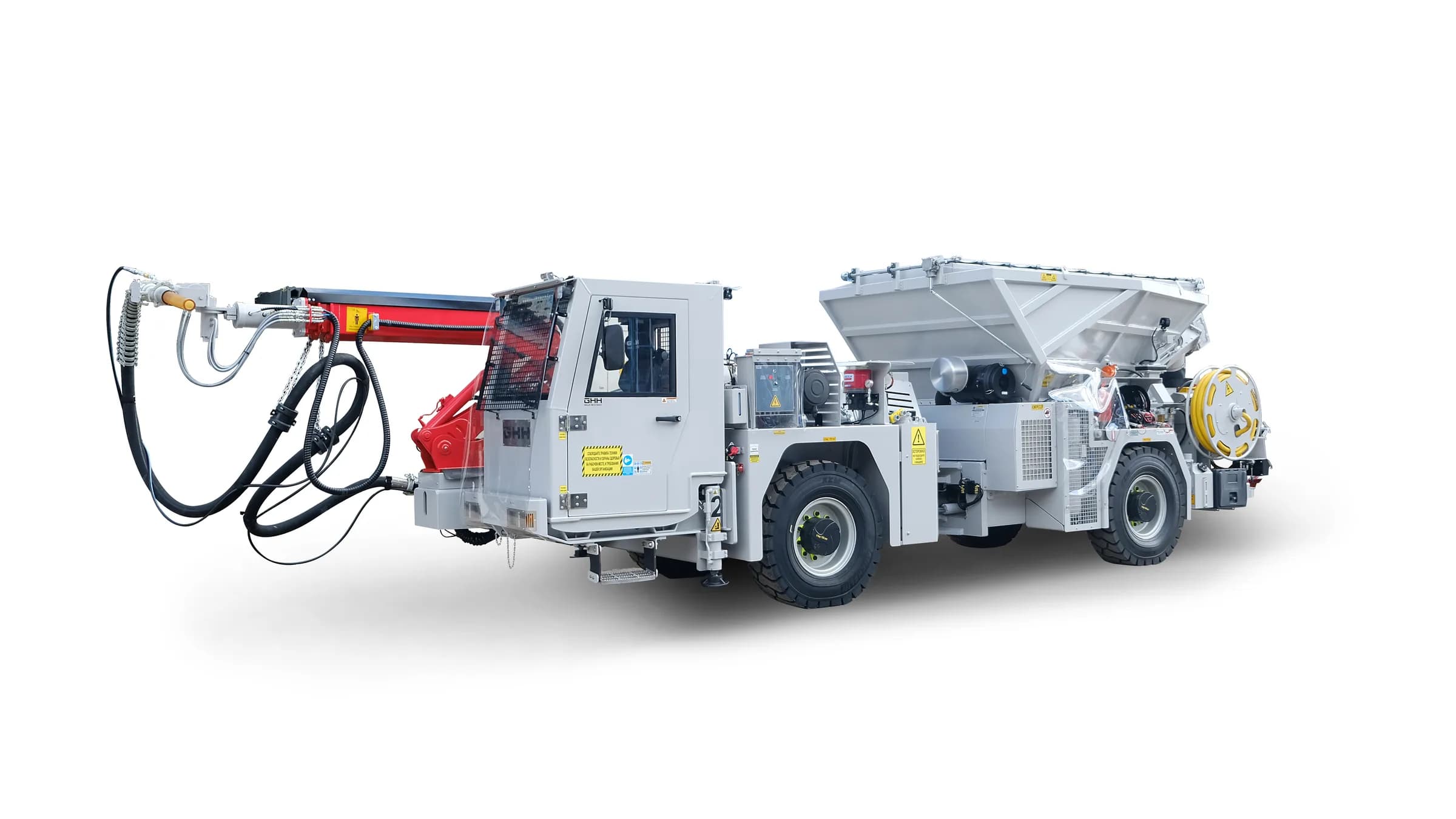

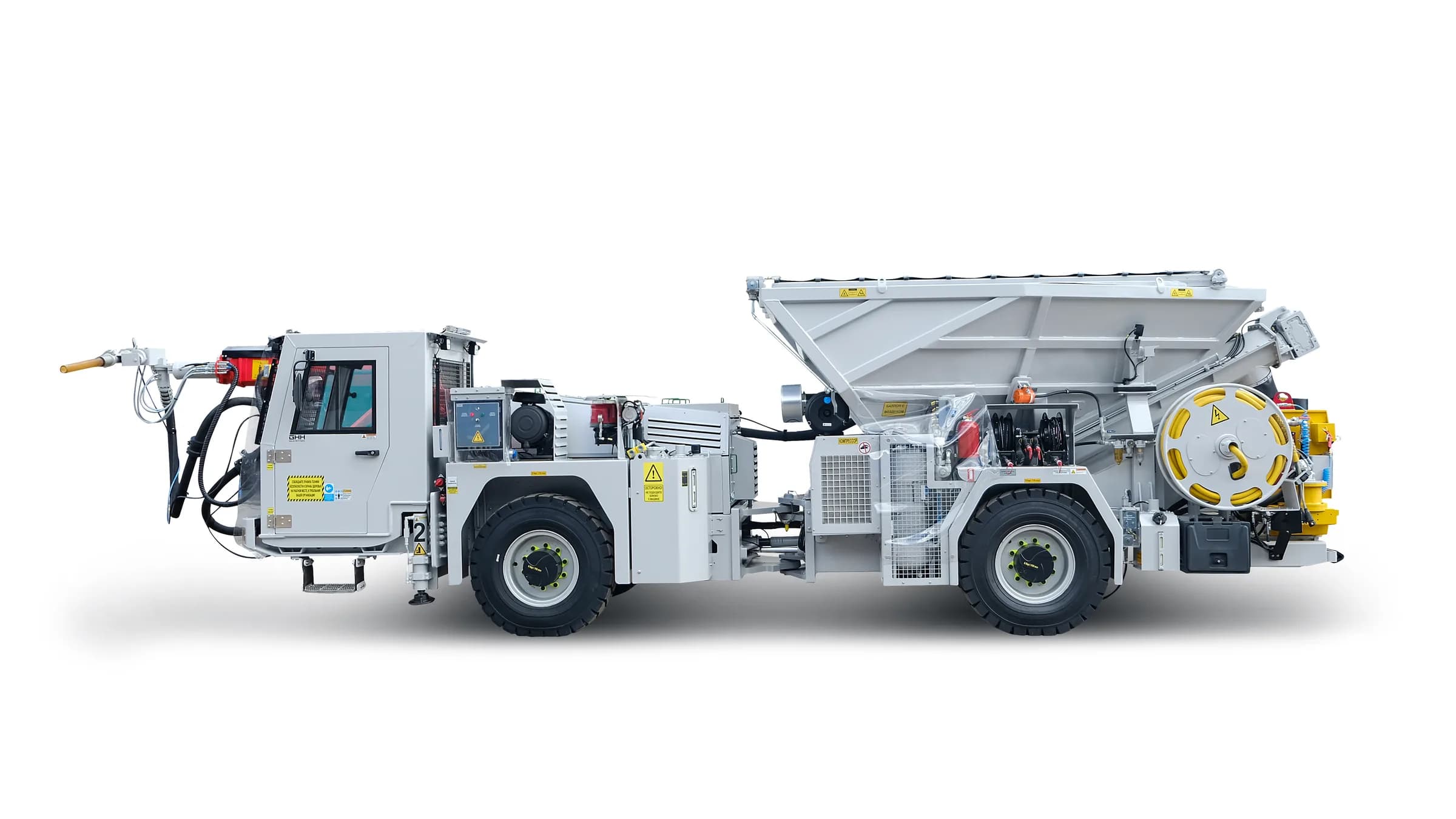

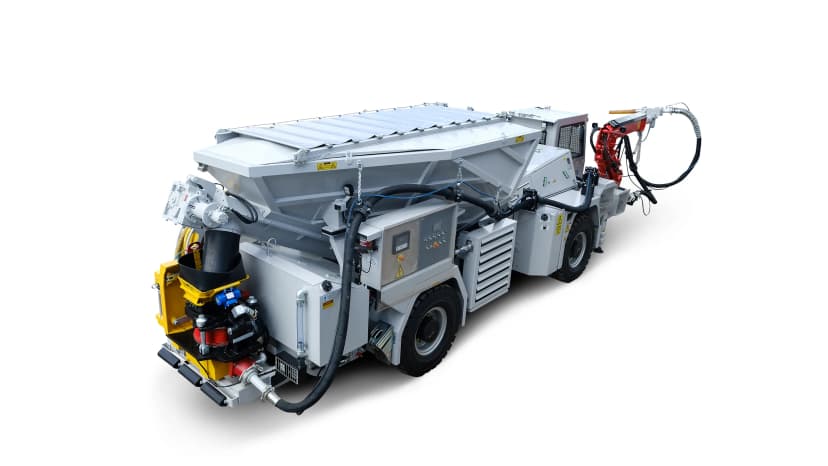

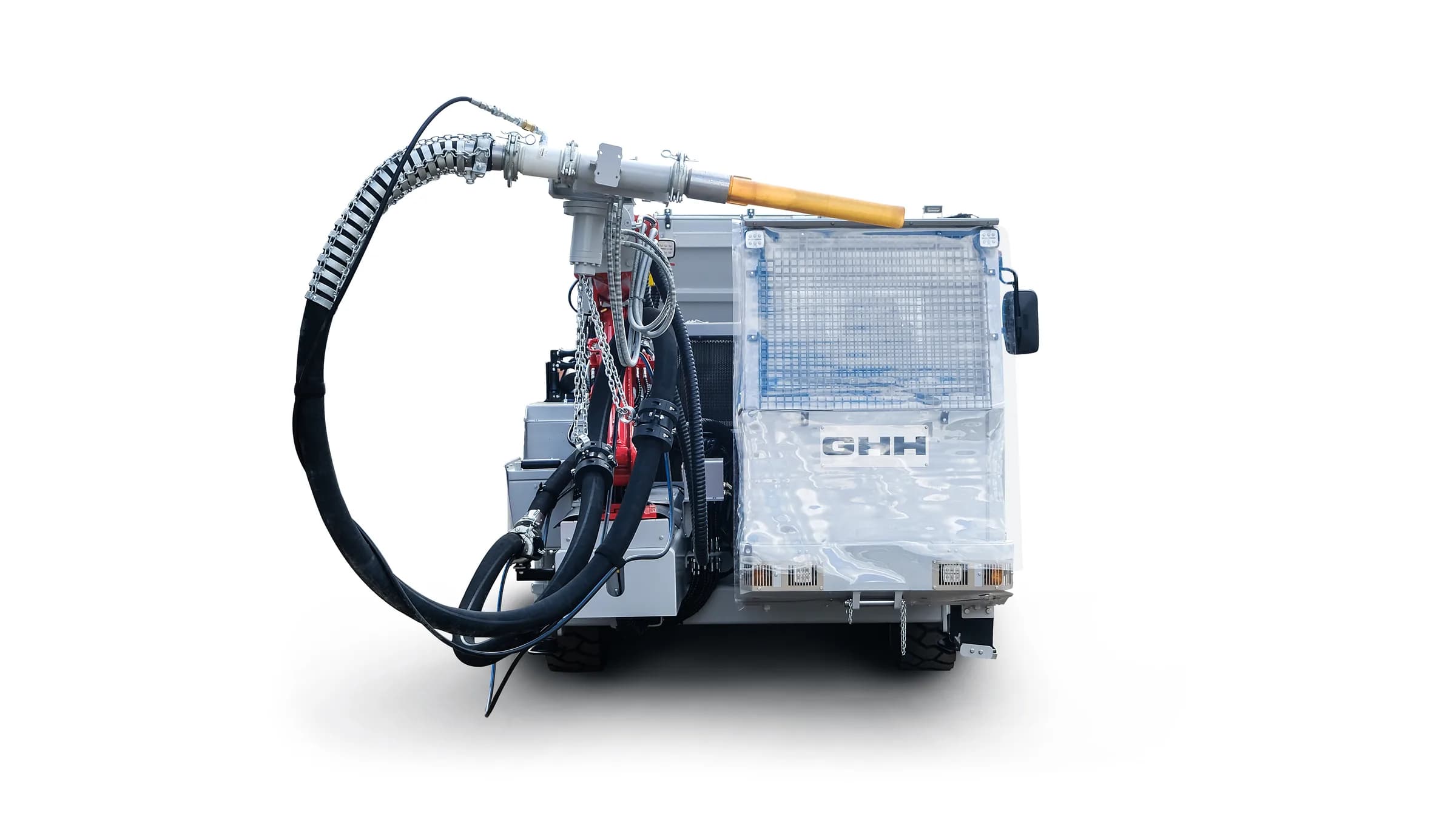

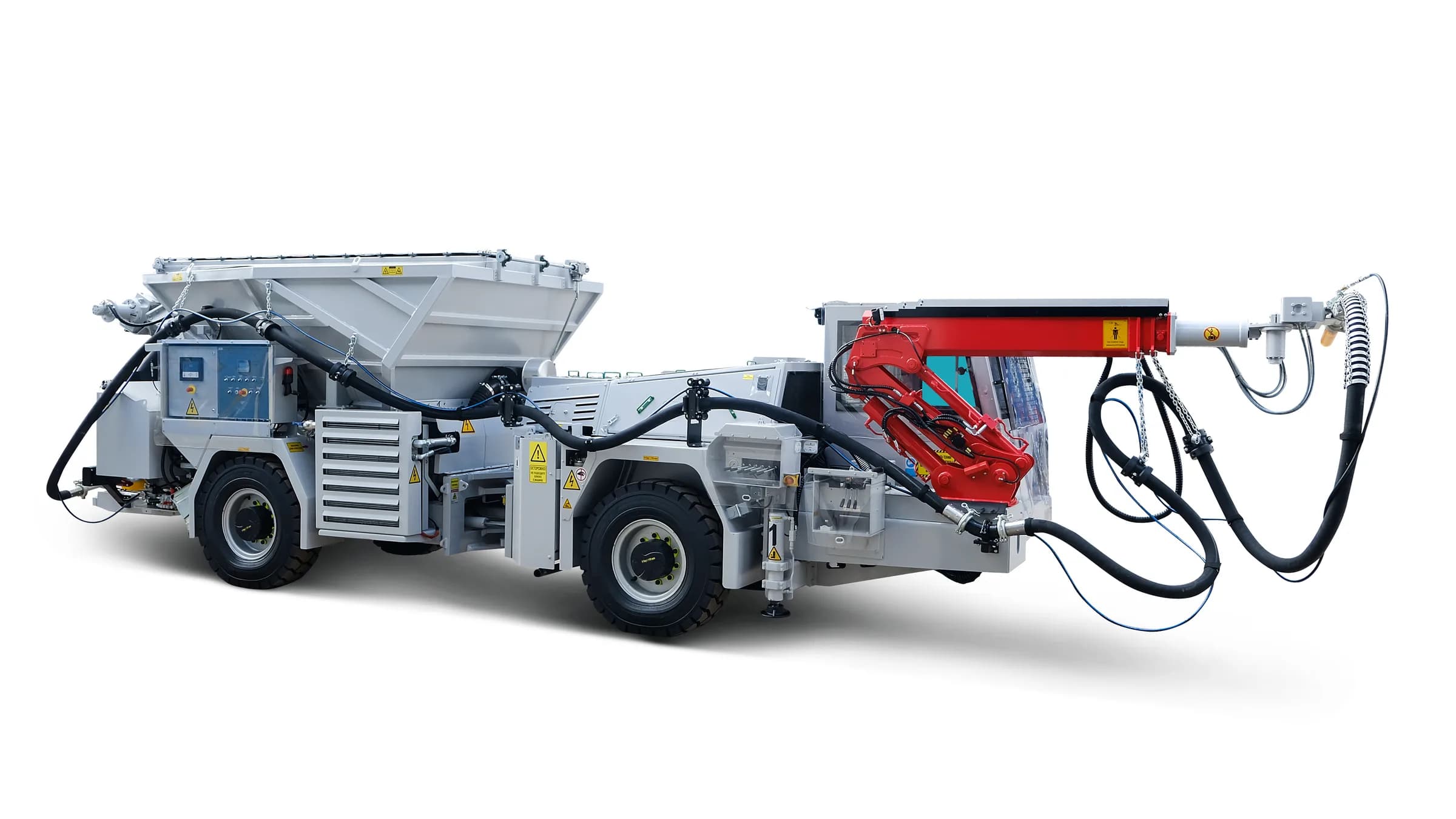

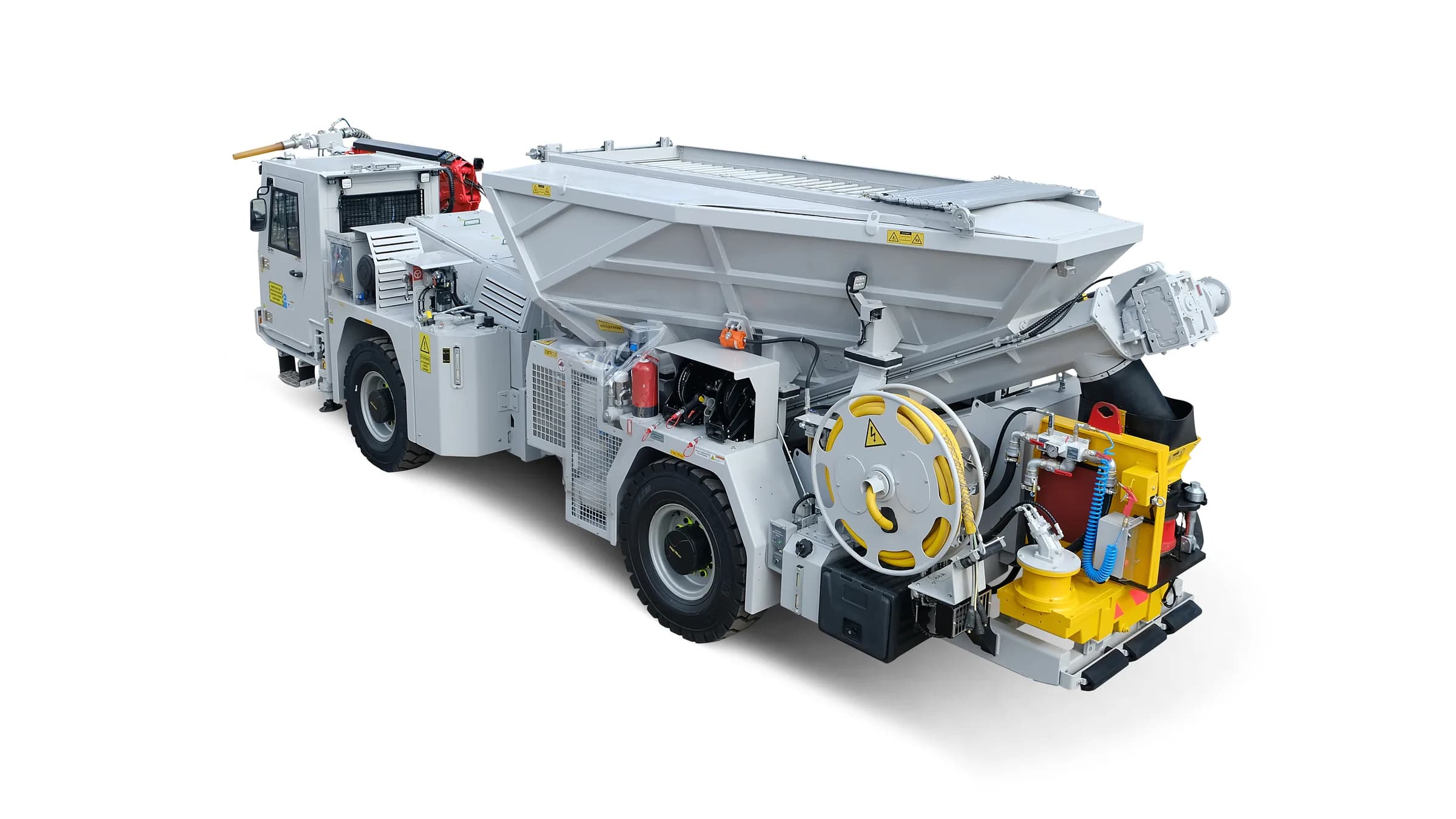

BKS8-C - Concrete Spraying Machine (Dry-Mix)

Dry-Mix Shotcrete

BKS8-C - Concrete Spraying Machine (Dry-Mix)

Shotcrete Machines

BKS8-C - Concrete Spraying Machine (Dry-Mix)

MODEL · BKS8-C

Dry-mix shotcrete machine delivering 6-9 m³/h at 1,450 rpm, with a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity160 l160 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic StabilisersFront, 2 pcs extendibleFront, 2 pcs extendible
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers340 l/min at 2300 rpm340 l/min at 2200 rpm
Hydraulic Oil Tank210 l210 l
Return Oil Filter25 µm25 µm
  • Oil level, temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working LightsOperator Cabin Front 6 x 1800 Lumen Led LampOperator Cabin Front 6 x 1800 Lumen Led Lamp
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 Lumen LED lamps on the hopper
  • 4 x 1800 lumen LED lights on the boom
  • Turn Signals
Titan Closed Operator Cabin
  • 1-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 2 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD monitor in the cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • In-Cabin Heater
Dimensions and Weight
WeightDiffers17,730 kg (Approx.)18,230 kg (Approx.)
LengthDiffers10,500 mm10,720 mm
Width2,300 mm2,300 mm
Height2,850 mm2,850 mm
Inner Turning RadiusDiffers3,950 mm4,120 mm
Outer Turning RadiusDiffers7,230 mm7,400 mm
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front tow bar
  • Battery Isolator switch
  • Back-up alarm and light
Manipulator
Max. Spraying Reach Vertical9.8 m9.8 m
Max. Spraying Reach Horizontal8.3 m8.3 m
Spray Nozzle
Rotation350°350°
Tilt135°135°
  • Oscillation 8°
Dry-Mix Concrete Pump
Capacity6- 9 m³/h at 1450 rpm6- 9 m³/h at 1450 rpm
Max. Concrete Pressure8-10 bar8-10 bar
Hopper
Hopper Volume4 m³4 m³
  • Manual open/close tarpaulin mechanism on the hopper
Screw Conveyor
Max. Speed7.5-15 rpm7.5-15 rpm
DriveHydraulic GearboxHydraulic Gearbox
Cable Remote Control
  • Nozzle and manipulator movements
  • Nozzle Oscillation
  • Air line on/off
  • Dry-Mix Concrete Pump on/off
  • Vibrator on/off
  • Water pump on/off and flow adjustment
  • Screw conveyor on/off
  • Screw conveyor speed adjustment
  • Emergency stop
  • Horn
Compressor
MakeEkomakEkomak
ModelElectric Screw CompressorElectric Screw Compressor
Power75 kW75 kW
Max. Air Flow Rate12.4 m³/min12.4 m³/min
Max. Working Pressure8 bar8 bar
High Pressure Washing System
Pump DriveHydraulicHydraulic
Pressure135 bar135 bar
Flow Rate16 l/min16 l/min
Hose Length13 m13 m
Water Tank710 l710 l
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Wireless Remote Control
  • PLC concrete and dosing control system
  • PLC concrete and dosing monitoring system
  • Surface lubrication system
  • 250 L stainless additive tank and hydraulically driven peristaltic pump
