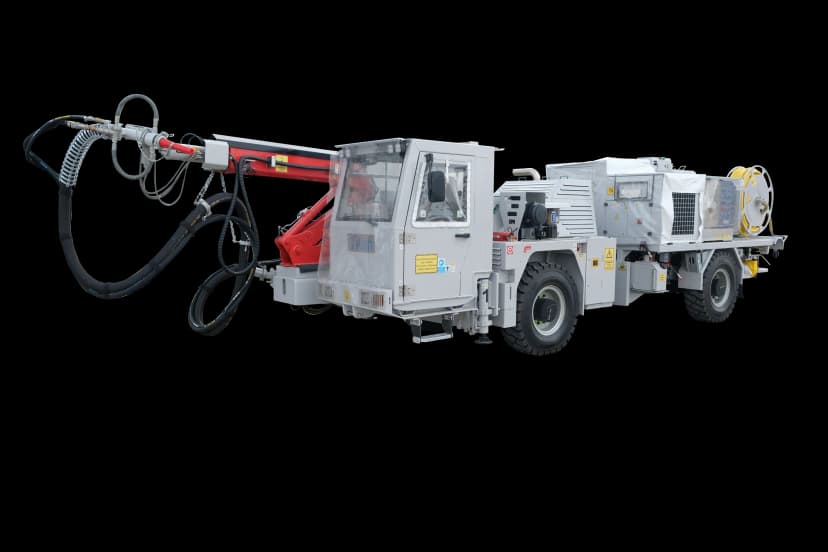

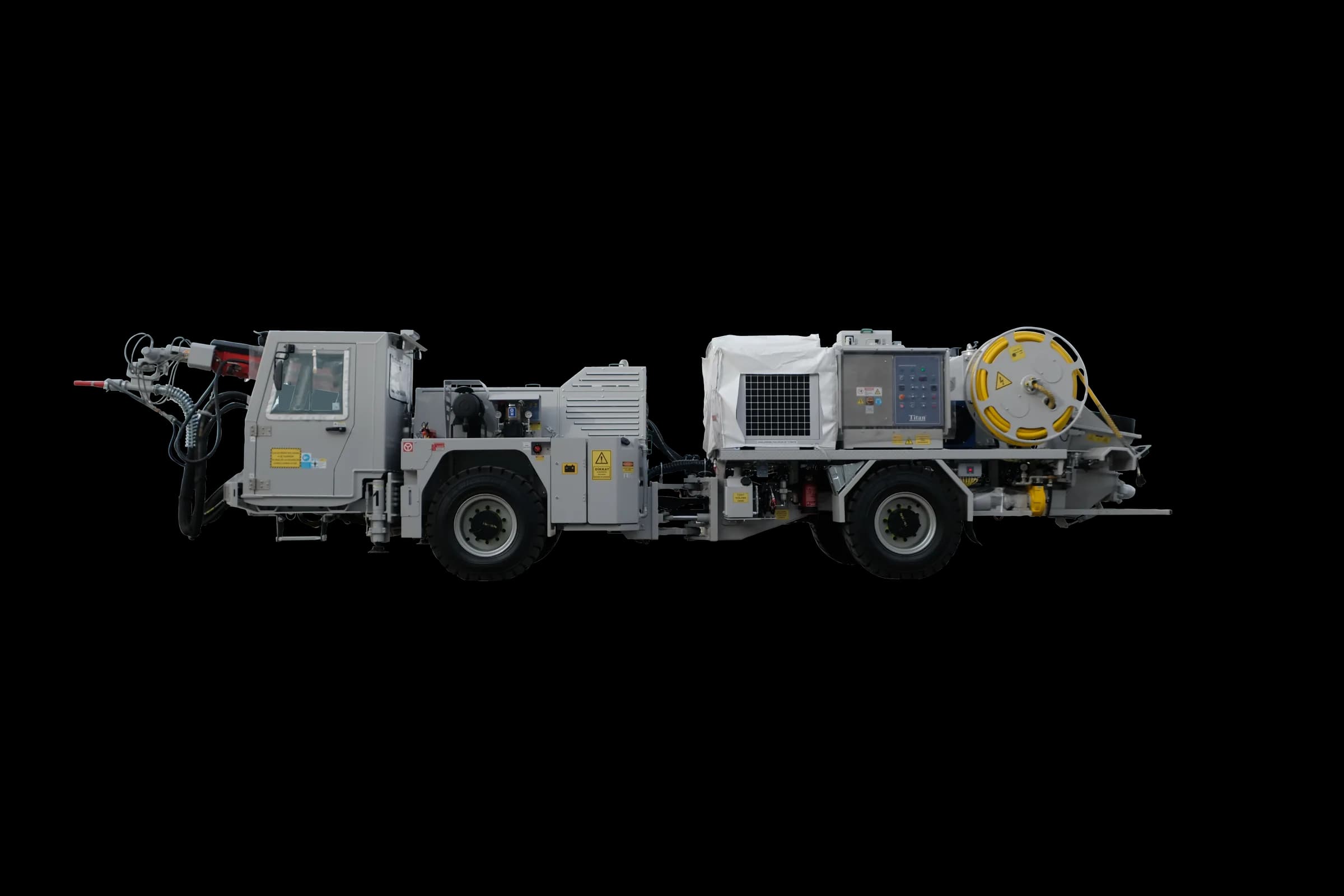

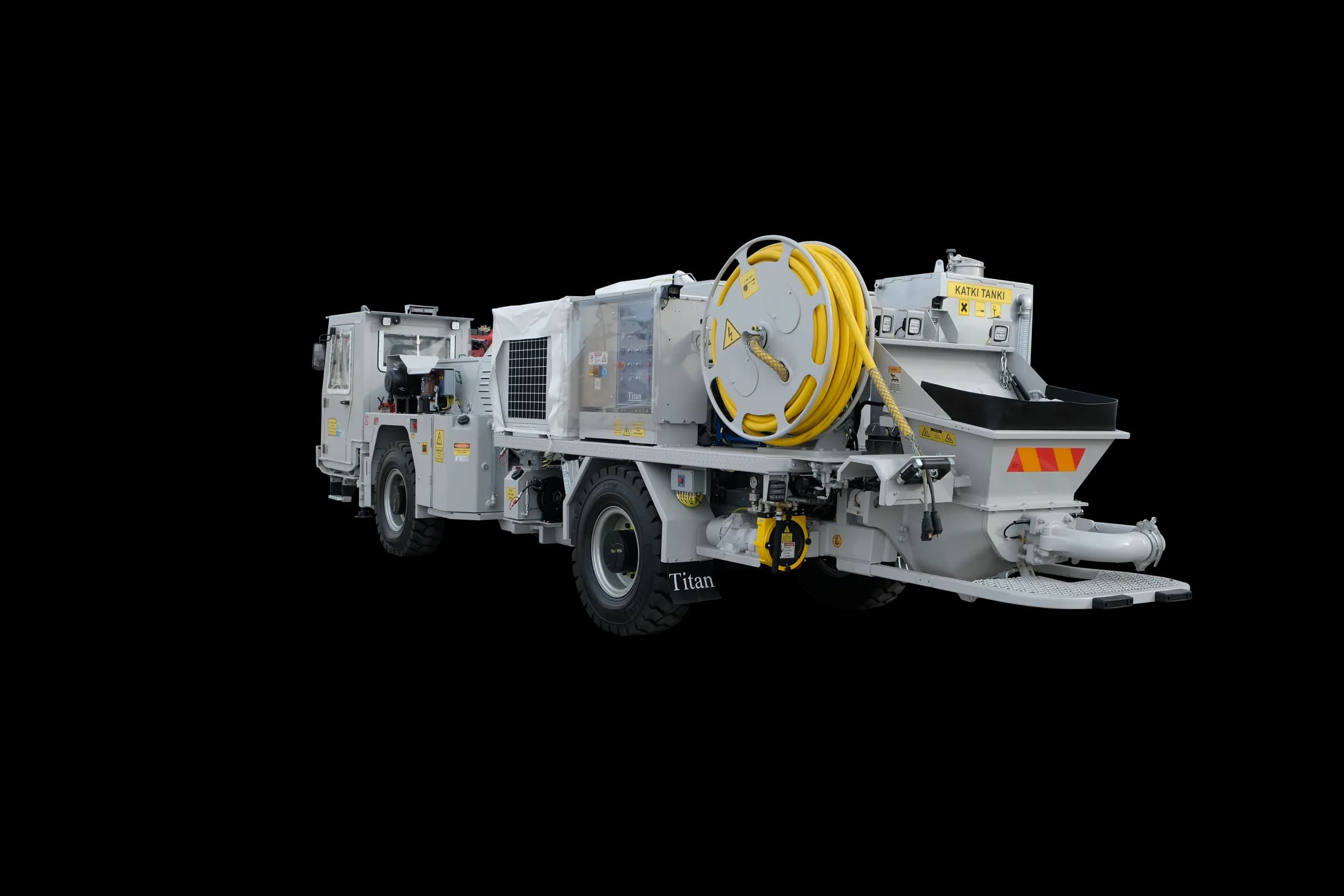

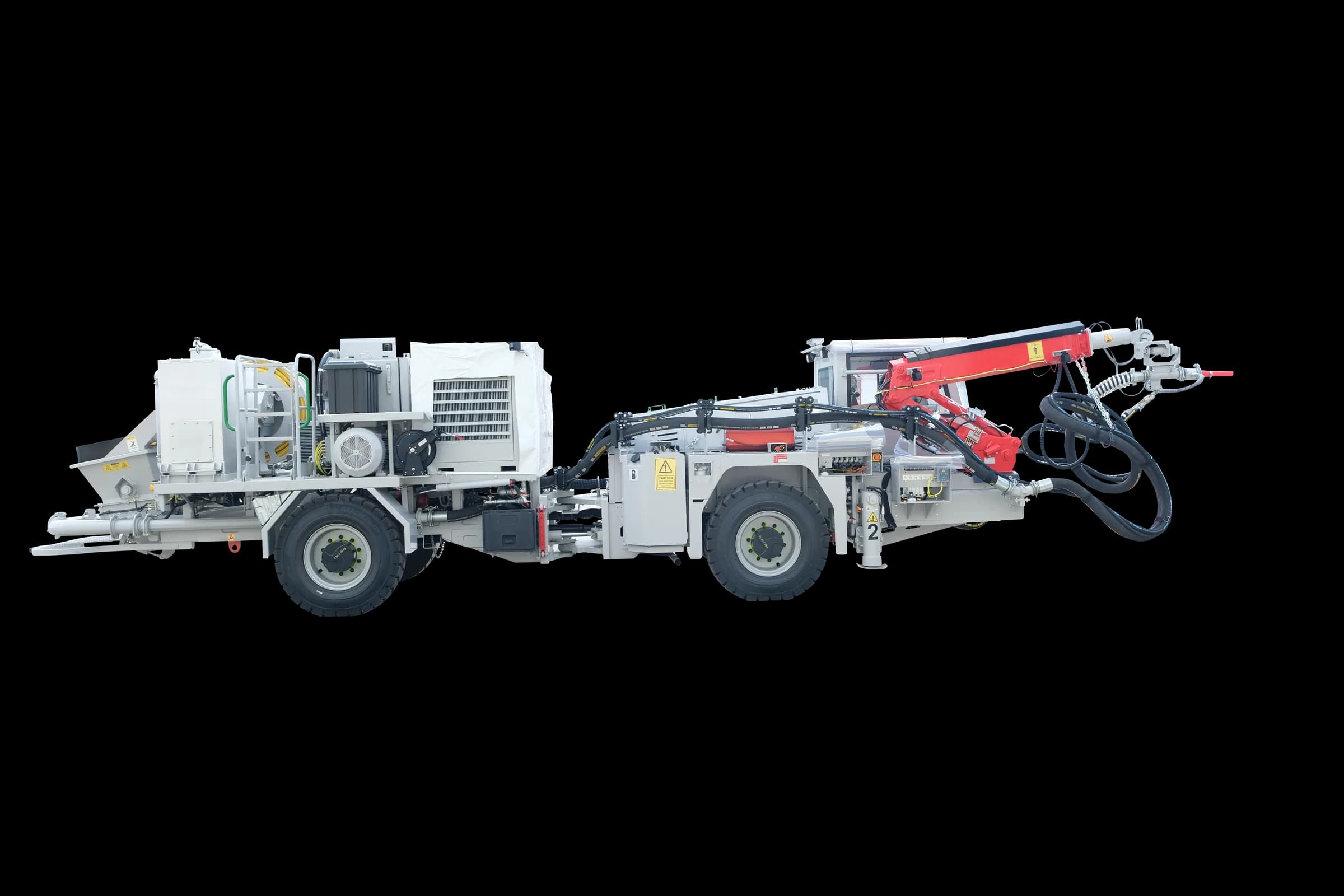

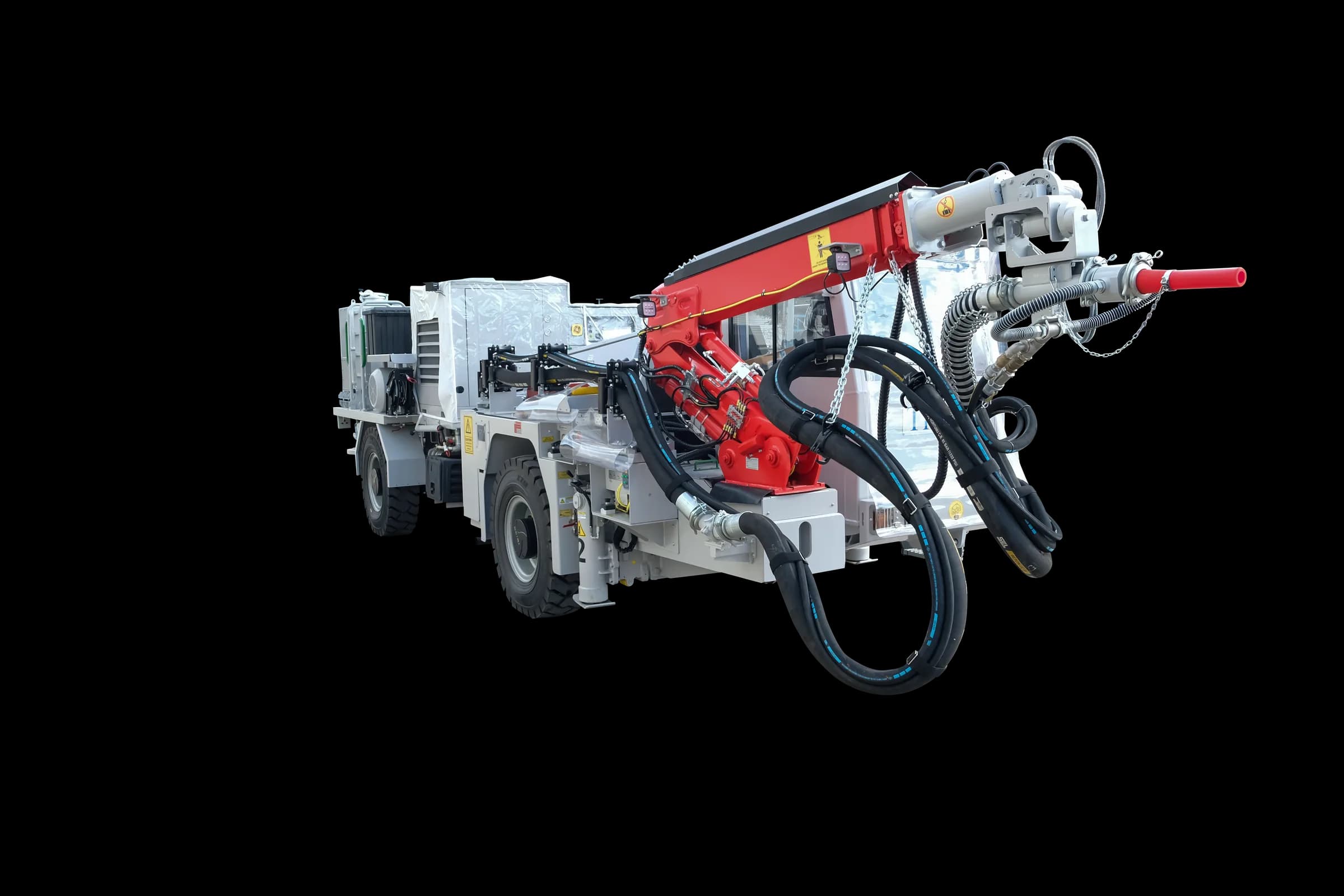

BIS20 - Concrete Spraying Machine

Name: BIS20 - Concrete Spraying Machine
Brand: Titan Makina
SKU: BIS20

Wet-Mix Shotcrete

Shotcrete Machines

BIS20 - Concrete Spraying Machine

MODEL · BIS20

Wet-mix shotcrete machine with 9.8 m vertical reach, dual electric and diesel drive, and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(12)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm / 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank CapacityDiffers	160 l	130 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T24.000	Dana Spicer T24.000
Powershift Transmission 3-Speed Forward, 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Rigid	Rigid
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 40° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs extendible	Front, 2 pcs extendible
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow RateDiffers	300 l/min at 1450 rpm (Electric) 130 l/min at 2300 rpm (Diesel)	300 l/min at 1450 rpm (Electric) 130 l/min at 2200 rpm (Diesel)
Hydraulic Oil Tank	275 l	275 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working LightsDiffers	6 x 1800 Lumen LED Lamp in Front of the Operator Cabin 2 x 1800 Lumen LED Lamp Behind the Operator Cabin 4 x 1800 Lumen LED Lamp on the Boom 3 x 1800 lumen LED lamps at the rear of the machine Turn Signals	6 x 1800 Lumen LED Lamp in Front of the Operator Cabin
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 Lumen LED lamps behind the operator cabinStage V only 4 x 1800 lumen LED lights on the boomStage V only 3 x 1800 lumen LED lamps at the rear of the machineStage V only Turn SignalsStage V only

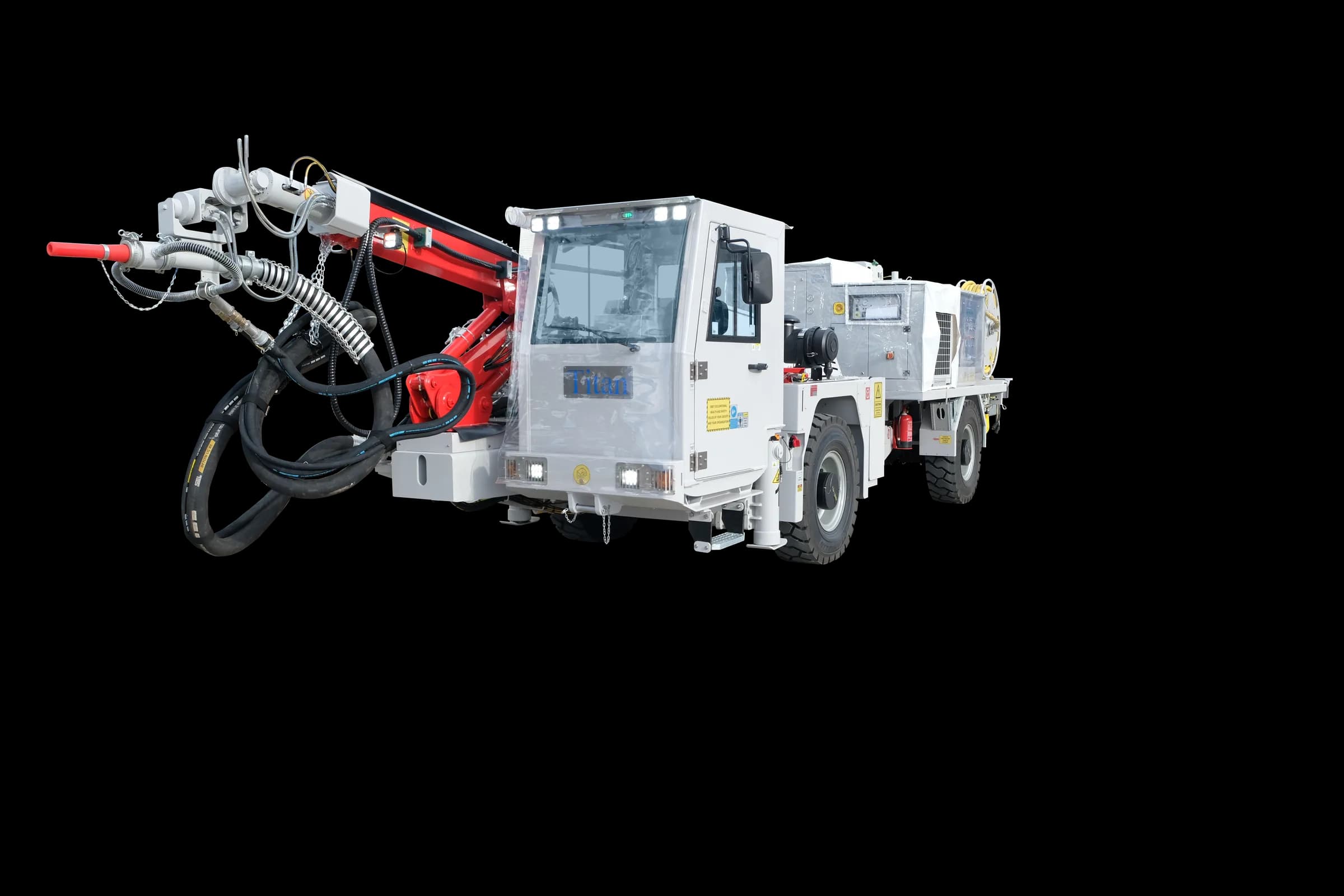

Titan Closed Operator Cabin
1-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box In-Cabin Heater Transparent protection plate on the windshield
Dimensions and Weight
WeightDiffers	16,500 kg (Approx.)	17,000 kg (Approx.)
LengthDiffers	11,030 mm	11,350 mm
Width	2,300 mm	2,300 mm
Height	2,570 mm	2,570 mm
Inner Turning RadiusDiffers	4,100 mm	4,300 mm
Outer Turning RadiusDiffers	7,300 mm	7,550 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front tow bar Battery Isolator switch Back-up alarm and light

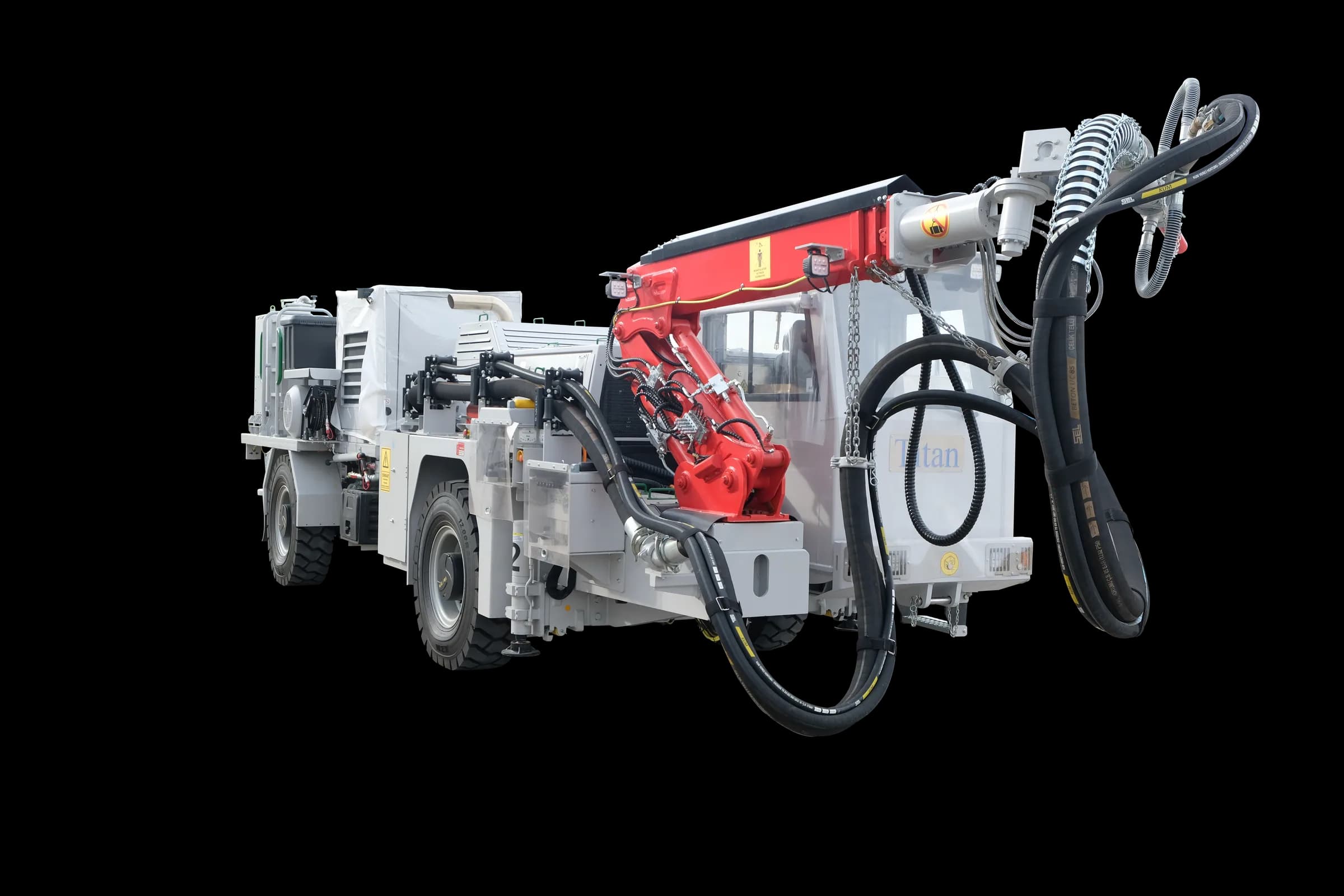

Manipulator
Max. Reach Vertical	9.8 m	9.8 m
Max. Reach Horizontal	8.3 m	8.3 m
Spray Nozzle
Rotation	350°	350°
Tilt	135°	135°
Oscillation 8°

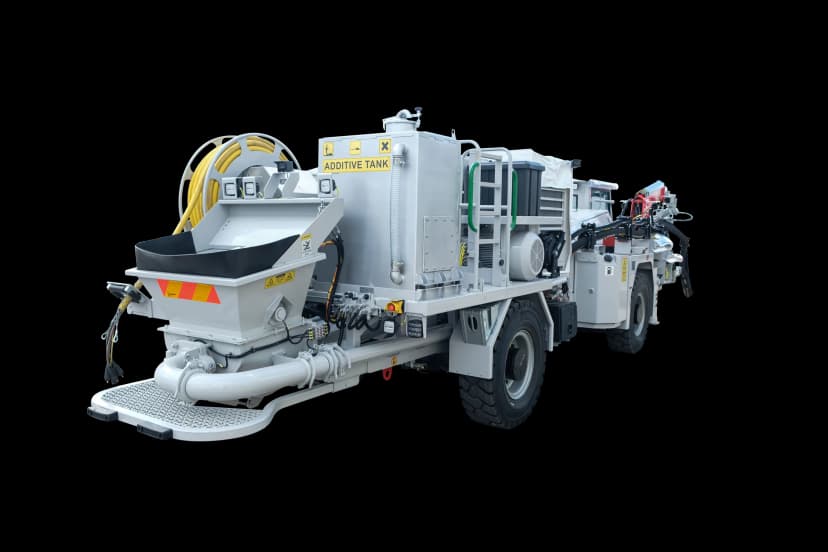

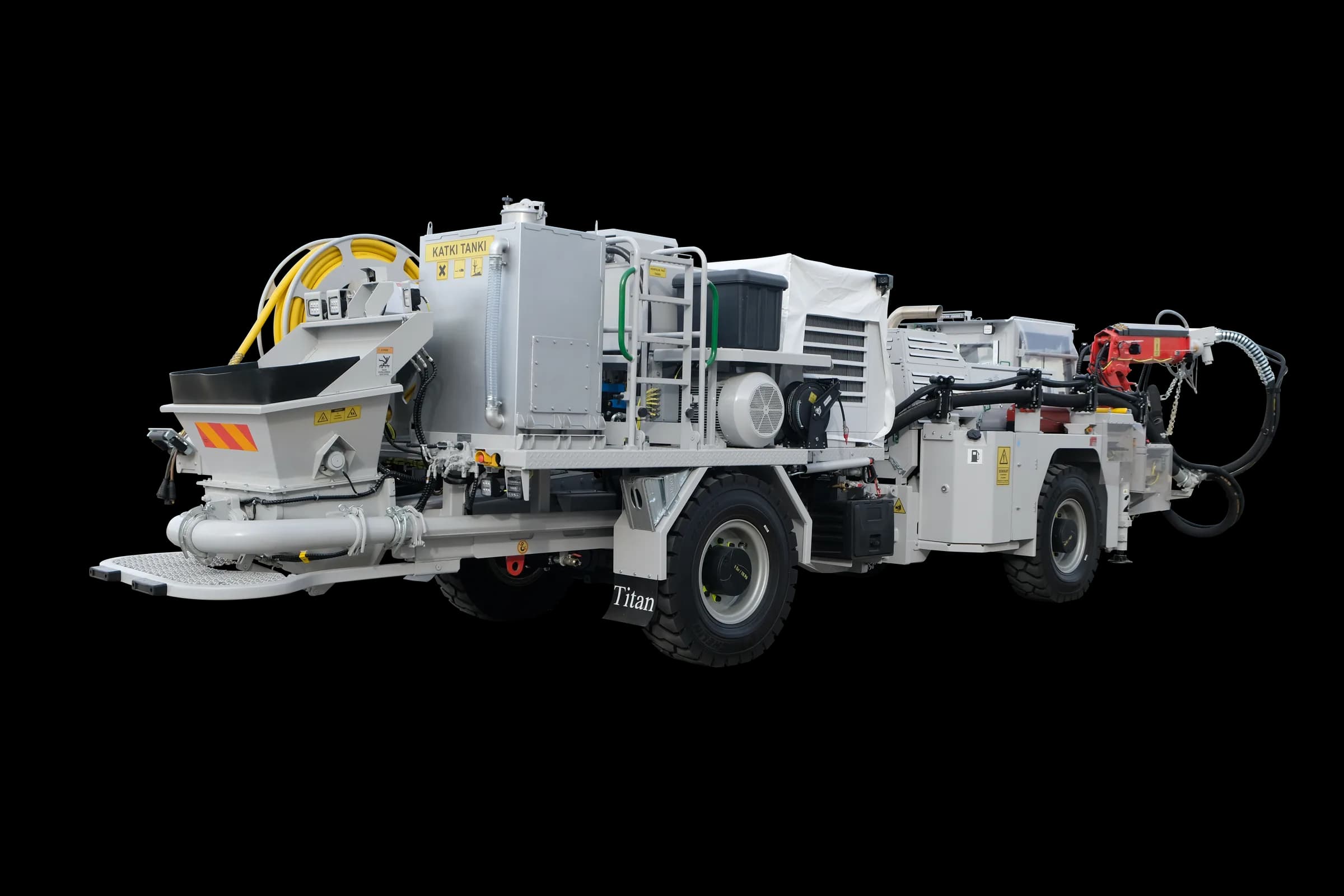

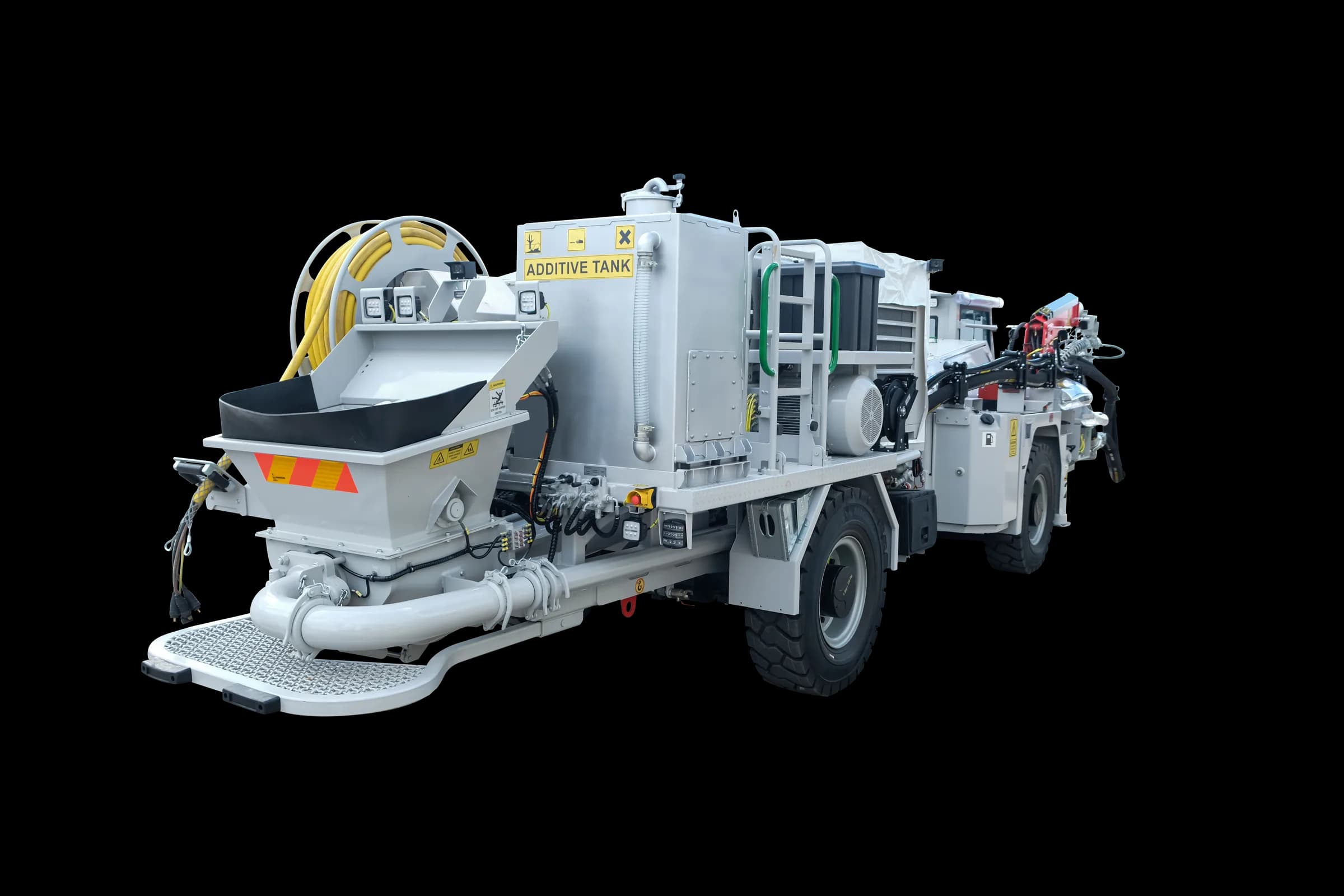

Concrete Pump
Make / Model	Titan Hydraulically Driven Twin Cylinder Pump	Titan Hydraulically Driven Twin Cylinder Pump
Max. Capacity	34 m³/h (Theoretical)	34 m³/h (Theoretical)
Concrete Cylinder	180 x 1,000 mm	180 x 1,000 mm
Max. Concrete Pressure	50 bar	50 bar
Hopper Volume	250 l	250 l
Concrete Line Diameters	5" - 4" - 3"	5" - 4" - 3"
Hopper grid with vibrator With hopper illumination light Hydraulically Controlled Bottom Shutter
Power Unit
1470 rpm electric motor 55 kW - 400V - 50Hz - IP55
Cable Reel
Drive	Hydraulic	Hydraulic
Power	400 V 50 Hz	400 V 50 Hz
Cable Length	50 m	50 m
Cable Cross-Section	3 x 70 mm²+1x 35 mm²	3 x 70 mm²+1x 35 mm²
3x70 mm²+3x16 mm²(Option) Stainless collector box 660 V Power (option)
Compressor
Make	Ekomak	Ekomak
Model	Electrically Driven Screw	Electrically Driven Screw
Power	55 kW	55 kW
Max. Air Flow Rate	10.2 m³/min	10.2 m³/min
Max. Working Pressure	6 bar	6 bar
Cable Remote Control
Specifications	Nozzle and Manipulator movements Nozzle Oscillation Air line on/off Dosing on/off Dosing flow adjustment Pumping suction/discharge Emergency stop Horn	Nozzle and Manipulator movements Nozzle Oscillation Air line on/off Dosing on/off Dosing flow adjustment Pumping suction/discharge Emergency stop Horn
Dosing System
Model	Electric Peristaltic Pump	Electric Peristaltic Pump
Power	1.5 kW	1.5 kW
Max. Flow Rate	600 l/h	600 l/h
Working Pressure	8 bar	8 bar
Additive Tank	500 l (Stainless) Stainless additive line	500 l (Stainless) Stainless additive line
High Pressure Washing System
Pump Drive	Hydraulic	Hydraulic
Pressure	135 bar	135 bar
Flow Rate	16 l/min	16 l/min
Hose Length	13 m	13 m
Water TankDiffers	160 l	130 l
Hose Diameter 5/16"
Other
Centralized greasing system
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only PLC concrete and dosing control system PLC concrete and dosing monitoring system Surface lubrication system High pressure wall washing set (Water Scaler) Radio Frequency Remote Control
