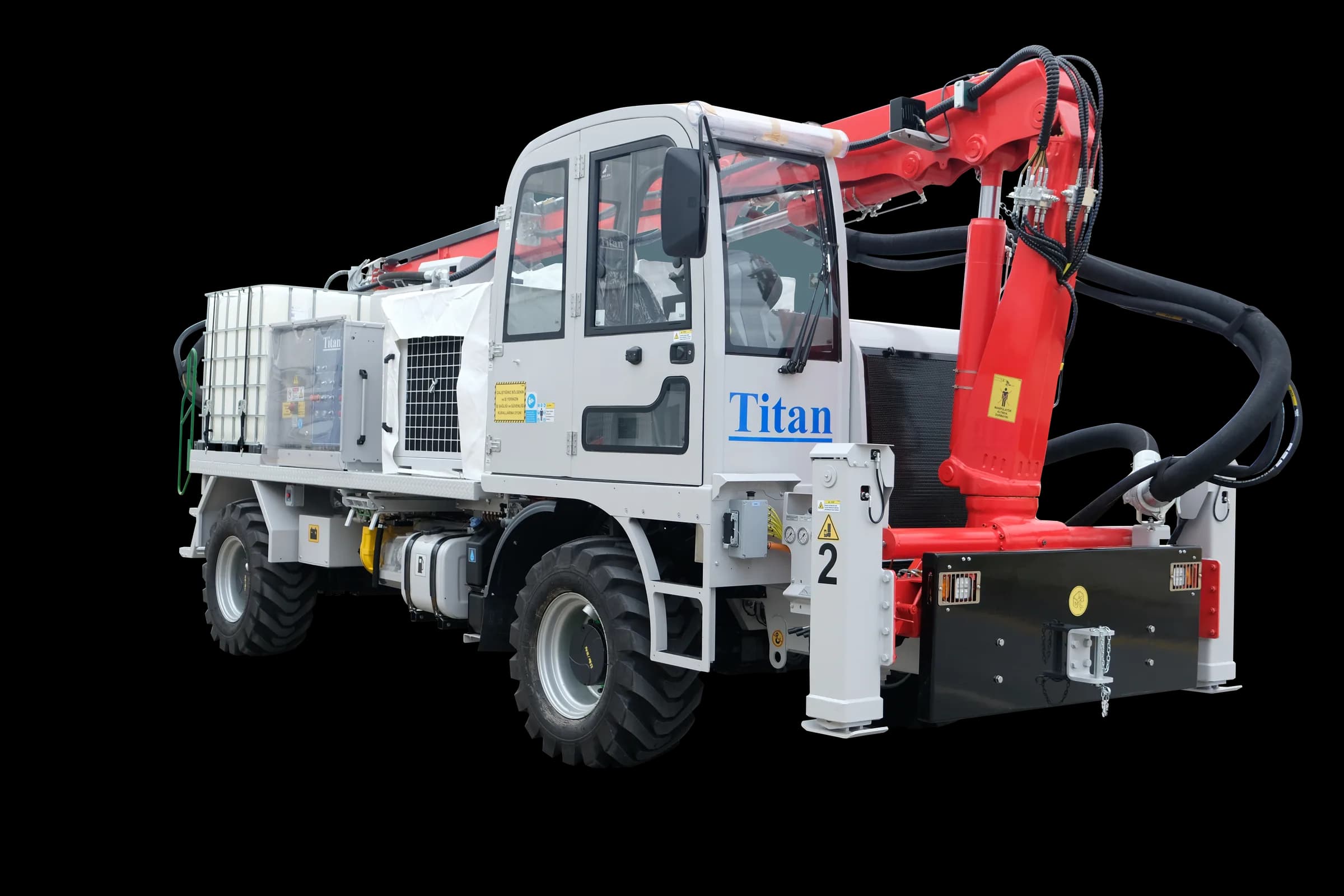

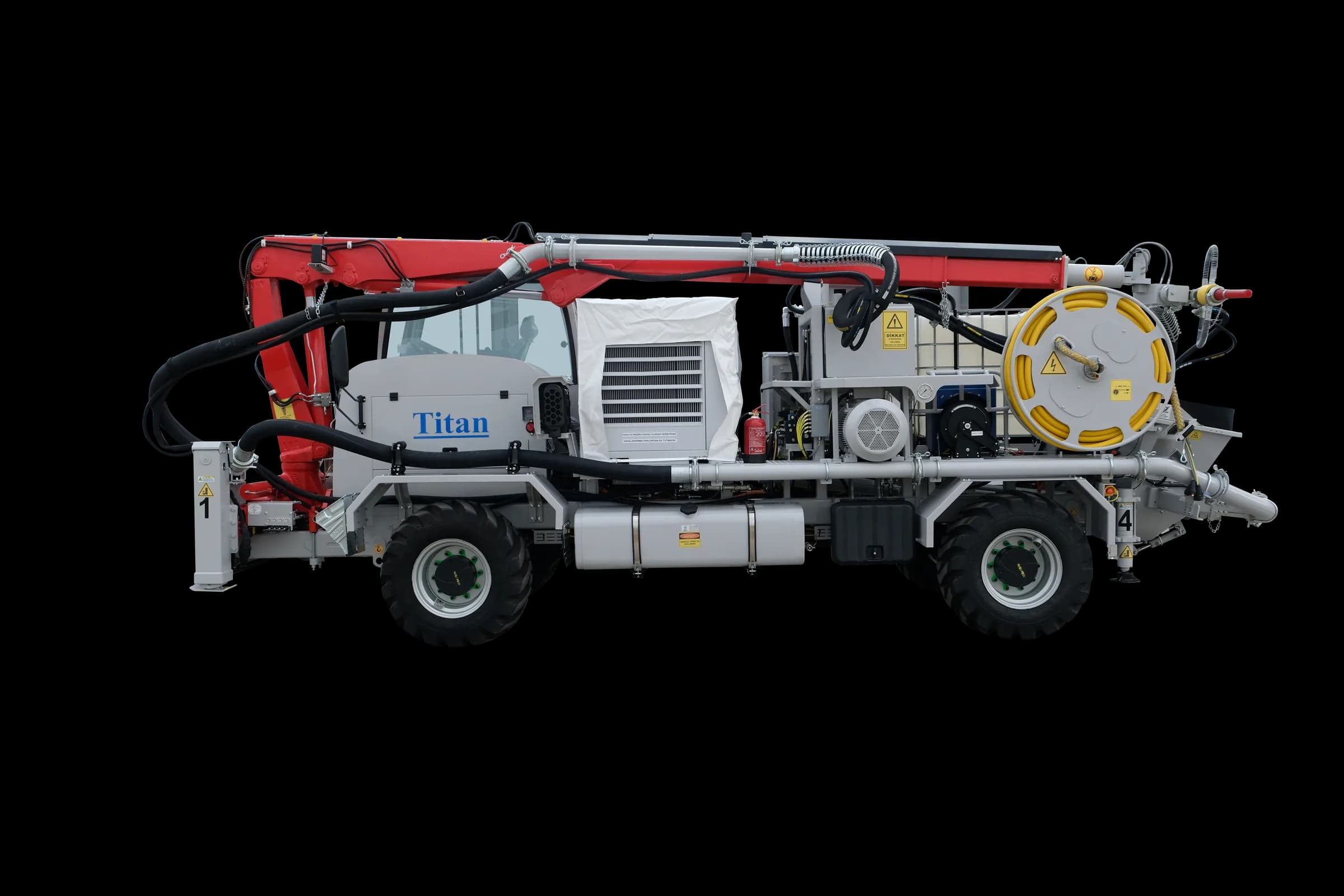

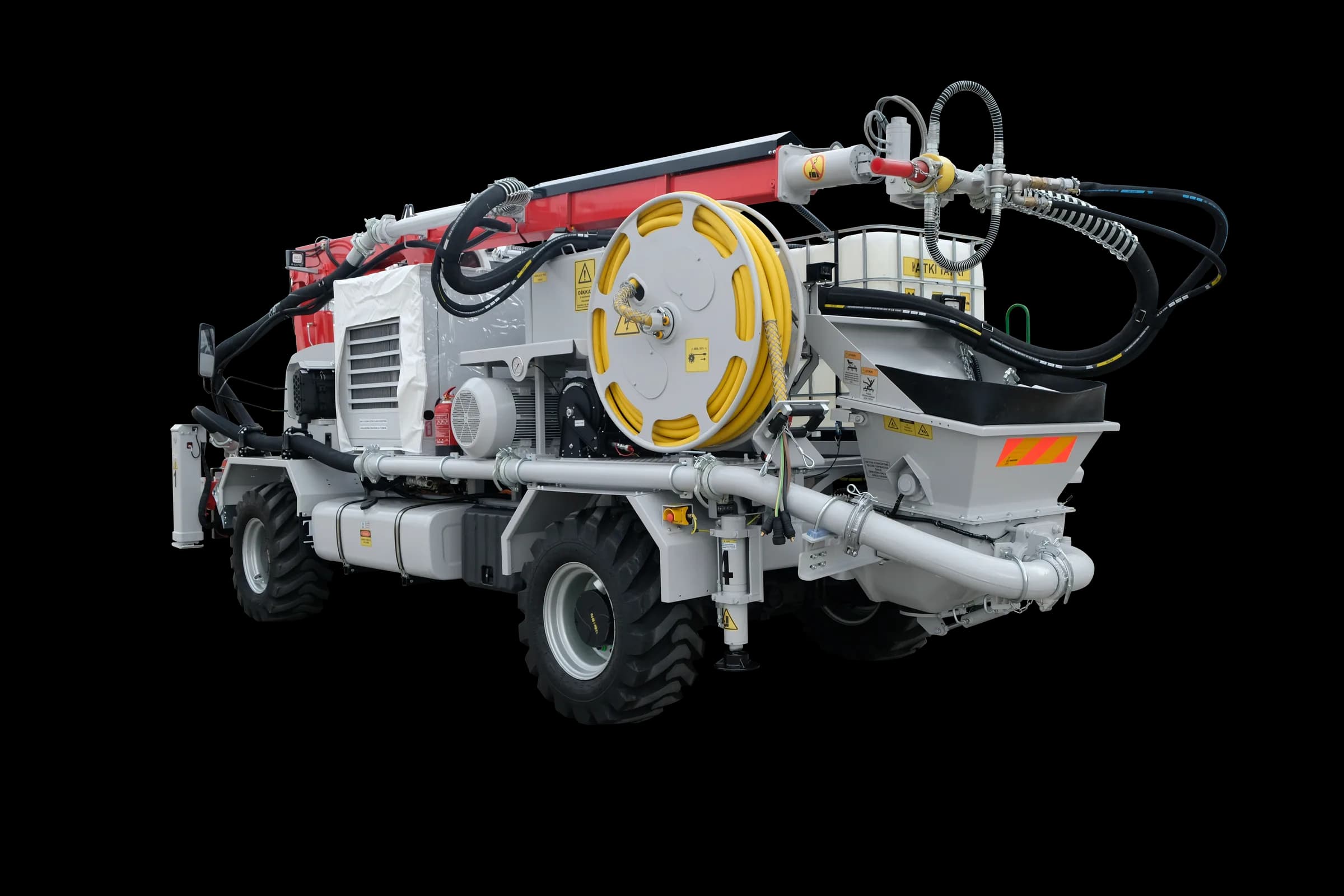

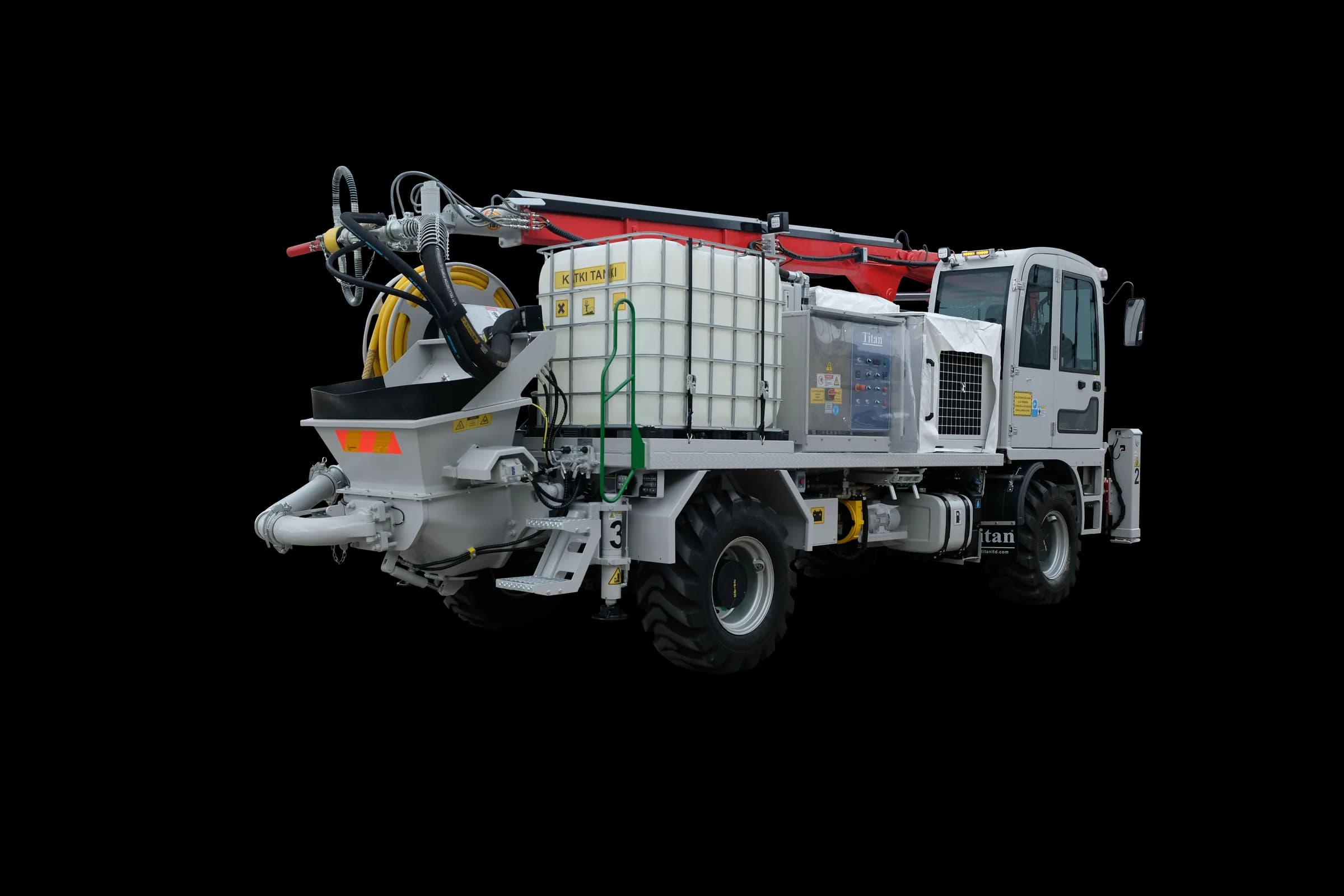

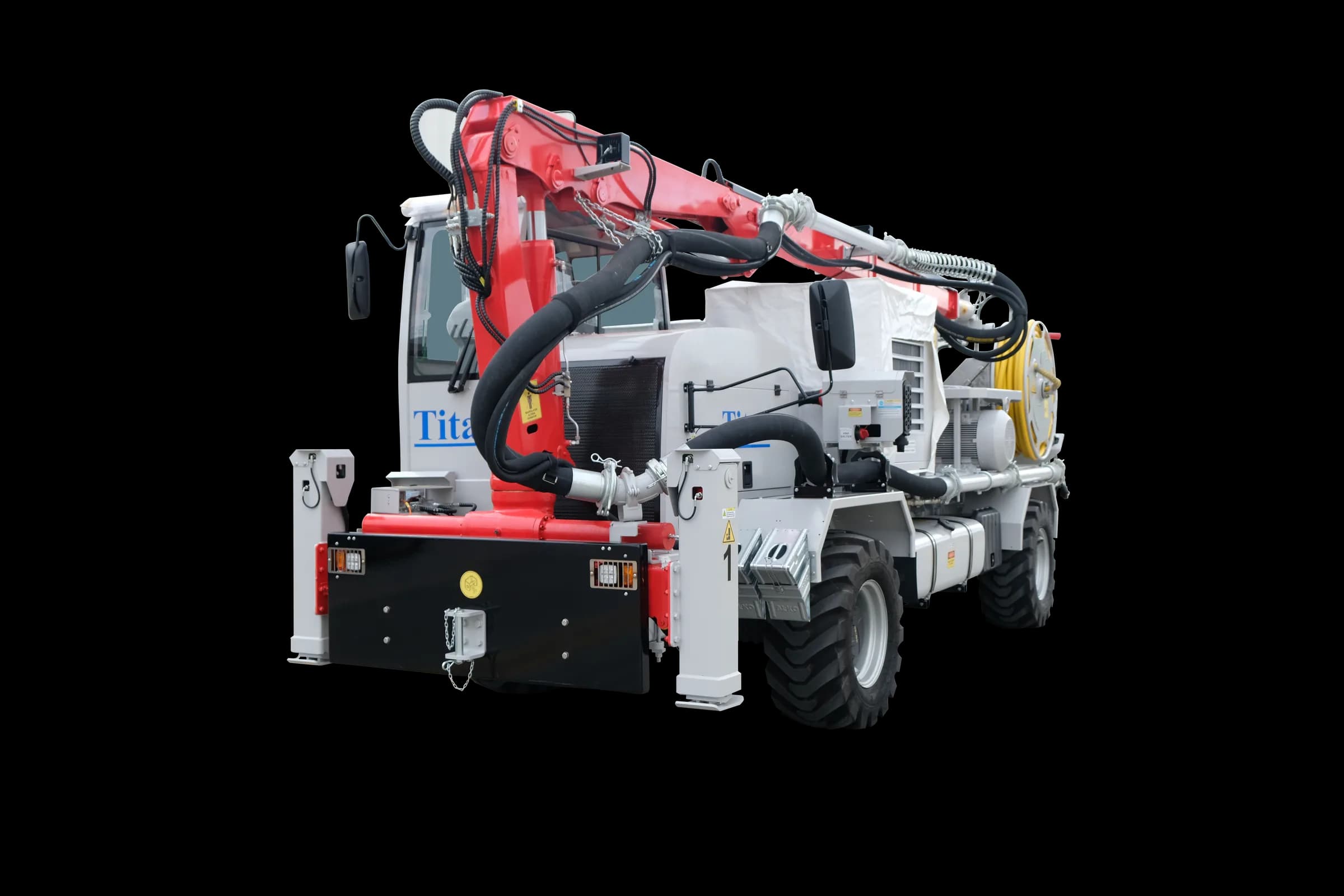

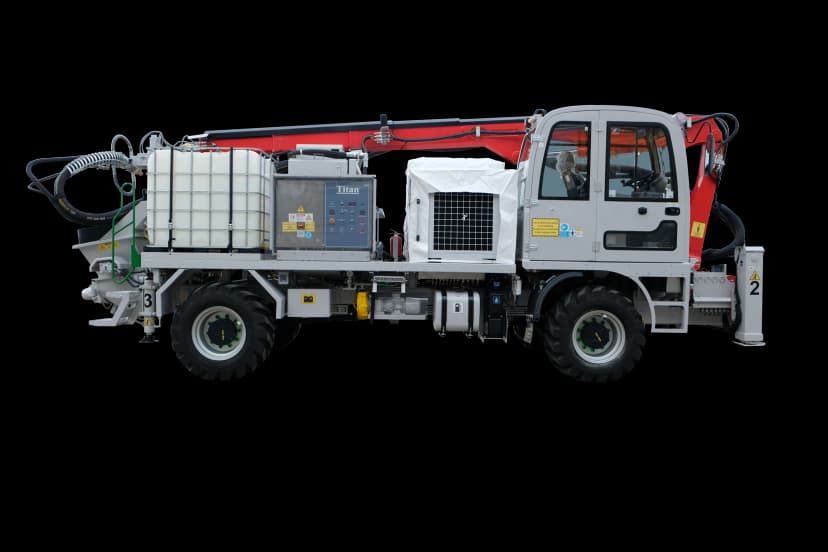

IS26 - Concrete Spraying Machine

MODEL · IS26

Wet-mix shotcrete machine with a theoretical 34 m³/h output, a 55 kW electric drive and an 85 kW Stage V diesel engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(4)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	80 l	80 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift automatic transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Steerable	Steerable
Tires	16.00 / 70-20	16.00 / 70-20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs extendible	Front, 2 pcs extendible
Rear, 2 pcs fixed
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow Rate	290 l/min at 1450 rpm (Electric) 75 l/min at 2300 rpm (Diesel)	290 l/min at 1450 rpm (Electric) 75 l/min at 2300 rpm (Diesel)
Hydraulic Oil Tank	325 l	325 l
Return Oil Filter	25 µm	25 µm
Oil level, temperature indicators
Electric System
Battery	24V - 2x105 Ah	24V - 2x105 Ah
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 lumen LED lamps on the front bumper 1 x 1800 Lumen LED light in front of the operator cabin 1 x 1800 Lumen LED light behind the operator cabin 4 x 1800 lumen LED lights on the boom 3 x 1800 lumen LED lamps at the rear of the machine Turn Signals
Titan Closed Operator Cabin
1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Transparent protection plate on the windshield Cabin Lighting In-Cabin Heater
Dimensions and Weight
WeightDiffers	12,420 kg (Approx.)	12,920 kg (Approx.)
Length	7,800 mm	7,800 mm
Width	2,400 mm	2,400 mm
Height	3,050 mm	3,050 mm
Inner Turning Radius	4,300 mm	4,300 mm
Outer Turning Radius	7,700 mm	7,700 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front tow bar Battery Isolator switch Back-up alarm and light
Manipulator
Max. Spraying Reach Vertical	14 m	14 m
Max. Spraying Reach Horizontal	10.8 m	10.8 m
Spray Nozzle
Rotation	350°	350°
Tilt	135°	135°
Oscillation 8°
Concrete Pump
Make / Model	Titan Hydraulically Driven Twin Cylinder Pump	Titan Hydraulically Driven Twin Cylinder Pump
Max. Capacity	34 m³/h (Theoretical)	34 m³/h (Theoretical)
Concrete Cylinder	180 mm x 1000 mm	180 mm x 1000 mm
Max. Concrete Pressure	50 bar	50 bar
Max. Hydraulic Pressure	210 bar	210 bar
Hopper Volume	250 l	250 l
Concrete Line Diameters	5" - 4" - 3"	5" - 4" - 3"
Concrete grid with hydraulic vibrator Hydraulically Controlled Bottom Shutter
Power Unit
1470 rpm electric motor 55 kW - 400V - 50Hz - IP55
Cable Reel
Drive	Hydraulic	Hydraulic
Power	400 V 50 Hz	400 V 50 Hz
Cable Length	50 m	50 m
Cable Cross-Section	3x70 mm² + 1x35 mm²	3x70 mm² + 1x35 mm²
Cable Remote Control
Specifications	Nozzle and Manipulator movements Nozzle Oscillation Air line on/off Dosing on/off Dosing flow adjustment Pumping suction/discharge Emergency stop Horn	Nozzle and Manipulator movements Nozzle Oscillation Air line on/off Dosing on/off Dosing flow adjustment Pumping suction/discharge Emergency stop Horn
Compressor
Make	Ekomak	Ekomak
Model	Electric Screw Compressor	Electric Screw Compressor
Power	55 kW	55 kW
Max. Air Flow Rate	10.2 m³/min	10.2 m³/min
Max. Working Pressure	6 bar	6 bar
Cooling Fan Motor	1.1 kW	1.1 kW
Dosing System
Model	Electric Peristaltic Hose Pump	Electric Peristaltic Hose Pump
Power	1.5 kW	1.5 kW
Max. Flow Rate	600 l/h	600 l/h
Working Pressure	8 bar	8 bar
Additive Tank	1000 l	1000 l
High Pressure Washing System
Pump Drive	Hydraulic	Hydraulic
Pressure	135 bar	135 bar
Flow Rate	16 l/min	16 l/min
Hose Length	10 m	10 m
Water Tank	300 l	300 l
Other
Centralized greasing system
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Fire Extinguishing System (Linear Wired) Wireless Remote Control Caliper braking system 2nd seat in the cabin PLC concrete and dosing control system PLC concrete and dosing monitoring system Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire)
