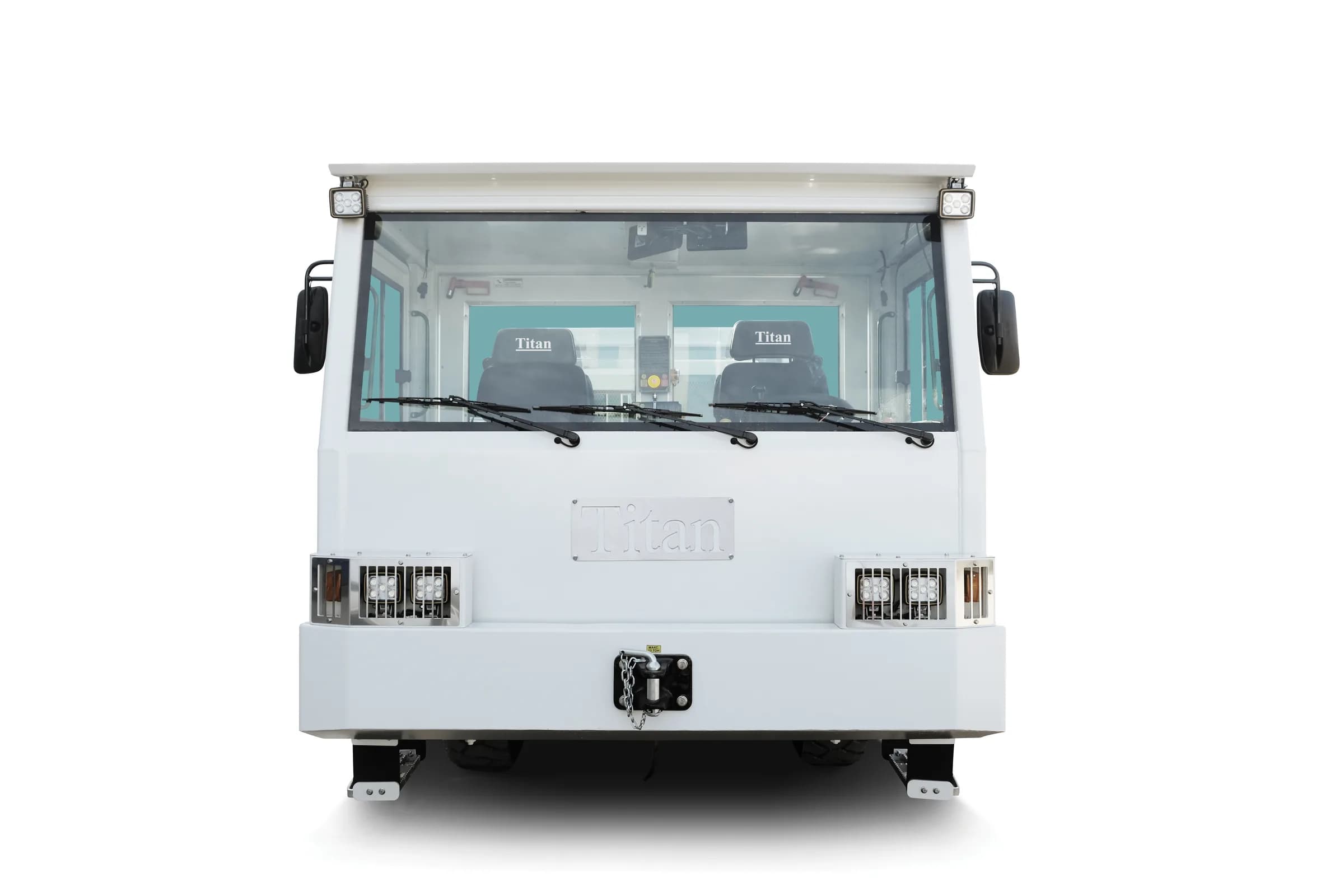

BKPT7 - Material Transporter

Name: BKPT7 - Material Transporter
Brand: Titan Makina
SKU: BKPT7

Material Transport Vehicle

Underground Transport Vehicles

BKPT7 - Material Transporter

MODEL · BKPT7

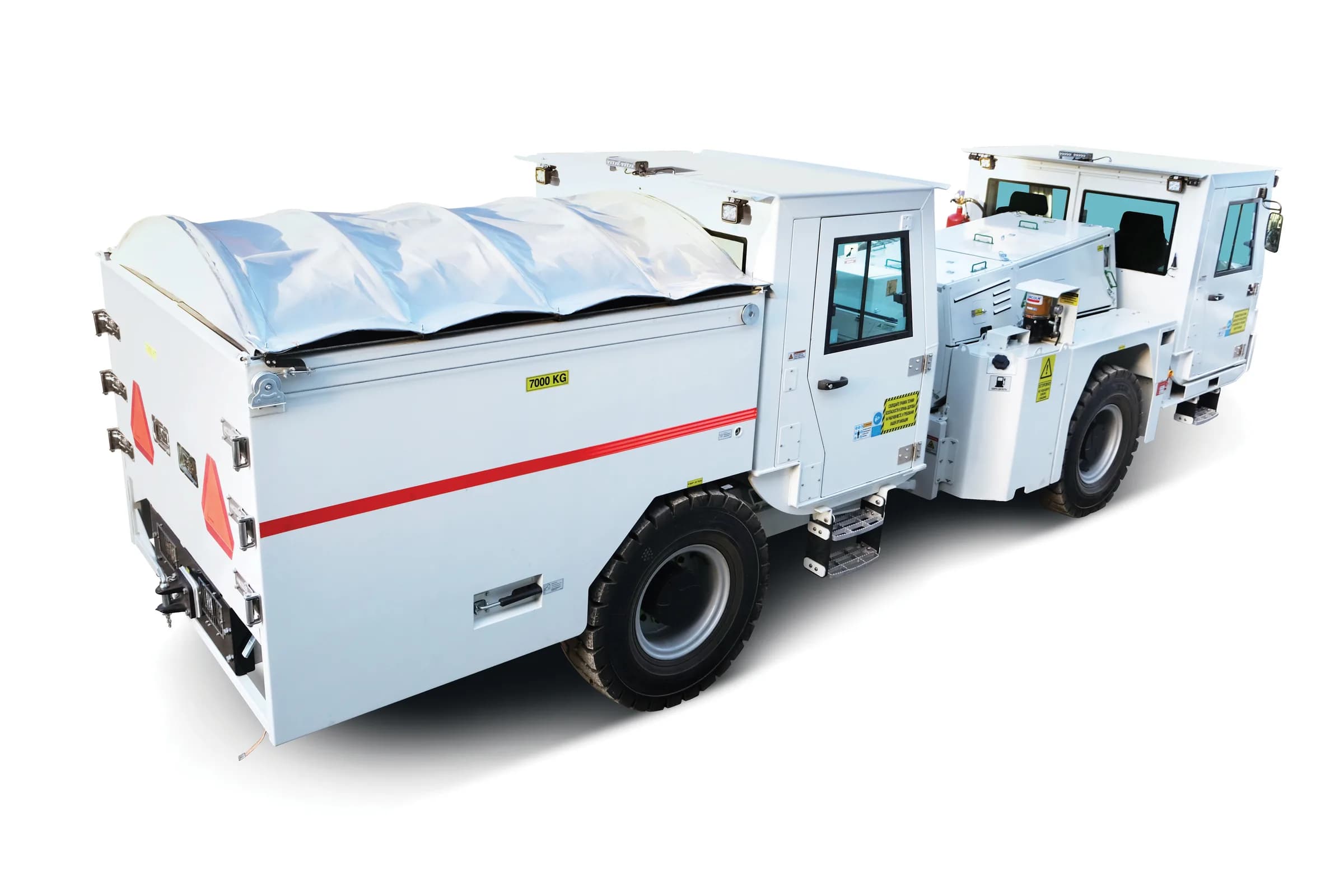

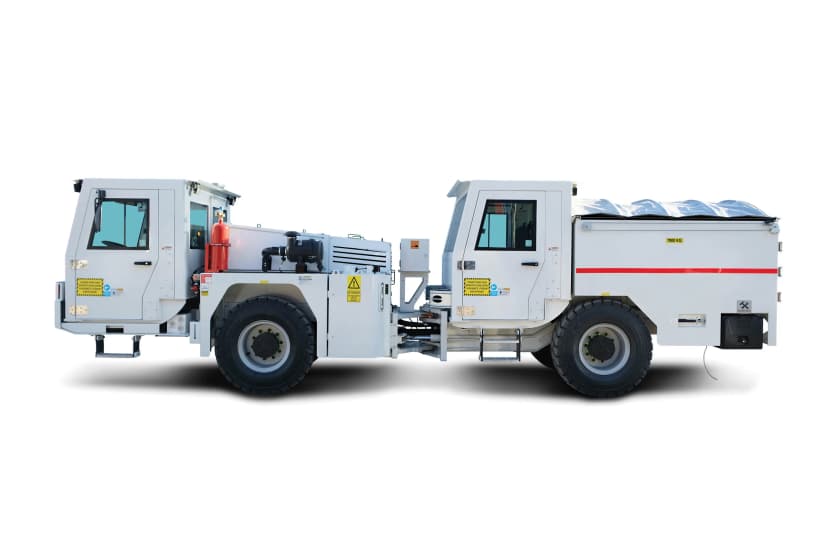

Underground material transporter with 7,000 kg capacity, a 2,000 mm body width and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(7)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank Capacity	150 l	150 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T24.000	Dana Spicer T24.000
Powershift Transmission 3-Speed Forward, 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Rigid	Rigid
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 40° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic System
Pump Type	Variable Displacement	Variable Displacement
Max. Pressure	210 bar	210 bar
Flow RateDiffers	130 l/min at 2300 rpm	130 l/min at 2200 rpm
Hydraulic Oil Tank	150 l	150 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 8 x 1800 Lumen LED Light	Operator Cabin Front 8 x 1800 Lumen LED Light
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
Operator Cabin Rear 2 x 1800 Lumen LED Lamp 2 x 1800 Lumen LED lights at the rear of the personnel cabin Rear Bumper 2 x 1800 Lumen LED Lamp Turn Signals
Titan Closed Operator Cabin
2-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box Equipment Box In-Cabin Heater
Dimensions and Weight
WeightDiffers	12,100 kg (Approx.)	12,600 kg (Approx.)
LengthDiffers	8,240 mm	8,470 mm
Width	2,000 mm	2,000 mm
Height	2,420 mm	2,420 mm
Inner Turning Radius	4,210 mm	4,210 mm
Outer Turning Radius	6,970 mm	6,970 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front and rear tow bar Battery Isolator switch Back-up alarm and light

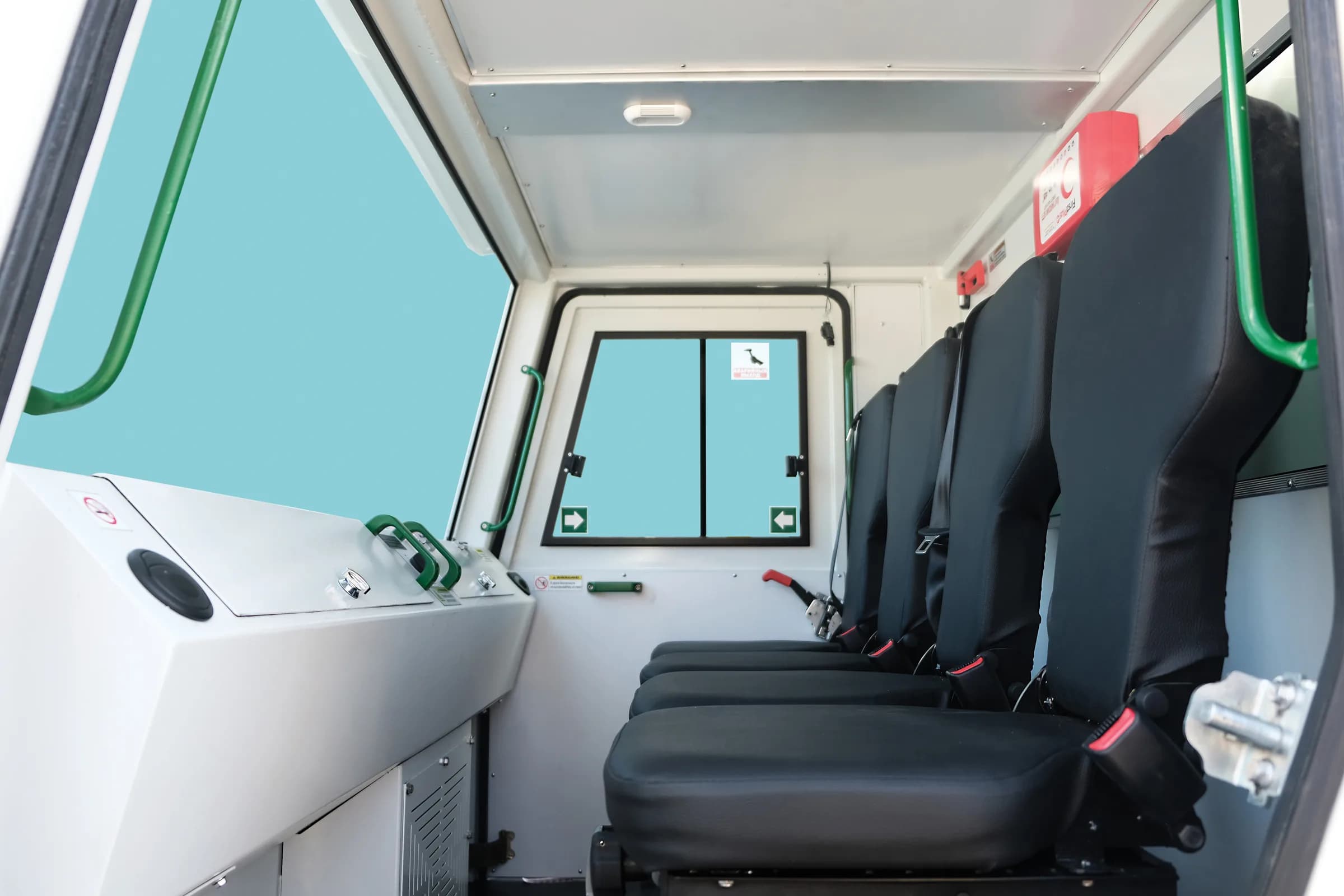

Titan Closed Personnel Cabin
4-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Ergonomic seat with 2-point seat belt Cabin Lighting Intercom connection with the operator cabin Blue or red beacon light

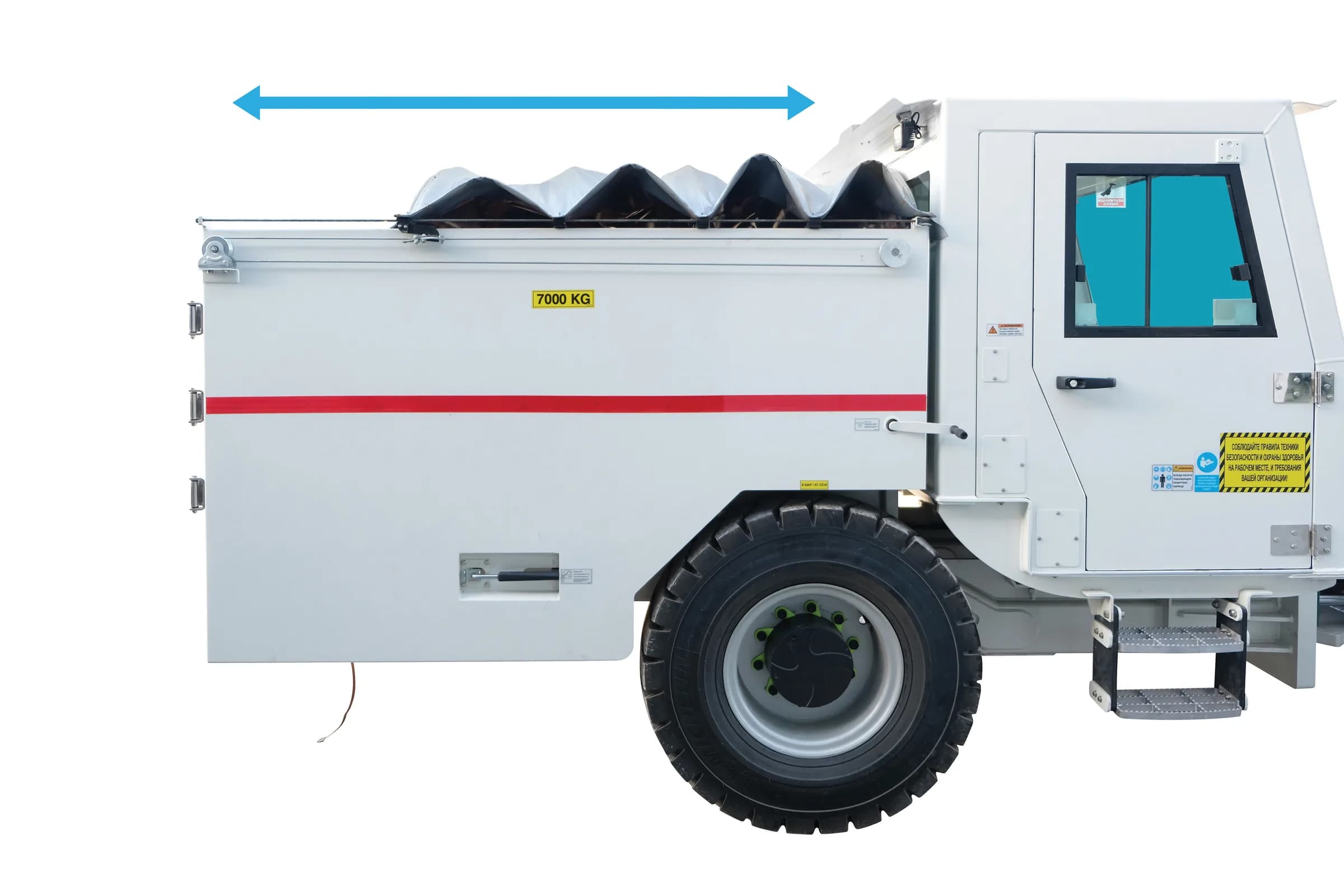

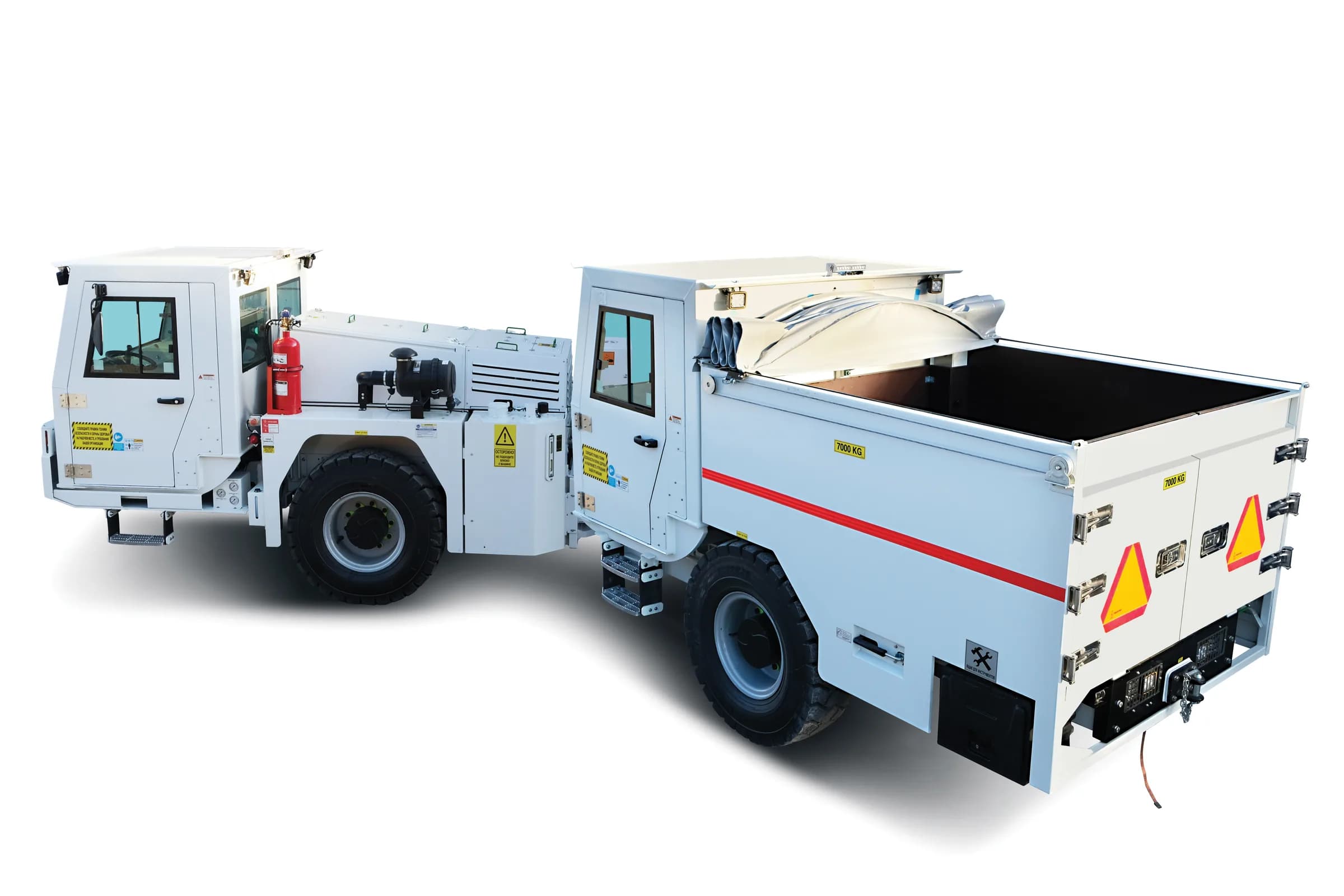

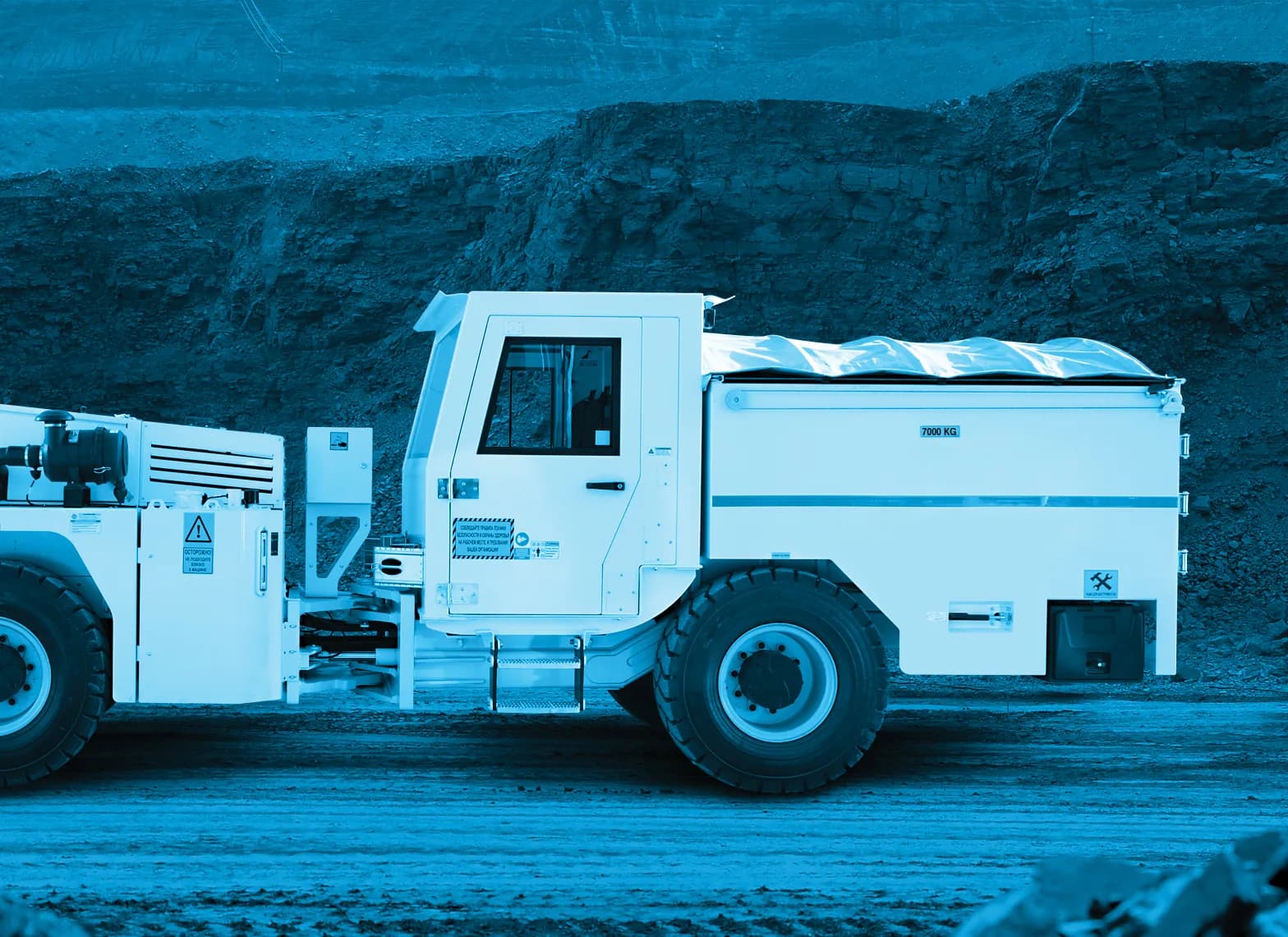

Cargo Body
Cargo Body Dimensions	2,320 mm x 2,000 mm x 980 mm	2,320 mm x 2,000 mm x 980 mm
Capacity	7,000 kg	7,000 kg

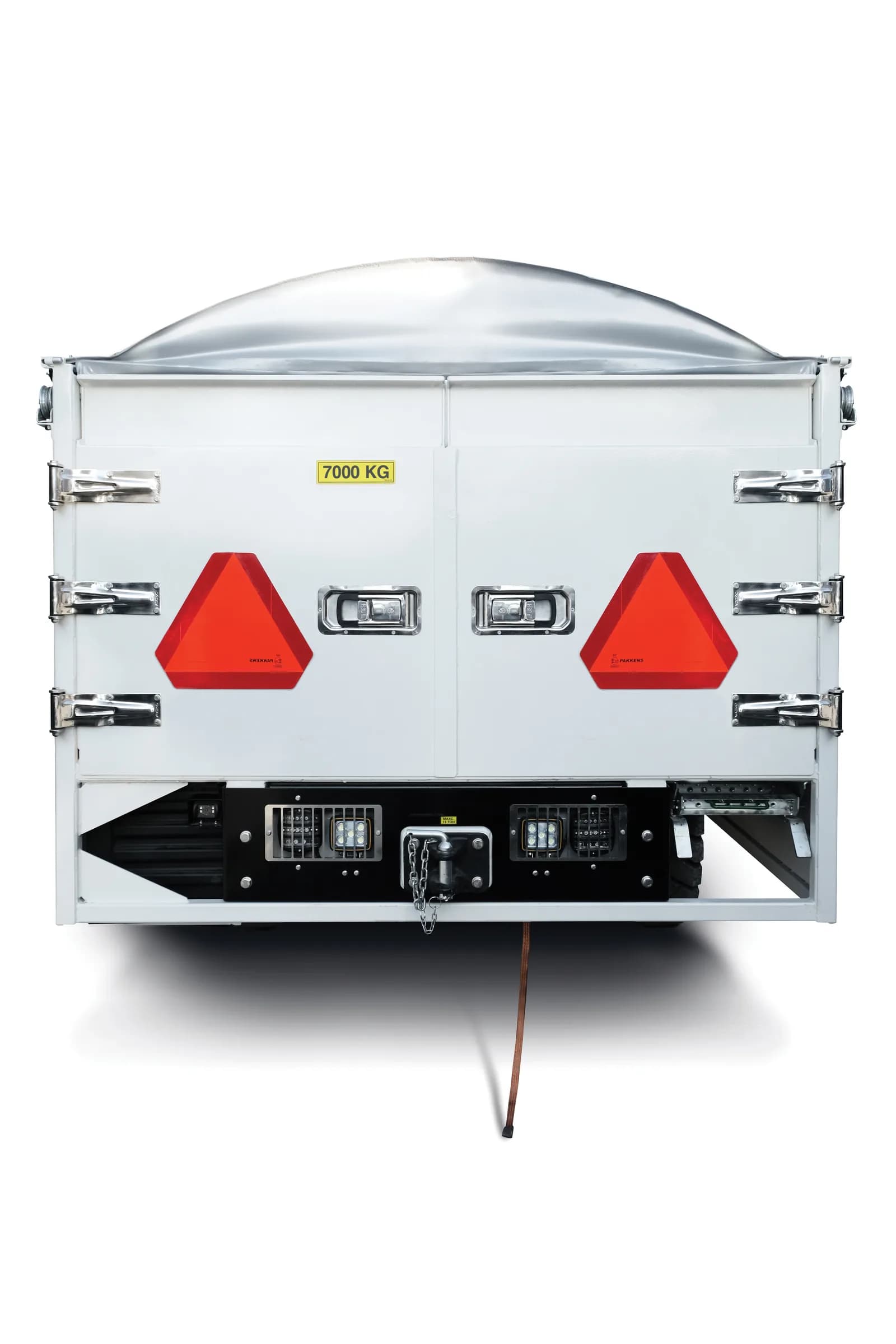

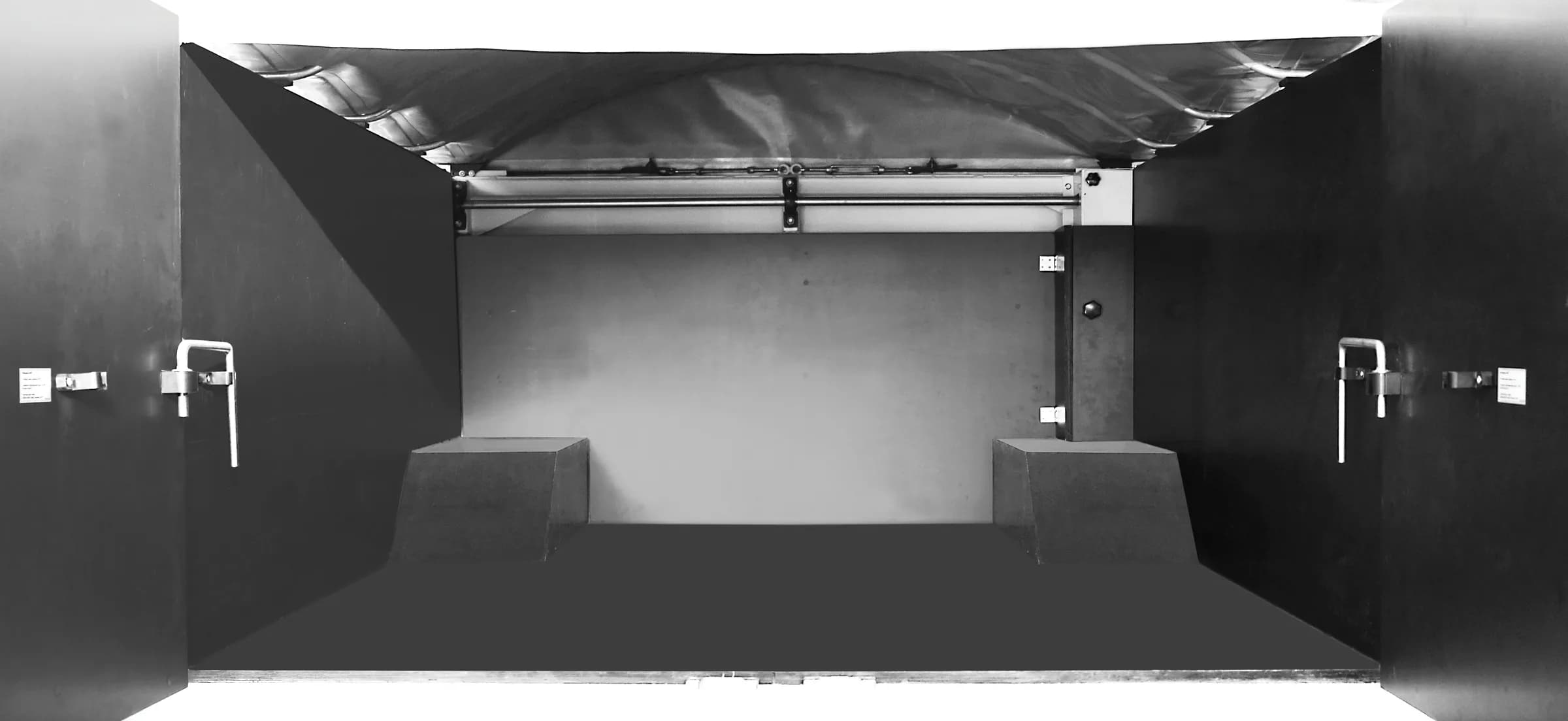

Plywood-lined cargo body inner surfaces Rear gates can be fixed at 90° and 270° Manual open/close tarpaulin mechanism over the cargo body
Explosive Storage Box
Box Dimensions	800 mm x 500 mm x 500 mm	800 mm x 500 mm x 500 mm
Rubber-coated inner surface Steel Box Lockable covers
Other
Centralized greasing system
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air-conditioned operator cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only
