PT16 - Personnel Carrier

Name: PT16 - Personnel Carrier
Brand: Titan Makina
SKU: PT16

Personnel Carrier

Underground Transport Vehicles

PT16 - Personnel Carrier

MODEL · PT16

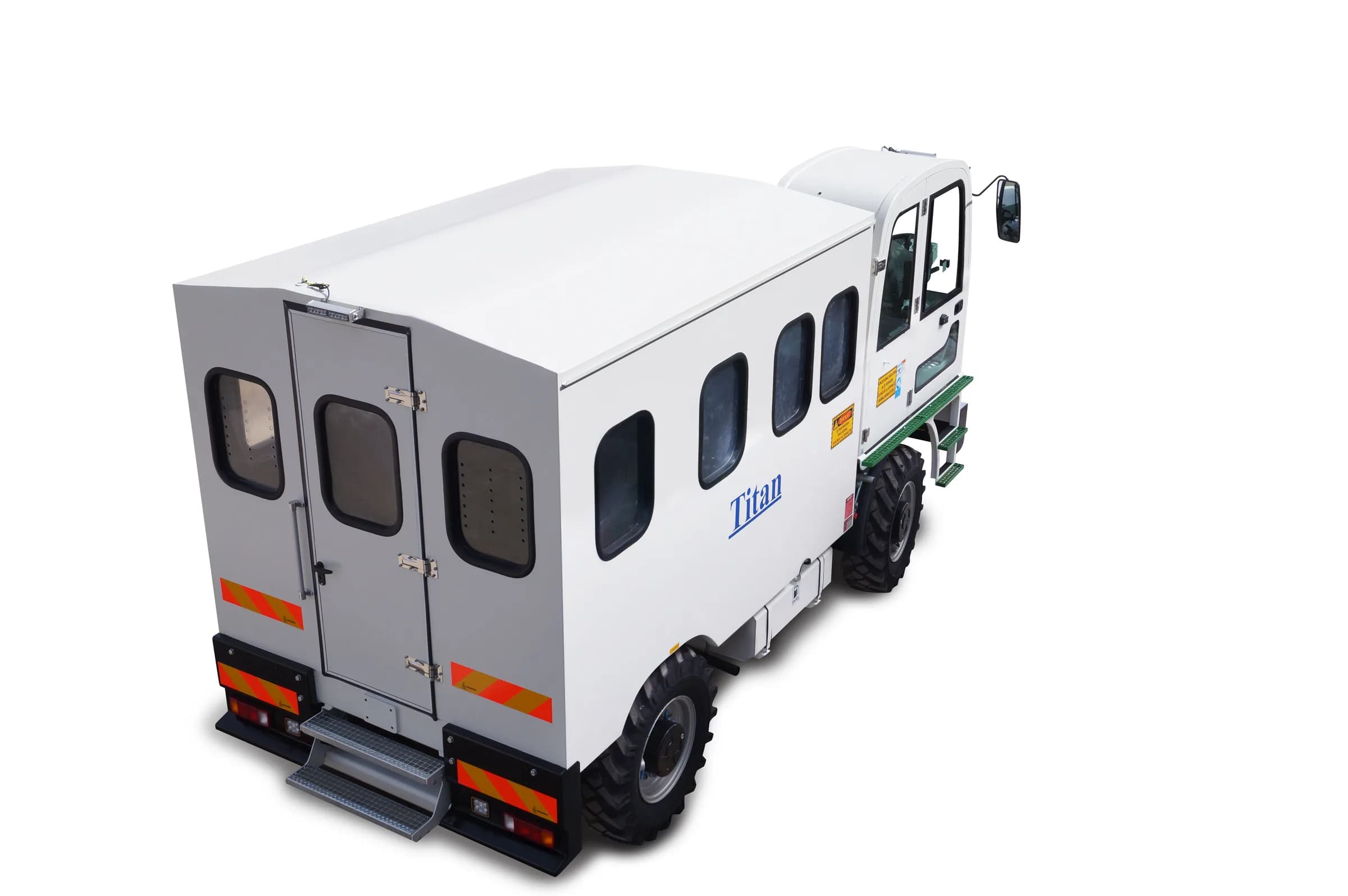

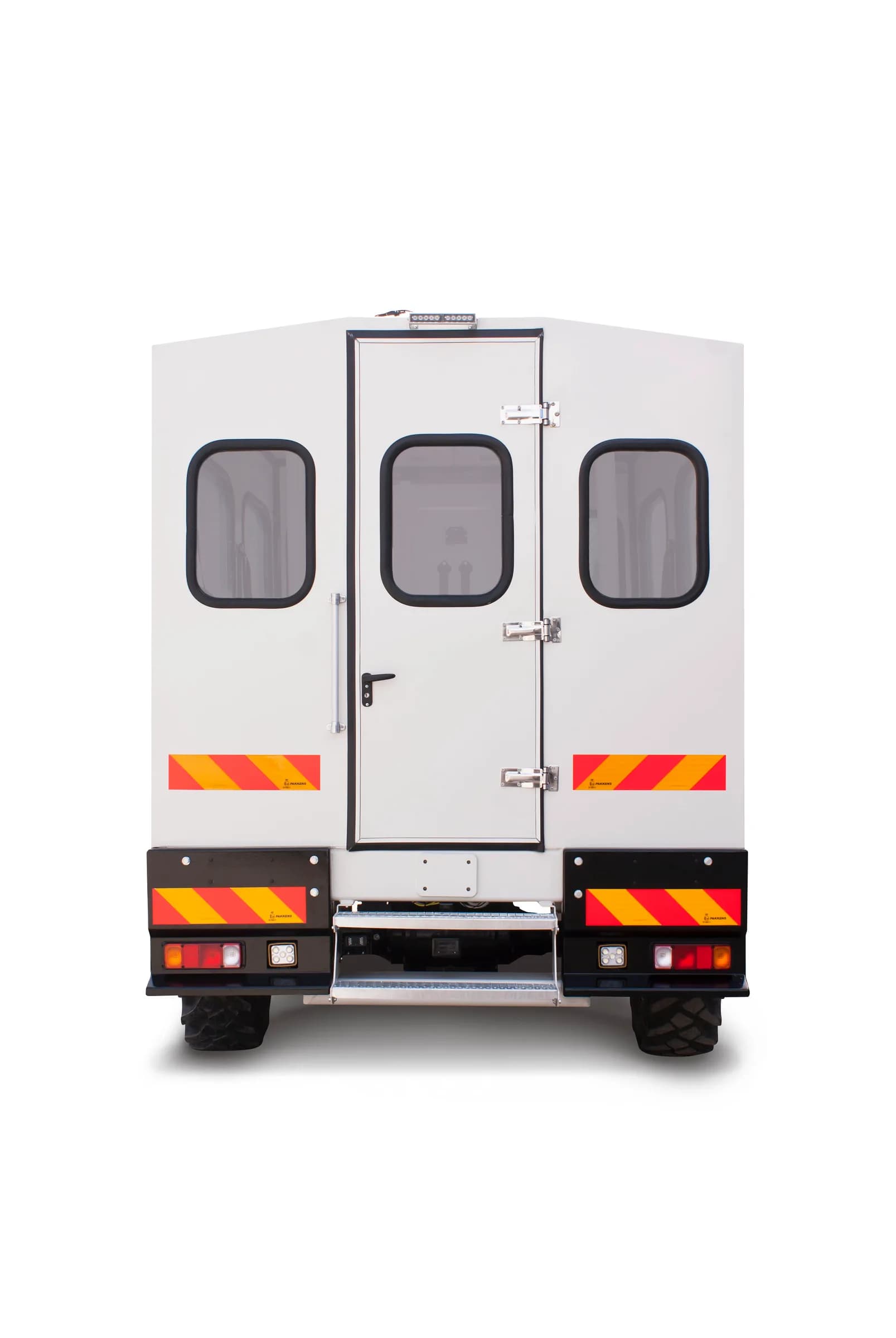

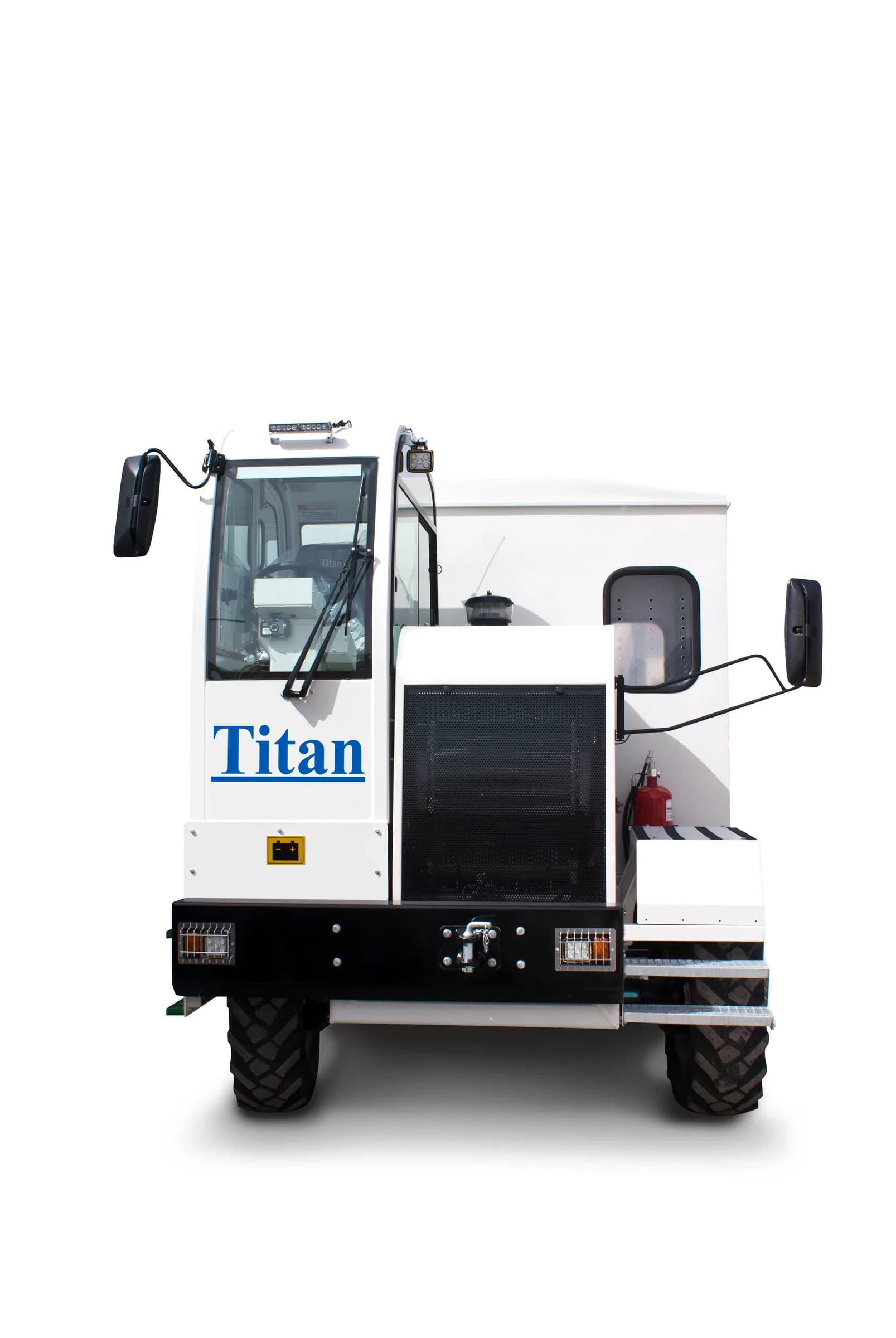

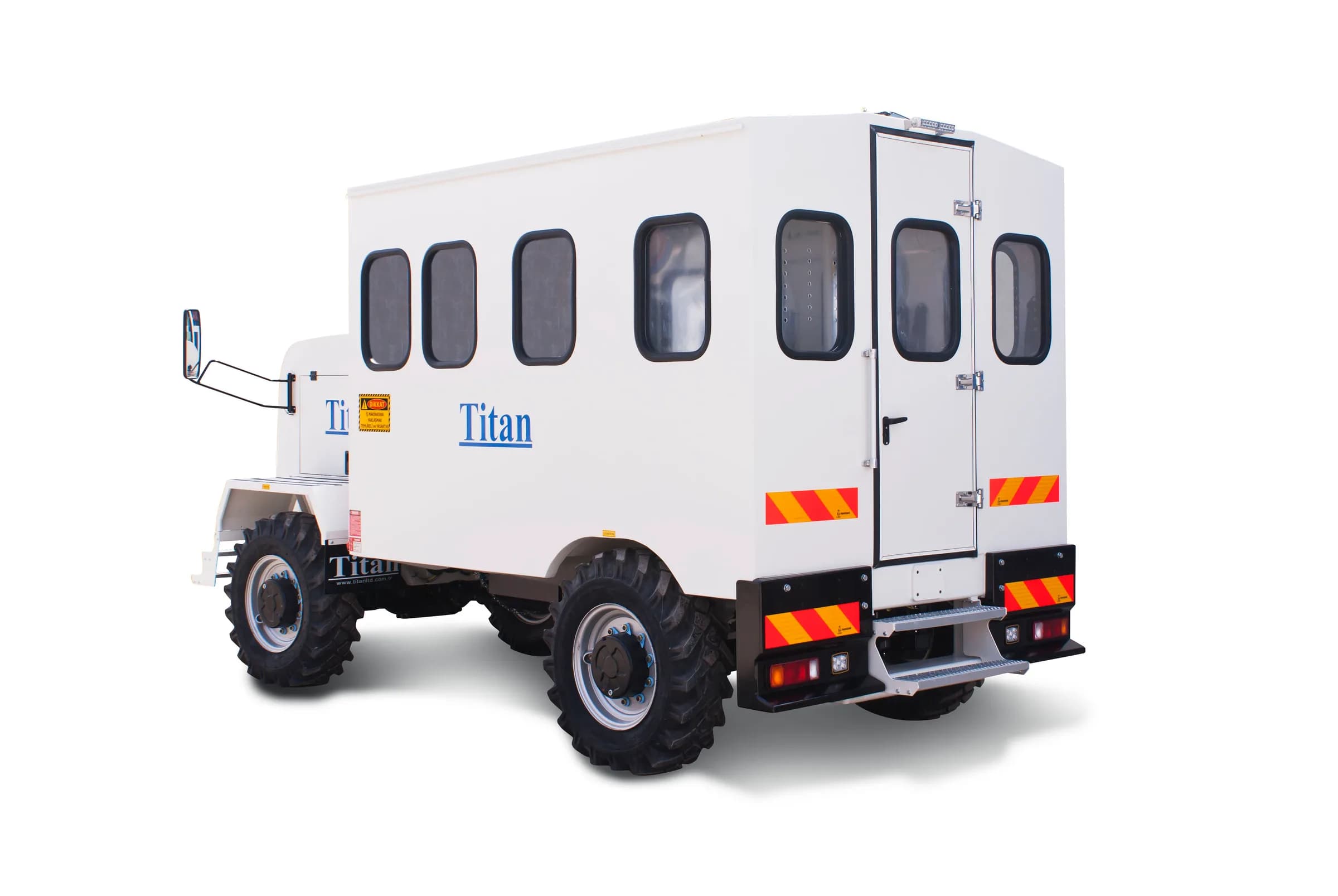

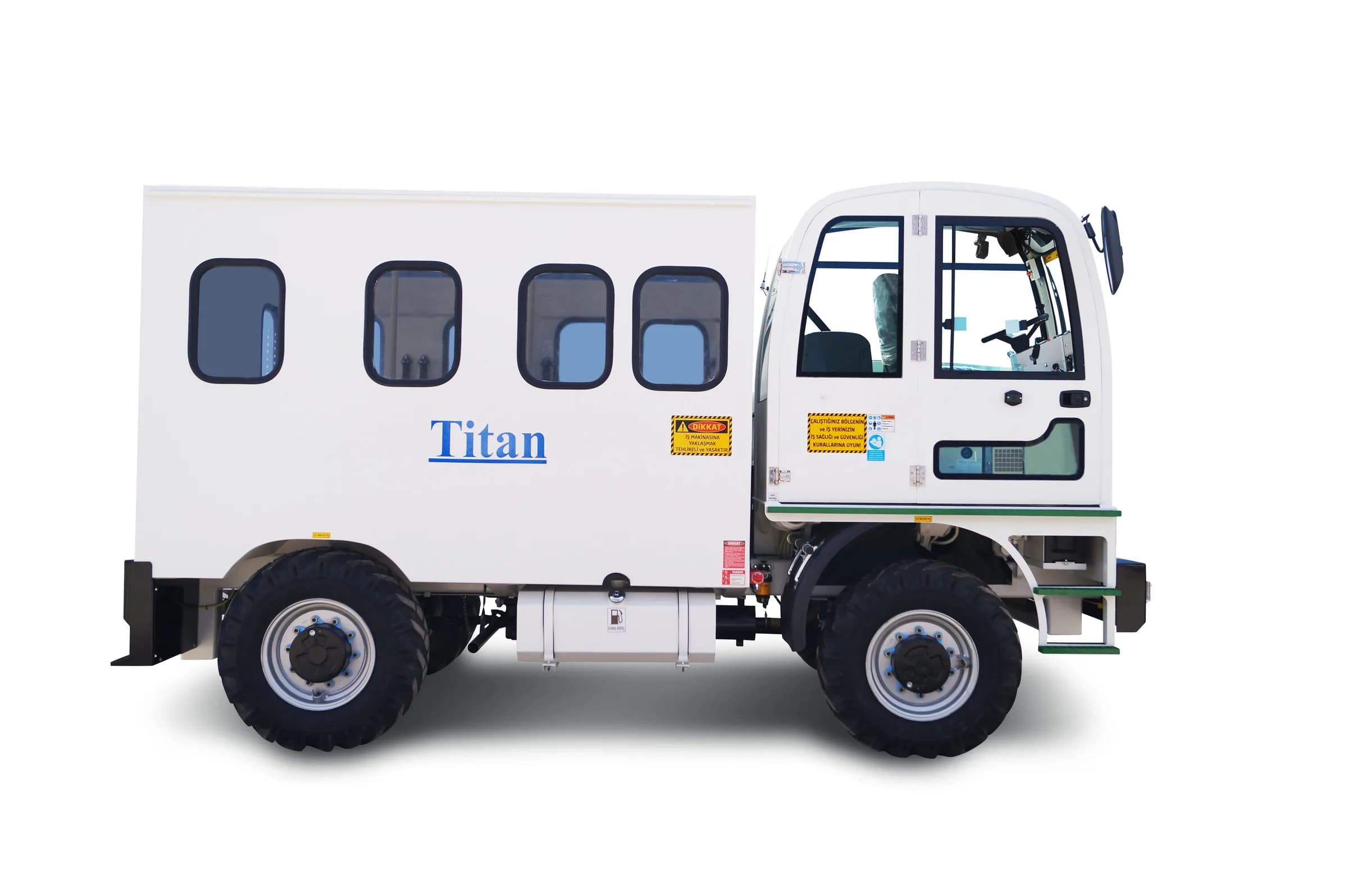

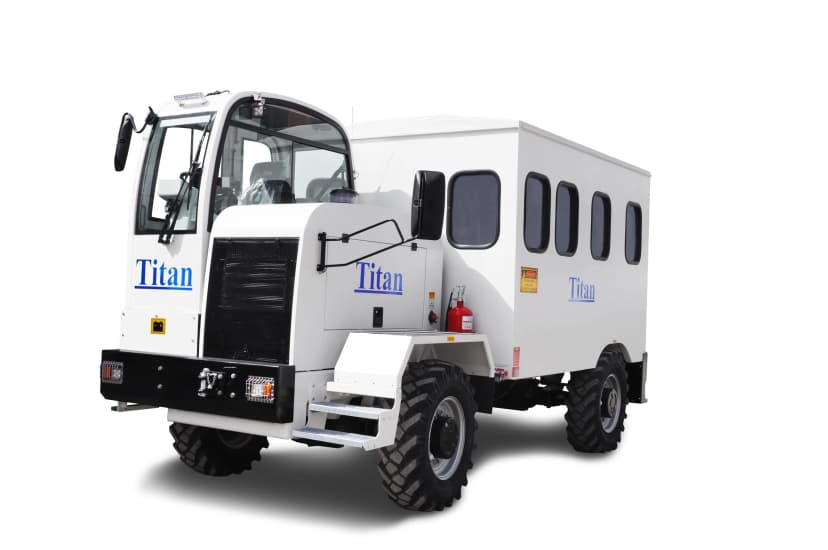

Underground personnel carrier with an EN ISO 3471 / 3449 ROPS and level 2 FOPS cabin, and an 85 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(4)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	125 l	125 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift Transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Steerable	Steerable
Tires	12.5-20 / 10-20	12.5-20 / 10-20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic System
Pump Type	Fixed Displacement	Fixed Displacement
Max. Pressure	210 bar	210 bar
Flow Rate	60 l/min at 2300 rpm	60 l/min at 2300 rpm
Hydraulic Oil Tank	80 l	80 l
Return Oil Filter	25 µm	25 µm
Oil level, temperature indicators
Electric System
Battery	24V - 2x105 Ah	24V - 2x105 Ah
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 lumen LED lamps on the front bumper 1 x 1800 Lumen LED lamp on top of the operator cabin Rear Bumper 2 x 1800 Lumen LED Lamp Turn Signals
Titan Closed Operator Cabin

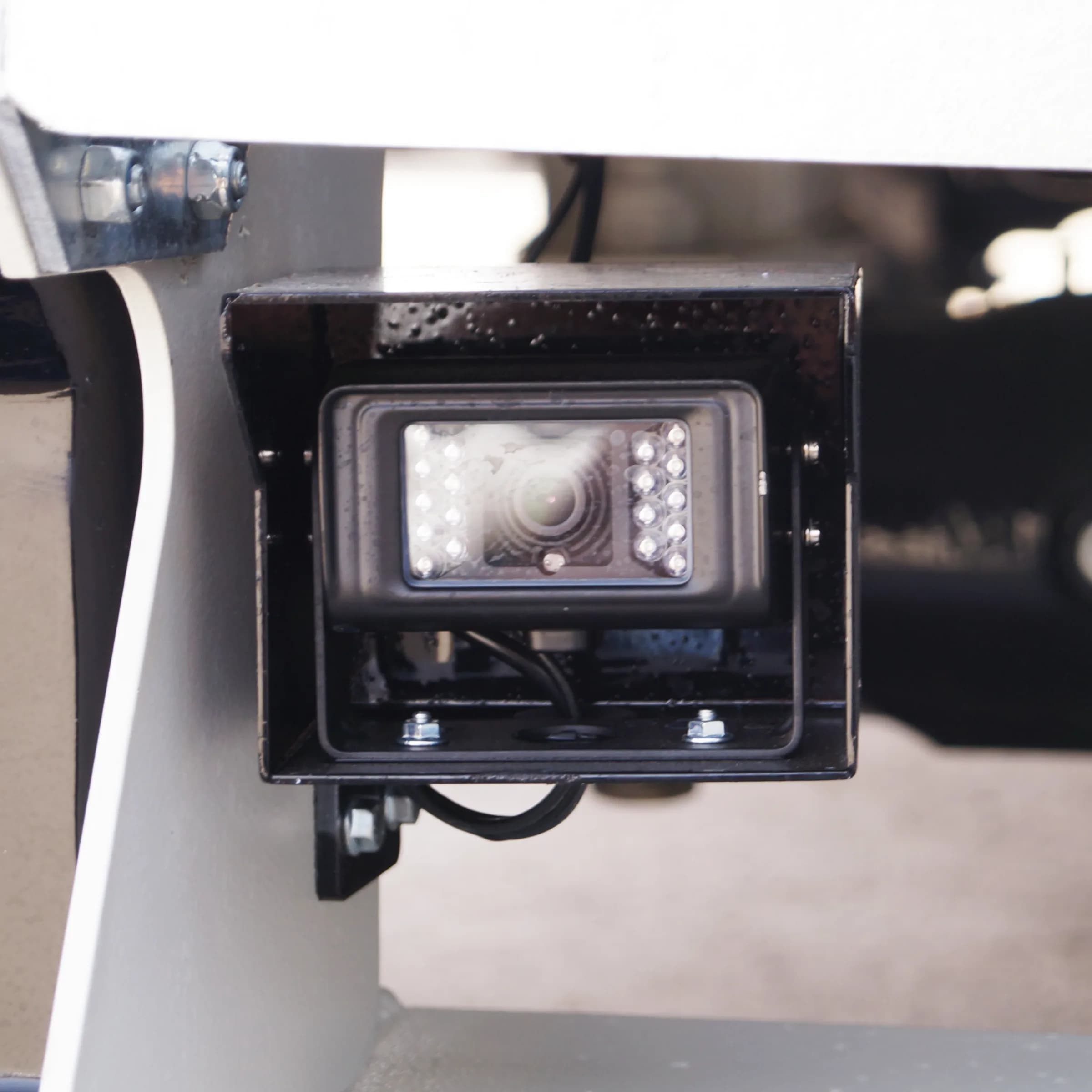

1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Cabin Lighting In-Cabin Heater
Dimensions and Weight
WeightDiffers	7,940 kg (Approx.)	8,440 kg (Approx.)
Length	5,330 mm	5,330 mm
Width	2,200 mm	2,200 mm
Height	2,930 mm	2,930 mm
Inner Turning Radius	3,100 mm	3,100 mm
Outer Turning Radius	6,050 mm	6,050 mm
Accessories
Warning plates and decals 2x2 kg portable fire extinguishers Front tow bar 2 pcs Wheel chocks Battery Isolator switch Back-up alarm and light
Personnel Cabin

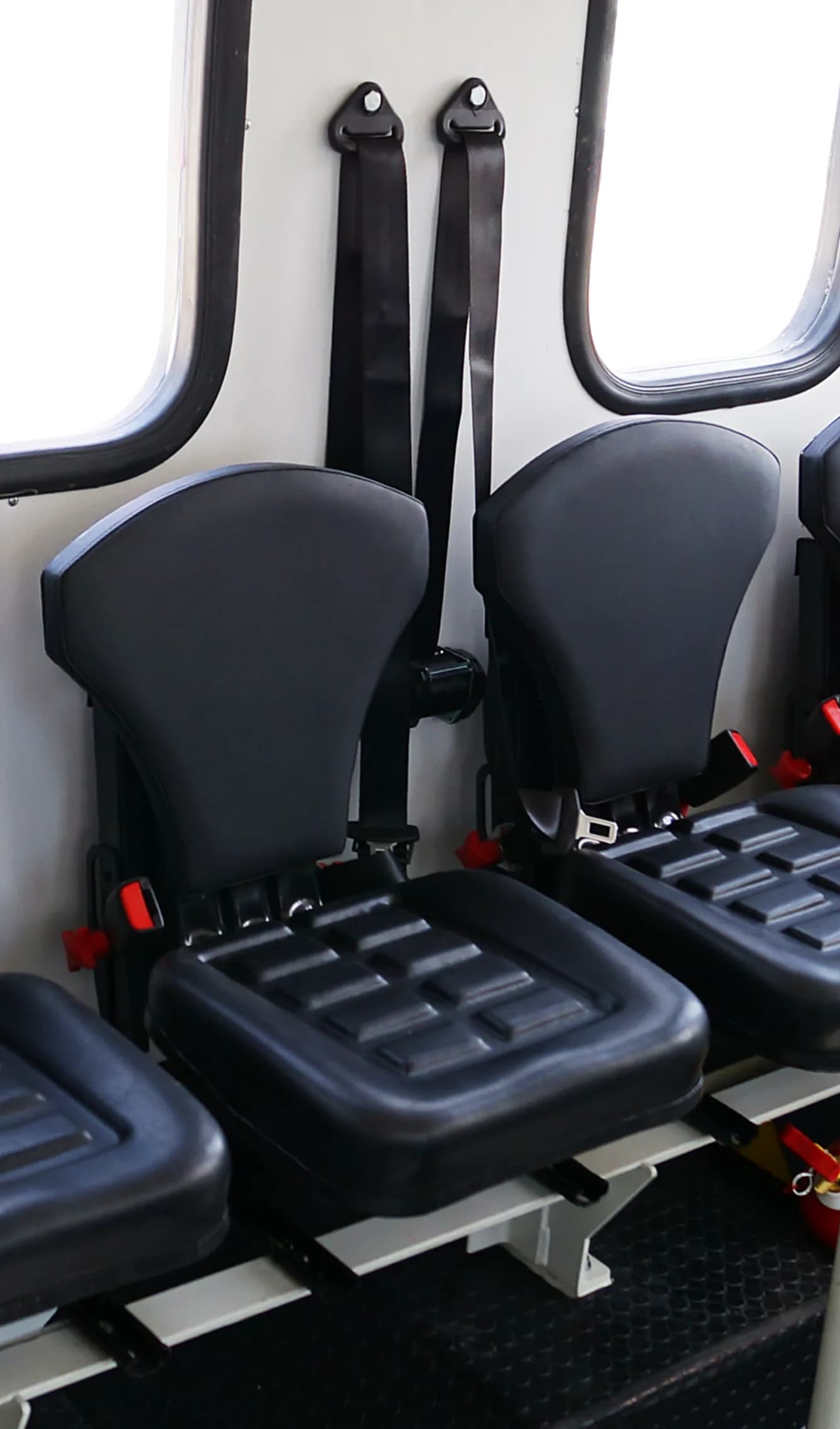

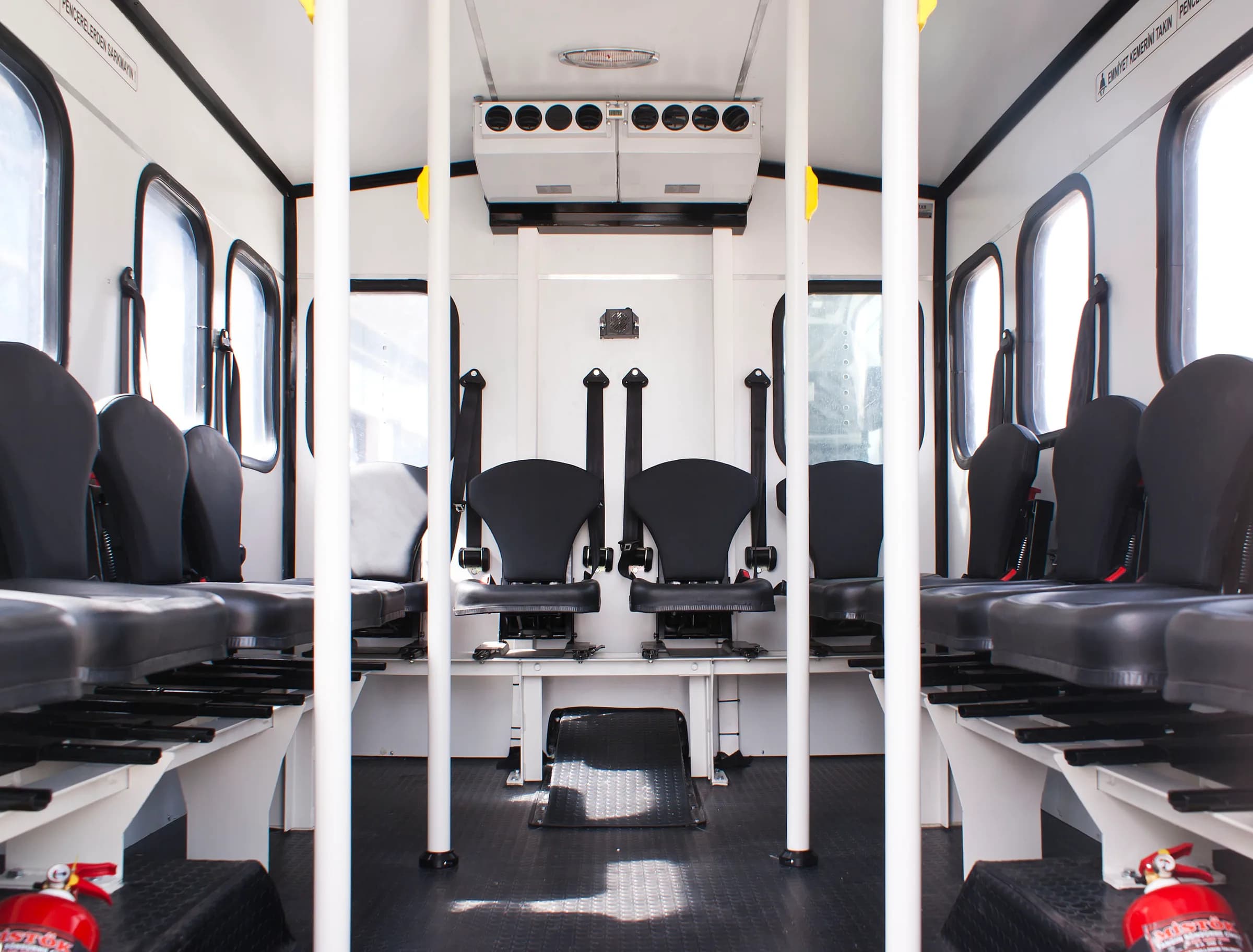

14-Person Cabin ROPS ve 2.Seviye FOPS Sertifikalı Kabin (EN ISO 3471:2008 / EN ISO 3449:2008) 1 Adet Dışarı Açılır Kapı Transparent plastic windows Ergonomic seats with 2-point seat belts Ventilation Amber colored Beacon Light on the cabin Cabin interior light Intercom connection with the operator cabin
Other
Centralized greasing system
Options

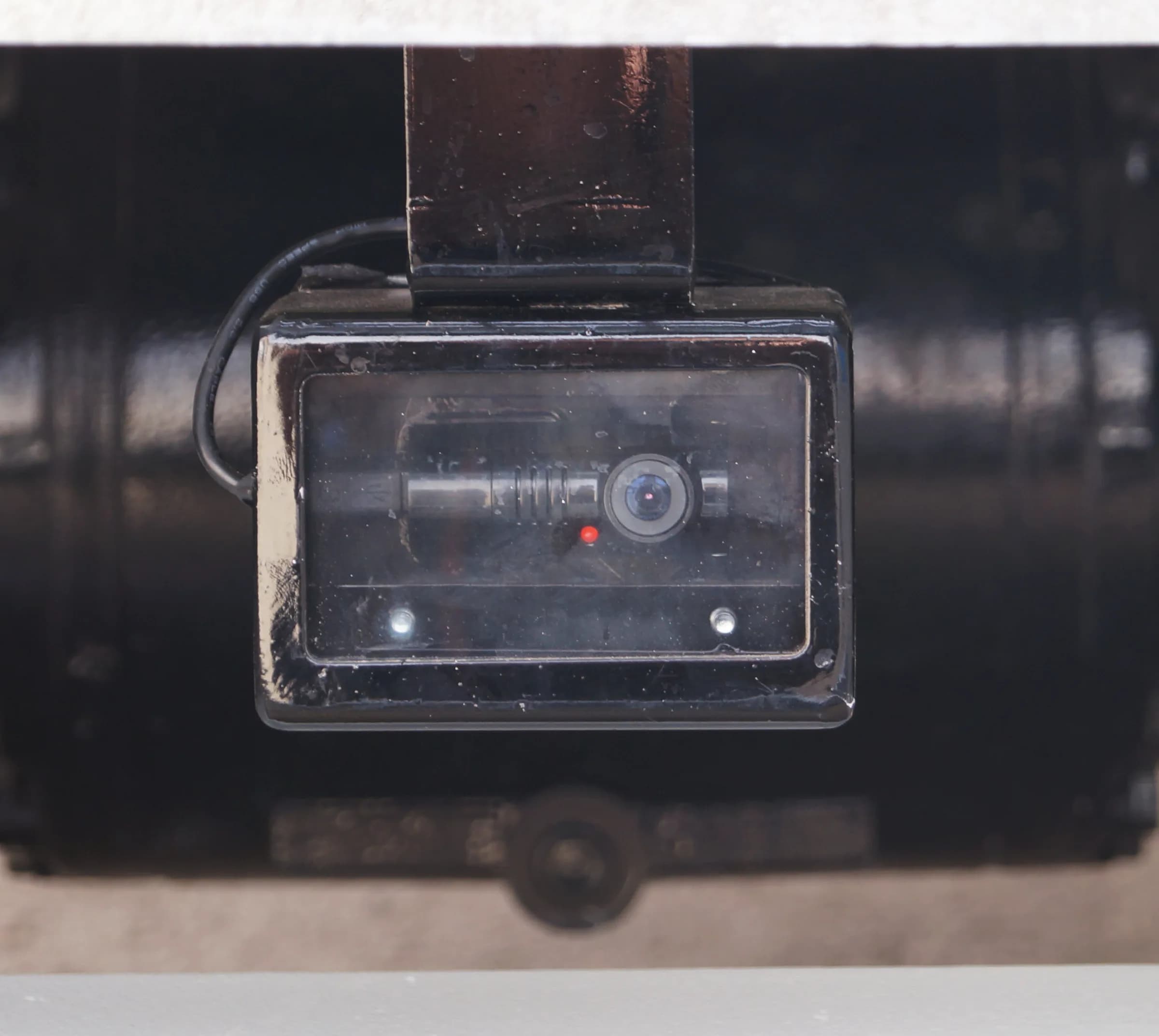

Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling (Operator) Air-Conditioned Cabin With Heating And Cooling (Personnel) Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Fire Extinguishing System (Linear Wired) Caliper braking system 2nd seat in the operator cabin Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire)
