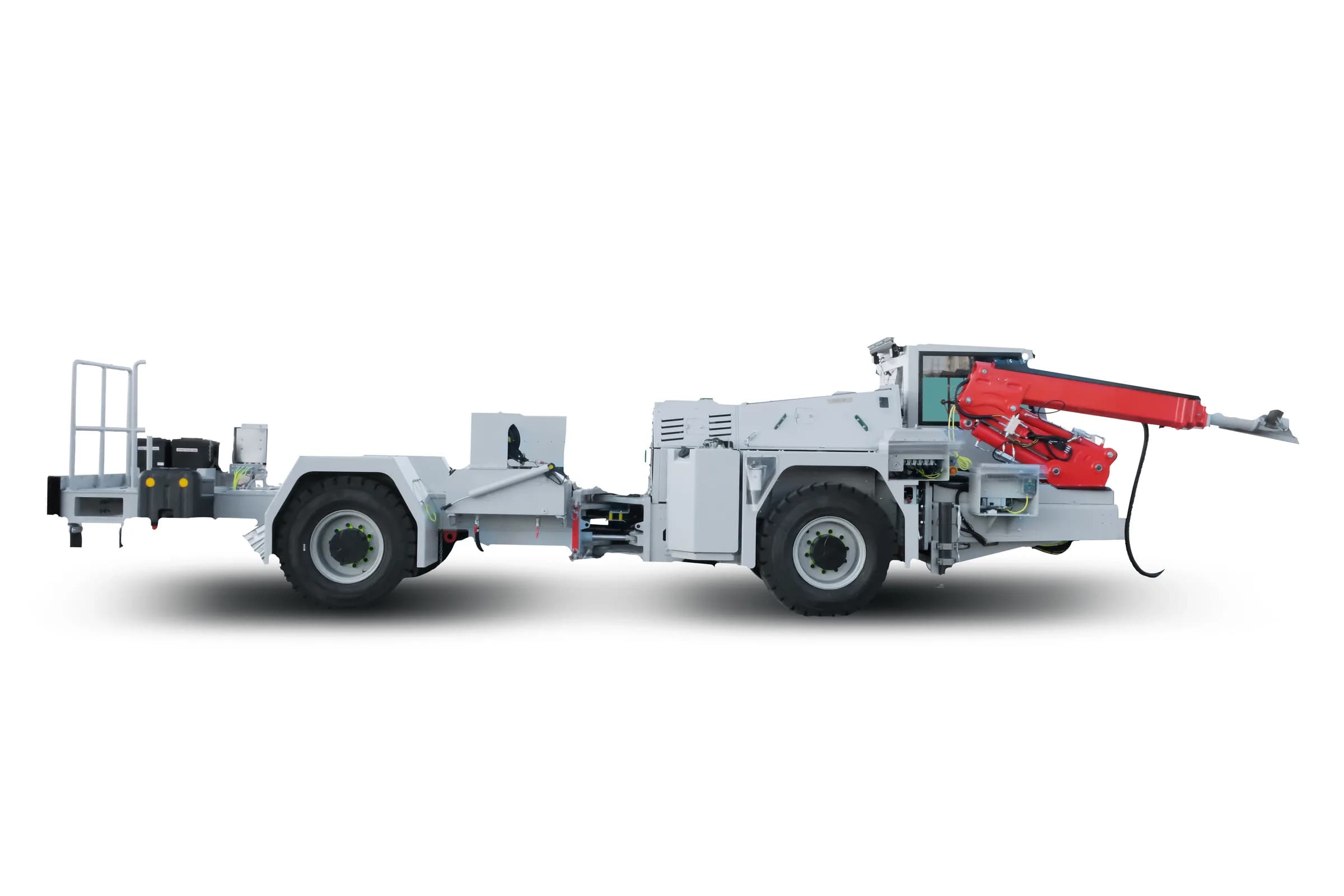

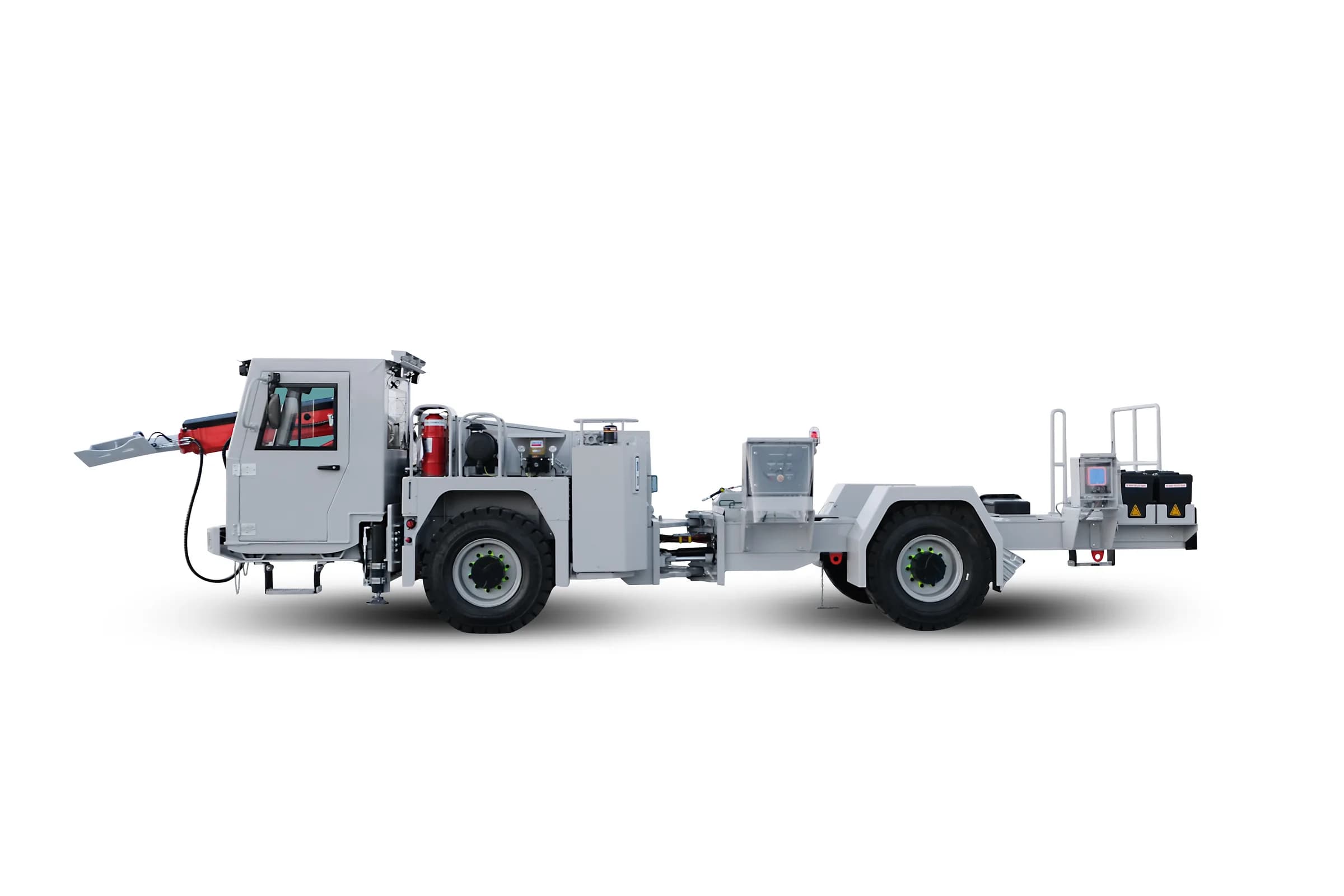

| Diesel Engine |
|---|
| Make / ModelDiffers | Deutz TCD 2013 L4 2V | Deutz TCD 6.1 L6 Stage V |
|---|
| Max. PowerDiffers | 129 kW at 2300 rpm | 129 kW at 2200 rpm |
|---|
| Max. TorqueDiffers | 670 Nm at 1600 rpm | 750 Nm at 1450 rpm |
|---|
| Engine EmissionDiffers | EU Stage 3A / US EPA Tier 3 | EU Stage V / US EPA Tier 4i |
|---|
| Diesel Tank Capacity | 160 l | 160 l |
|---|
| AdBlue Tank Capacity | - | 20 l |
|---|
- ·With Catalytic Converter and SilencerStage III only
|
| Transmission |
|---|
| Make / Model | Dana Spicer T24.000 | Dana Spicer T24.000 |
|---|
- ·Powershift Transmission
- ·3-Speed Forward, 3-Speed Reverse
- ·4 Wheel Drive
|
| Axles & Tires |
|---|
| Make / Model | Dana Spicer 113 | Dana Spicer 113 |
|---|
| Type | Planetary | Planetary |
|---|
| Front Axle | +/- 8° Oscillating | +/- 8° Oscillating |
|---|
| Rear Axle | Rigid | Rigid |
|---|
|
| Performance |
|---|
| Max. Gradient | 30% | 30% |
|---|
| Max. Speed | 24.5 km/h | 24.5 km/h |
|---|
| Steering |
|---|
- ·Articulated, +/- 40°
- ·Orbitrol Type
|
| Braking System |
|---|
| Service Brake | Oil-Immersed Multidisc Brake | Oil-Immersed Multidisc Brake |
|---|
| Parking Brake | SAHR | SAHR |
|---|
|
| Chassis |
|---|
| Type | Articulated, high strength steel chassis | Articulated, high strength steel chassis |
|---|
| Hydraulic Stabilisers | Front, 2 pcs extendible | Front, 2 pcs extendible |
|---|
| Hydraulic System |
|---|
| Pump Type | Fixed and Variable Displacement | Fixed and Variable Displacement |
|---|
| Max. Pressure | 150 bar | 150 bar |
|---|
| Flow RateDiffers | Max. 300 l/min at 2300 rpm | Max. 300 l/min at 2200 rpm |
|---|
| Hydraulic Oil Tank | 260 l | 260 l |
|---|
| Return Oil Filter | 25 µm | 25 µm |
|---|
- ·Oil level, filtration and temperature indicators
|
| Electric System |
|---|
| Battery | 24V - 2 x (12V 105 Ah) | 24V - 2 x (12V 105 Ah) |
|---|
| Protection | IP65 | IP65 |
|---|
| Working Lights | - ·Operator Cabin Front 6 x 1800 Lumen Led Lamp
- ·Operator Cabin Rear 2 x 1800 Lumen LED Lamp
- ·Rear Bumper 2 x 1800 Lumen LED Lamp
- ·4 x 1800 lumen LED lights on the boom
- ·Turn Signals
| - ·Operator Cabin Front 6 x 1800 Lumen Led Lamp
- ·Operator Cabin Rear 2 x 1800 Lumen LED Lamp
- ·Rear Bumper 2 x 1800 Lumen LED Lamp
- ·4 x 1800 lumen LED lights on the boom
- ·Turn Signals
|

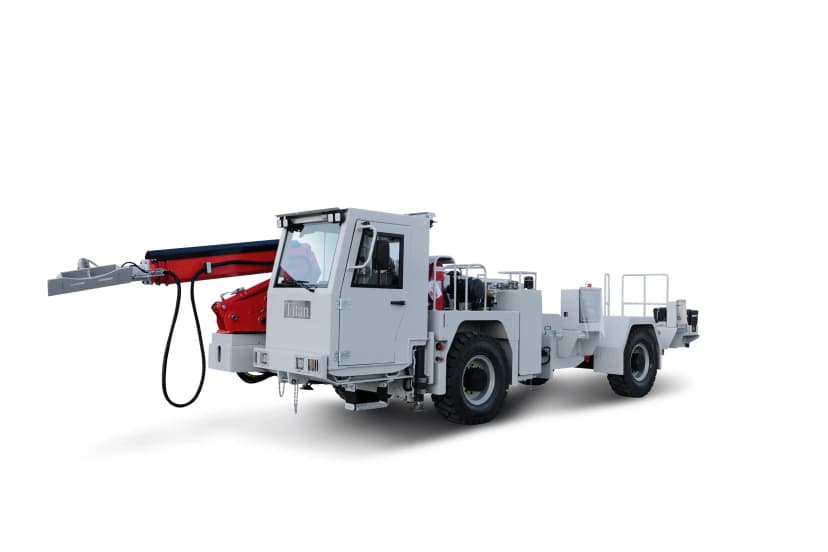

|---|
| Panel Type | Stainless Steel | Stainless Steel |
|---|
| Beacon Light | Amber Color | Amber Color |
|---|
| Titan Closed Operator Cabin |
|---|
- ·1-Person Cabin
- ·ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
- ·T-shaped seat with manually adjusted mechanical suspension, weight and height adjustment and 3-point seat belt
- ·1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
- ·Levers and Indicators for All Driving Controls
- ·In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
- ·Heated Windshield and Wing Mirrors
- ·Cabin Lighting
- ·Under-Seat Document Box
- ·In-Cabin Heater
|
| Dimensions and Weight |
|---|
| Empty WeightDiffers | 12,300 kg (Approx.) | 12,800 kg (Approx.) |
|---|
| LengthDiffers | 10,550 mm | 10,780 mm |
|---|
| Width | 2,300 mm | 2,300 mm |
|---|
| Height | 2,500 mm | 2,500 mm |
|---|
| Inner Turning RadiusDiffers | 4,430 mm | 4,650 mm |
|---|
| Outer Turning RadiusDiffers | 8,250 mm | 8,450 mm |
|---|
- ·*Height and length may vary depending on the dimensions of the emulsion unit.
|
| Accessories |
|---|
- ·Warning plates and decals
- ·Tool Box
- ·2x4 kg portable fire extinguisher
- ·2 pcs Wheel chocks
- ·Front and rear tow bar
- ·Battery Isolator switch
- ·Back-up alarm and light
|

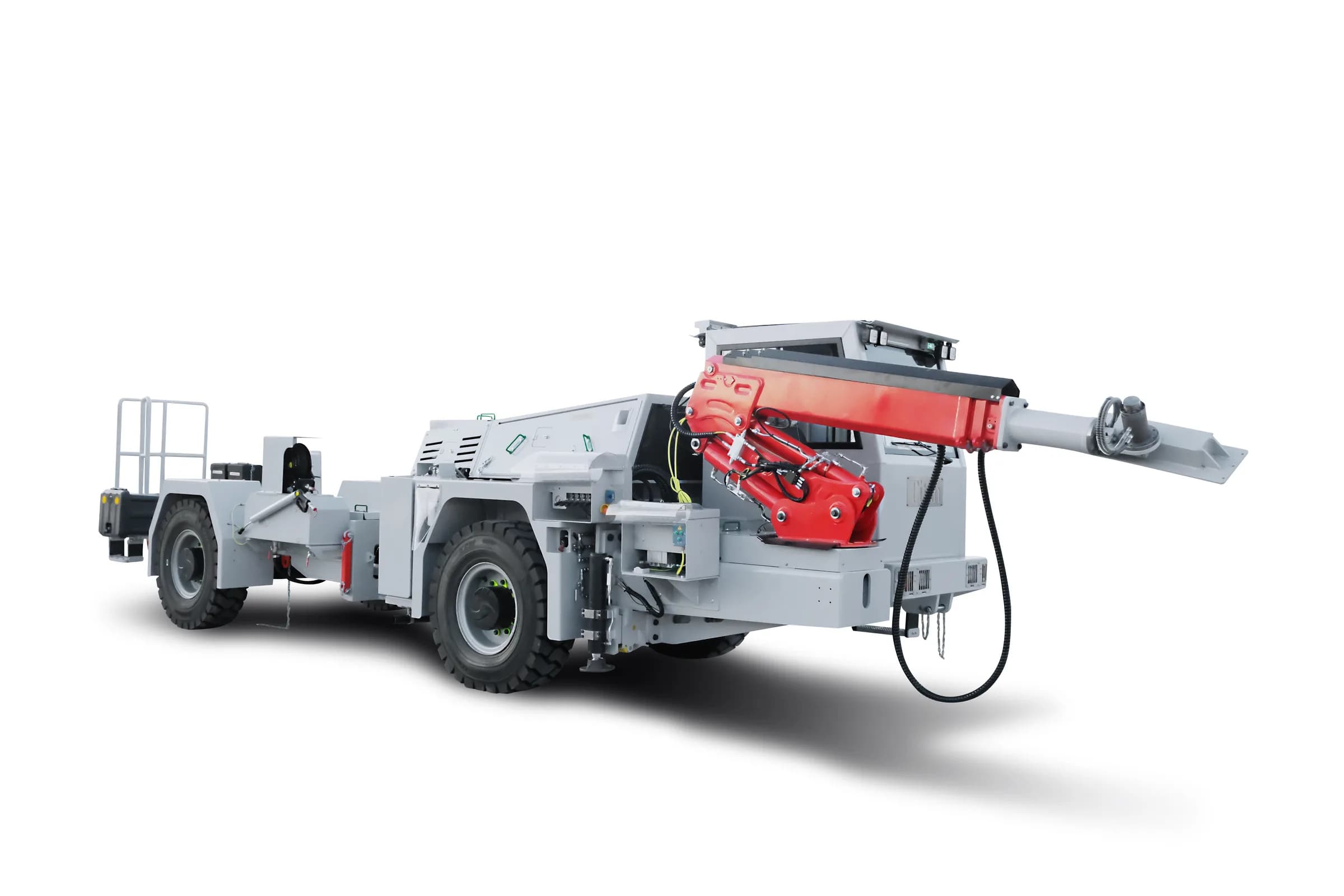

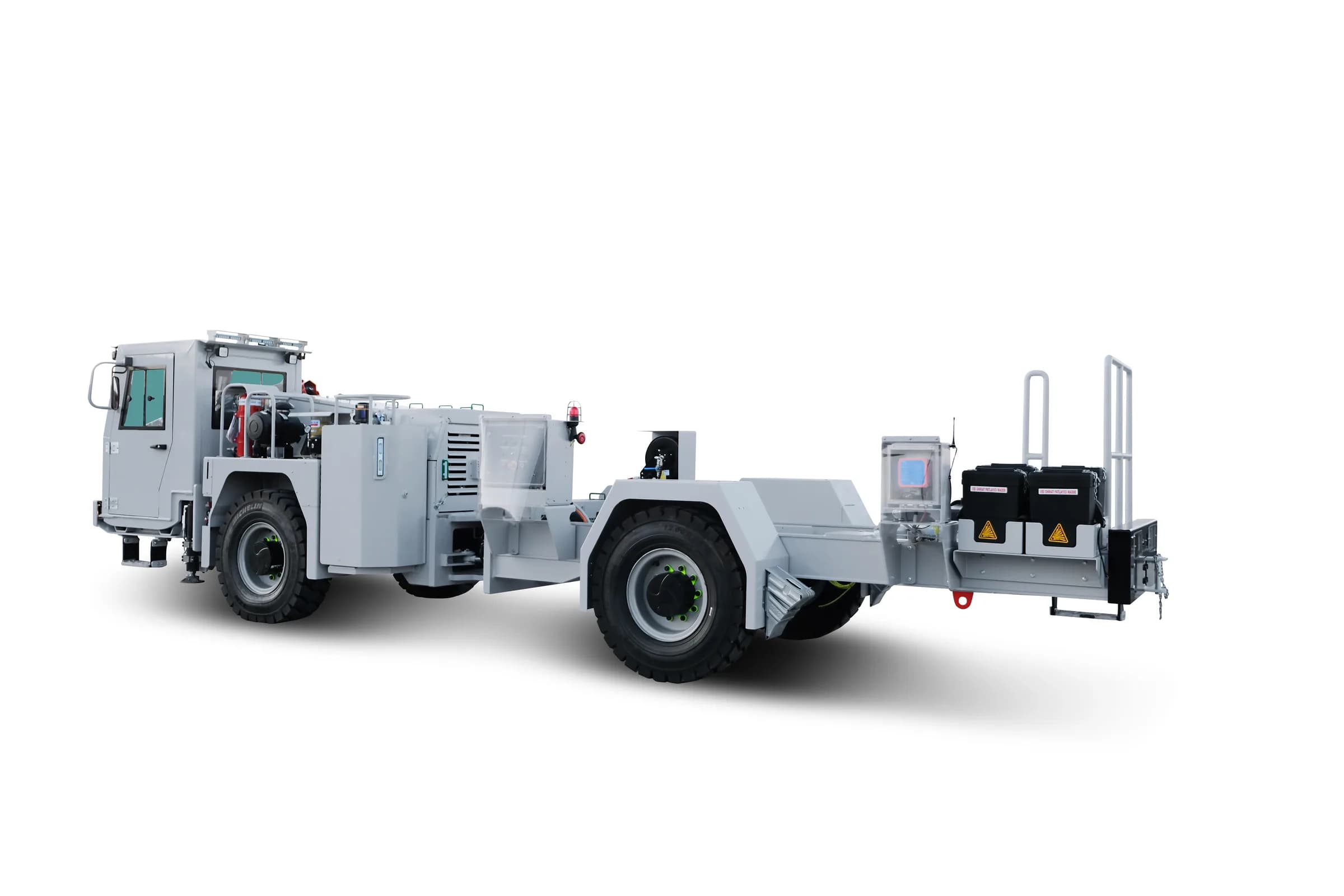

| Manipulator |
|---|
| Max. Reach Vertical | 8 m | 8 m |
|---|
| Max. Reach Horizontal | 6 m | 6 m |
|---|
| Hose Guide Head |
|---|
| Rotation | 350° | 350° |
|---|
| Tilt | 135° | 135° |
|---|
| Oscillation | 8° | 8° |
|---|
| Emulsion Charging Unit |
|---|
- ·Platform to suit the technical dimensions and specifications of the unit provided by the customer
|
| Cable Remote Control |
|---|
| Specifications | - ·Manipulator movements
- ·Emulsion unit on - off
- ·Diesel engine start - stop
- ·Hand throttle increase - decrease
- ·Emergency stop
- ·Horn
| - ·Manipulator movements
- ·Emulsion unit on - off
- ·Diesel engine start - stop
- ·Hand throttle increase - decrease
- ·Emergency stop
- ·Horn
|
|---|
| Safety |
|---|
- ·Emergency Boom Lowering
- ·Sensor system that prevents the manipulator from moving unless the stabilisers are set on the ground
- ·3 pcs emergency stop buttons located on the machine
- ·Tilt sensor limiting the chassis lateral tilt to ± 5°
- ·Sensor system that prevents the stabilisers from being retracted unless the manipulator is fully lowered
|
| Other |
|---|
- ·Centralized greasing system
|
| Options |
|---|
- ·CANBus
- ·Automatic Lubrication System
- ·Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
- ·Hydraulic Power Unit (Emergency Steering)
- ·Oil Transfer Pump (for Hydraulic, Transmission and Engine)
- ·Air Conditioning in the Operator Cabin
- ·T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
- ·Electrical Outlet In The Cabin (220 V - 150 W)
- ·Wi-Fi Data Logging and Transfer
- ·DVR Video Recorder
- ·Front Windshield Protection
- ·Additional View Camera
- ·Spare Wheel (Rim And Tire)
- ·Manual Jack
- ·Double-Walled Exhaust PipesStage III only
- ·Diesel Particulate Filter (DPF)Stage III only
- ·Plastic dynamite box
- ·High Pressure Washing System
- ·Hose feeder
- ·Radio Frequency Remote Control
|
