EC2X350 - ANFO Charger Truck

Name: EC2X350 - ANFO Charger Truck
Brand: Titan Makina
SKU: EC2X350

ANFO Charging Machine

Explosives Charging Machines

EC2X350 - ANFO Charger Truck

MODEL · EC2X350

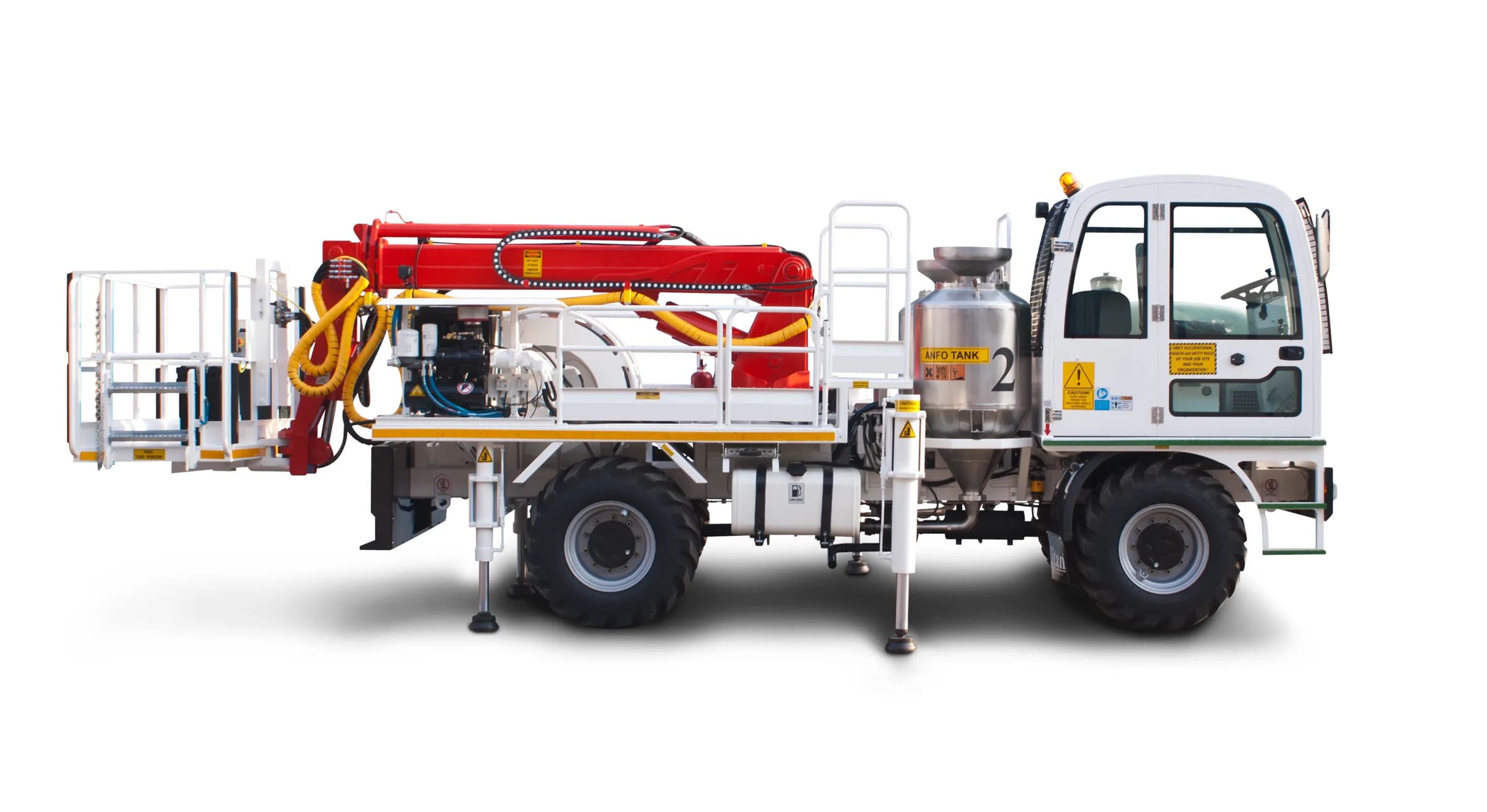

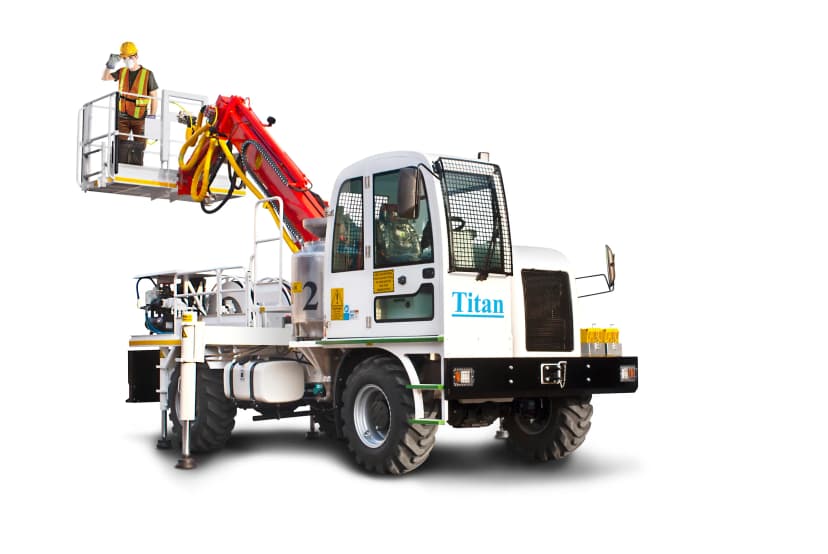

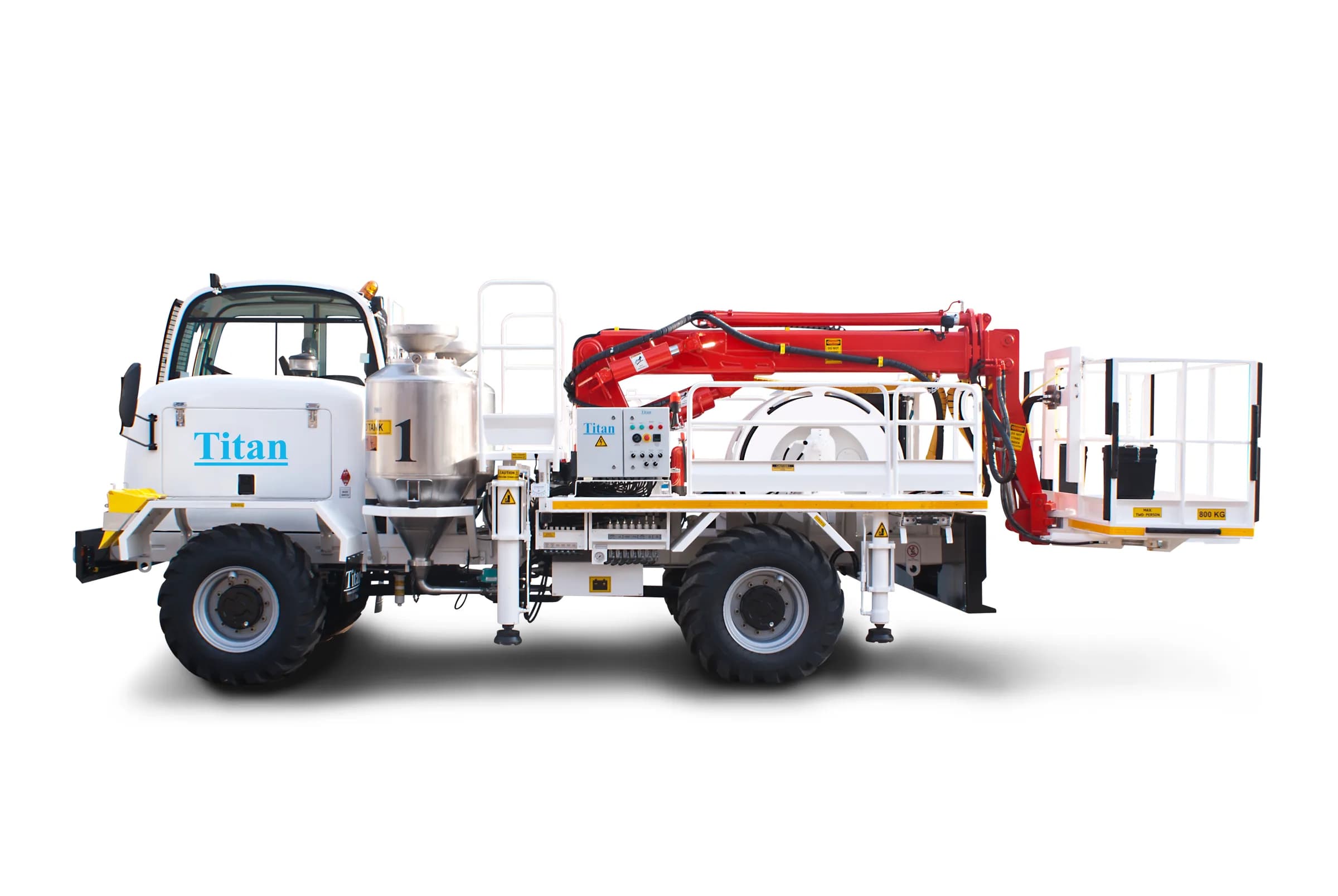

ANFO charger truck with a 2,000 x 1,000 mm basket, 800 kg capacity and ±45° basket tilt.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(8)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage 5
Diesel Tank Capacity	140 l	140 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift automatic transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Steerable	Steerable
Tires	365/80 R20	365/80 R20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs extendible	Front, 2 pcs extendible
Rear, 2 pcs fixed
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow Rate	215 l/min at 2300 rpm	215 l/min at 2300 rpm
Hydraulic Oil Tank	150 l	150 l
Return Oil Filter	25 µm	25 µm
Oil level, temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 lumen LED lamps on the front bumper 2 x 1800 lumen LED lamps on the operator cabin Back-up Light 2 x 1800 lumen LED lamps 2 x 1800 lumen LED lights on the boom 2 x 1800 lumen LED lamps on the basket Turn Signals
Titan Closed Operator Cabin
1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Cabin Lighting In-Cabin Heater
Dimensions and Weight
WeightDiffers	12,260 kg (Approx.)	12,760 kg (Approx.)
LengthDiffers	8,050 mm	8,020 mm
Width	2,400 mm	2,400 mm
HeightDiffers	2,830 mm	2,950 mm
Inner Turning RadiusDiffers	3,610 mm	3,740 mm
Outer Turning RadiusDiffers	7,850 mm	7,930 mm
Accessories
Warning plates and decals 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front tow bar Battery Isolator switch Back-up alarm and light
Boom and Basket
Basket Dimensions	2.000x1.000 mm	2.000x1.000 mm
Max. Carrying Capacity	800 kg	800 kg
Basket Angle	+/-45°	+/-45°
Max. Boom Angle	65°	65°
Basket Tilt	+/- 5°	+/- 5°
Boom Slewing	+/- 90°	+/- 90°
Levelling	Automatic	Automatic
Max. Lifting Height 7.96 m Electro-hydraulically driven control unit Control system with tank selection, in-hole cleaning and tank opening/closing from the basket
ANFO Tank
2 x 350 l ANFO tank made of stainless steel Antistatic ANFO charging hose Ø18/26 mm 25 meter hose Vibrator
Compressor
Model	Hydraulically Driven Screw	Hydraulically Driven Screw
Power	23 kW	23 kW
Max. Working Pressure	7 bar	7 bar
Max. Air Flow Rate 3.5 m³/min
Safety
Complies with EN280 standards Emergency Boom Lowering Sensor system preventing basket movement unless the stabilisers are lowered to the ground 2 pcs emergency stop buttons placed on the machine, 1 of them inside the basket 2 pcs spirit-level inclinometers mounted on the machine chassis Tilt sensor limiting chassis lateral tilt to ± 4° Tilt sensor limiting basket angle to ± 5° Load Moment Control System Platform access ladder
Other
Centralized greasing system Closed dynamite carrying compartment on the machine
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hose Reel Hose feeder and guide Caliper braking system 2nd seat in the cabin ANFO Moisturizing System Radio Frequency Remote Control Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire)
