BEC100 - Emulsion Charger Truck

Name: BEC100 - Emulsion Charger Truck
Brand: Titan Makina
SKU: BEC100

Emulsion Charging Machine

Explosives Charging Machines

BEC100 - Emulsion Charger Truck

MODEL · BEC100

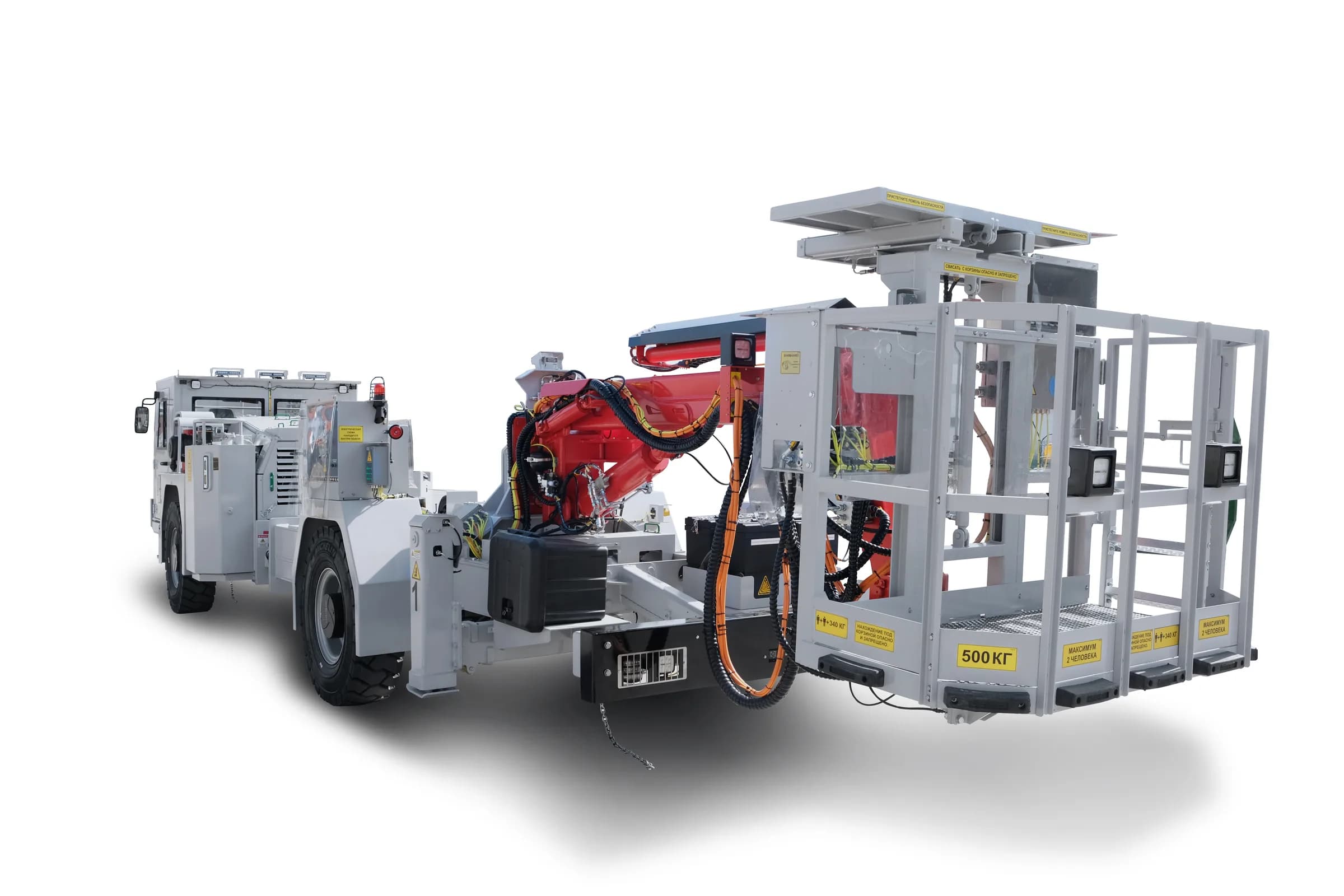

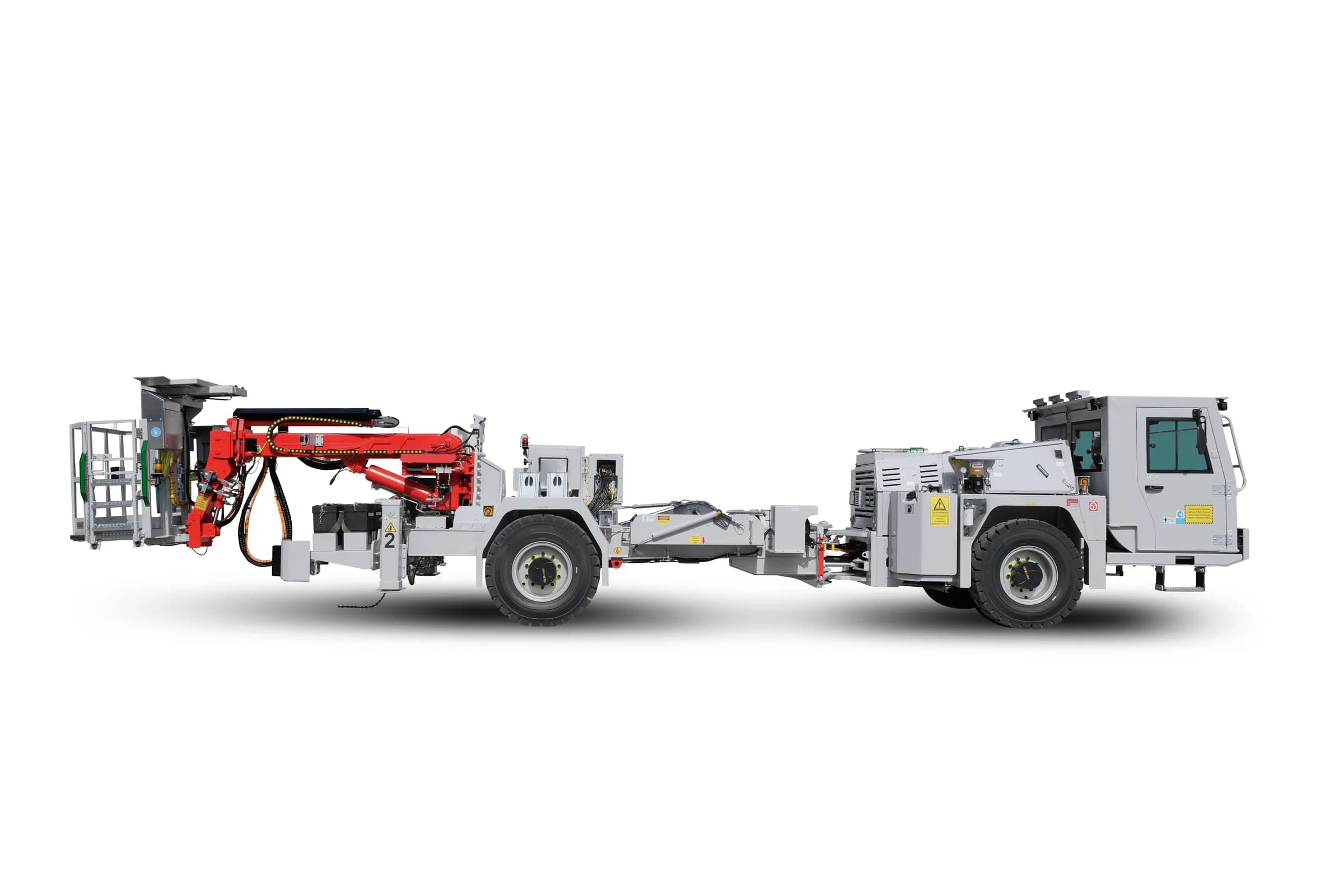

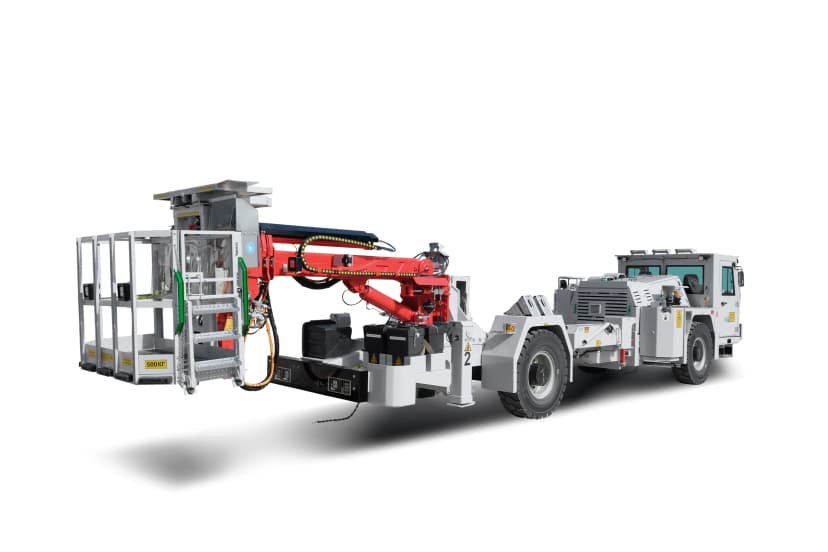

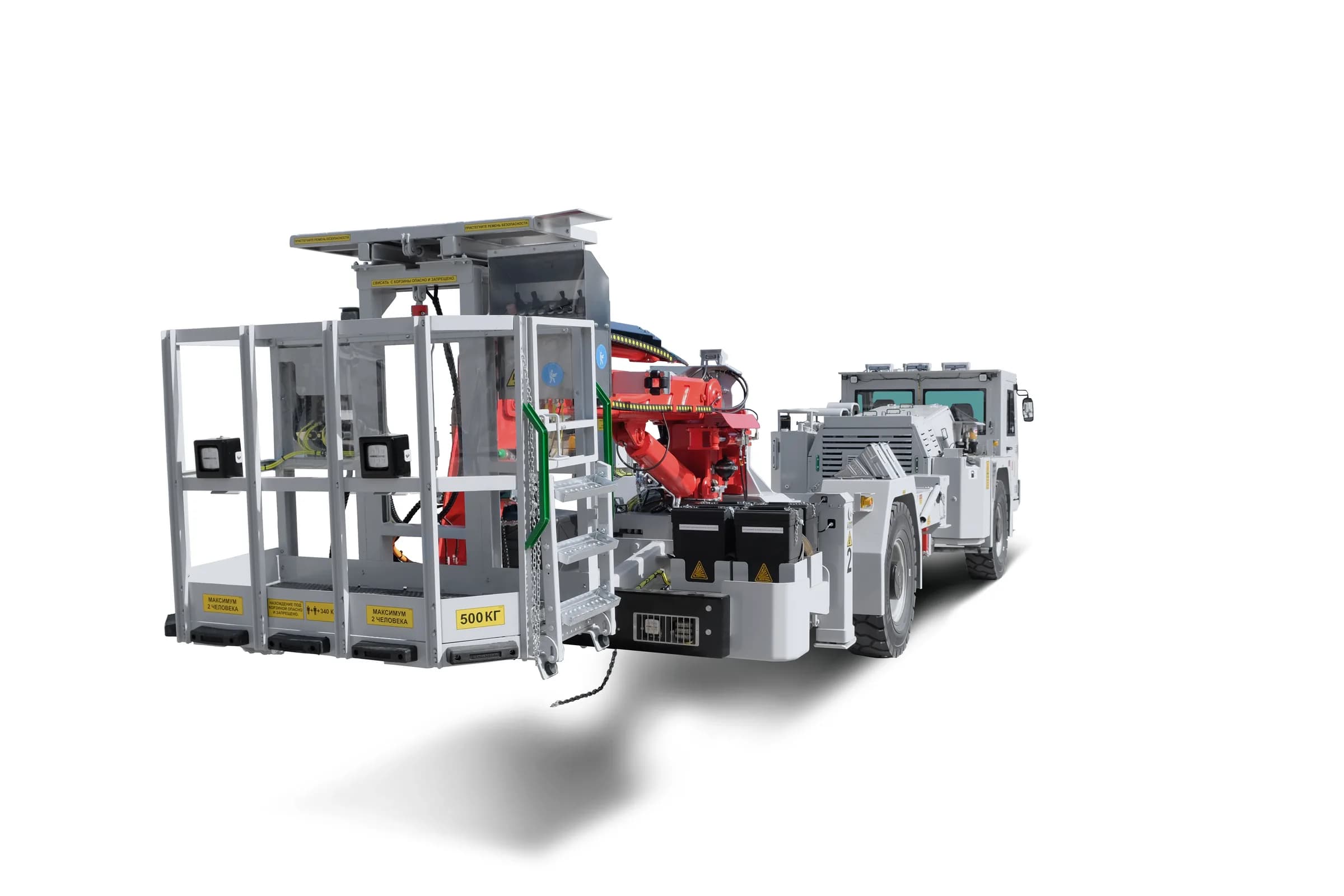

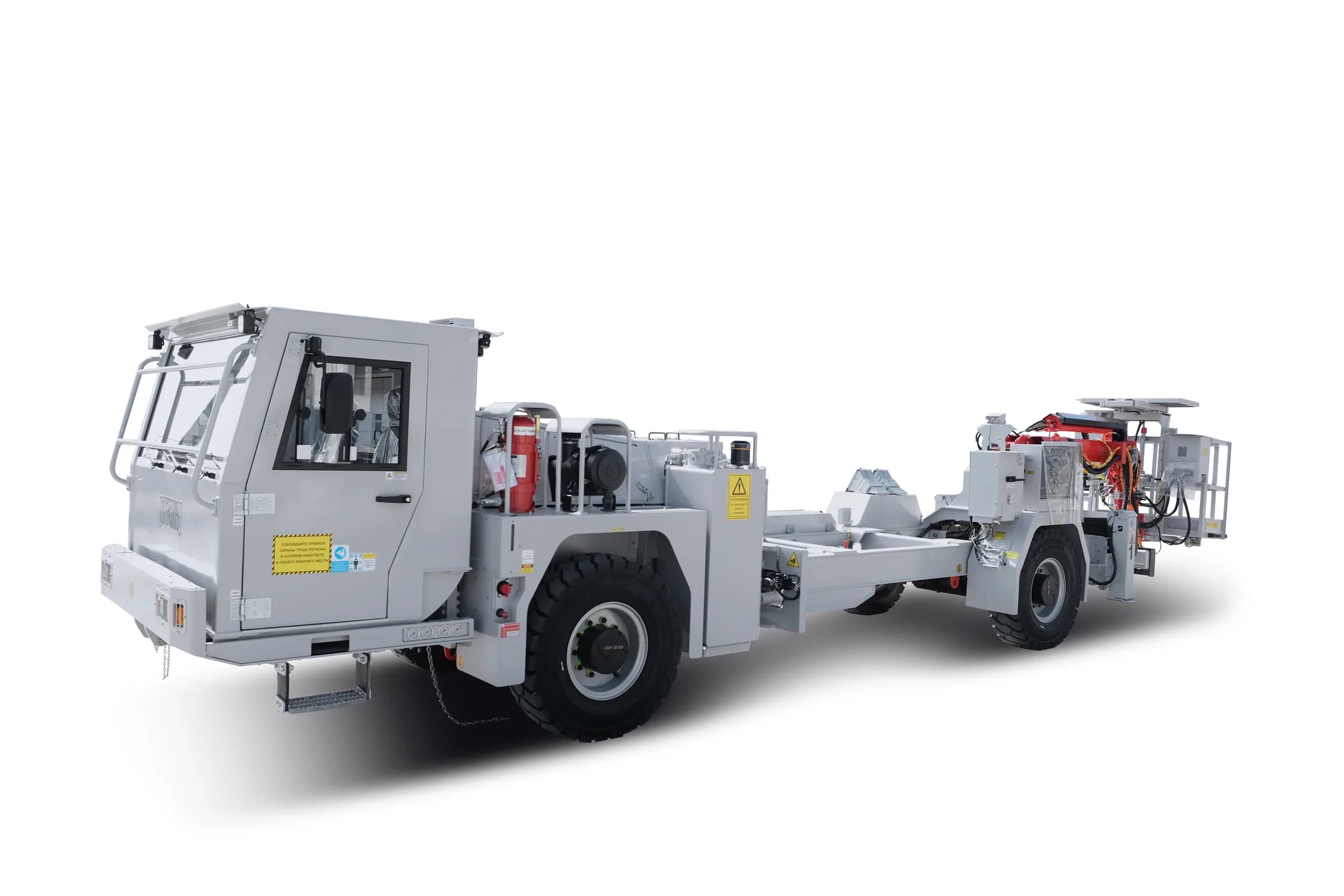

Emulsion charger truck with 5.8 m lift height, a 500 kg basket and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(7)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank Capacity	160 l	160 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T24.000	Dana Spicer T24.000
Powershift Transmission 3-Speed Forward, 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Rigid	Rigid
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 40° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic Stabilisers	Rear, 2 pcs extendible	Rear, 2 pcs extendible
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow RateDiffers	Max. 335 l/min at 2300 rpm	Max. 335 l/min at 2200 rpm
Hydraulic Oil Tank	270 l	270 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 8 x 1800 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 1800 lumen LED lights on the boom 2 x 1800 lumen LED lamps on the basket Turn Signals	Operator Cabin Front 8 x 1800 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 1800 lumen LED lights on the boom 2 x 1800 lumen LED lamps on the basket Turn Signals
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
Titan Closed Operator Cabin
2-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box Equipment Box In-Cabin Heater
Dimensions and Weight
Empty WeightDiffers	14,000 kg (Approx.)	14,500 kg (Approx.)
LengthDiffers	10,170 mm	10,400 mm
Width	2,300 mm	2,300 mm
Height	2,480 mm	2,480 mm
Inner Turning Radius	4,430 mm	4,430 mm
Outer Turning Radius	7,380 mm	7,380 mm
*Height and length may vary depending on the dimensions of the emulsion unit.
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front and rear tow bar Battery Isolator switch Back-up alarm and light
Basket
Basket Dimensions	1,600 mm x 1,000 mm	1,600 mm x 1,000 mm
Max. Carrying Capacity	500 kg	500 kg
Max. Lifting Height	5.8 m	5.8 m
Basket Rotation Angle Horizontal	+/- 35°	+/- 35°
Max. Boom Angle	60°	60°
Boom Slewing Angle Horizontal	+/- 35°	+/- 35°
Basket Tilt Limit	+/-5°	+/-5°
Levelling	Automatic	Automatic
Electro-hydraulically driven control unit Hydraulically driven canopy over the basket
Emulsion Charging Unit
Platform to suit the technical dimensions and specifications provided by the customer
Compressor
Model	Hydraulically Driven Screw	Hydraulically Driven Screw
Power	23 kW	23 kW
Max. Working Pressure	7 bar	7 bar
Air Tank	80 l	80 l
Max. Air Flow Rate 3.5 m³/min
Safety
Complies with EN280 standards Emergency Boom Lowering Sensor system preventing basket movement unless the stabilisers are lowered to the ground 3 pcs emergency stop buttons placed on the machine, 1 of them inside the basket Tilt sensor limiting chassis lateral tilt to ± 4° Tilt sensor limiting basket angle to ± 5° Sensor system that prevents the stabilisers from being retracted until the basket is fully lowered Load Moment Control System 2 pcs spirit-level inclinometers mounted on the machine chassis
Other
Centralized greasing system Antistatic plastic dynamite box (2 pcs x 30 l)
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only Hose feeder and guide Radio Frequency Remote Control
