BHA3 - Cassette System Utility Vehicle

MODEL · BHA3

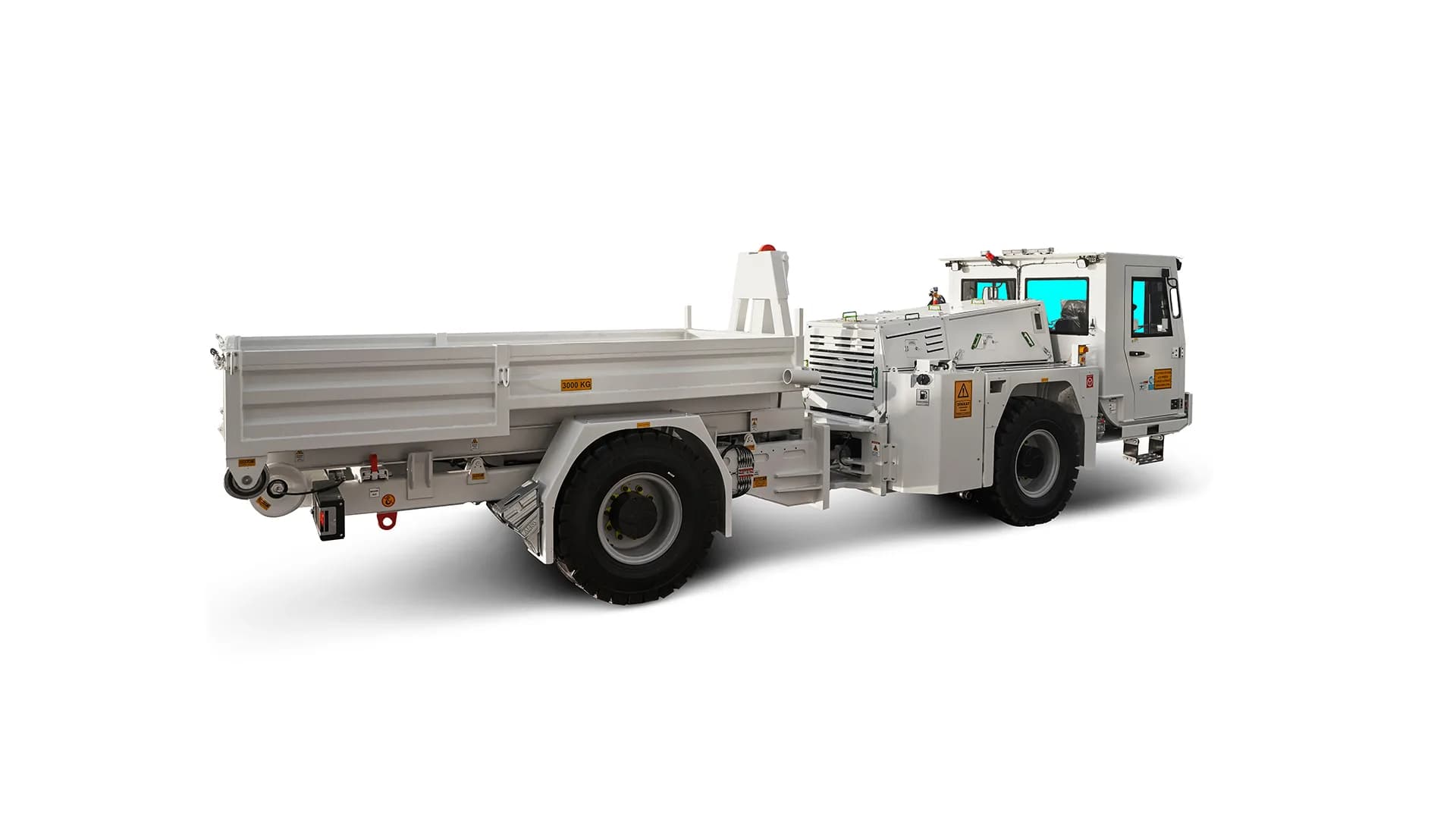

Cassette-system utility vehicle whose equipment cassettes swap out on the carrier. 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity150 l150 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • Automatic 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers190 l/min at 2300 rpm190 l/min at 2200 rpm
Hydraulic Oil Tank150 l150 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight (Without Cassette)
WeightDiffers10,200 kg (Approx.)10,700 kg (Approx.)
LengthDiffers8,400 mm8,630 mm
Width2,000 mm2,000 mm
Height2,400 mm2,400 mm
Inner Turning Radius4,090 mm4,090 mm
Outer Turning RadiusDiffers6,730 mm6,780 mm
NoteDimensions and weight will vary depending on the selected cassette.Dimensions and weight will vary depending on the selected cassette.
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front and rear tow bar
  • Battery Isolator switch
  • Back-up alarm and light

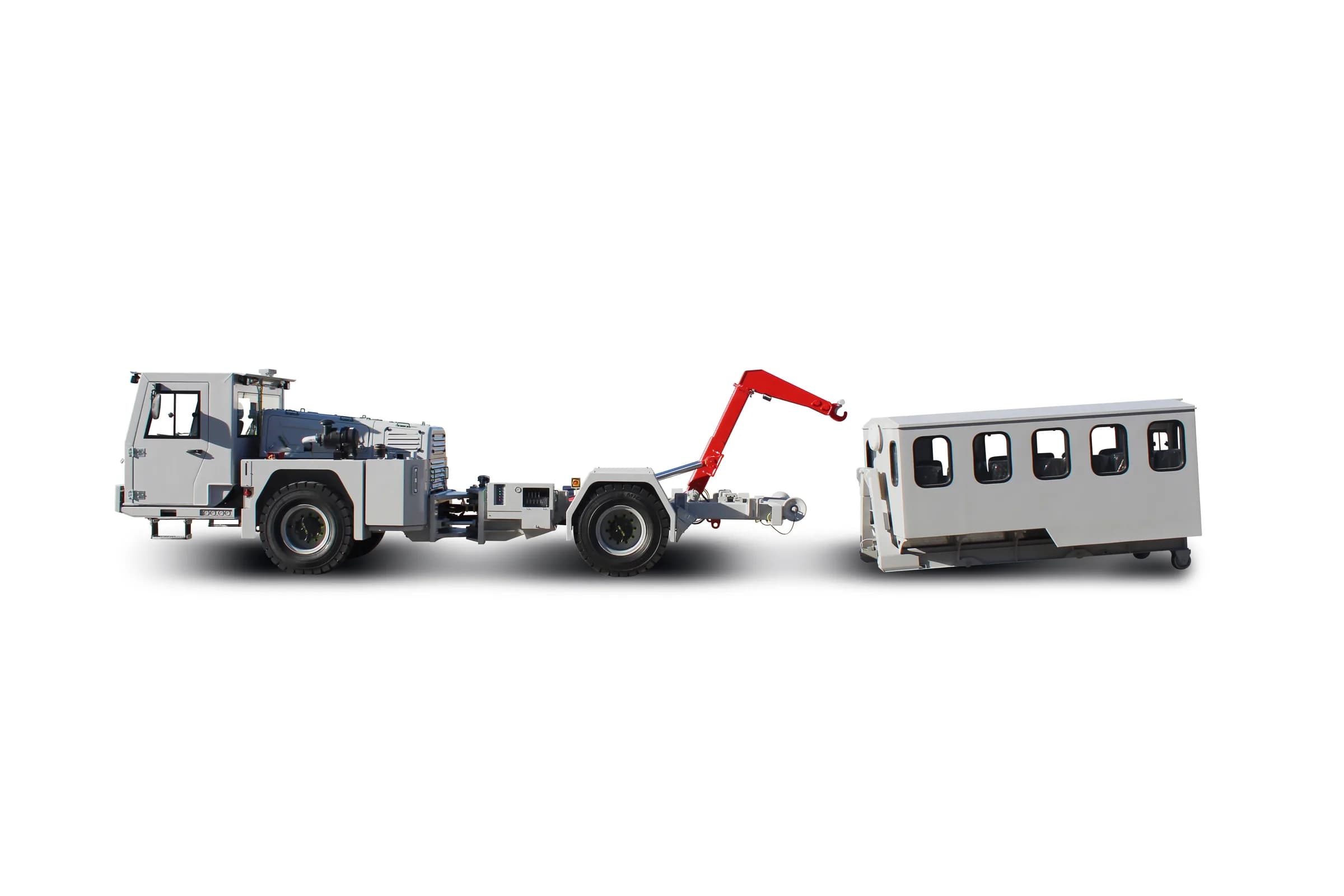

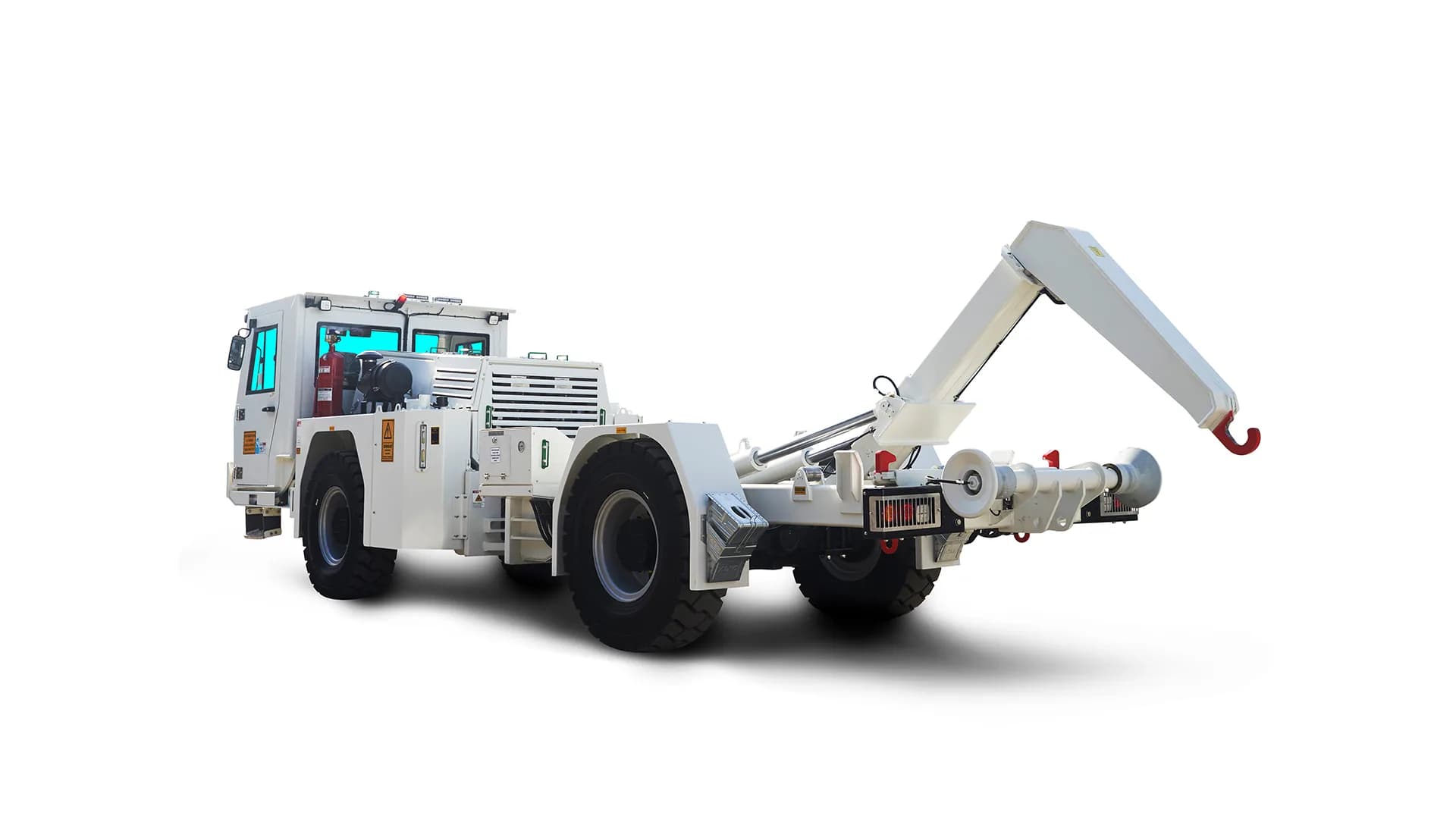

Hooklift System
  • Sensor system preventing vehicle movement unless the cassette is closed
  • Sensor-equipped quick coupling connection for the cassette hoses
Other
  • Centralized greasing system
Cassette Options

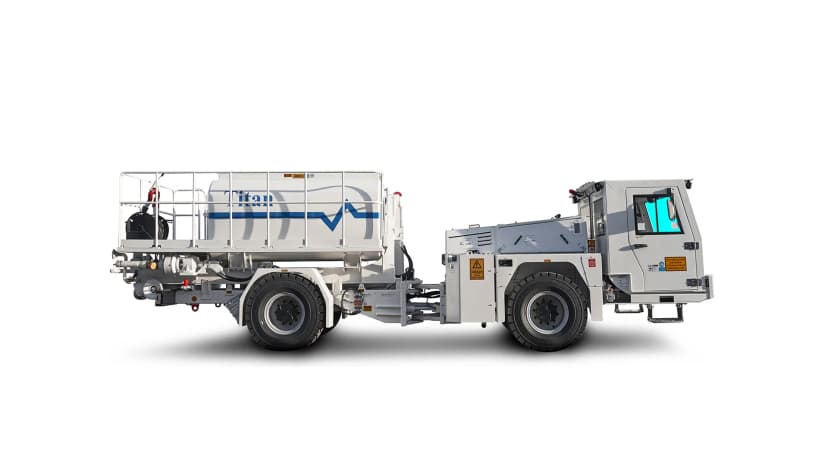

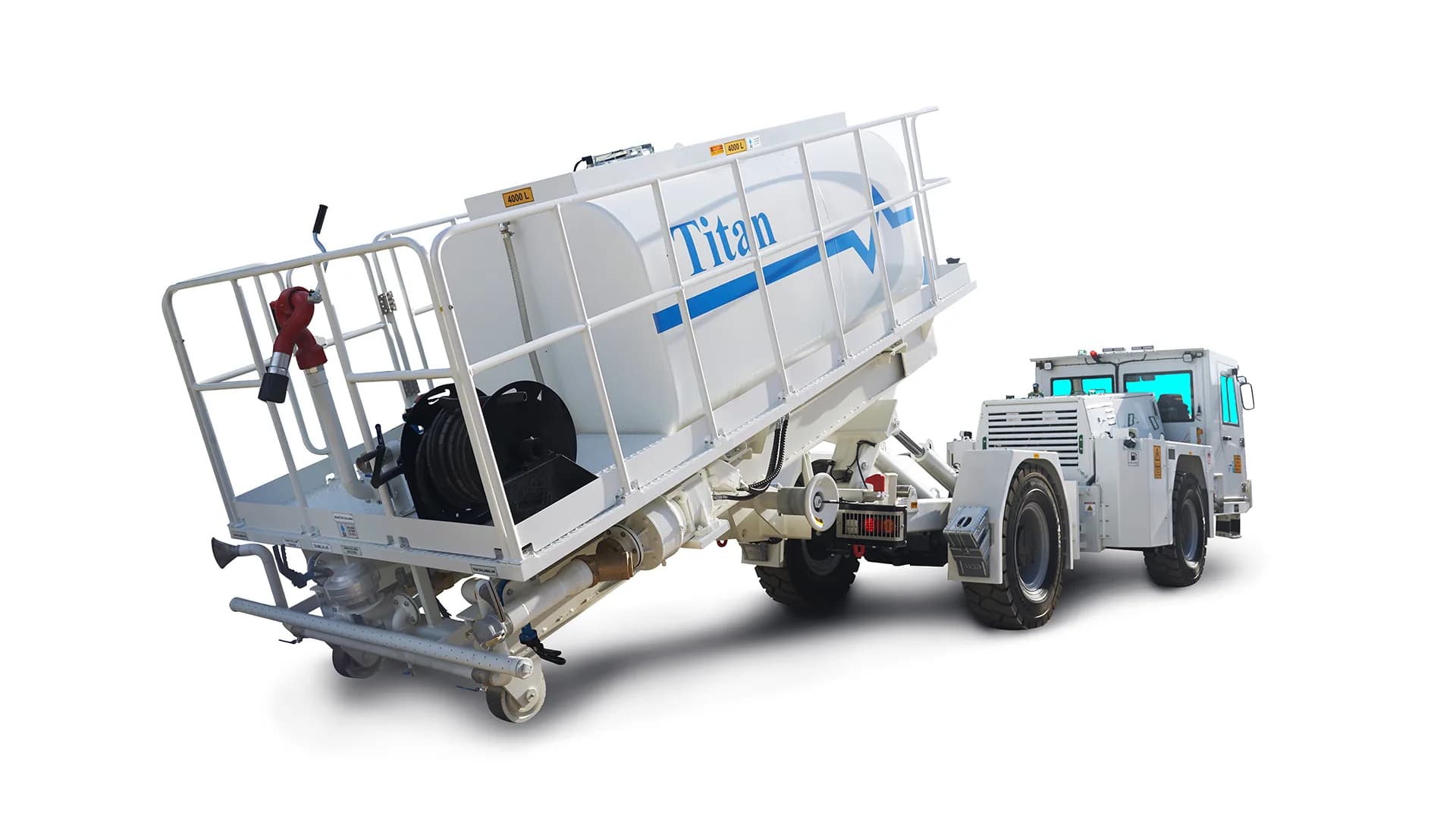

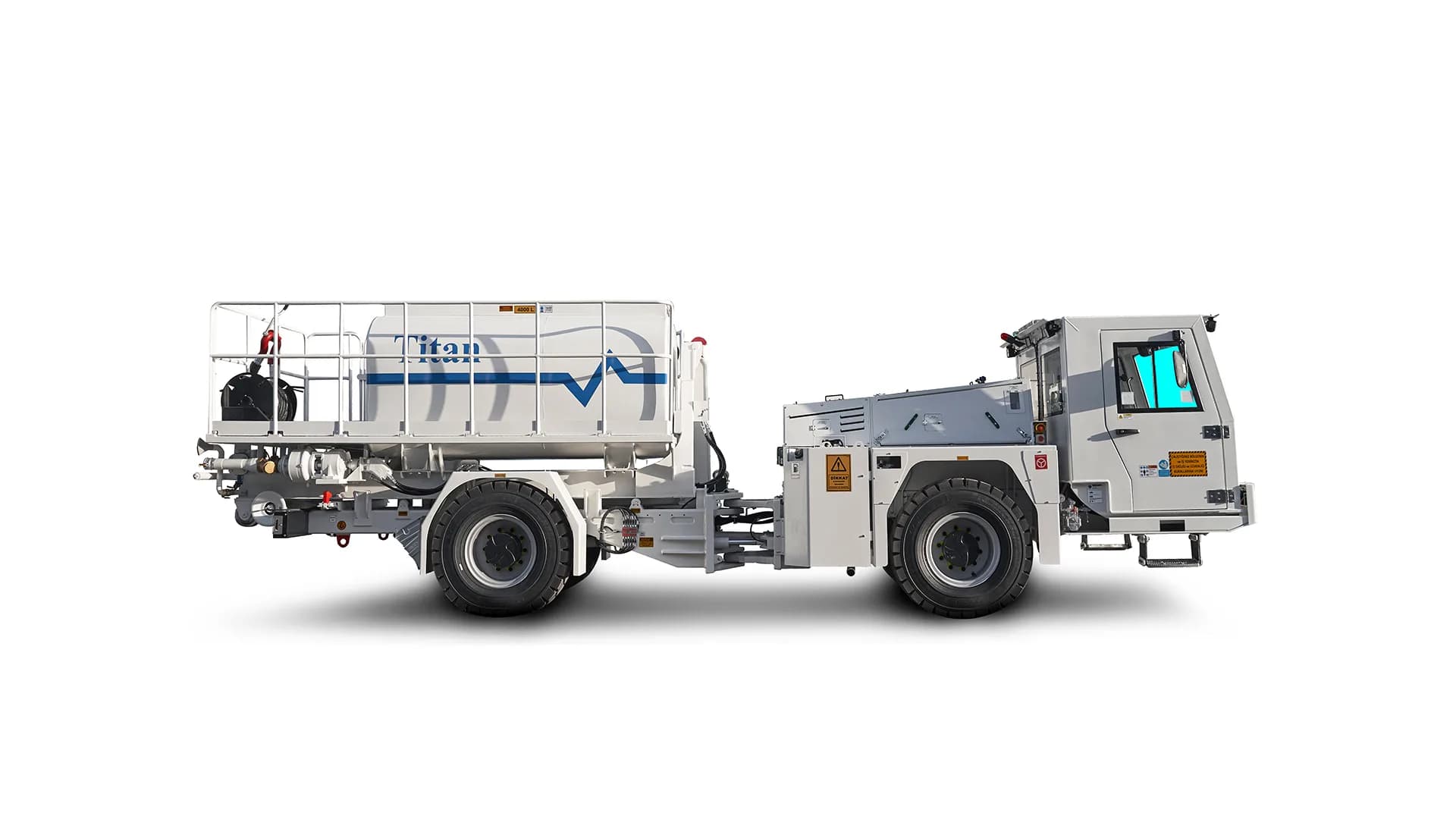

  • Water Tank Cassette
  • Loading Platform Cassette

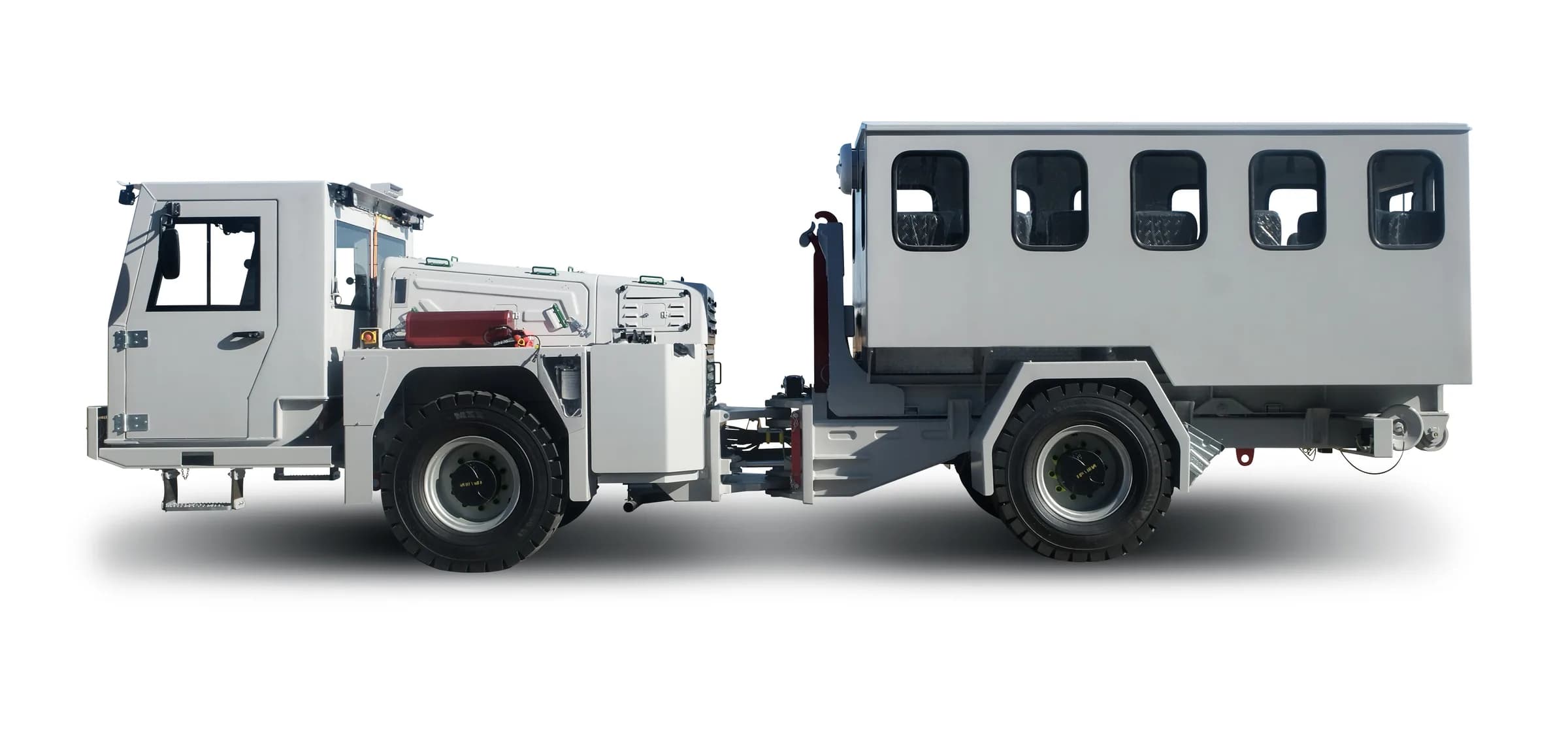

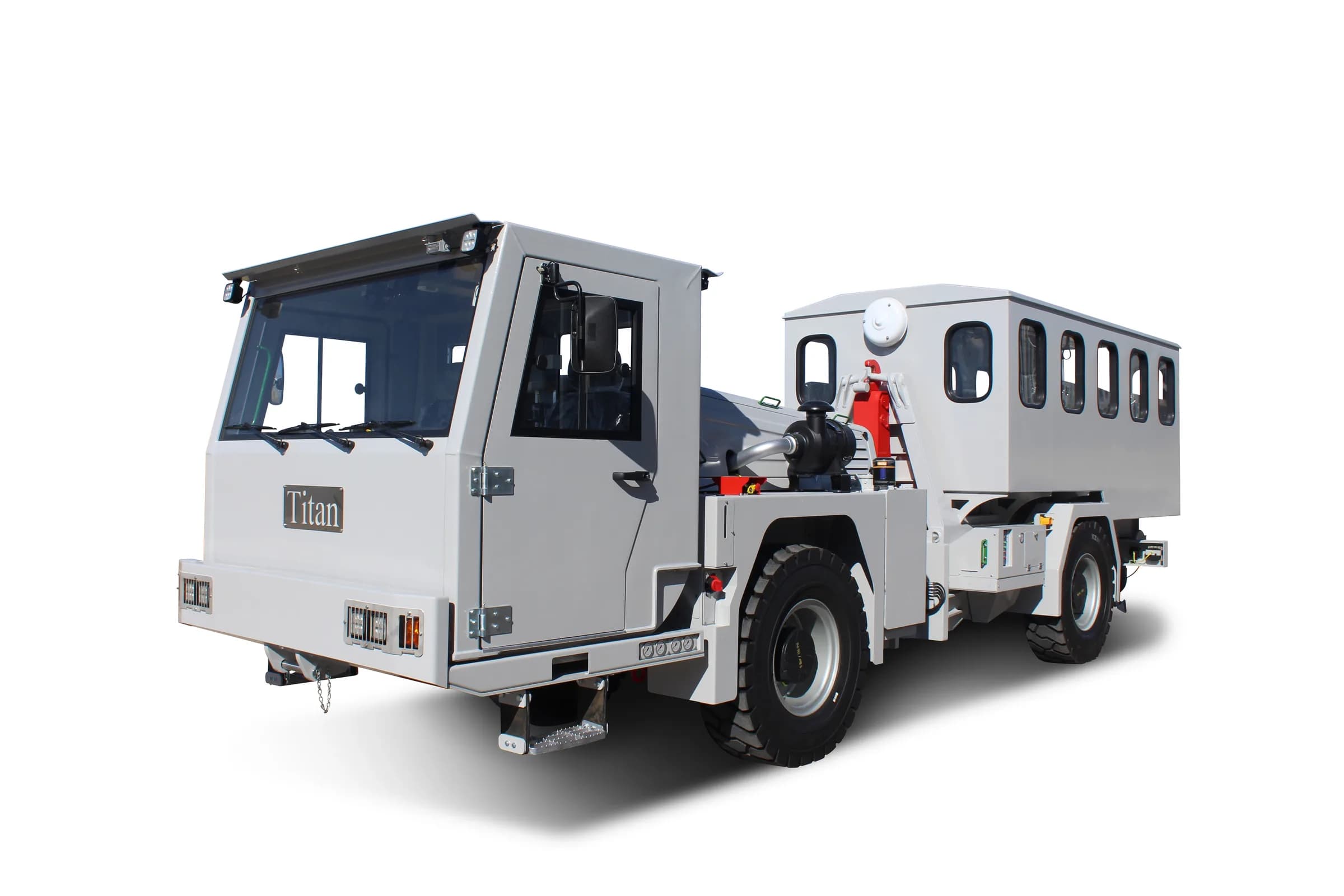

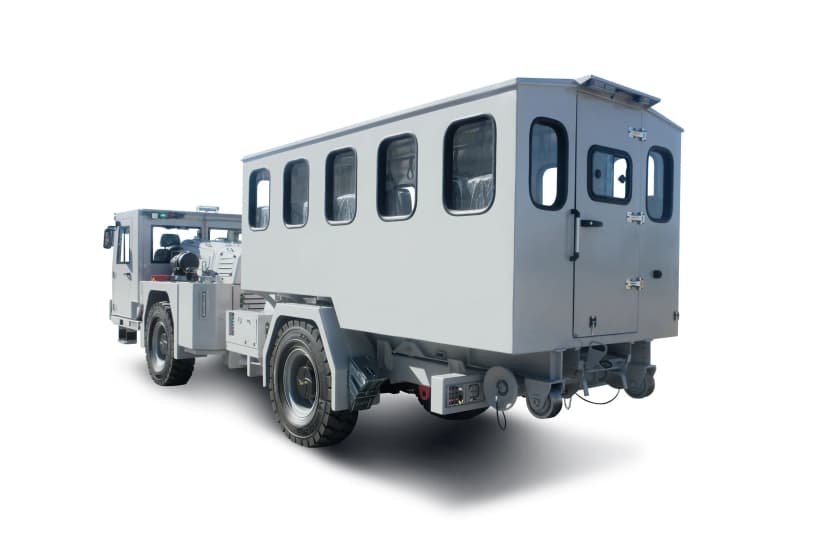

  • Personnel Carrier Cassette
  • 3 m³ Transmixer Cassette
  • Emulsion Cassette
  • Explosives Transport Cassette

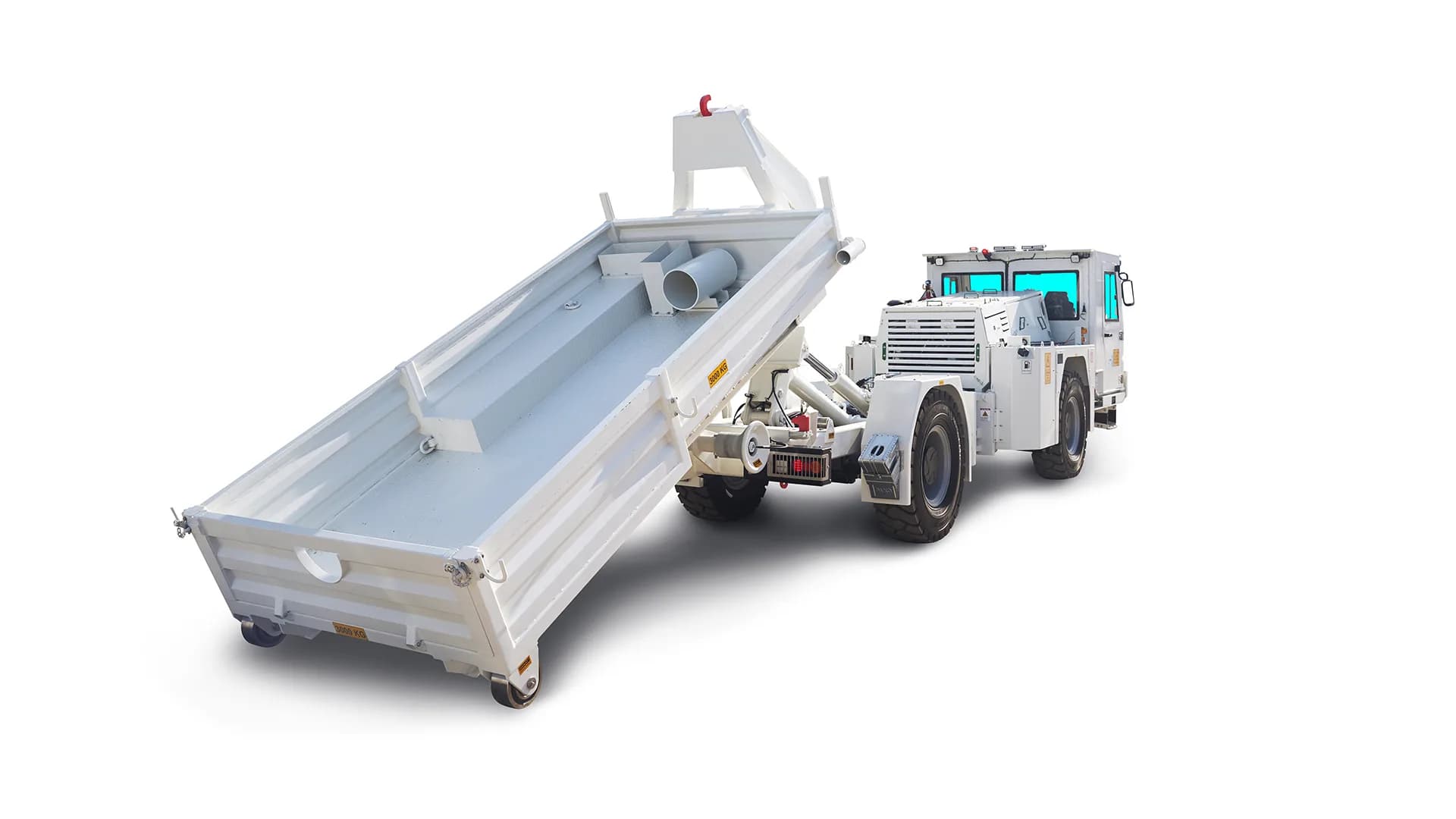

  • Flatbed Transport Cassette
  • Fuel and Lube Cassette
  • Scissor Platform Cassette
  • Vacuum Tanker Cassette
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
