MUV11 - Multipurpose Utility Vehicle - Personnel Carrier Variant

Name: MUV11 - Multipurpose Utility Vehicle - Personnel Carrier Variant
Brand: Titan Makina
SKU: MUV11

Multi-Purpose Vehicle

Multi-Purpose & Modular Vehicles

MUV11 - Multipurpose Utility Vehicle - Personnel Carrier Variant

MODEL · MUV11

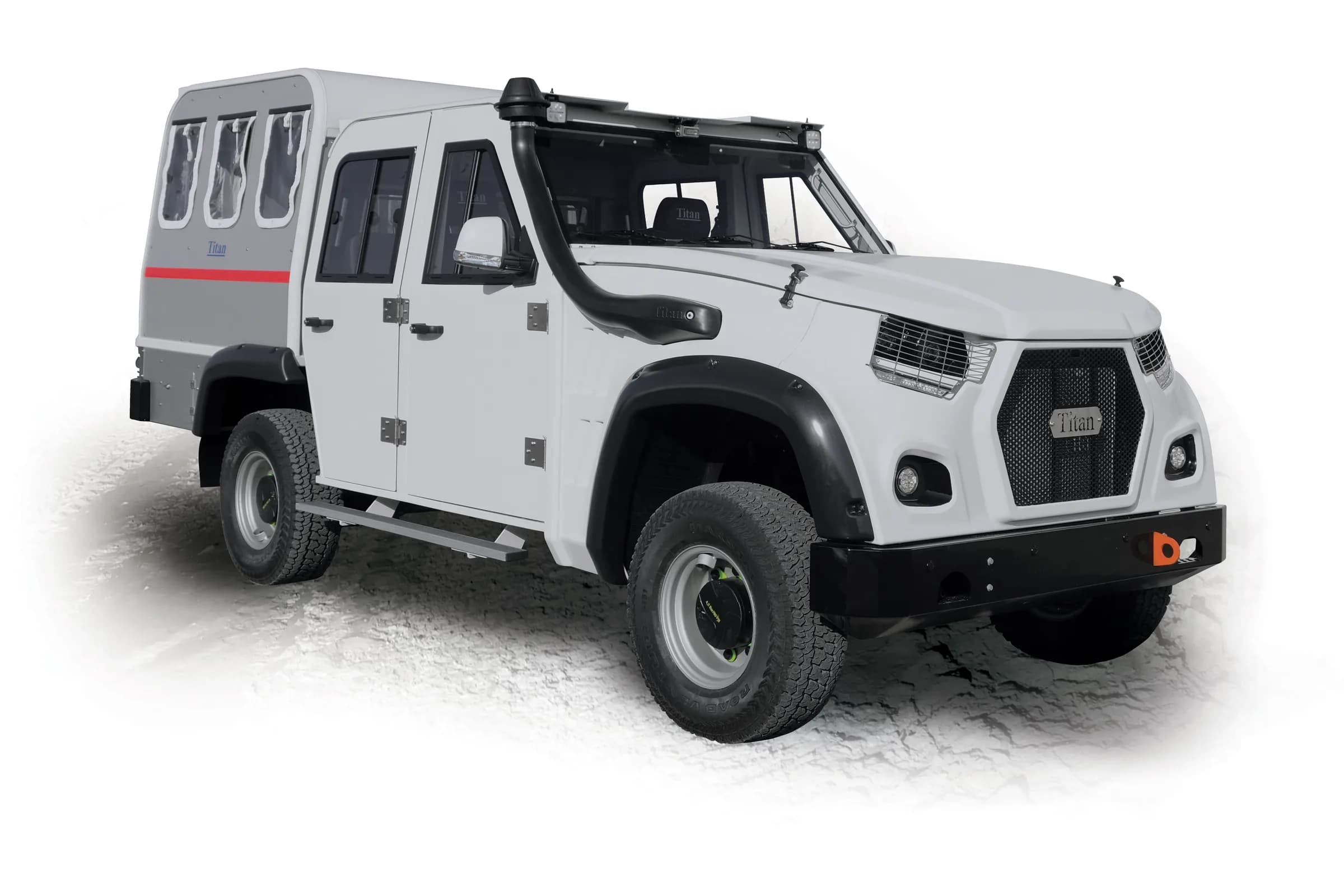

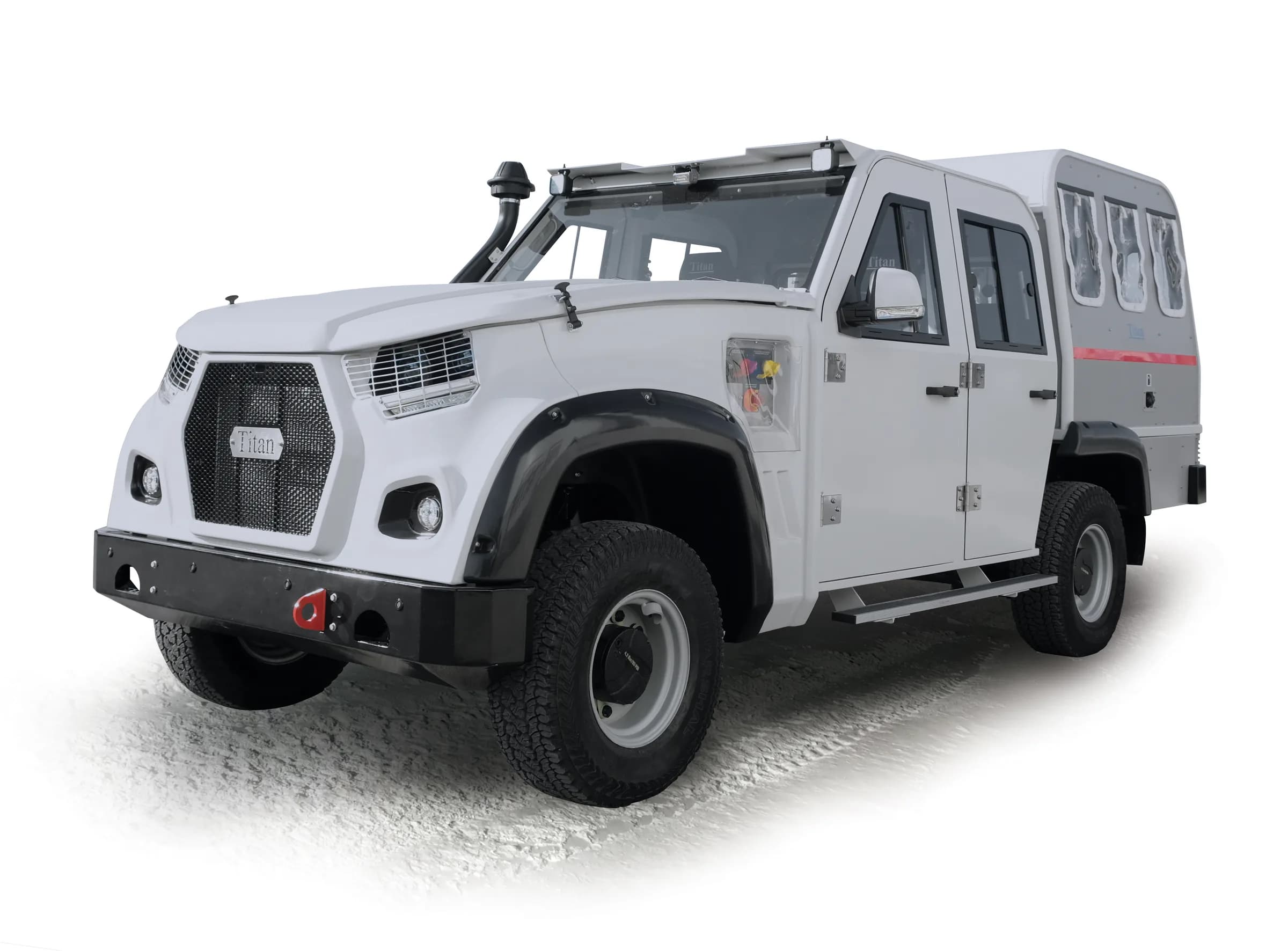

Personnel carrier variant of the multipurpose utility vehicle. 40 km/h travel speed, 85 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(5)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	80 l	80 l
Options
Make / Model	Cummins QSB4.5	-
Max. Power	82 kW / 2500 rpm	-
Max. Torque	488 Nm at 1500 rpm	-
Engine Emission	EU Stage 3A / US EPA Tier 3	-
Diesel Tank Capacity	80 l	-
AdBlue Tank Capacity	-	20 l
With catalytic converter and silencerStage III only With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T12.000	Dana Spicer T12.000
Powershift automatic transmission Automatic and Manual 6-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer	Dana Spicer
Type	Planetary	Planetary
Front Axle	211 Drive Axle	211 Drive Axle
Rear Axle	111 Rigid Axle	111 Rigid Axle
Tires	8.25 R15	8.25 R15
Performance
Max. Gradient	40%	40%
Max. Speed	40 km/h	40 km/h
Steering
+/- 45° Orbitrol Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic System
Pump Type	Fixed Displacement	Fixed Displacement
Max. Pressure	210 bar	210 bar
Flow Rate	46 l/min at 2300 rpm.	46 l/min at 2300 rpm.
Hydraulic Oil Tank	40 l	40 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	2x12 V - 115 Ah	2x12 V - 115 Ah
Protection	IP65	IP65
Working LightsDiffers	4 x 20 W (1500 Lumen) LED Lamp 2 x 30 W (2000 lumen) front low beam LED lamps 2 x 20 W (2000 lumen) front high beam LED lamps 2 x 8 W fog LED lamps	4x20W (1500 Lumen)LED Lamp
Back-up Light	1 x 20 W Led Lamp	1 x 20 W Led Lamp
Beacon Light	Amber Color	Amber Color
Turn Signals	Red-Green Color	Red-Green Color
Panel Type	Stainless Steel	Stainless Steel
Turn Signals 2 x 30 W (2000 lumen) front low beam LED lampsStage V only 2 x 20 W (2000 lumen) front high beam LED lampsStage V only 2 x 8 W fog LED lampsStage V only
Titan Closed Operator Cabin
1+4-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-shaped front seats with 3-point seat belts, suspension and weight adjustment T-shaped rear seats with 3-point seat belts, low vibration and weight adjustment Depth and height adjustable steering wheel In-cabin grab handles compliant with the 3-point rule Glove box Heated laminated windshield and heated tempered rear windows Heated wing mirrors with in-cabin electric control and turn signals Sliding side windows compliant with occupational safety standards 3-arm windshield wiper Lockable doors Outside air temperature indicator Air-Conditioned Cabin With Heating And Cooling Door open warning sensors for 4 doors In-cabin vehicle two-way radio outlet (12V) Cabin Lighting Rear View Camera and monitoring via the HMI display in the operator cabin 7'' HMI display panel on the center console Display panel behind the steering wheel
Control System
Gear Selector	APC	APC
Engine	ECU	ECU
Control	Main ECU	Main ECU
Warning	7" HMI Display	7" HMI Display
CAN Bus system CAN-enabled front display
Data Available on the Displays
Hydraulic oil temperature and level data Brake hydraulic pressure data Fuel level Engine and radiator water temperature and level warning Transmission oil temperature and pressure Air filter indicator Water in fuel warning Door open warning Vehicle speed Engine Speed Operating hours Gear Indicator Outside air temperature Engine Fault Codes Engine and transmission data logging Differential lock indicators and warnings Vehicle tilt indicators and warnings Speed limit warning Right and left turn signal indication
Dimensions and Weight
WeightDiffers	5,500 kg (Approx.)	5,750 kg (Approx.)
Length	5,620 mm	5,620 mm
Width	2,000 mm	2,000 mm
Height	2,500 mm	2,500 mm
Inner Turning Radius	2,850 mm	2,850 mm
Outer Turning Radius	6,230 mm	6,230 mm

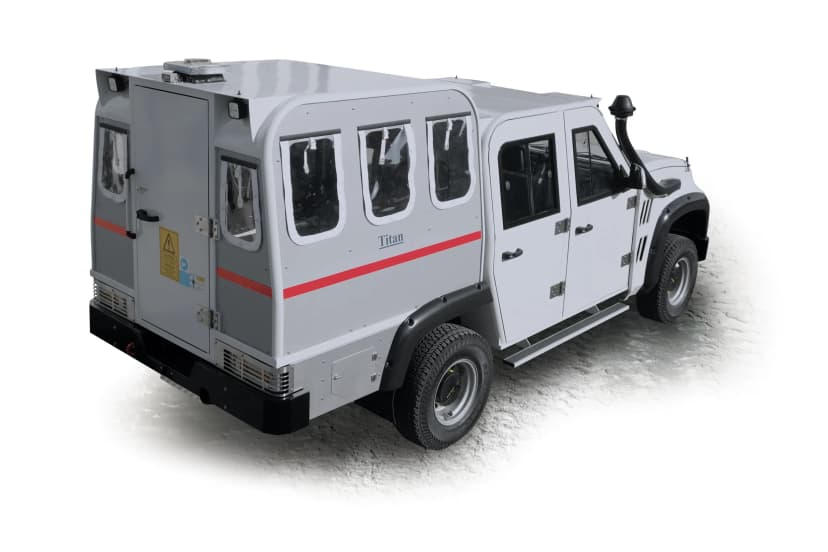

Personnel Cabin
Cabin Dimensions	1,900 x 1,700 x 1,400 mm	1,900 x 1,700 x 1,400 mm
Personnel Capacity	6 Persons	6 Persons
ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Foldable ergonomic seats with 2-point seat belts Intercom connection with the operator cabin Steps in accordance with the 3-point rule Emergency stop button 1x2 kg portable fire extinguisher Cabin Lighting
Accessories
Warning plates and decals Tool Box First aid kit 1x2 kg portable fire extinguisher 1 pcs Wheel chock Front and rear tow bar Back-up alarm and light Battery and starter isolator switch
Other
Hydraulic Power Unit (Emergency Steering)
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only Electrical Outlet In The Cabin (220 V - 150 W) Centralized greasing system Automatic Lubrication System Manual Activated Fire Extinguishing System Manual And Automatic Activated Fire Extinguishing System (Linear Wired) Spare Wheel (Rim And Tire) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Retarder Electric step for the personnel cabin Data acquisition unit DCU + Can Wireless
