MUV-VK - Multipurpose Utility Vehicle - Crane Truck Variant

MODEL · MUV-VK

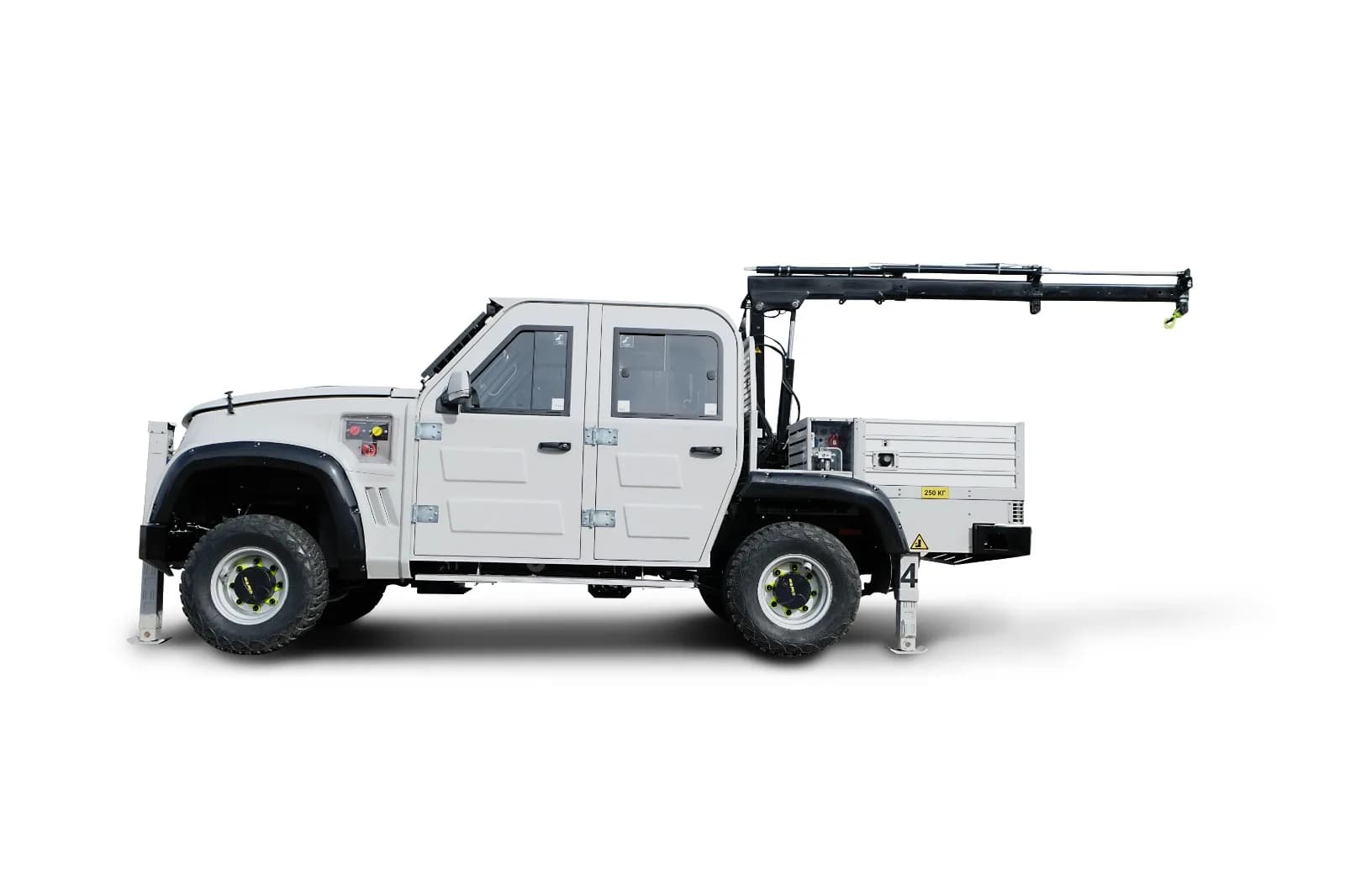

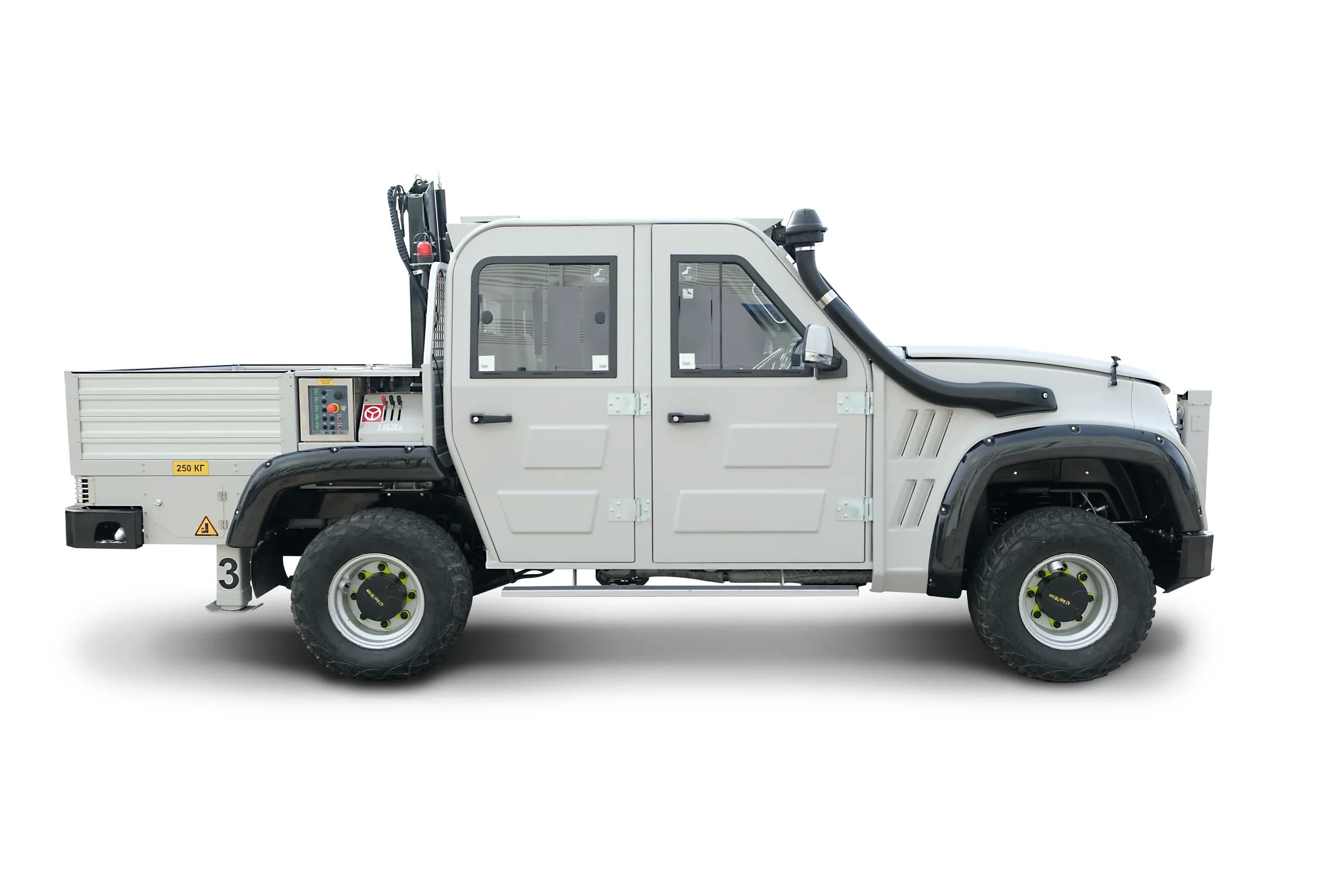

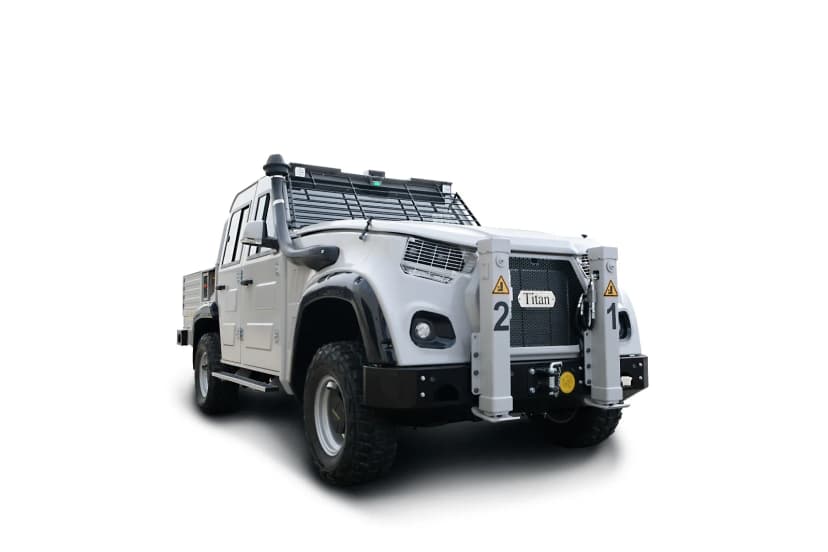

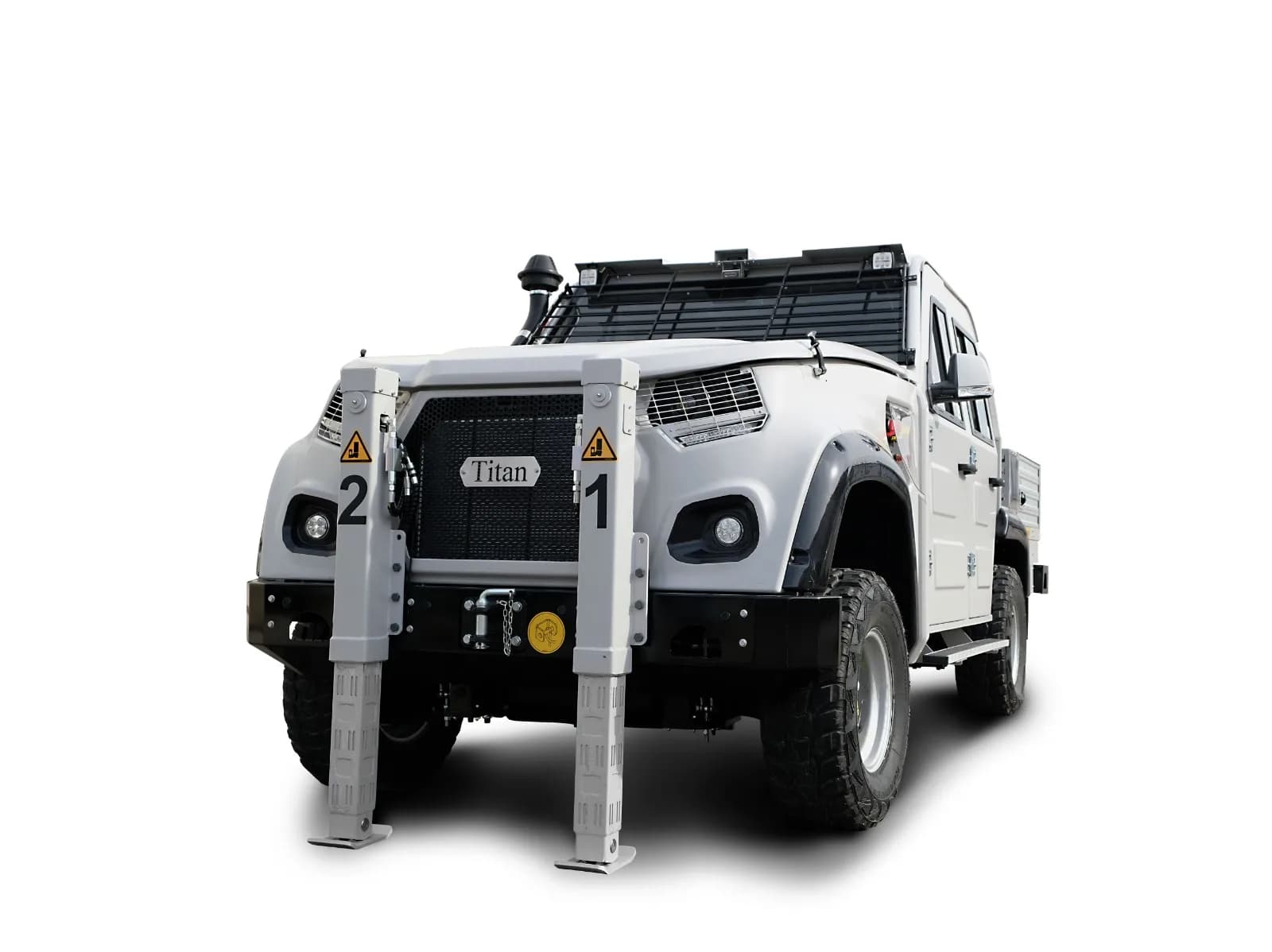

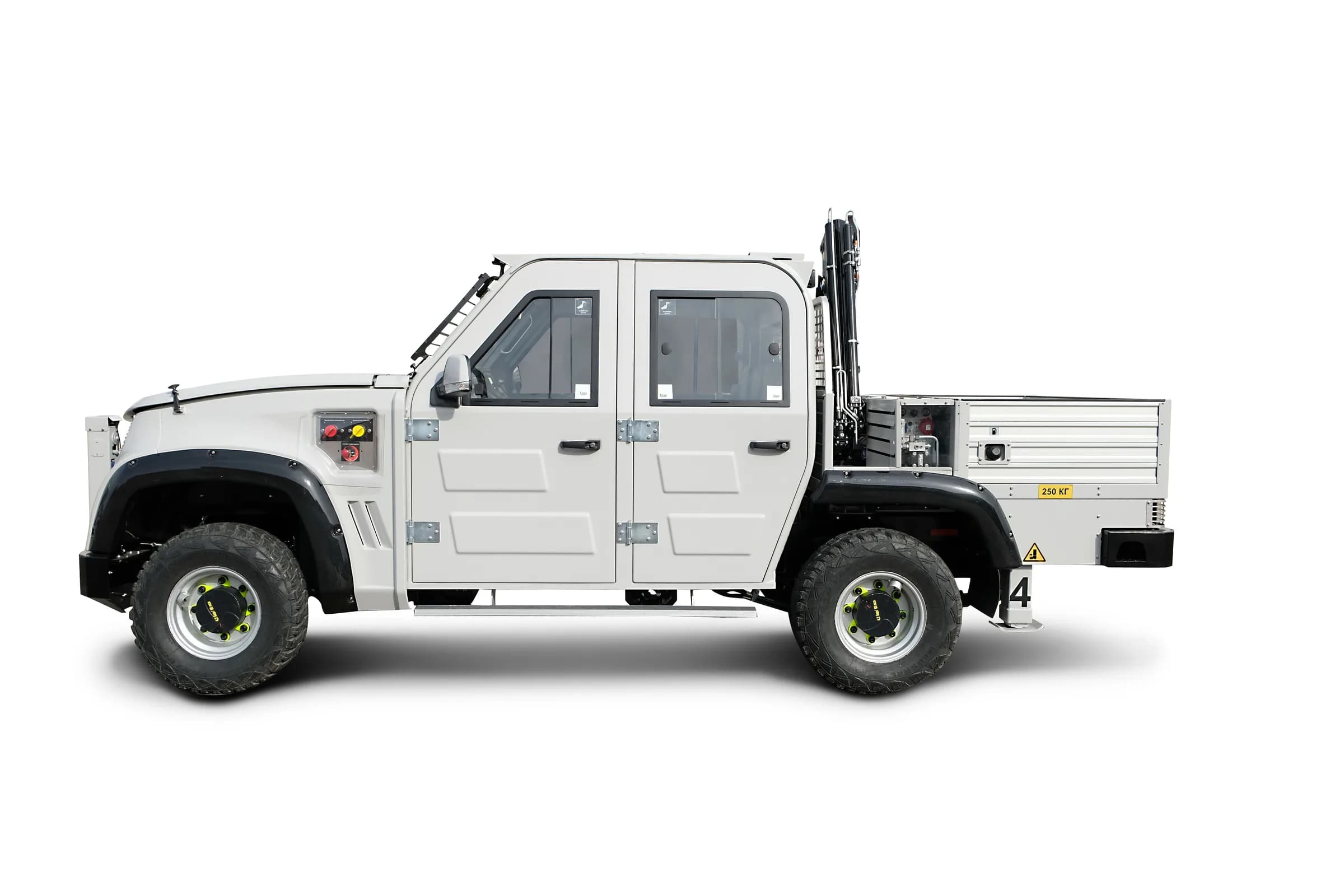

Crane truck variant of the multipurpose utility vehicle. 40 km/h travel speed, 85 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(6)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Cummins QSB4.5	Deutz TCD 3.6 L4 Stage V
Max. PowerDiffers	82 kW / 2500 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	488 Nm at 1500 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	80 l	80 l
Options
Make / Model	Deutz TCD 3.6 L4	-
Max. Power	85 kW at 2300 rpm	-
Max. Torque	430 Nm at 1600 rpm	-
Engine Emission	EU Stage 3A / US EPA Tier 3	-
Diesel Tank Capacity	80 l	-
AdBlue Tank Capacity	-	10 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T12.000	Dana Spicer T12.000
Powershift automatic transmission Automatic and Manual 6-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer	Dana Spicer
Type	Planetary	Planetary
Front Axle	211 Drive Axle	211 Drive Axle
Rear Axle	111 Rigid Axle	111 Rigid Axle
Tires	8.25 R15	8.25 R15
Performance
Max. Gradient	40%	40%
Max. Speed	40 km/h	40 km/h
Steering
+/- 45° Orbitrol Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic System
Pump Type	Fixed Displacement	Fixed Displacement
Max. Pressure	250 bar	250 bar
Flow Rate	75 l/min at 2500 rpm.	75 l/min at 2500 rpm.
Hydraulic Oil Tank	75 L	75 L
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24 V - 2x115 Ah	24 V - 2x115 Ah
Protection	IP65	IP65
Working Lights	4 x 20 W (1500 lumen) LED Lamp 2 x 30 W (2000 lumen) front low beam LED lamps 2 x 20 W (2000 lumen) front high beam LED lamps 2 x 8 W fog LED lamps	4 x 20 W (1500 lumen) LED Lamp 2 x 30 W (2000 lumen) front low beam LED lamps 2 x 20 W (2000 lumen) front high beam LED lamps 2 x 8 W fog LED lamps
Back-up Light	1 x 20 W Led Lamp	1 x 20 W Led Lamp
Beacon Light	Amber Color	Amber Color
Turn Signals	Red-Green Color	Red-Green Color
Panel Type	Stainless Steel	Stainless Steel
Titan Closed Operator Cabin
1+4-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-shaped front seats with 3-point seat belts, suspension and weight adjustment T-shaped rear seats with 3-point seat belts, low vibration and weight adjustment Depth and height adjustable steering wheel In-cabin grab handles compliant with the 3-point rule Glove box Heated laminated windshield and heated tempered rear windows Heated wing mirrors with in-cabin electric control and turn signals Sliding side windows compliant with occupational safety standards 3-arm windshield wiper Lockable doors Outside air temperature indicator Air-Conditioned Cabin With Heating And Cooling Door open warning sensors for 4 doors In-cabin vehicle two-way radio outlet (12V) Cabin Lighting Rear View Camera and monitoring via the HMI display in the operator cabin 7'' HMI display panel on the center console Display panel behind the steering wheel
Control System
Gear Selector	APC	APC
Engine	ECU	ECU
Control	Main ECU	Main ECU
Warning	7" HMI Display	7" HMI Display
CAN Bus system CAN-enabled front display
Data Available on the Displays
Hydraulic oil temperature and level data Brake hydraulic pressure data Fuel level Engine and radiator water temperature and level warning Transmission oil temperature and pressure Air filter indicator Water in fuel warning Door open warning Vehicle speed Engine Speed Operating hours Gear Indicator Outside air temperature Engine Fault Codes Engine and transmission data logging Differential lock indicators and warnings Vehicle tilt indicators and warnings Speed limit warning Right and left turn signal indication
Dimensions and Weight
WeightDiffers	5,500 kg (Approx.)	5,750 kg (Approx.)
Length	5,670 mm	5,670 mm
Width	2,000 mm	2,000 mm
Height	2,390 mm	2,390 mm
Inner Turning Radius	2,850 mm	2,850 mm
Outer Turning Radius	6,230 mm	6,230 mm

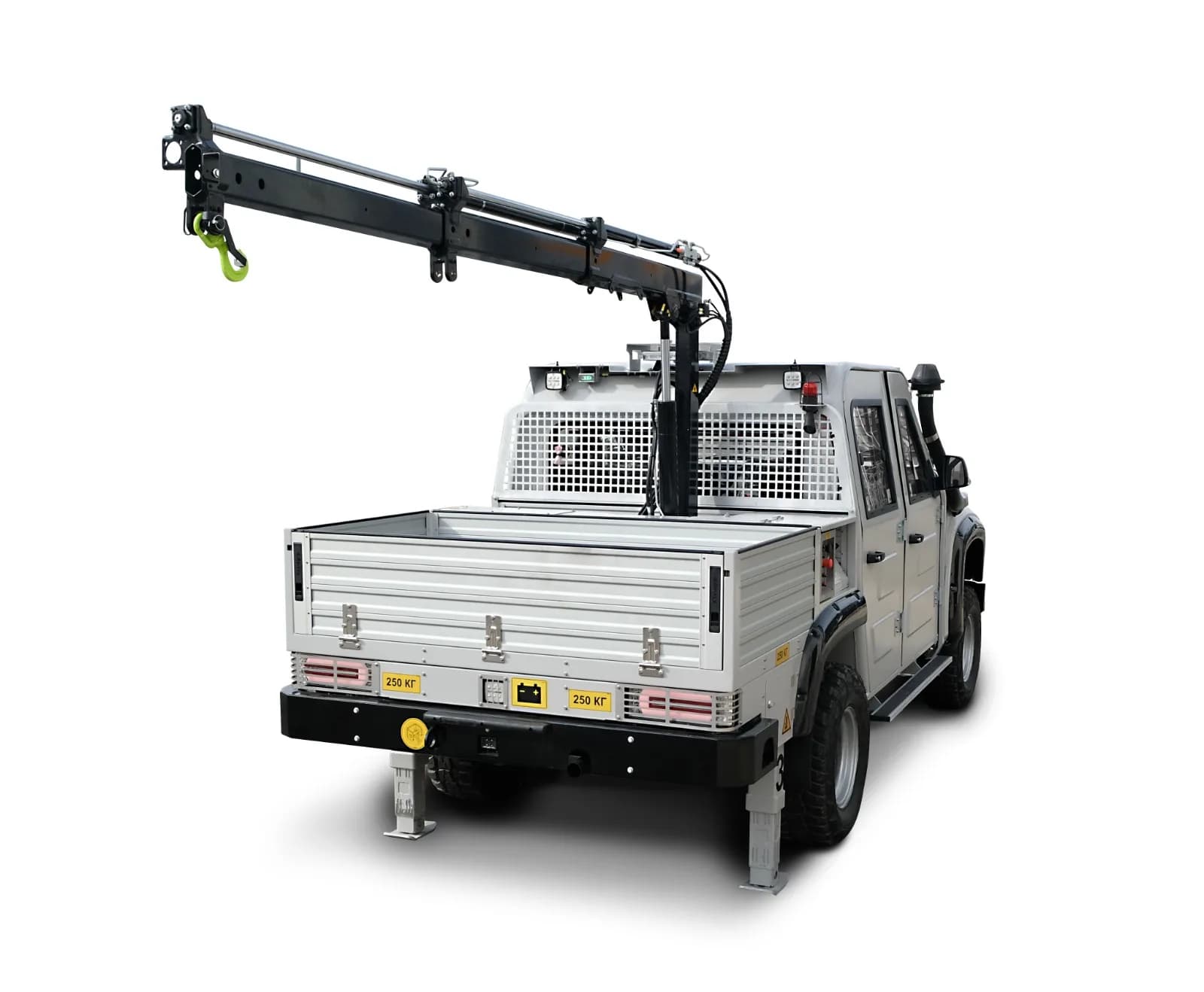

Manipulator
Boom Horizontal Reach	3 m	3 m
Boom Vertical Reach	4 m	4 m
HIAB Boom 600 kg capacity at 3 meters Load Control System
Cargo Body
Cargo Body DimensionsDiffers	1000 mm x 1820 mm x 415 mm	970 mm x 1825 mm x 415 mm
Capacity	250 kg	250 kg
Cargo body rear gate can be opened and closed
Accessories
Warning plates and decals 1 pcs Wheel chock Front and rear tow bar Back-up alarm and light Battery and starter isolator switch Tool Box First aid kit
Other
Hydraulic Power Unit (Emergency Steering)
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only Manual And Automatic Activated Fire Extinguishing System Front Windshield Protection Automatic Lubrication (Greasing) System Data acquisition unit DCU + Can Wireless Hydraulically Driven Screw Compressor (4 kW - 10 Bar - 0.5) Hydraulically Driven High Pressure Water Pump 250 Bar 30 L/min Hydraulically Driven Welding Machine 40-180 ADC Ø 4 mm electrode 45 L Water Tank 20 L Air Tank 13 m Air Hose with ReelStage III only 13 m Water Hose with ReelStage III only 13 M air hose with reelStage V only 13 M water hose with reelStage V only
