What is the boom reach?

60° up, 10° down. Rock scaling with an Epiroc SB302 hydraulic breaker.

Is the braking fail-safe?

SAHR spring-applied safety brake with oil-immersed multidisc brakes on both axles.

BKT - Scaler

Name: BKT - Scaler
Brand: Titan Makina
SKU: BKT

Scaling Machine

Special Purpose Machines

BKT - Scaler

MODEL · BKT

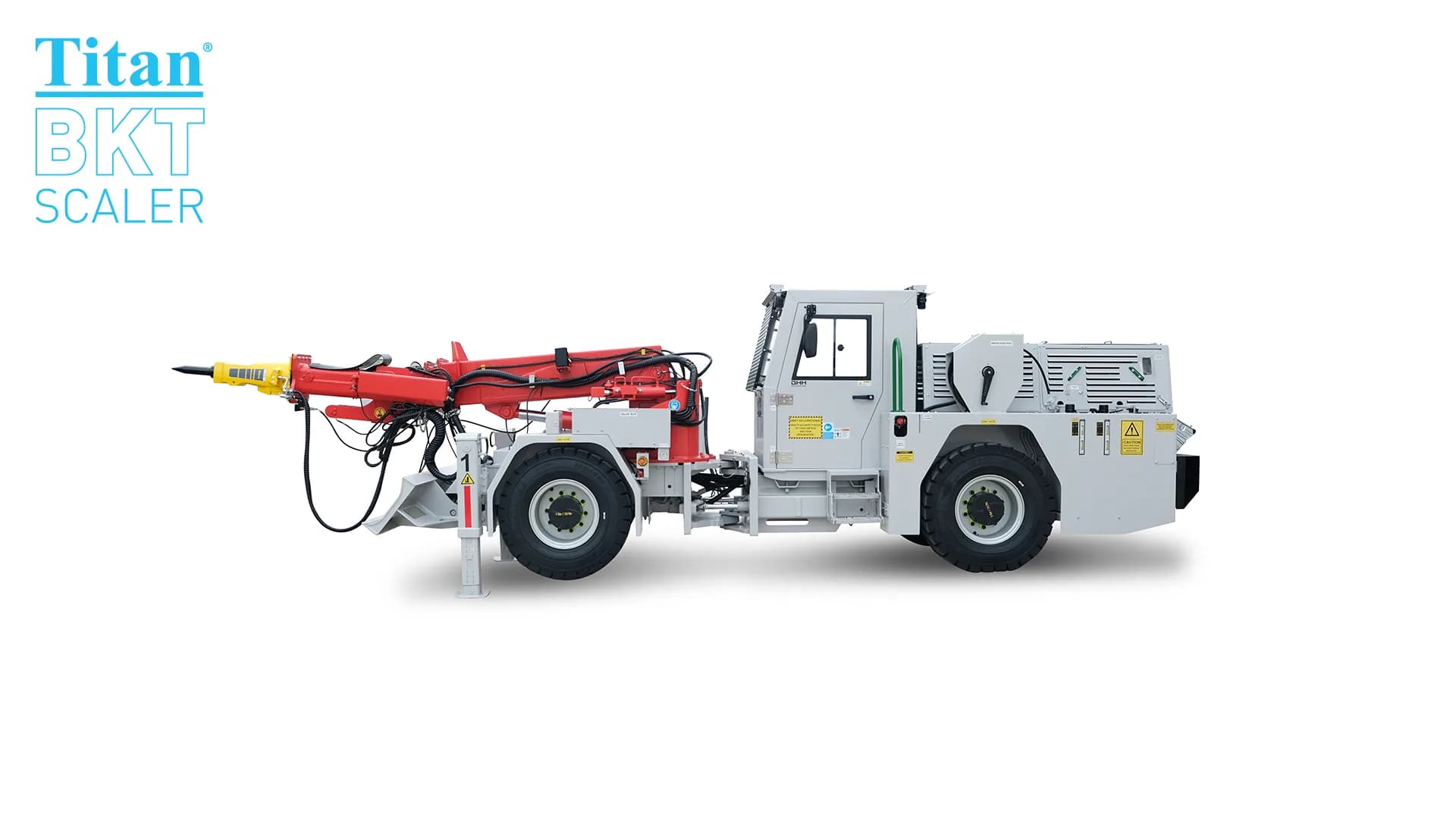

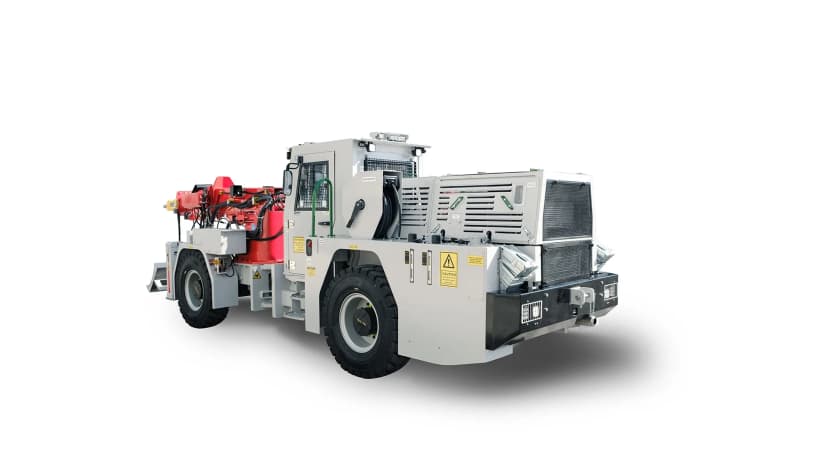

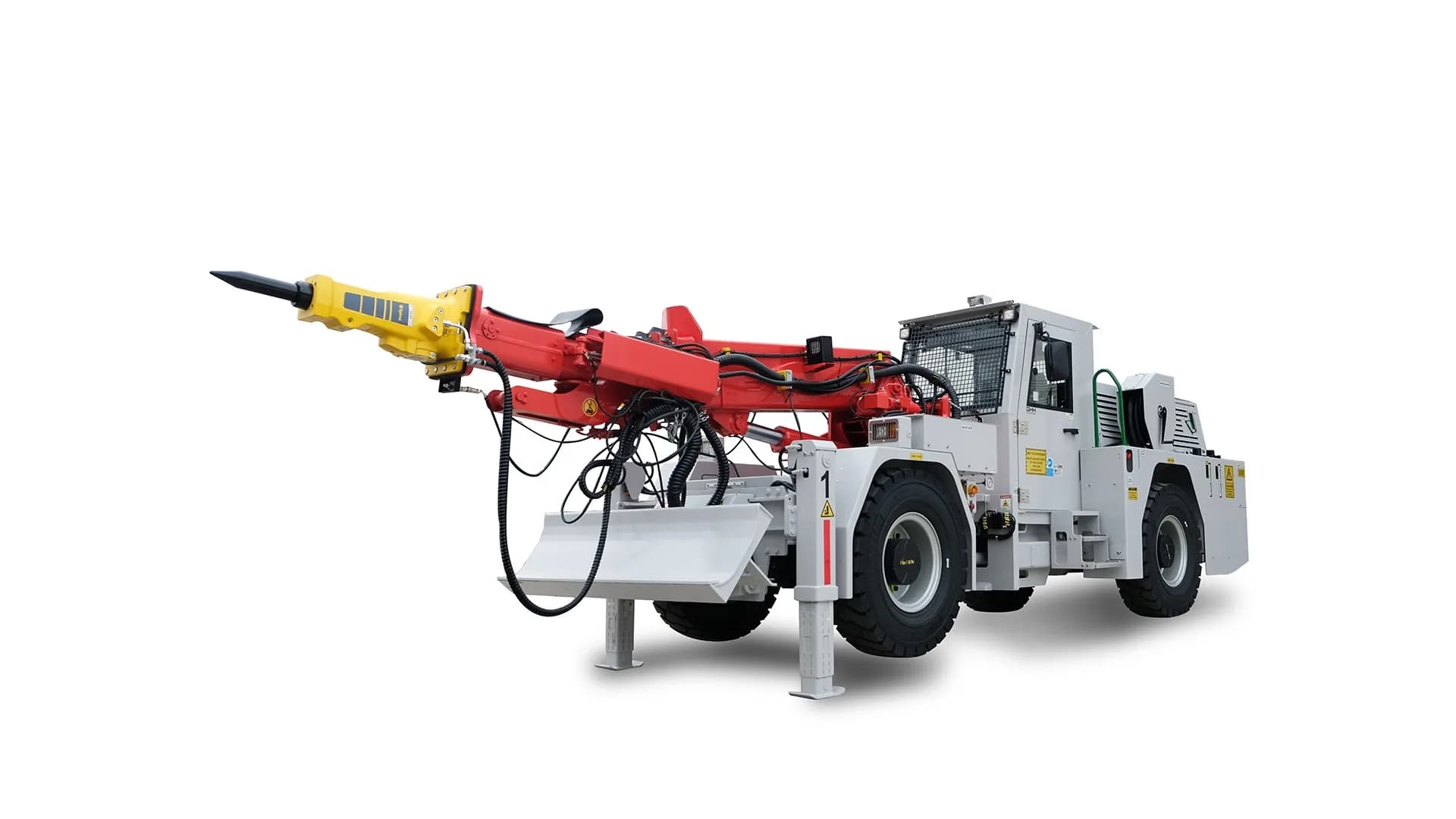

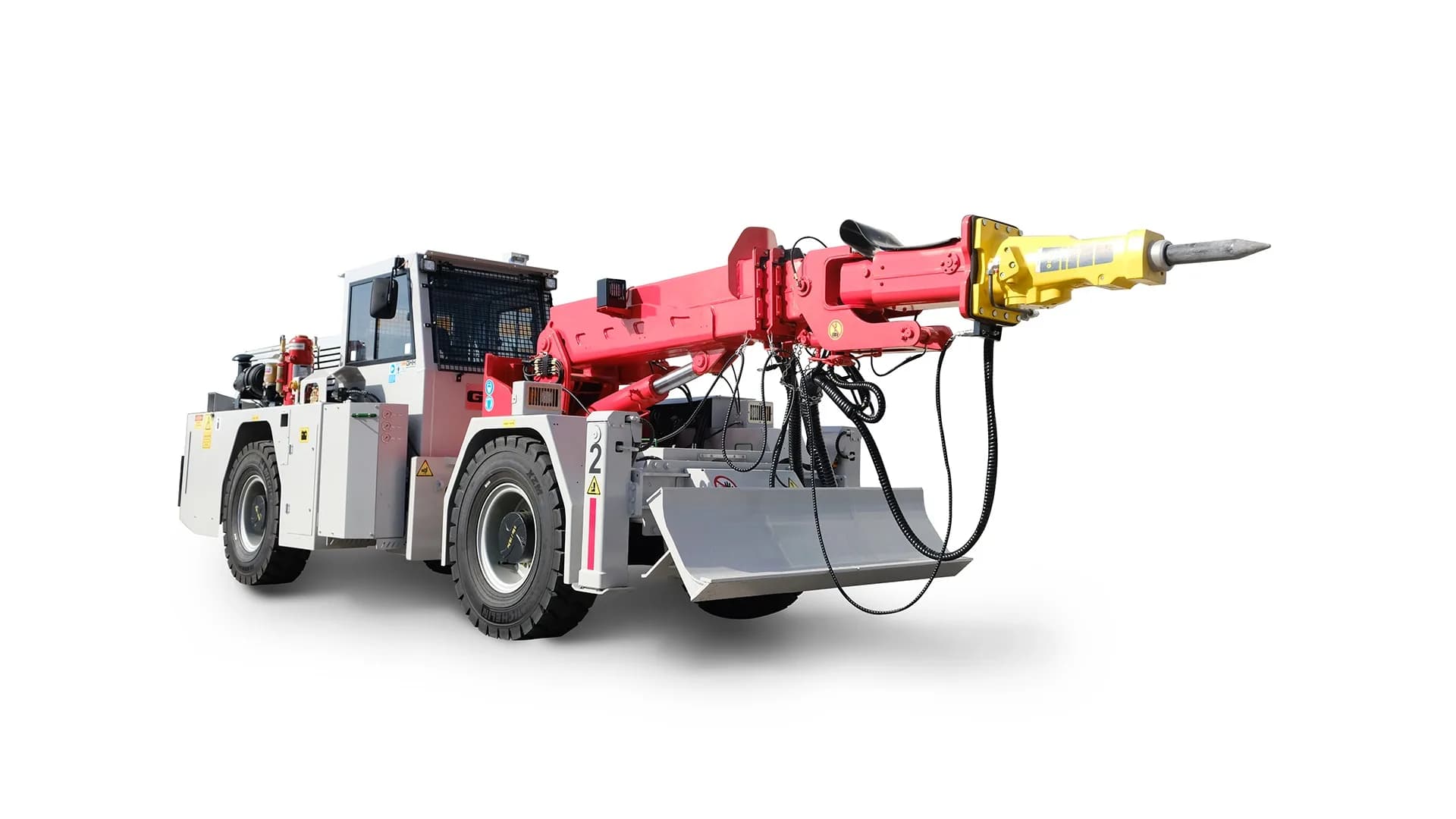

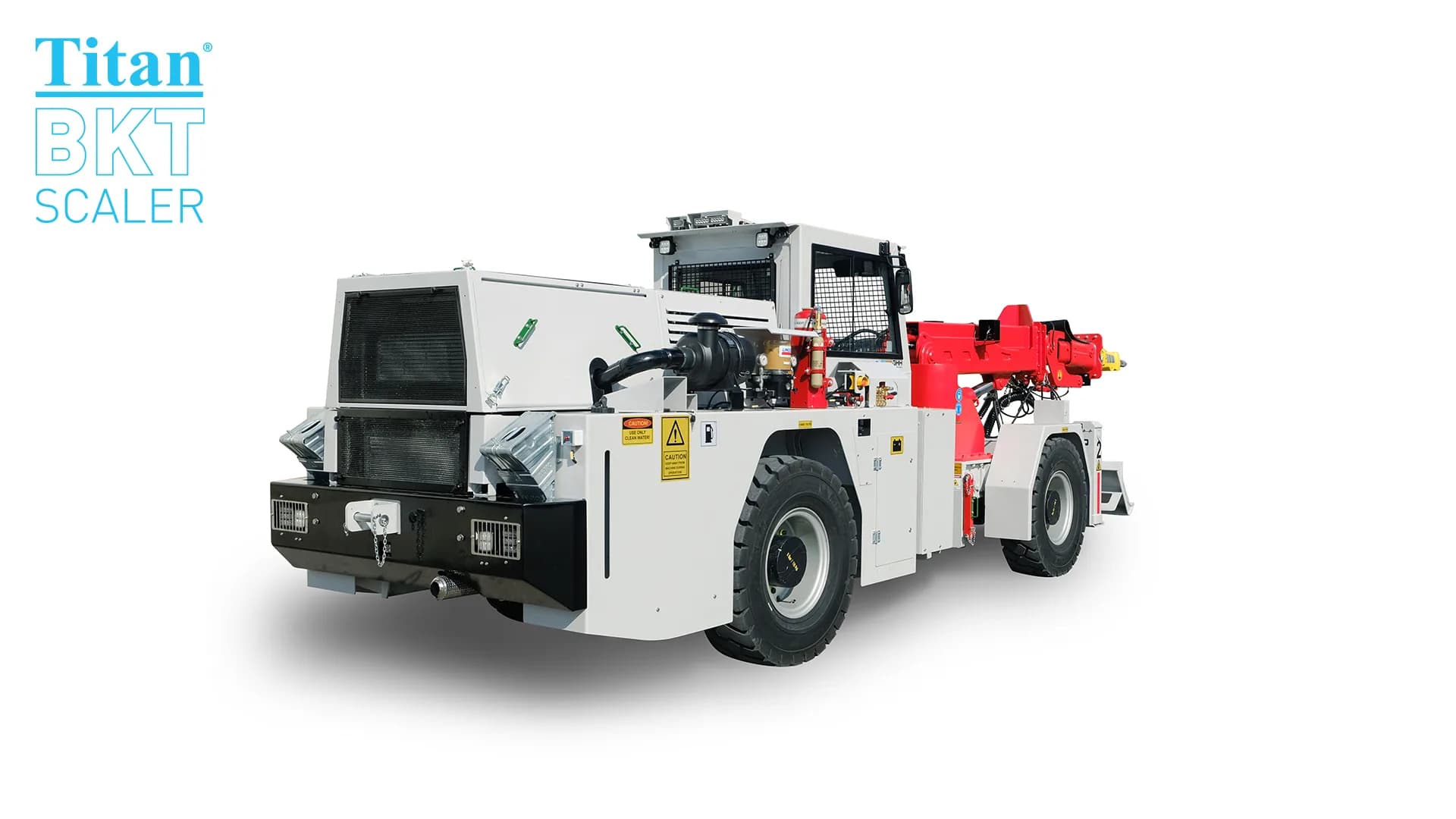

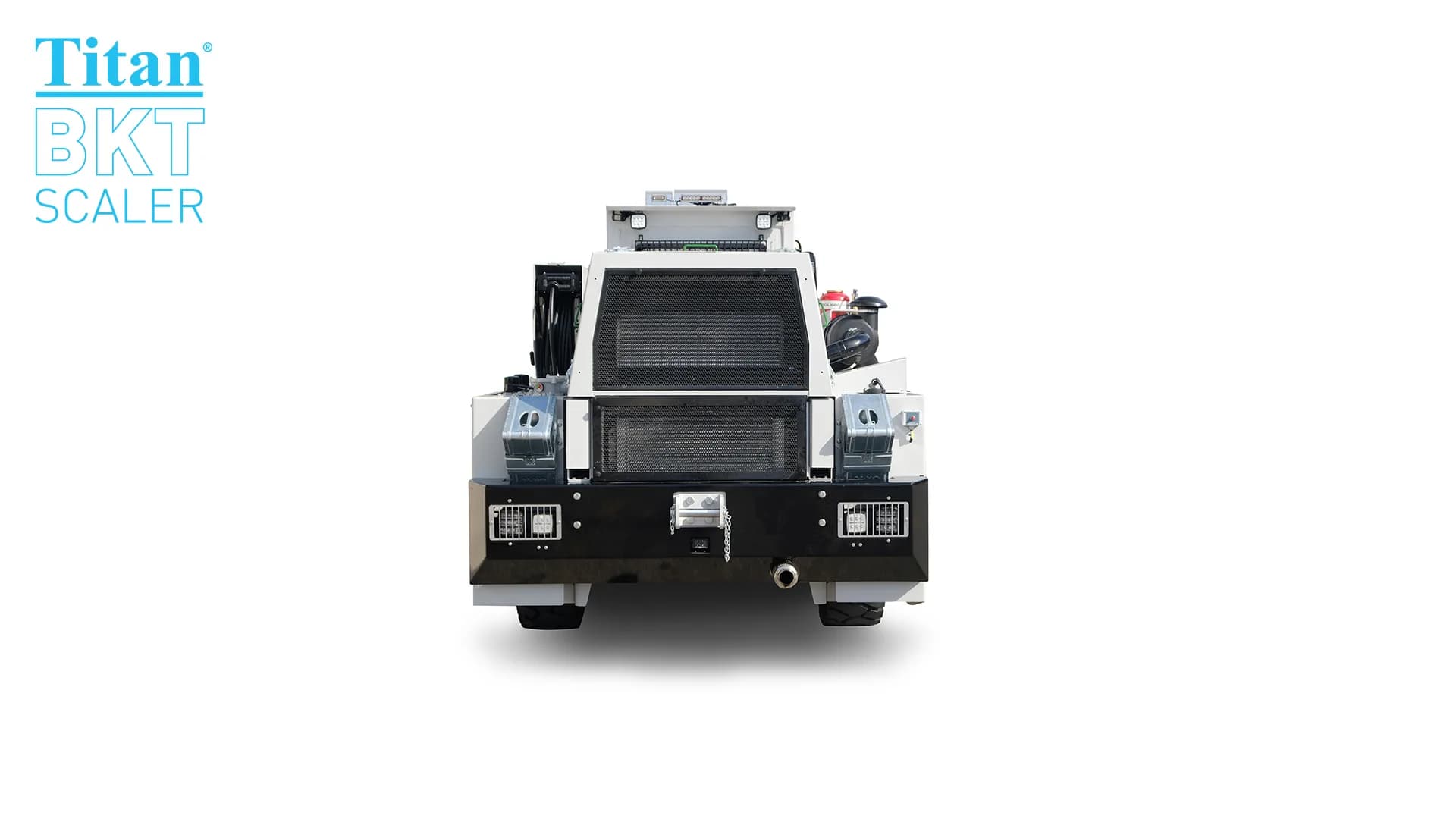

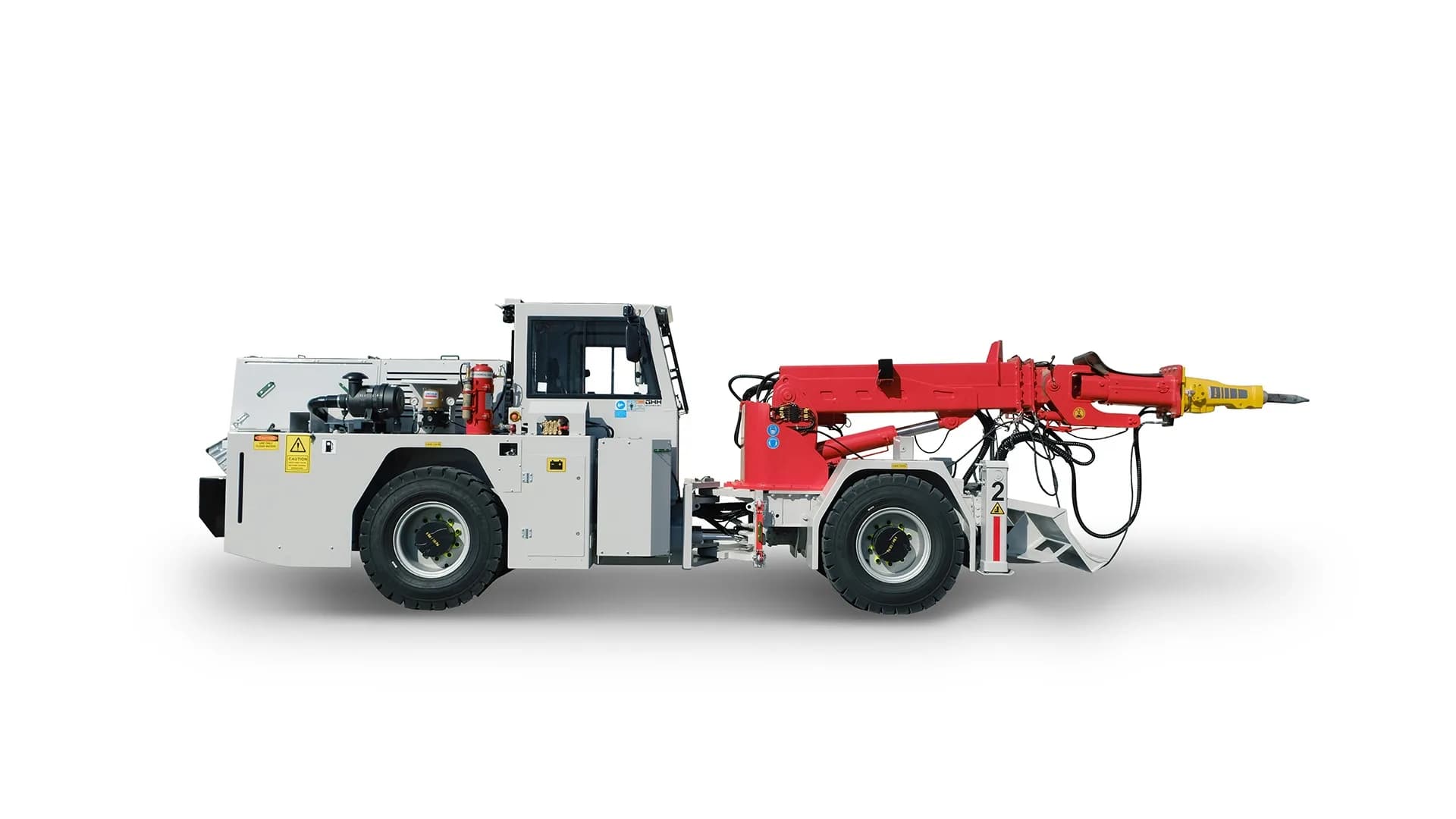

Underground rock scaler with Epiroc SB302 breaker and a 60° up boom. Closed ROPS/FOPS L2 cabin.

Request a quote →Request datasheet

Highlighted features

Highlighted features ·

Engine power

129 kW

Operating weight

12.5 t

Reach / payload

60° up boom / SB302 breaker

Datasheet

Specifications by engine stage

Show differences only(7)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank Capacity	150 l	150 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Hydrostatic	Hydrostatic
4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Rigid	Rigid
Tires	12.00 - 20	12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
2 speeds, low and high
Steering
Articulated, +/- 43° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs fixed	Front, 2 pcs fixed
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	380 bar	380 bar
Flow RateDiffers	135 l/min at 2300 rpm (For Operation) 410 l/min at 2300 rpm (For Transmission)	135 l/min at 2200 rpm (For Operation) 410 l/min at 2200 rpm (For Transmission)
Hydraulic Oil Tank	2x120 l	2x120 l
Return Oil Filter	25 µm	25 µm

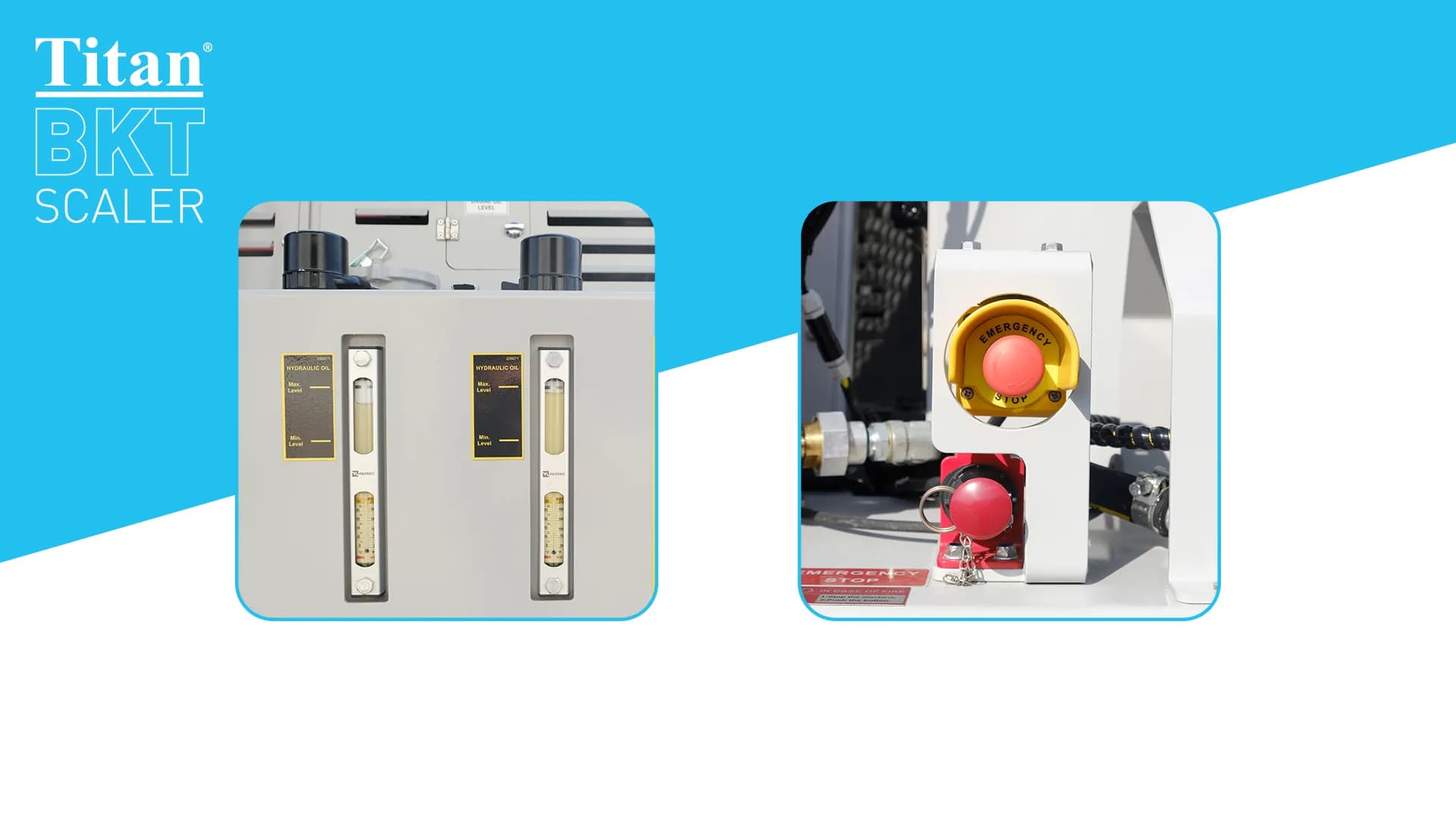

Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 2 x 3000 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 3000 Lumen LED lights on the front fenders 2 x 1800 lumen LED lamps on the boom Turn Signals	Operator Cabin Front 2 x 3000 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 3000 Lumen LED lights on the front fenders 2 x 1800 lumen LED lamps on the boom Turn Signals
Panel Type	Stainless Steel	Stainless Steel

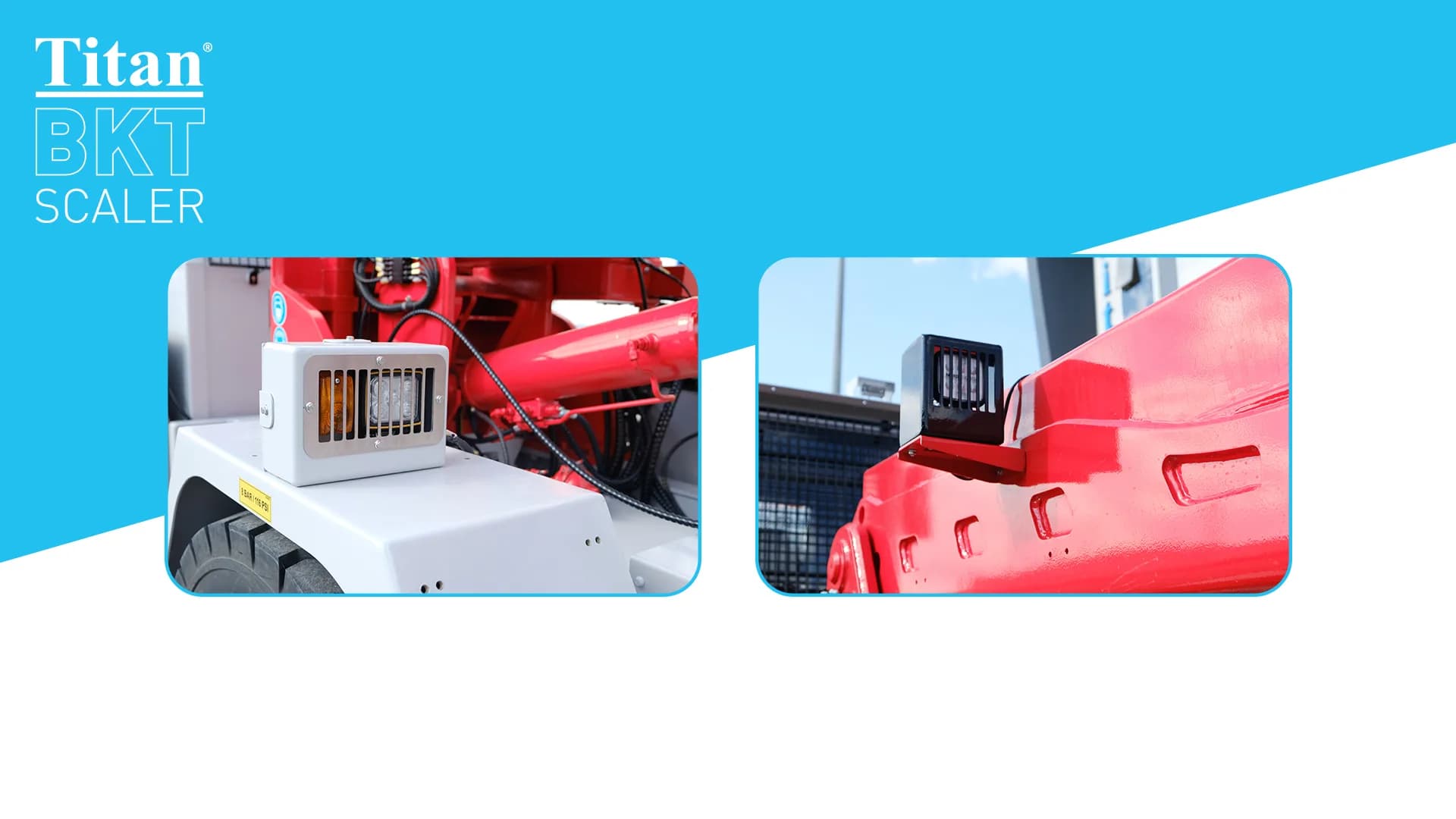

Beacon Light Amber Color
Titan Closed Operator Cabin

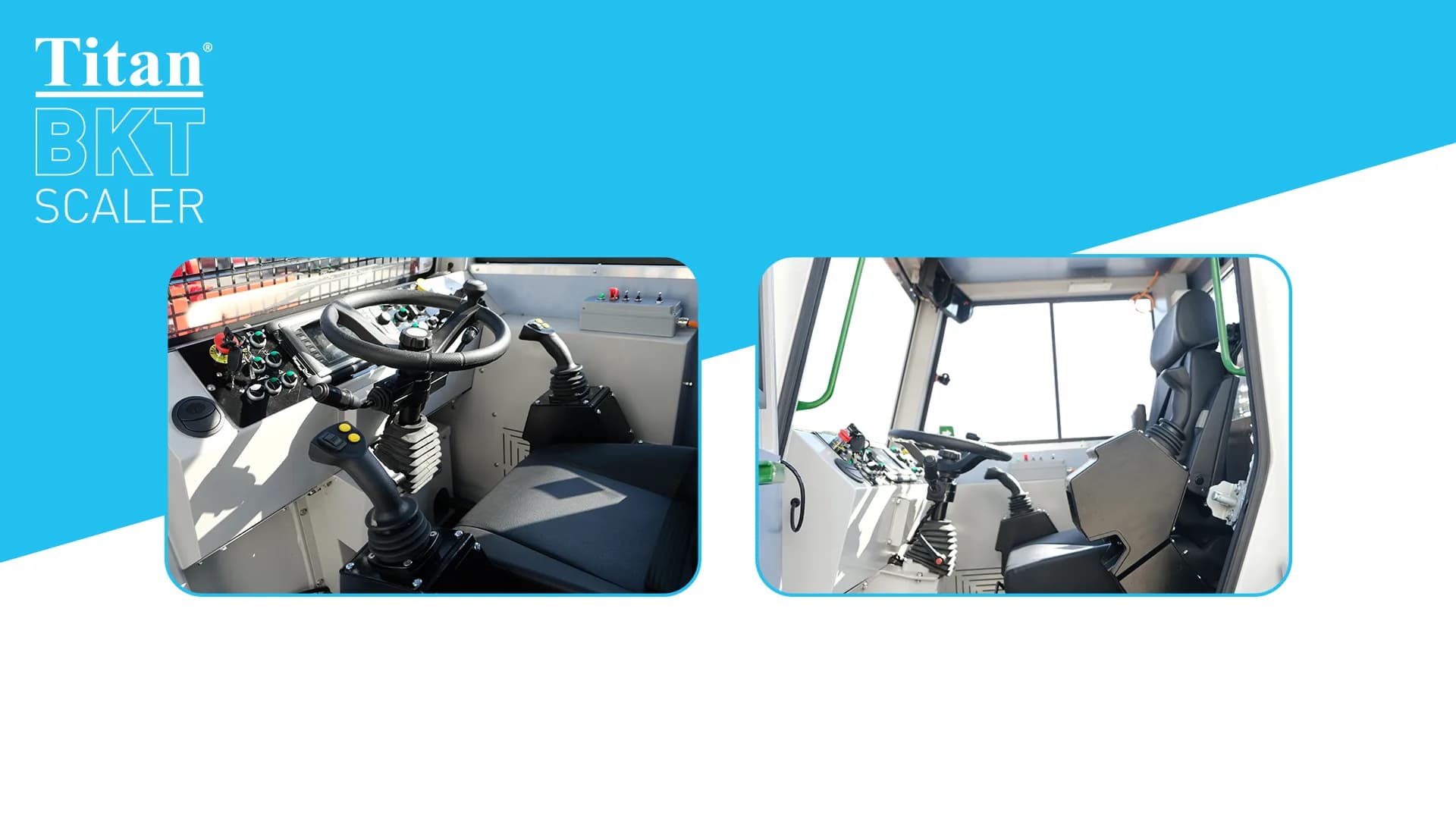

1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box In-Cabin Heater
Dimensions and Weight
WeightDiffers	12,500 kg (Approx.)	13,000 kg (Approx.)
LengthDiffers	9,050 mm	9,250 mm
Width	2,000 mm	2,000 mm
Height	2,450 mm	2,450 mm
Inner Turning Radius	3,400 mm	3,400 mm
Outer Turning Radius	6,000 mm	6,000 mm
Accessories
Warning plates and decals 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Rear tow bar Battery Isolator switch Back-up alarm and light
Boom & Breaker Tool
Hydraulic Breaker	Epiroc SB 302	Epiroc SB 302
Tool Diameter	80 mm	80 mm
Pressure	100-150 bar	100-150 bar
Operating Weight	300 kg	300 kg

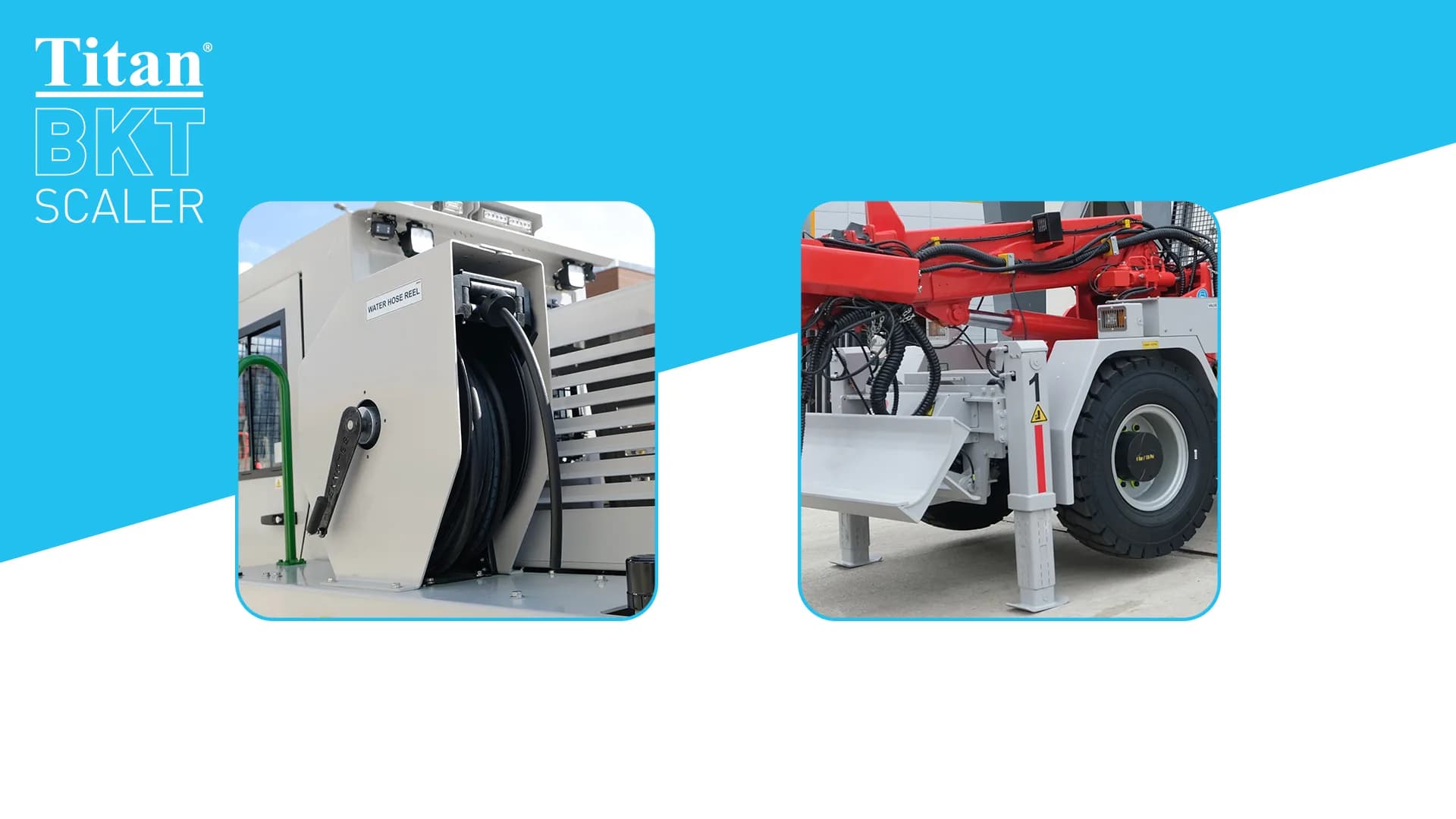

Hose Length	30 m	30 m

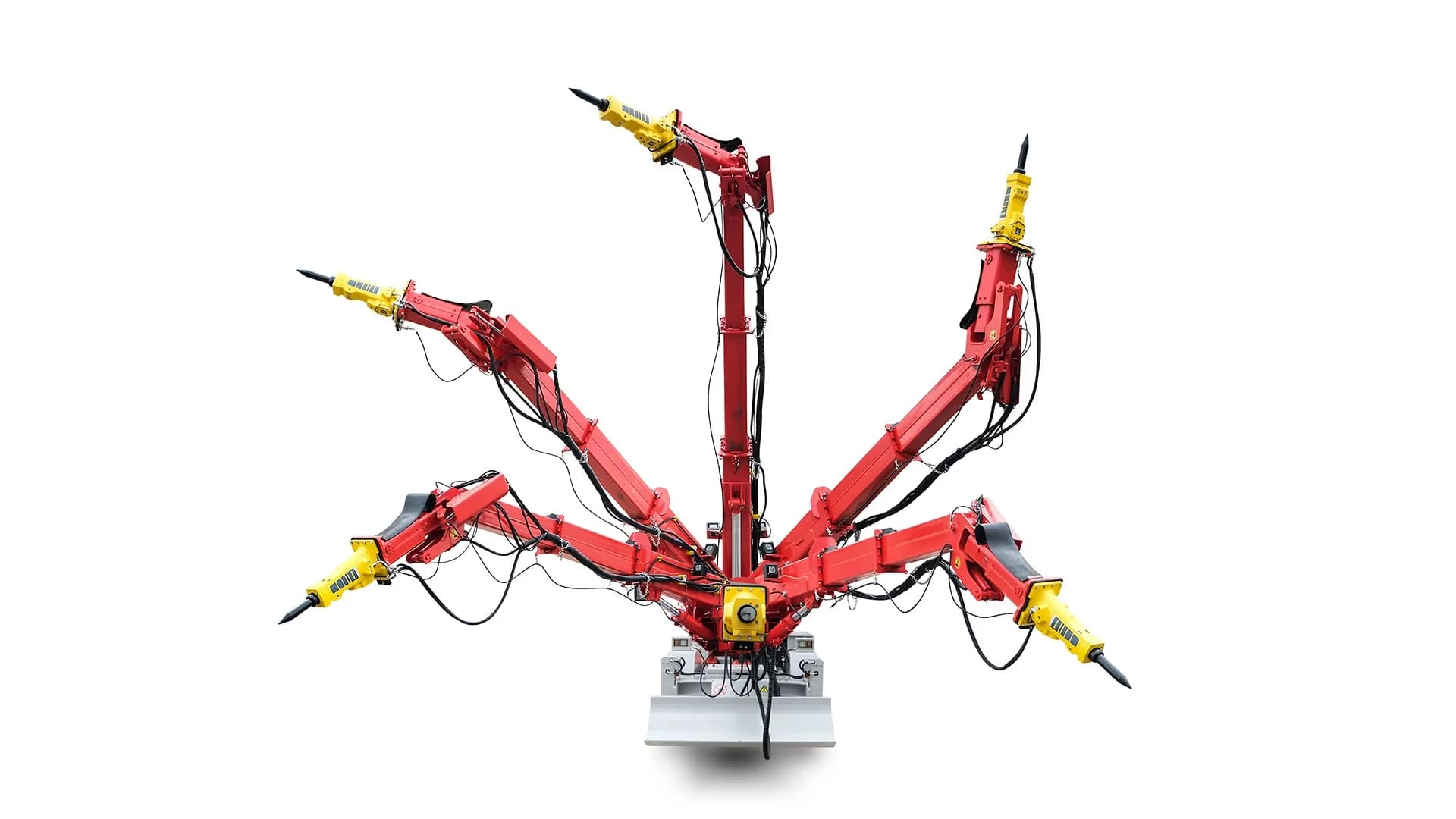

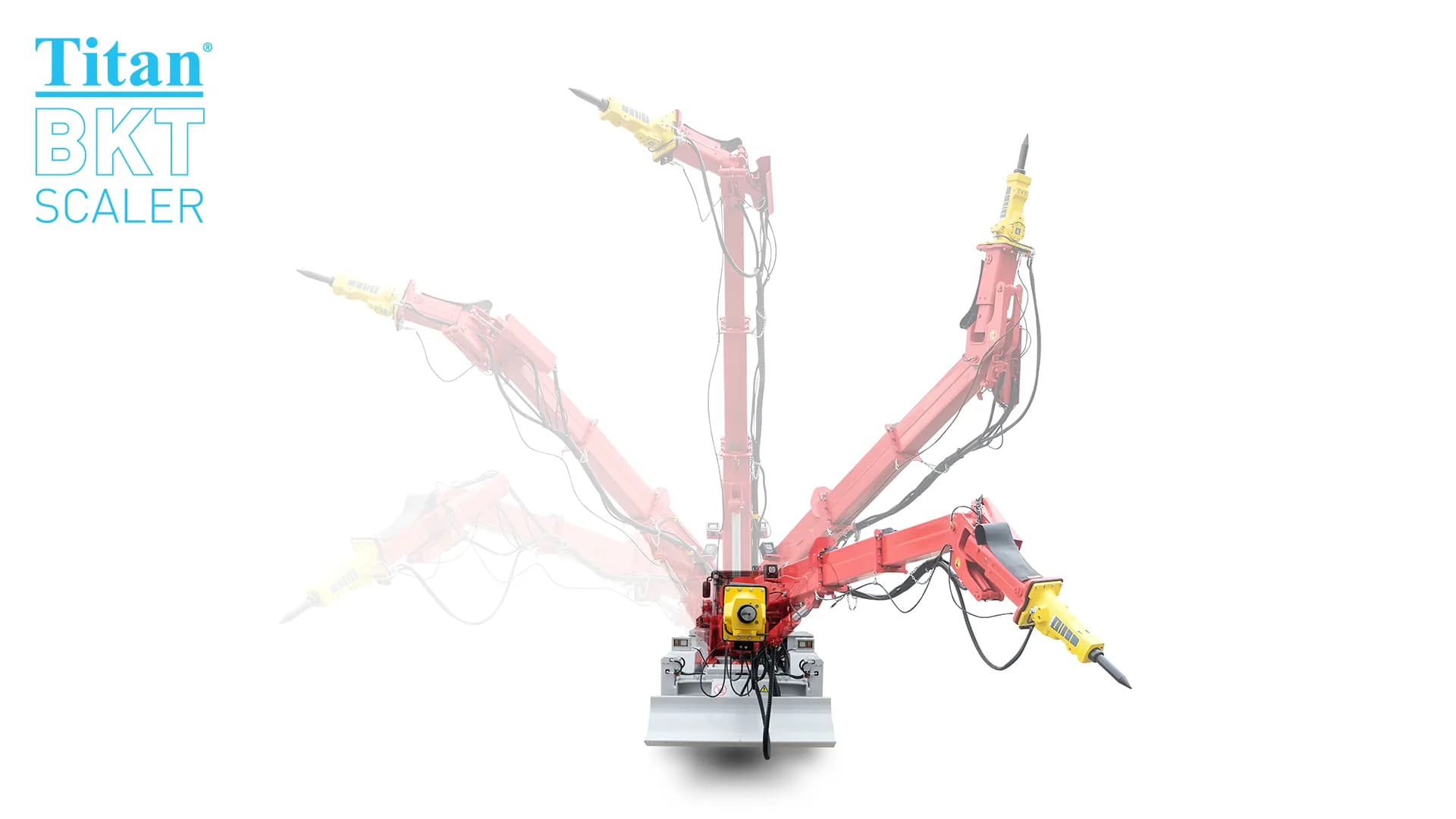

Max. Boom Angle	Up 60°, Down 10°	Up 60°, Down 10°
Boom Slewing Angle Horizontal	+/- 35°	+/- 35°
Boom Extension	2 pcs	2 pcs

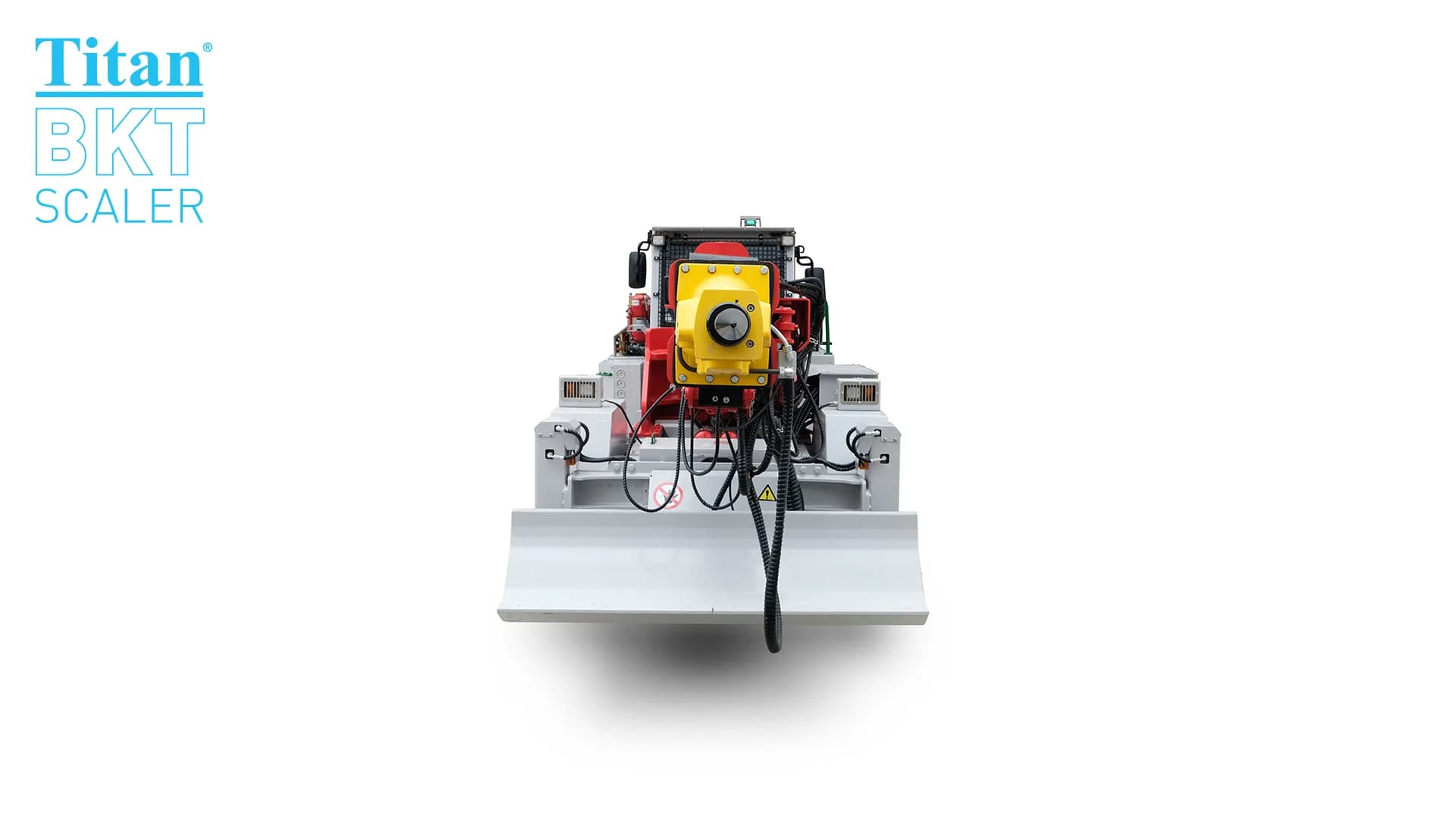

Manual water spray dust suppression system Muck pushing plate controlled from the operator cabin
Safety
2 pcs mechanical inclinometer sensors on the chassis 2 pcs electronic inclinometer sensors for roll and tilt angles Front Windshield Protection
Other
Centralized greasing system Hydraulic suspension system on the boom
Options

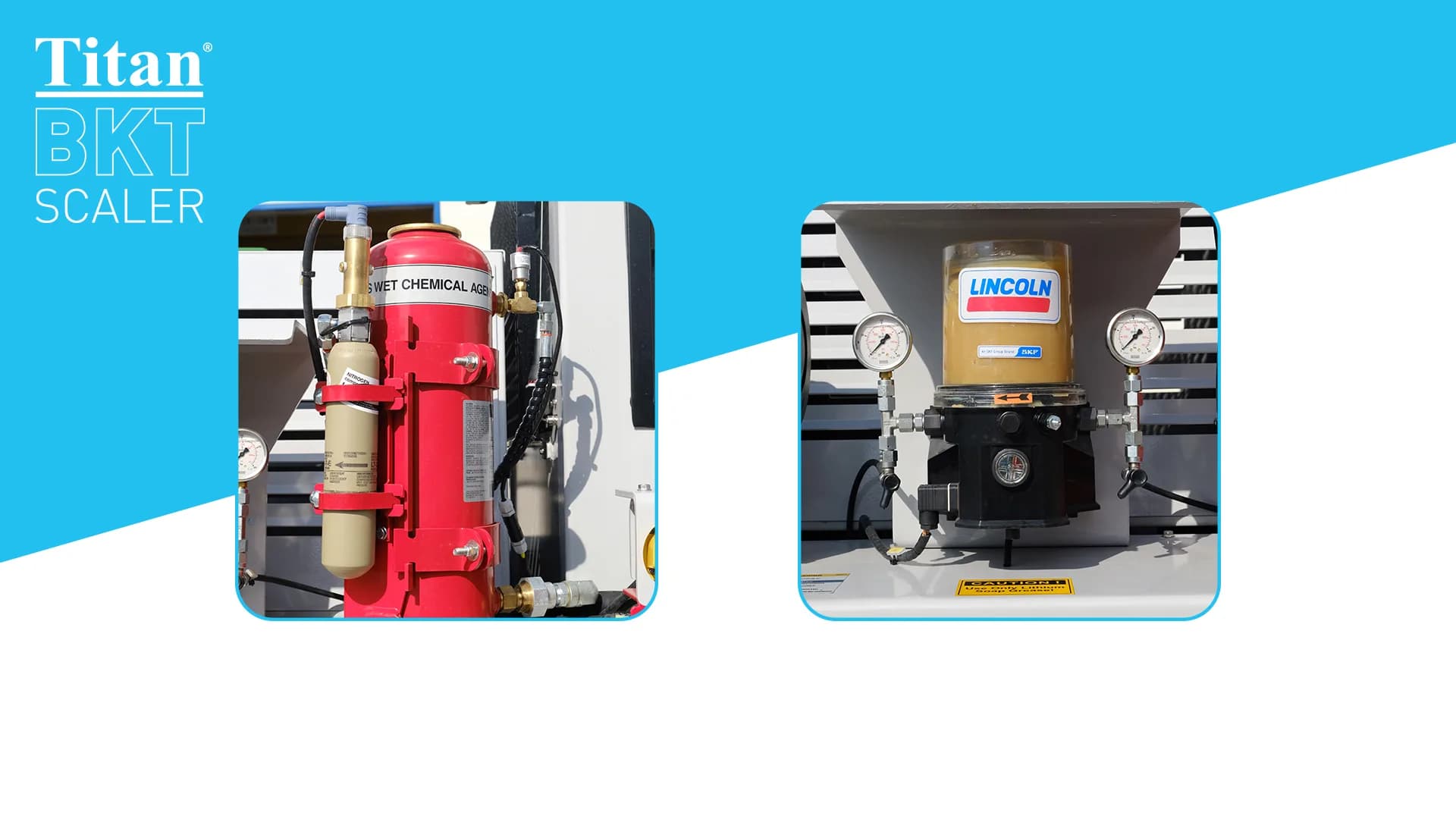

CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only

All specifications

All specifications ·

Engine power	129kW
Operating weight	12.5t
Reach / payload	60° up boom / SB302 breaker
Warranty	12 mo / 4,000 h
Emission tier	EU Stage 3A / Tier 3
Operator seats	1

Documents

Catalog

BKT.pdf
722 KB
Free download

About BKT

About BKT ·

60° up, 10° down. Rock scaling with an Epiroc SB302 hydraulic breaker.
SAHR spring-applied safety brake with oil-immersed multidisc brakes on both axles.
