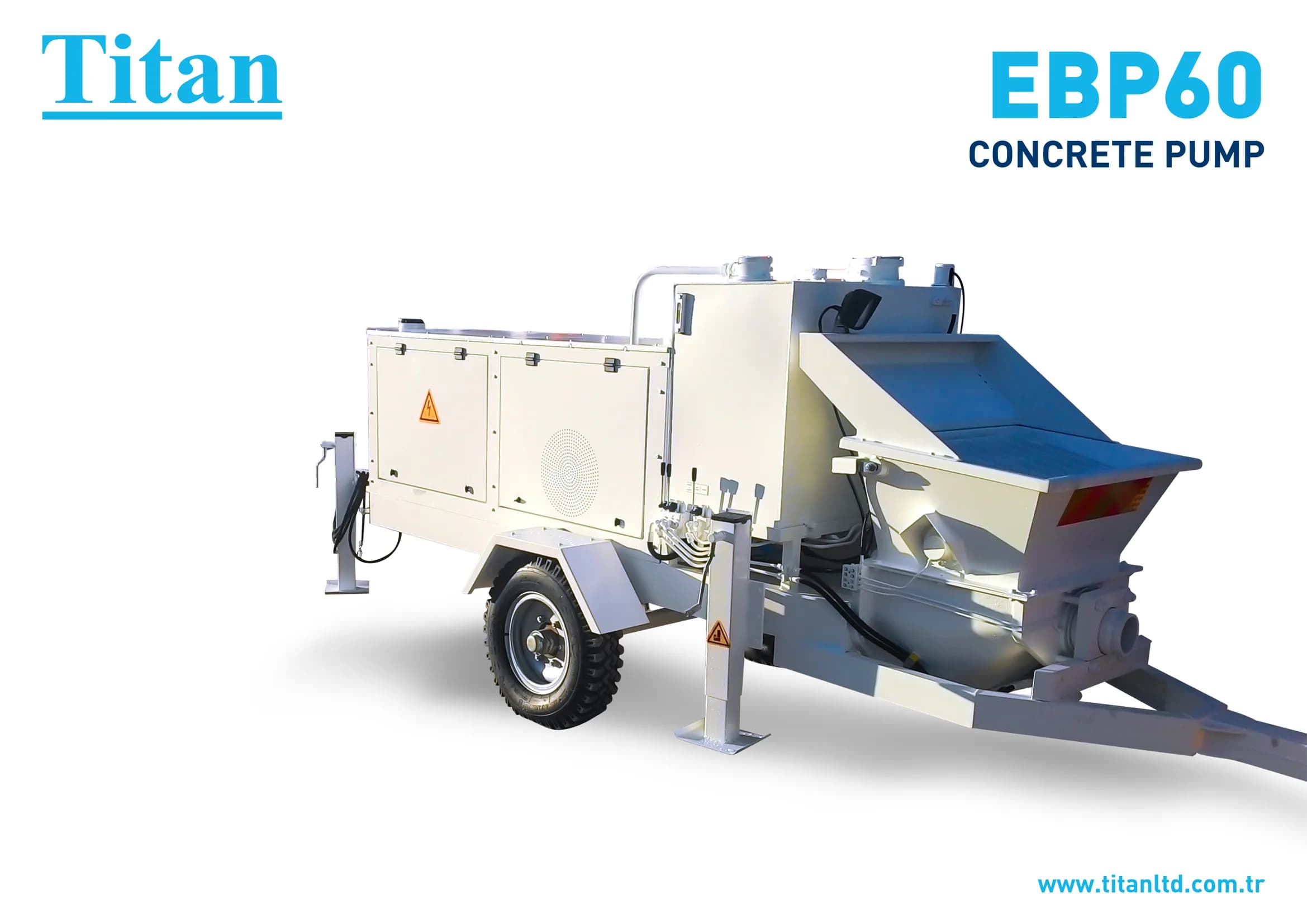

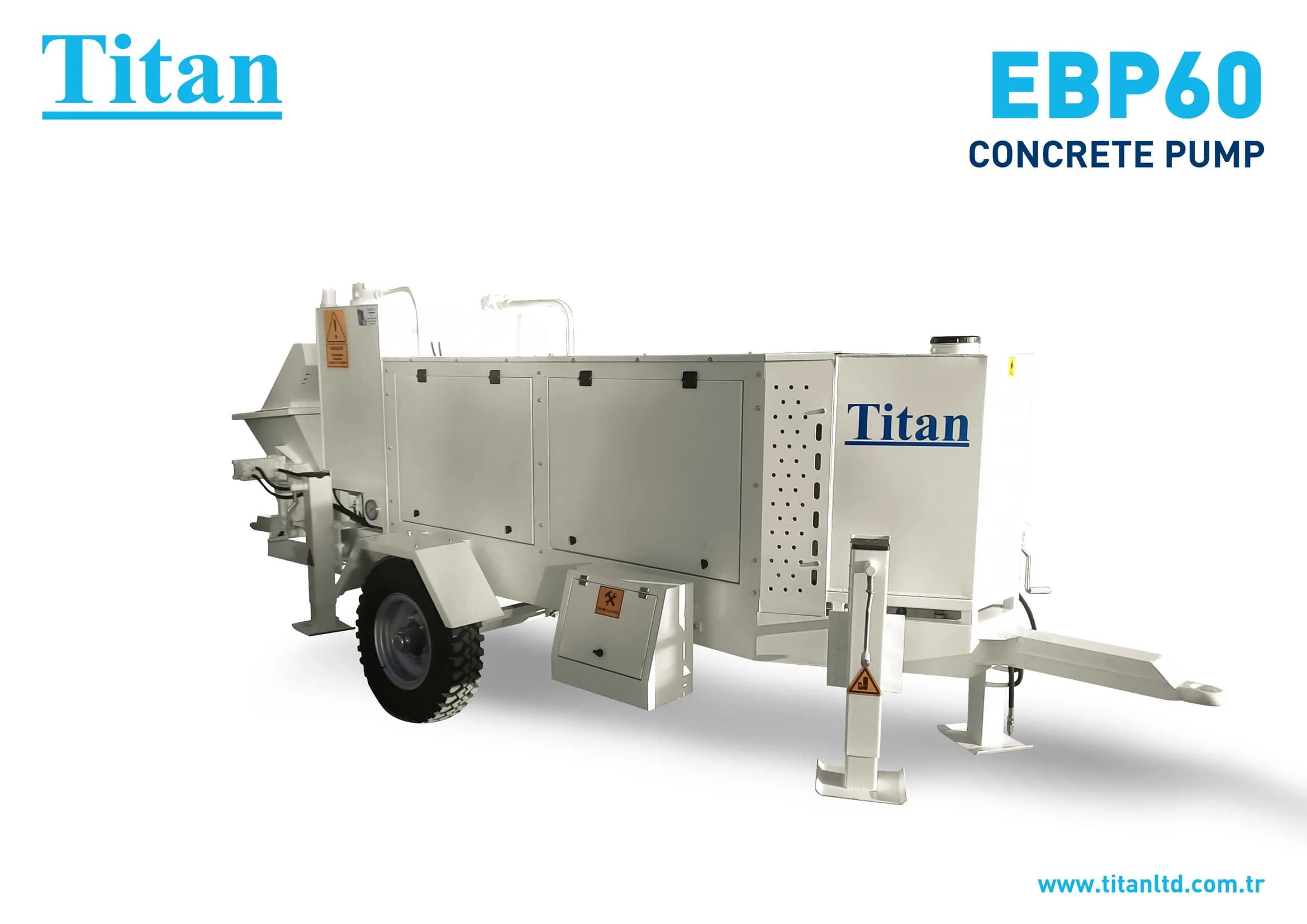

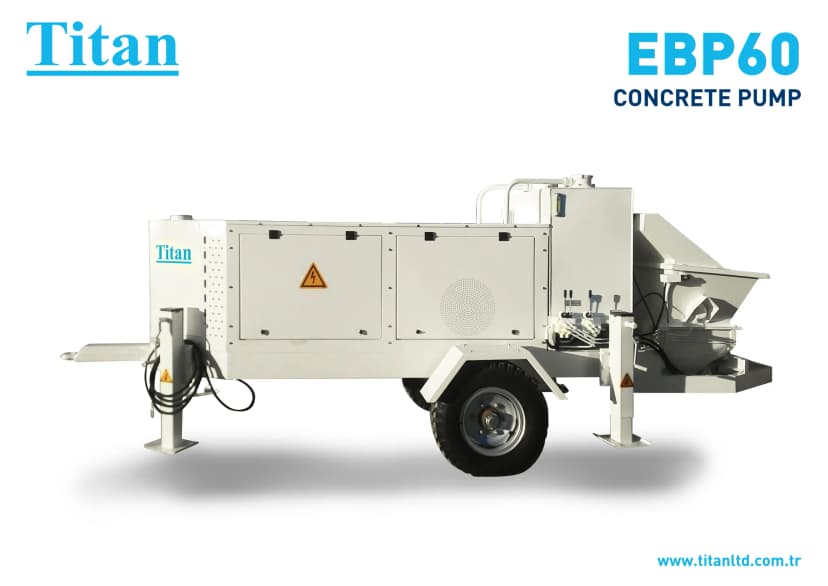

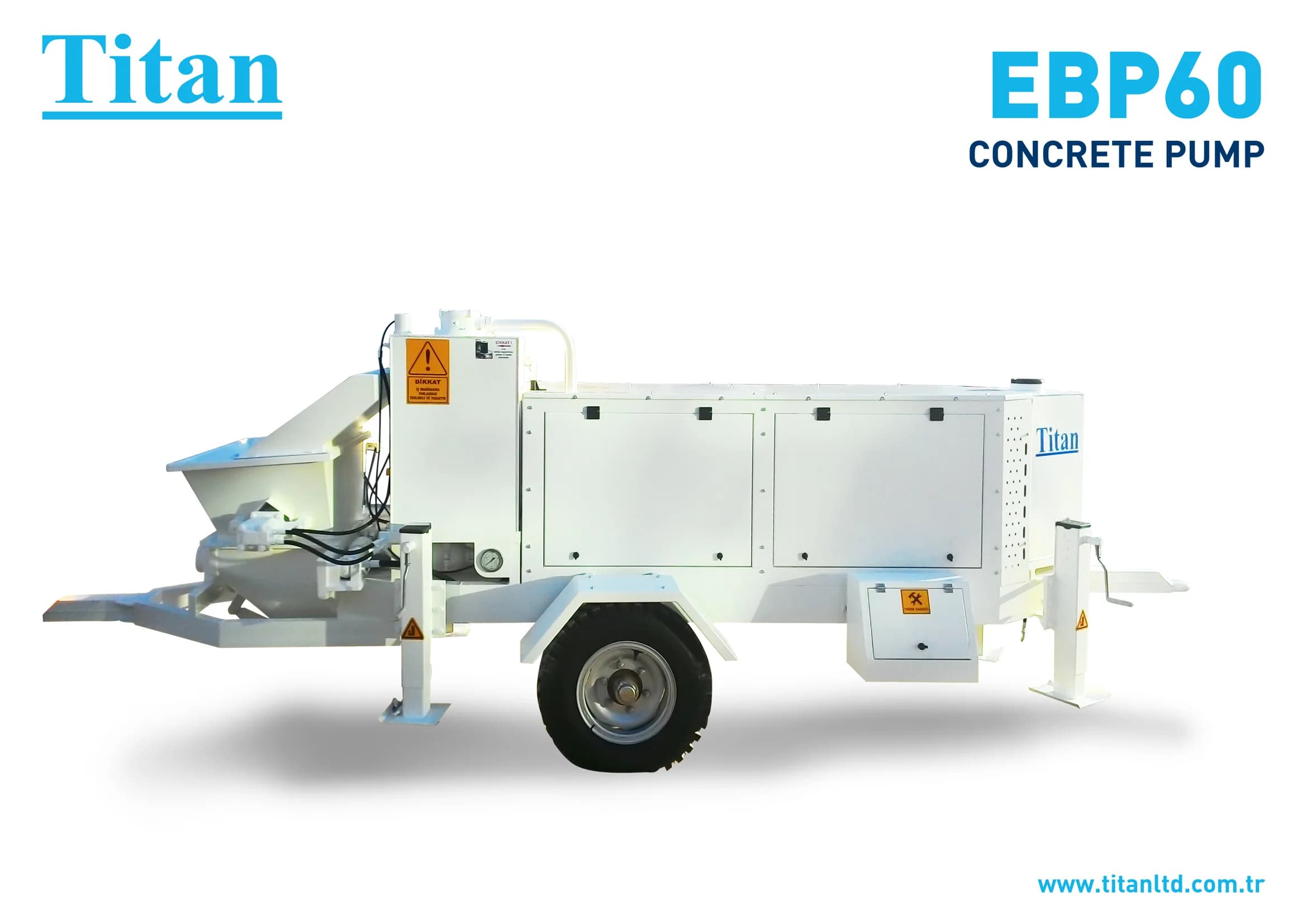

EBP60 - Concrete Pump
MODEL · EBP60Electric concrete pump with a theoretical 55 m³/h output, a 5-inch outlet and a 190 l water tank.
Datasheet
Technical specifications
| Power Unit | |
|---|---|
| |
| Tires and Stabilzers | |
| Tires | 2 Pieces 7.50 - 16 |
| Stabilizers | 4 Pieces |
| Hydraulic System | |
| Pump Type | Fixed and Variable Displacement |
| Max. Pressure | 210 bar |
| Flow Rate | 350 l/min |
| Hydraulic Oil Tank | 600 l |
| Return Oil Filter | 25 µm |
| |
| Dimensions and Weight | |
| Weight | 3600 kg (Approx.) |
| Height | 2,100 mm |
| Width | 1,720 mm |
| Length | 5,840 mm |
| Accessories | |
| |
| Concrete Pump | |
| Make / Model | Titan Hydraulic Driven Double Piston Pump |
| Max. Capacity | 55 m³/h (Theoretical) |
| Concrete Cylinder | 180 x 1250 mm |
| Max. Concrete Pressure | 50 bar |
| Max. Hydraulic Pressure | 210 bar |
| Outlet Diameter | 5" |
| Working Light | 1x1500 Lumens |
| Hopper | |
| Hopper Volume | 250 L |
| Bottom Shutter | Hydraulic Driven |
| Washing System | |
| Water Tank Capacity | 190 L |
| Flow Rate | 40 l/min |
| Pressure | 20 bar |
