Titan Paver - Slipform Concrete Paver For CFRDs

Name: Titan Paver - Slipform Concrete Paver For CFRDs
Brand: Titan Makina
SKU: Titan Paver

Slipform Concrete Paver

Special Purpose Machines

Titan Paver - Slipform Concrete Paver For CFRDs

MODEL · Titan Paver

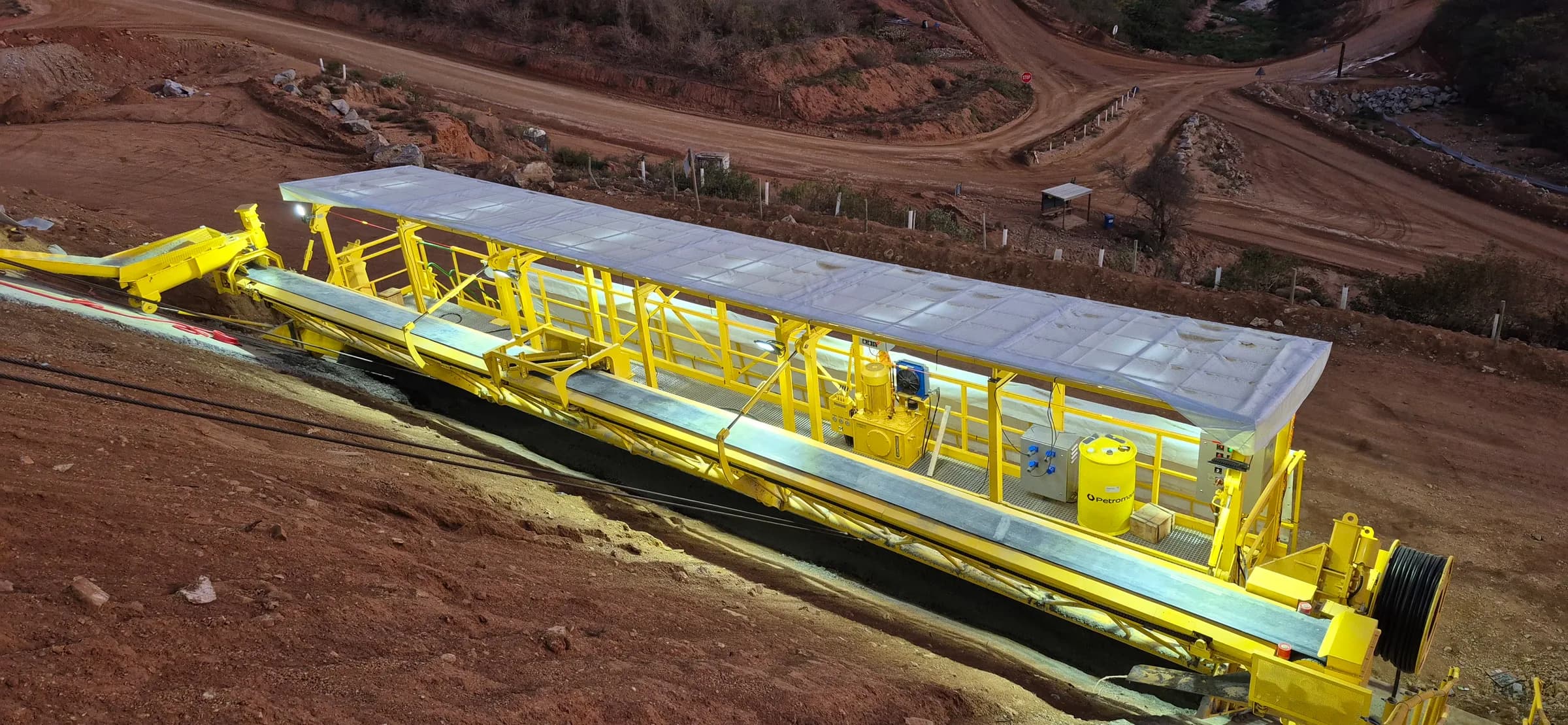

Slipform concrete paver for concrete-faced rockfill dams. 40 m³/h capacity, 30 kW installed power, a 15.80 m platform.

Request a quote →Request datasheet

Datasheet

Technical specifications


Face panel width	15 m / 10 m modular (12 m optional)
Conveyor platform area	1.5 m x 15.80 m = 23.70 m²
Finishing platform area	0.75 m x 15.80 m = 11.85 m²
Max. payload on platform	100 kg/m²
Travel speed	0-5 m/min (downward) 0-5 m/h (upward)
Hydraulic stabilisers	4 pieces, electronically controlled
Installed power	30 kW
Cable reel	Hydraulically driven
Length	17.5 m / 12.5 m modular (14.5 m optional)
Width	1.00 m
Height	1.75 m
Diverter car	bidirectional
Capacity	40 m³/h
Belt conveyor speed	120 m/min
Diverter car speed	20 m/min
Concrete screw conveyor	35 m³/h
Installed power	15 kW
Length	12.65 m
Width	3.10 m
Height	3.40 m
Traction	8 steel trolley wheels
Lateral speed	0-5 m/min
Cable length	175 m
Cable safety factor	10
Installed power	30 kW
Service brake	4 pieces, hydraulic
Emergency brake	2 pieces, drum speed- sensitive
Counterbalance	4 pieces of concrete block
Cable reel	Hydraulically driven
Length	9.00 m
Width	2.30 m
Height	1.70 m
Max. payload	2,000 kg
Speed	0-10 m/min
Wheels	4 pieces, 2 steerable
Other	Stairway on the cart for easy access
Length	4.20 m
Width	3.50 m
Height	3.40 m
Cable length	175 m
Cable safety factor	10
Power	11 kW
Speed	0-5 m/min
Traction	4 pieces steel trolley wheels
Service brake	1 hydraulic
Emergency brake	1 piece, drum speed- sensitive
Counterbalance	2 pieces of concrete block
Length	3.00 m
Width	1.50 m
Height	1.27 m
Wheels	4 pieces
Length	2.75 m
Width	3.40 m
Height	3.08 m
Max. payload	1,000 kg
Installed power	11.5 kW
Cable length	175 m
Length	2.50 m
Width	1.60 m
Height	1.55 m
Installed power	18.5 kW

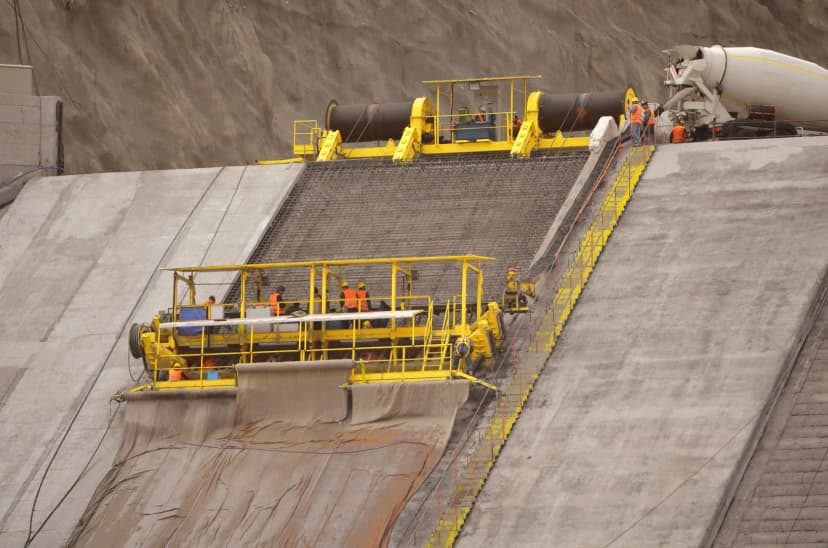

Slipform Concrete Paver and Winch Slipform Concrete Paver Concrete Transporting and Distributing Conveyor Feeds concrete coming from chute to the hopper by the screw conveyor and discharges on distributing conveyor which distributes concrete by means of the bidirectional diverter car. Paver Winch Self-propelled on rail track and carries the paver from one face panel to another. Provides upward / downward movement of the paver. 2 pieces, power-driven Rebar Cart and Winch Rebar Cart Two-wheel steerable reinforcement bar carrier. Rebar Cart Winch Mounted on a self-propelled chassis moving on rail track. Provides upward / downward movement of the rebar cart. Copper Waterstop Cart and Winch Copper Waterstop Cart Copper Waterstop Cart Winch Auxiliary winch self-propelled on rail track. Carries the copper waters top cart from one facing element to another. Curb Machine Self-propelled by the concrete thrust, hydraulically driven, with electric concrete vibrator and a desired formwork, as per given project. Copper Waterstop Forming Machine Copper forming machine as per given copper waterstop project.
