BPT20 - Personnel Carrier

Name: BPT20 - Personnel Carrier
Brand: Titan Makina
SKU: BPT20

Personnel Carrier

Underground Transport Vehicles

BPT20 - Personnel Carrier

MODEL · BPT20

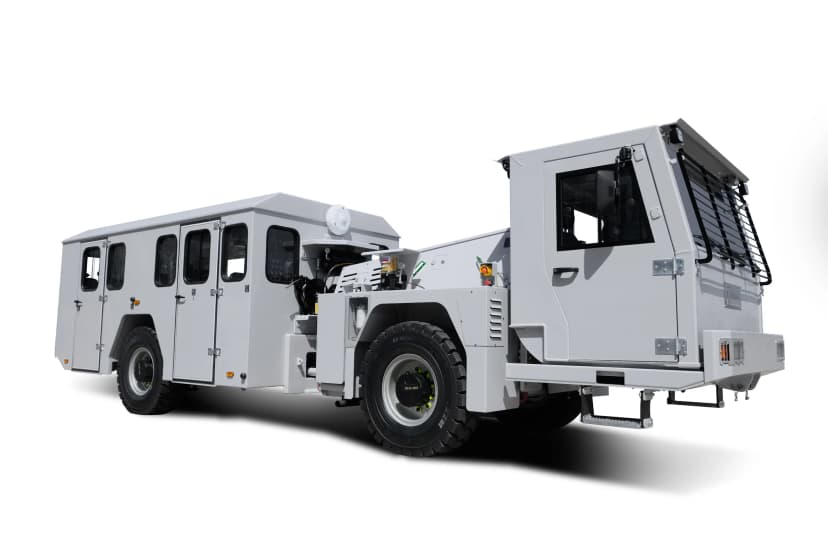

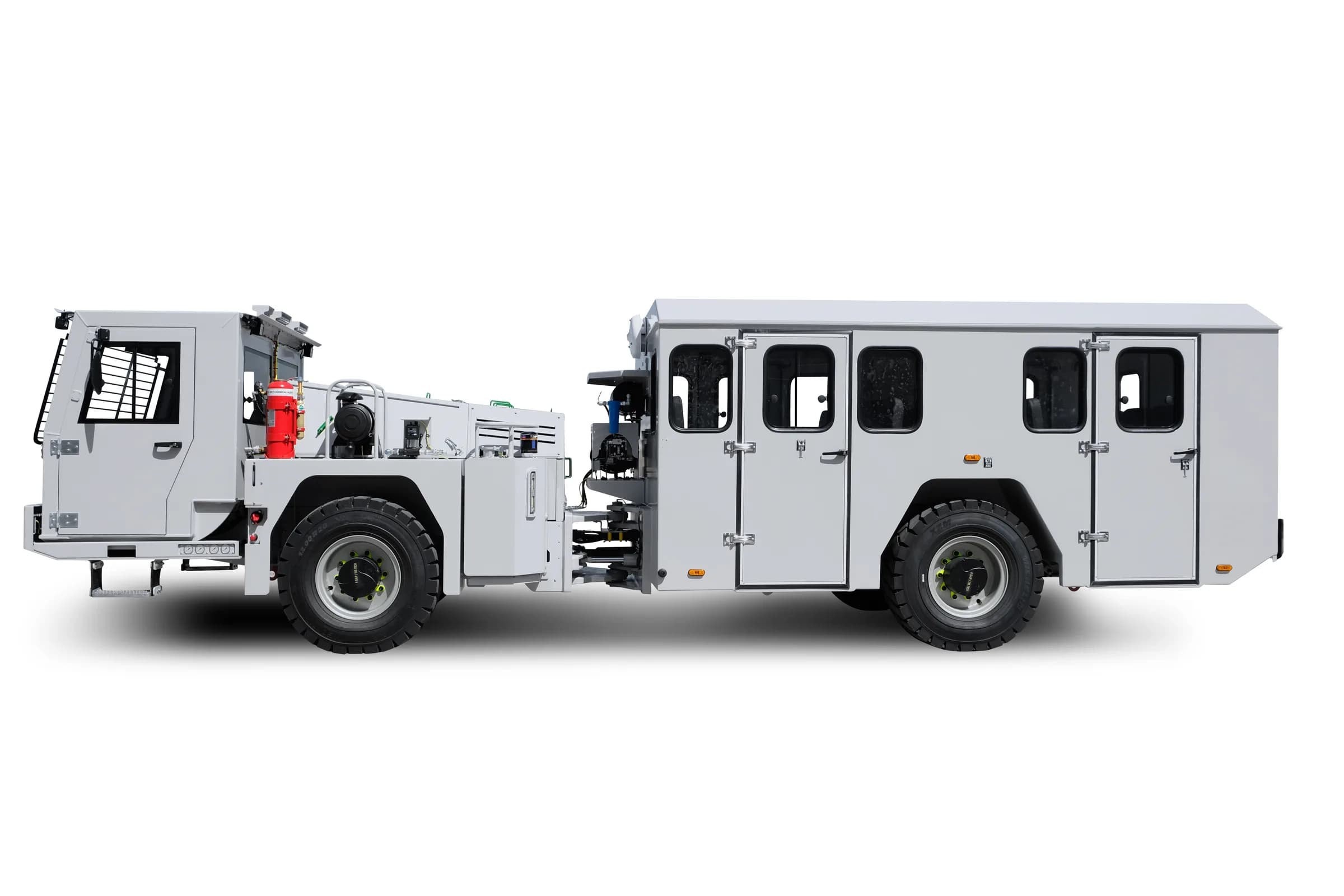

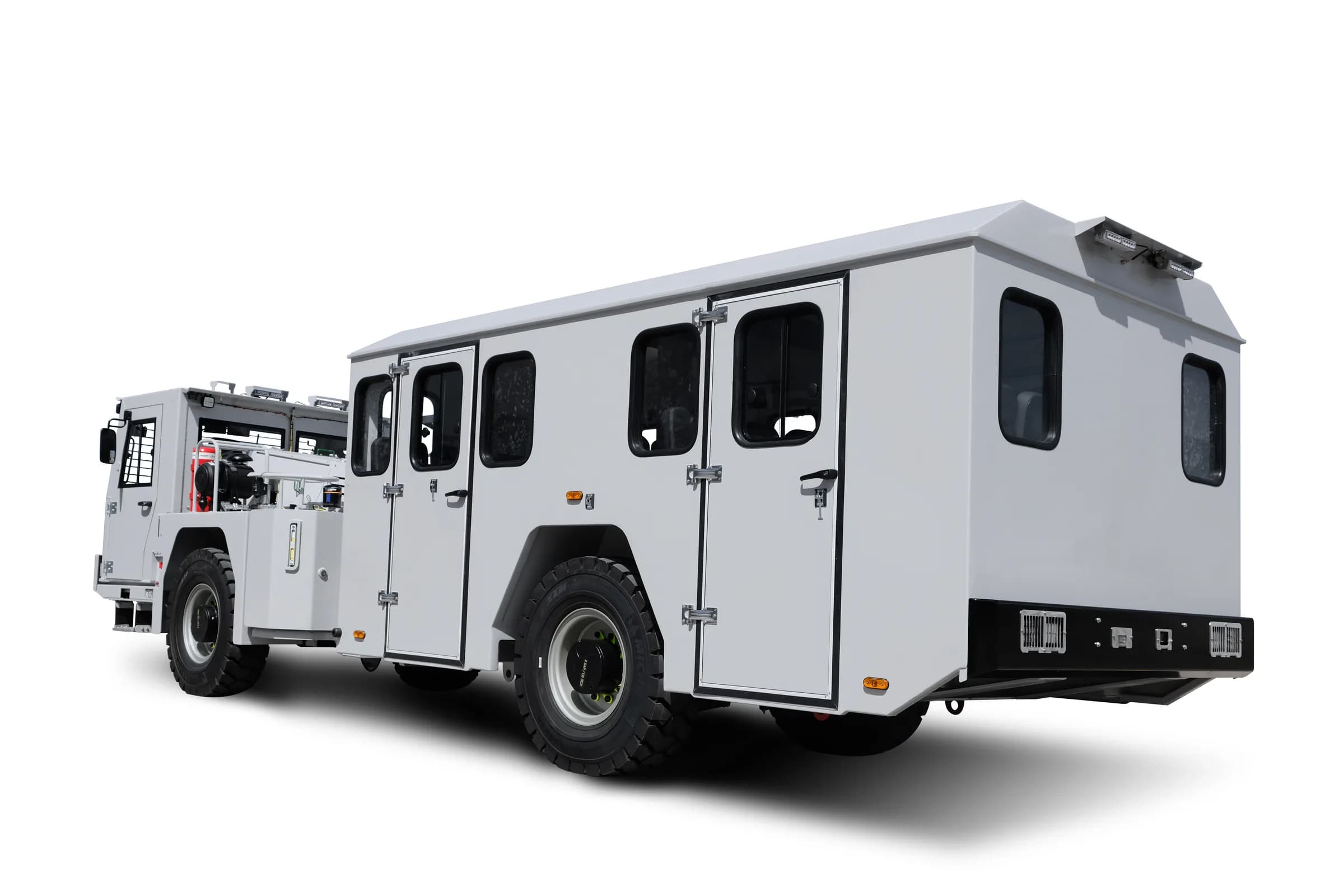

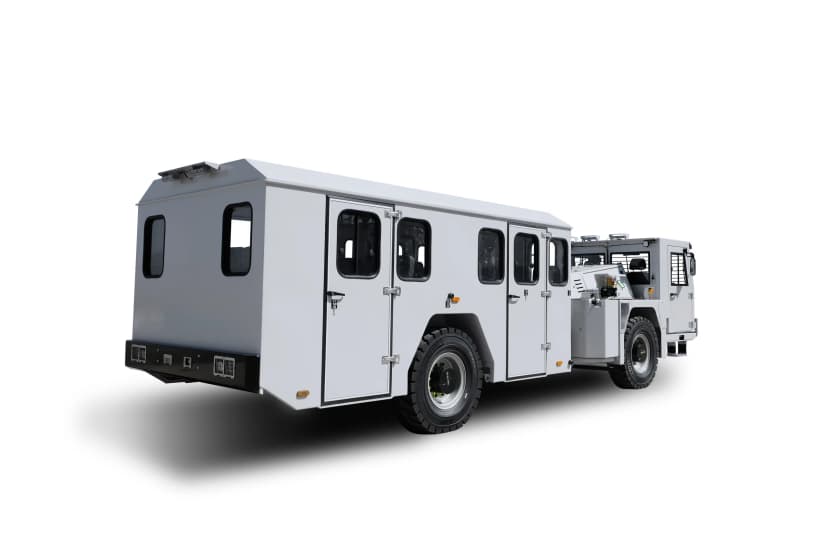

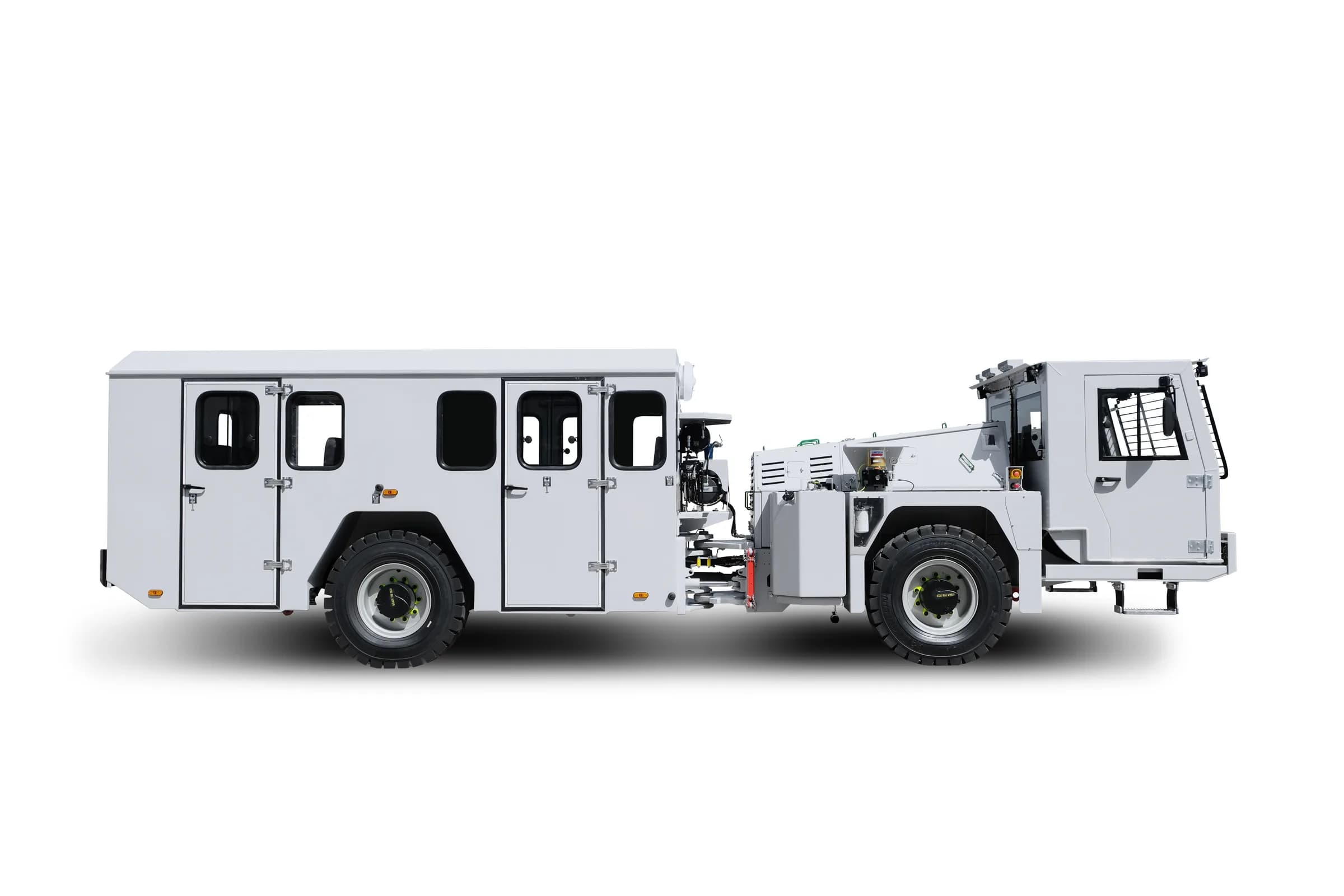

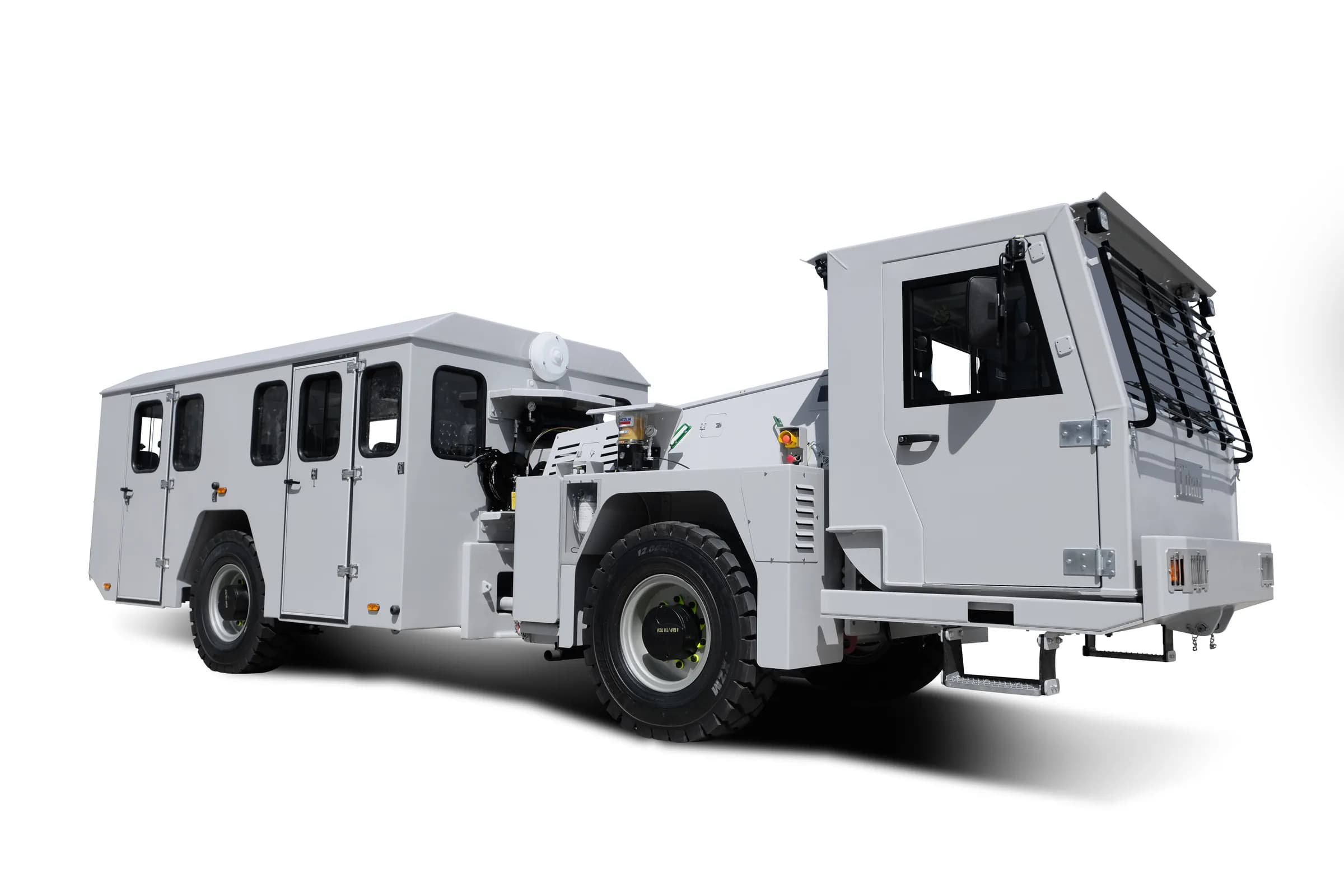

Underground personnel carrier with an EN ISO 3471 / 3449 ROPS and level 2 FOPS cabin, and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(7)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank Capacity	180 l	180 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T24.000	Dana Spicer T24.000
Powershift Transmission 3-Speed Forward, 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Leaf Spring + Shock Absorber	Leaf Spring + Shock Absorber
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 40° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow RateDiffers	130 l/min at 2300 rpm	130 l/min at 2200 rpm
Hydraulic Oil Tank	180 l	180 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 8 x 1800 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp Turn Signals	Operator Cabin Front 8 x 1800 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp Turn Signals
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
Titan Closed Operator Cabin
2-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box Equipment Box In-Cabin Heater
Dimensions and Weight
WeightDiffers	13,650 kg (Approx.)	14,150 kg (Approx.)
LengthDiffers	9,120 mm	9,350 mm
Width	2,400 mm	2,400 mm
Height	2,540 mm	2,540 mm
Inner Turning Radius	4,590 mm	4,590 mm
Outer Turning Radius	7,640 mm	7,640 mm
Accessories
Warning plates and decals 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front tow bar Battery Isolator switch Back-up alarm and light
Personnel Cabin
20 person capacity ROPS ve 2.Seviye FOPS Sertifikalı Kabin (EN ISO 3471:2008 / EN ISO 3449:2008) 4 Adet Dışarı Açılır Kapı (Kapı Üzerinde Sürgülü Camlar) Transparent plastic windows Tool Box Height-adjustable ergonomic seats with 2-point seat belts In-cabin ventilation Amber colored Beacon Light on the cabin Cabin interior light Operator cabin intercom connection 2x4 kg portable fire extinguisher Emergency escape windows in the doors
Other
Centralized greasing system
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin Air conditioning in the personnel cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust Pipes Diesel Particulate Filter (DPF) Height-adjustable ergonomic seats with 2-point seat belts (Personnel Cabin)
