BTM6 - Concrete Agitator

MODEL · BTM6

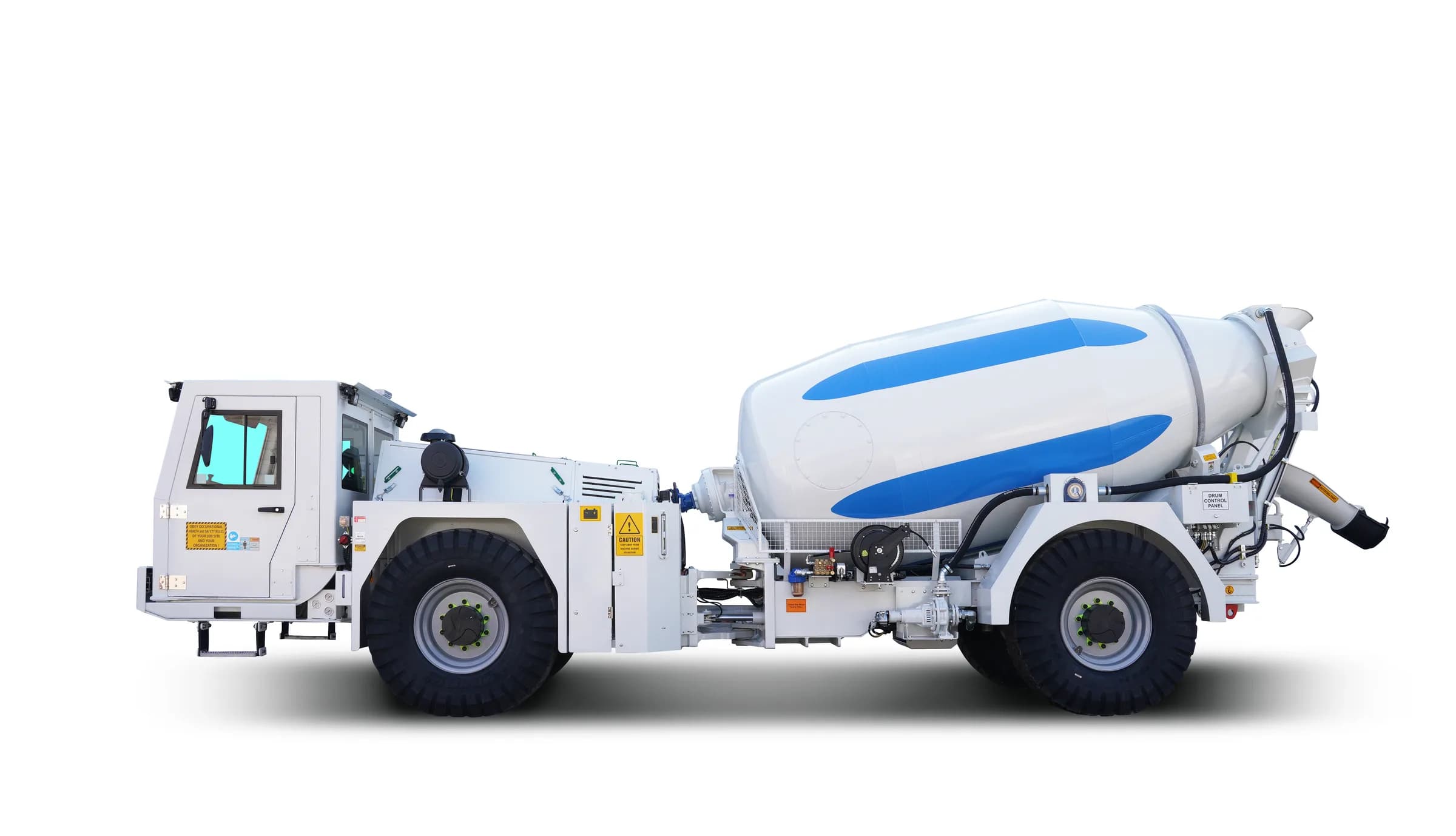

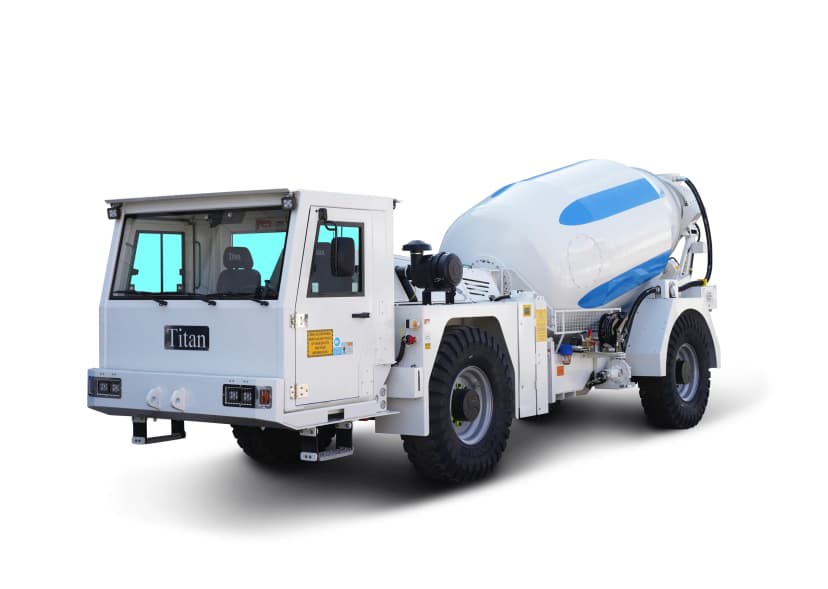

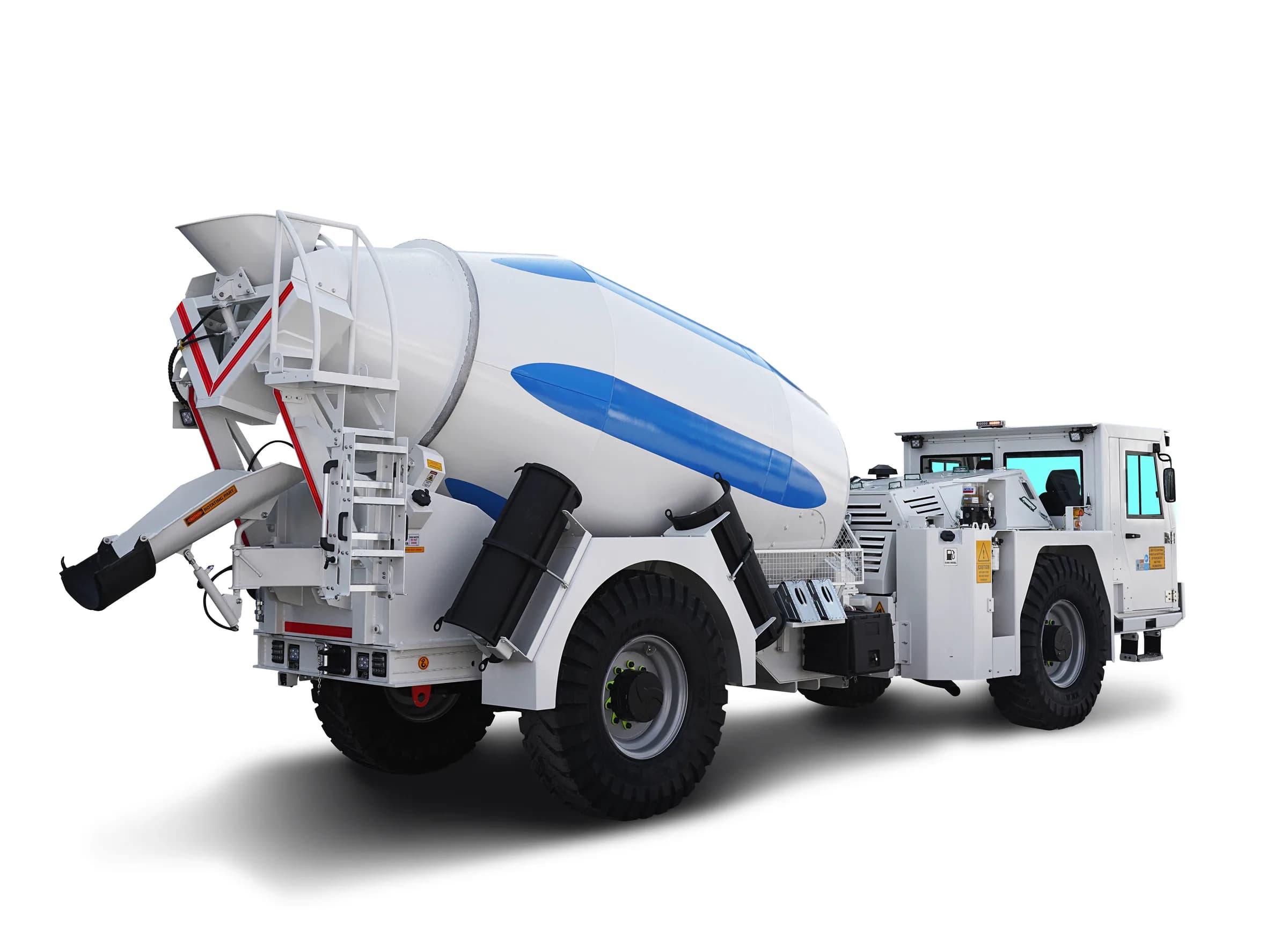

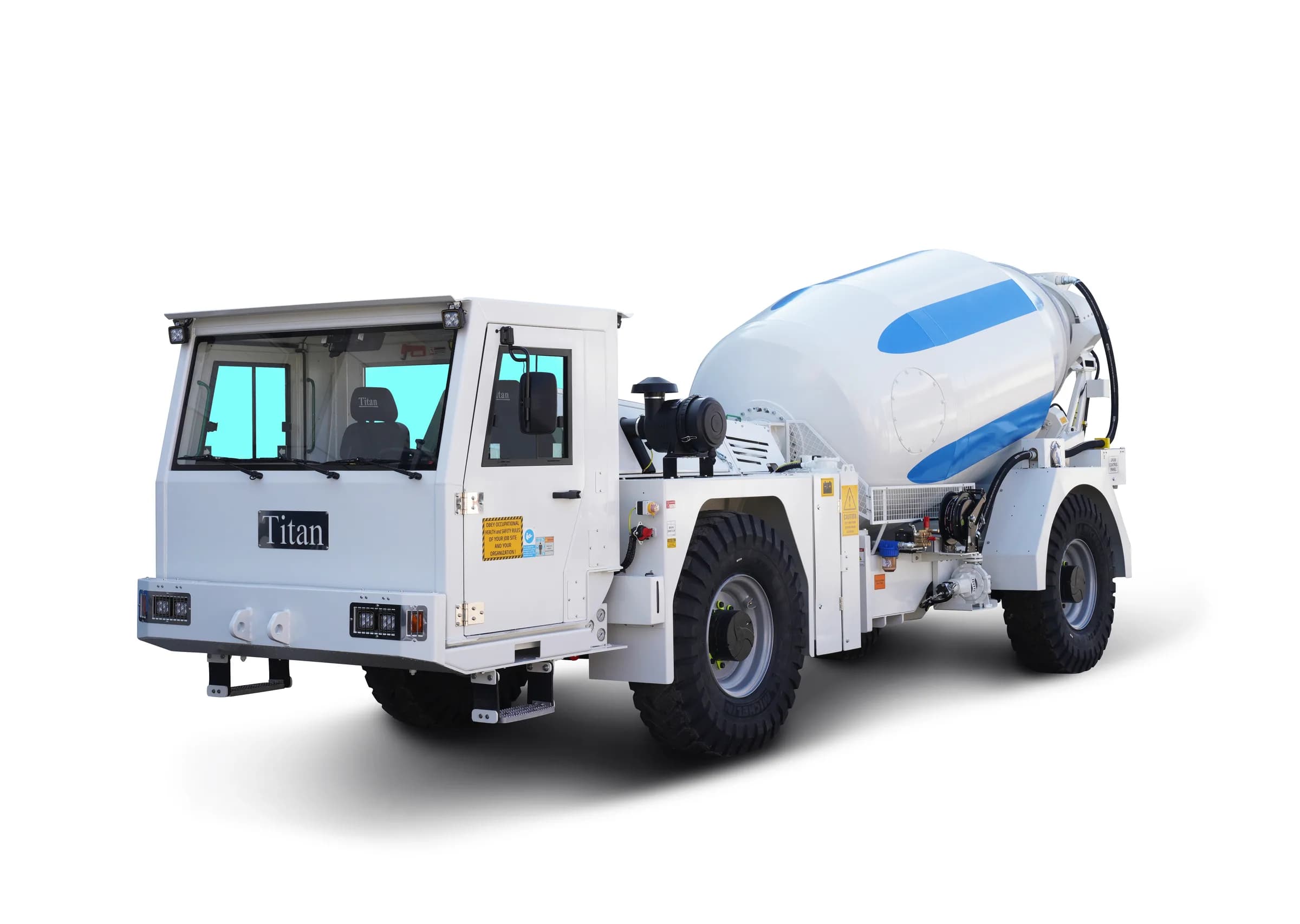

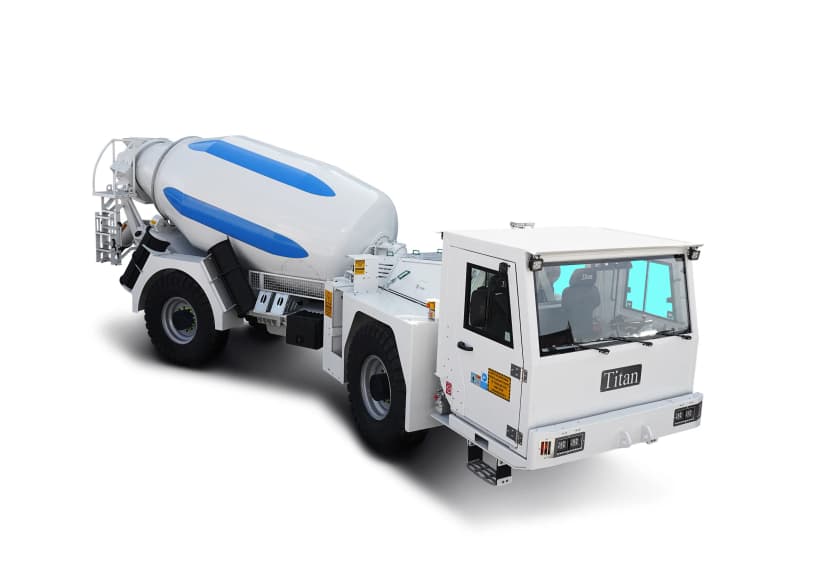

Underground concrete agitator with 6 m³ capacity, a 160 kW Stage V engine and 29,300 kg laden weight.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2012 L6Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers155 kW at 2300 rpm160 kW at 2200 rpm
Max. TorqueDiffers810 Nm at 1600 rpm900 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity160 l160 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T14Dana Spicer T14
  • Powershift Transmission
  • 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires 14.00 - 24
Performance
Max. Gradient30%30%
Max. Speed18.5 km/h18.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
Retarder4 Speed4 Speed
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers180 l/min at 2300 rpm180 l/min at 2200 rpm
Hydraulic Oil Tank160 l160 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 115 Ah)24V - 2 x (12V 115 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • 4 x 1800 Lumen LED lights at the rear of the vehicle
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • 4 x 1800 Lumen LED lights at the rear of the vehicle
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
Empty WeightDiffers13,800 kg (Approx.)14,300 kg (Approx.)
Max. Loaded WeightDiffers28,800 kg (Approx.)29,300 kg (Approx.)
Length9,830 mm9,830 mm
Width2,350 mm2,350 mm
Height3,250 mm3,250 mm
Inner Turning Radius5,120 mm5,120 mm
Outer Turning Radius8,100 mm8,100 mm
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front and rear tow bar
  • Battery Isolator switch
  • Back-up alarm and light
Concrete Drum
Hopper Volume8.8 m³8.8 m³
Max. Concrete Capacity6 m³6 m³
OperationHydraulicHydraulic
Adjustable Max. Rotation Speed0-18 rpm0-18 rpm
Pump DriveHydraulicHydraulic
Flow Rate400 l/min400 l/min
Water Tank1200 l1200 l
  • 2 pcs cleaning hatches
  • Hydraulically controlled ecological hatch and chute
  • Water pump
High Pressure Washing System
Pump DriveHydraulicHydraulic
Pressure135 bar135 bar
Flow Rate16 l/min16 l/min
Hose Length13 m13 m
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Surface lubrication system
