BYM4.5 - Concrete Transmixer

Concrete Transmixer

BYM4.5 - Concrete Transmixer

Concrete Transport Machines

BYM4.5 - Concrete Transmixer

MODEL · BYM4.5

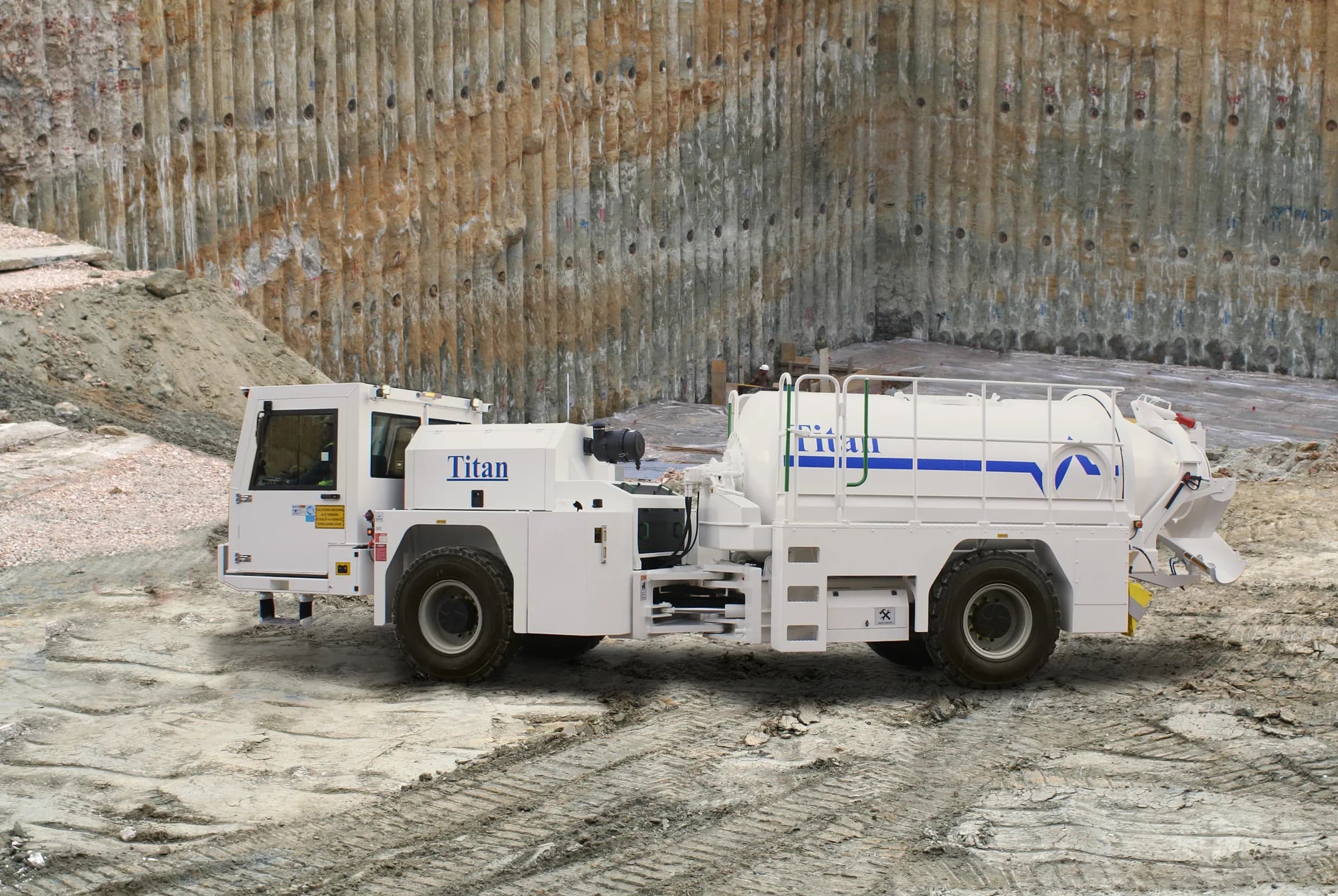

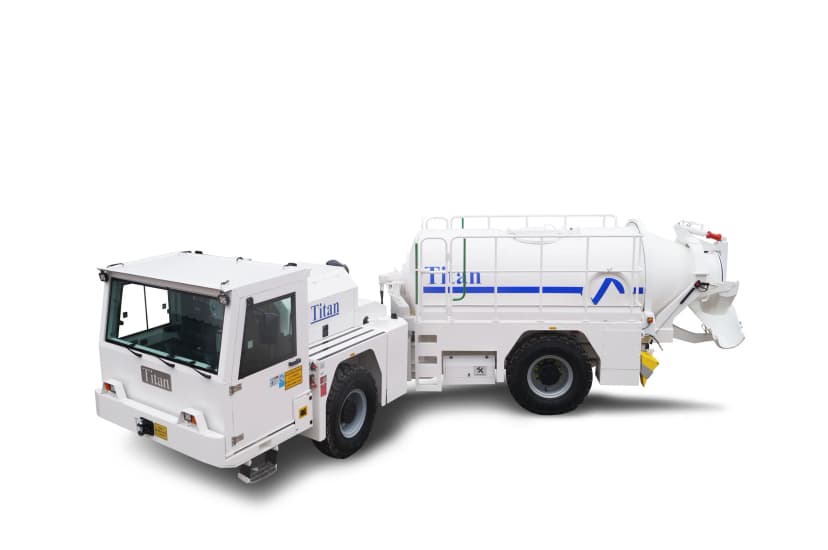

Horizontal concrete transmixer with 4.5 m³ capacity, a 129 kW Stage V engine and 24,100 kg maximum laden weight.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity150 l150 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers180 l/min at 2300 rpm180 l/min at 2200 rpm
Hydraulic Oil Tank150 l150 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 Lumen LED lights on the drum saddle
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 Lumen LED lights on the drum saddle
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
Empty WeightDiffers12,800 kg (Approx.)13,300 kg (Approx.)
Max. Loaded WeightDiffers23,600 kg (Approx.)24,100 kg (Approx.)
LengthDiffers8,930 mm9,300 mm
Width2,000 mm2,000 mm
Height2,500 mm2,500 mm
Inner Turning Radius4,330 mm4,330 mm
Outer Turning Radius7,080 mm7,080 mm
Accessories
  • Warning plates and decals
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front and rear tow bar
  • Battery Isolator switch
  • Back-up alarm and light
Concrete Drum
Hopper Volume5.6 m³5.6 m³
Max. Concrete Capacity4.5 m³4.5 m³
OperationHydraulicHydraulic
Reduction Gearbox with BrakeHydraulicHydraulic
Drum Tilt Angle13°13°
Control Panel
  • Operator Side (Left Rear)
  • Discharge Hatch and Chute
  • Operator Side (Left Rear)
  • Discharge Hatch and Chute
  • Safety-locked drum for filling
  • Adjustable Max. Rotation Speed 0-18 rpm
  • 1 pcs manual filling cover
  • Concrete Discharge Gate
  • Drum chassis locking system
  • Drum braking system
High Pressure Washing System
Pump DriveHydraulicHydraulic
Pressure135 bar135 bar
Flow Rate16 l/min16 l/min
Hose Length13 m13 m
Water Tank75 l75 l
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Hydraulically driven opening rear drum hatch
  • Surface lubrication system
  • -Hose Reel
  • -Oil Tank
  • -Pump
  • -Gun
  • Retarder (machine length changes if selected)
  • Stainless additive tank
