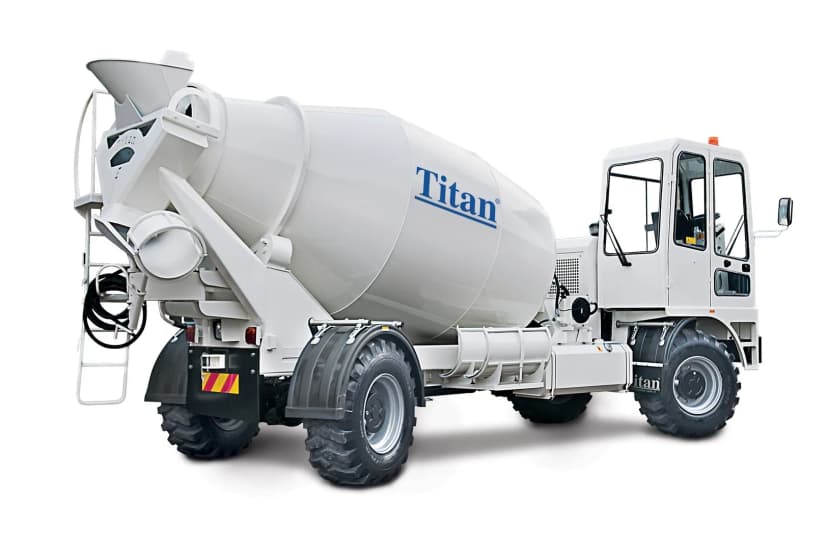

TM05 - Concrete Transmixer

Name: TM05 - Concrete Transmixer
Brand: Titan Makina
SKU: TM05

Concrete Transmixer

Concrete Transport Machines

TM05 - Concrete Transmixer

MODEL · TM05

Concrete transmixer with 5 m³ capacity, an 85 kW Stage V engine and 7,600 kg operating weight.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(4)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	140 l	140 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift automatic transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Steerable	Steerable
Tires	365/80 R20	365/80 R20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	210 bar	210 bar
Flow Rate	180 l/min at 2300 rpm	180 l/min at 2300 rpm
Hydraulic Oil Tank	105 l	105 l
Return Oil Filter	25 µm	25 µm
Oil level, temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 lumen LED lamps on the front bumper 2 x 1800 lumen LED lamps on the operator cabin Back-up Light 2 x 1800 lumen LED lamps 2 x 1800 Lumen LED lights on the drum saddle Turn Signals
Titan Closed Operator Cabin
1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Cabin Lighting In-Cabin Heater
Dimensions and Weight
WeightDiffers	7,100 kg (Approx.)	7,600 kg (Approx.)
Length	6,620 mm	6,620 mm
Width	2,400 mm	2,400 mm
Height	3,100 mm	3,100 mm
Inner Turning Radius	4,500 mm	4,500 mm
Outer Turning Radius	7,630 mm	7,630 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front and rear tow bar Back-up alarm and light Battery Isolator switch 2 pcs additional chutes

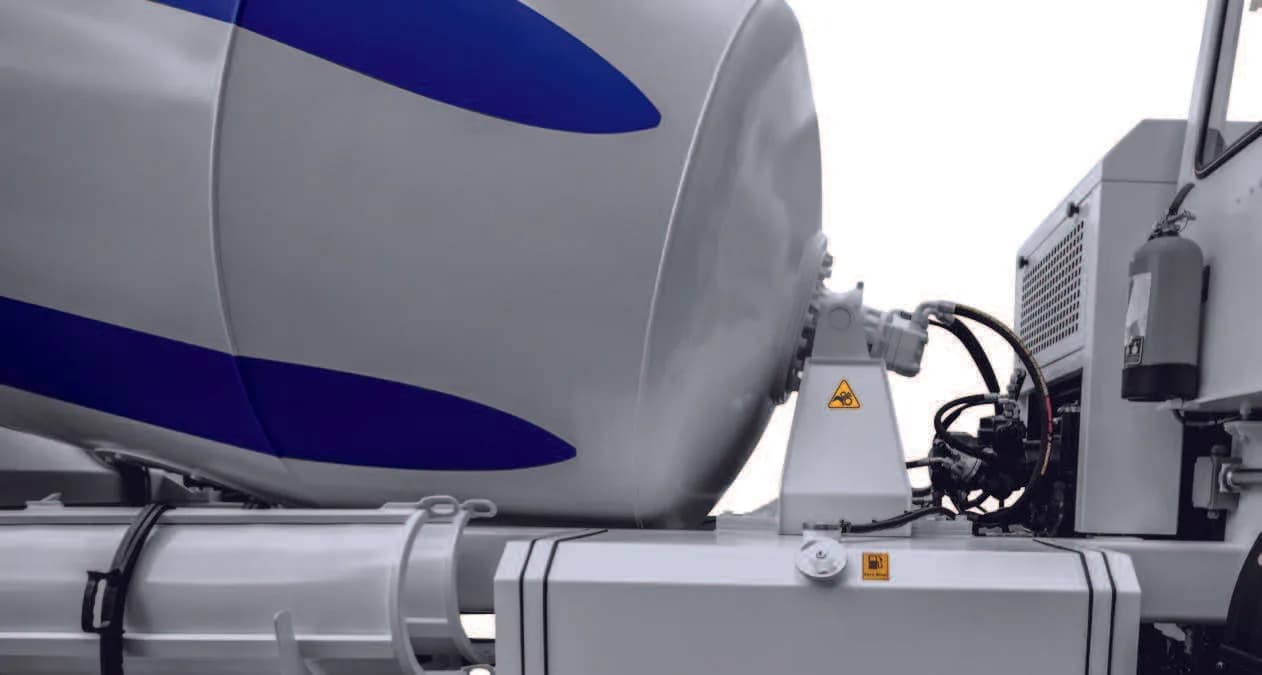

Concrete Drum
Hopper Volume	7.2 m³	7.2 m³
Max. Concrete Capacity	5 m³	5 m³
Operation	Hydraulic	Hydraulic
Concrete Discharge Gate Adjustable Max. Rotation Speed 0-18 rpm Drum braking system Hydraulically controlled ecological hatch and chute
High Pressure Washing System
Pump Drive	Hydraulic	Hydraulic
Pressure	135 bar	135 bar
Flow Rate	16 l/min	16 l/min
Water Tank	340 l	340 l
Hose Length	10 m	10 m
Other
Centralized greasing system
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Caliper braking system 2nd seat in the cabin Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire)
