BYM7 - Concrete Transmixer

Concrete Transmixer

BYM7 - Concrete Transmixer

Concrete Transport Machines

BYM7 - Concrete Transmixer

MODEL · BYM7

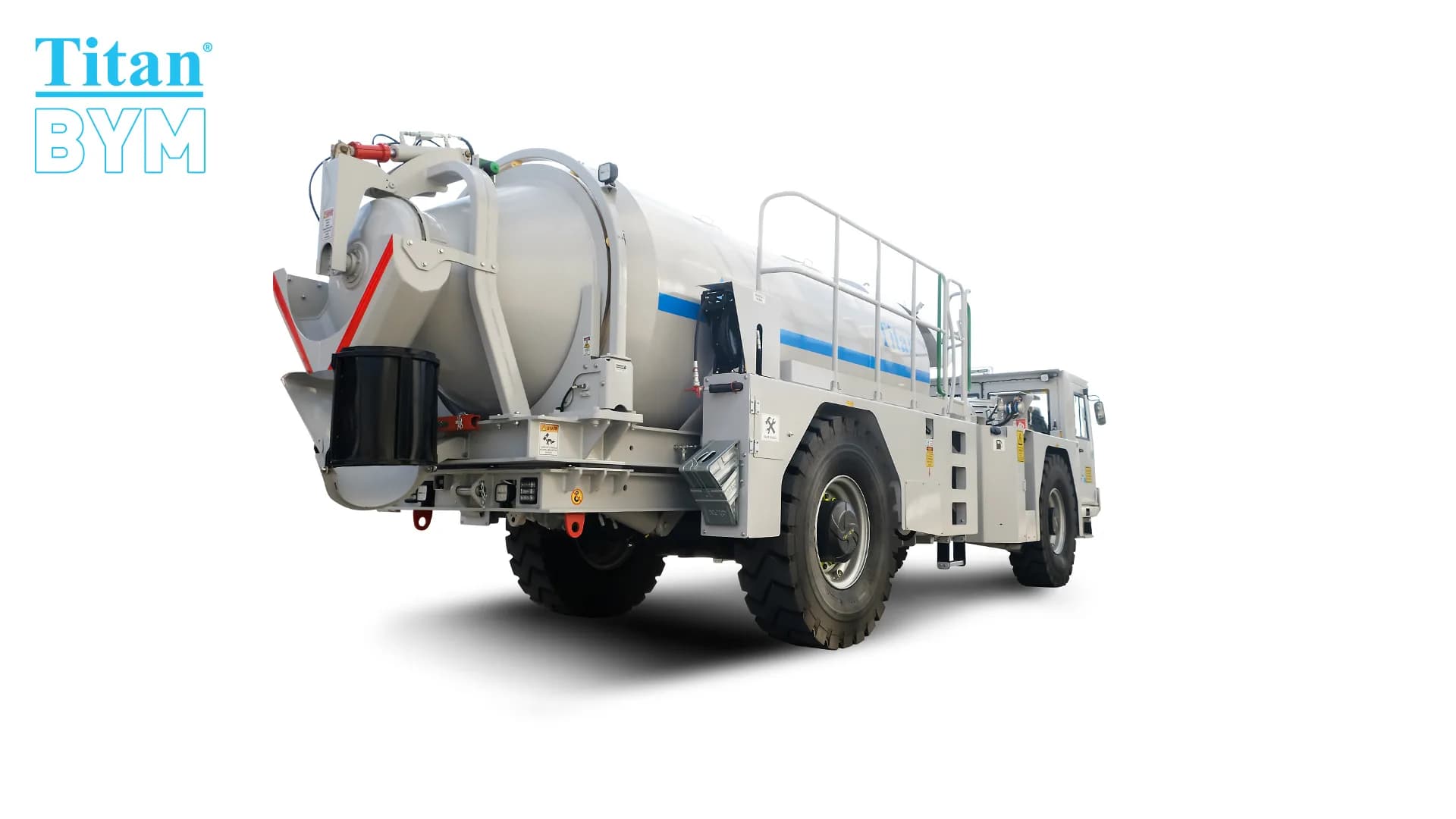

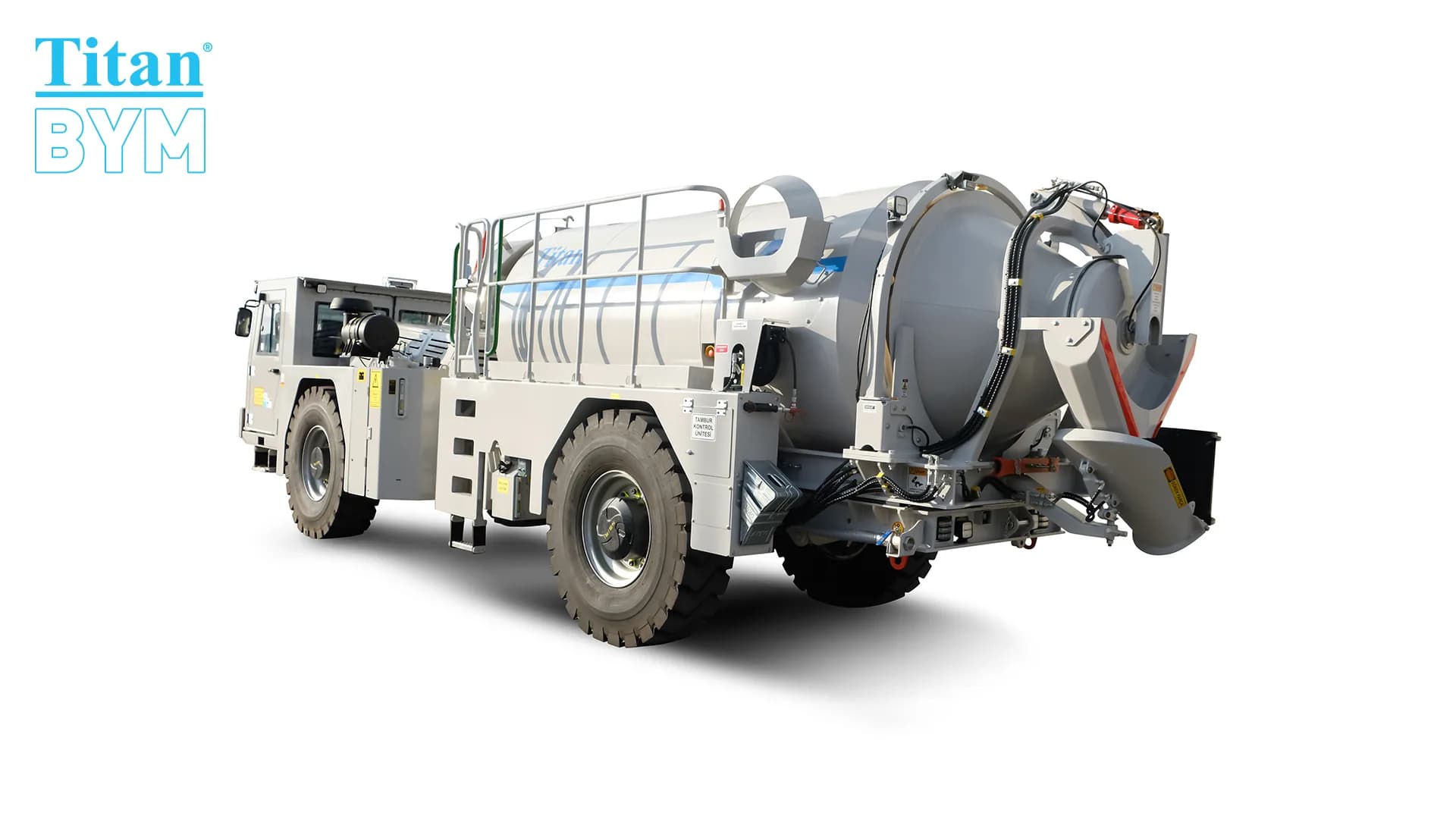

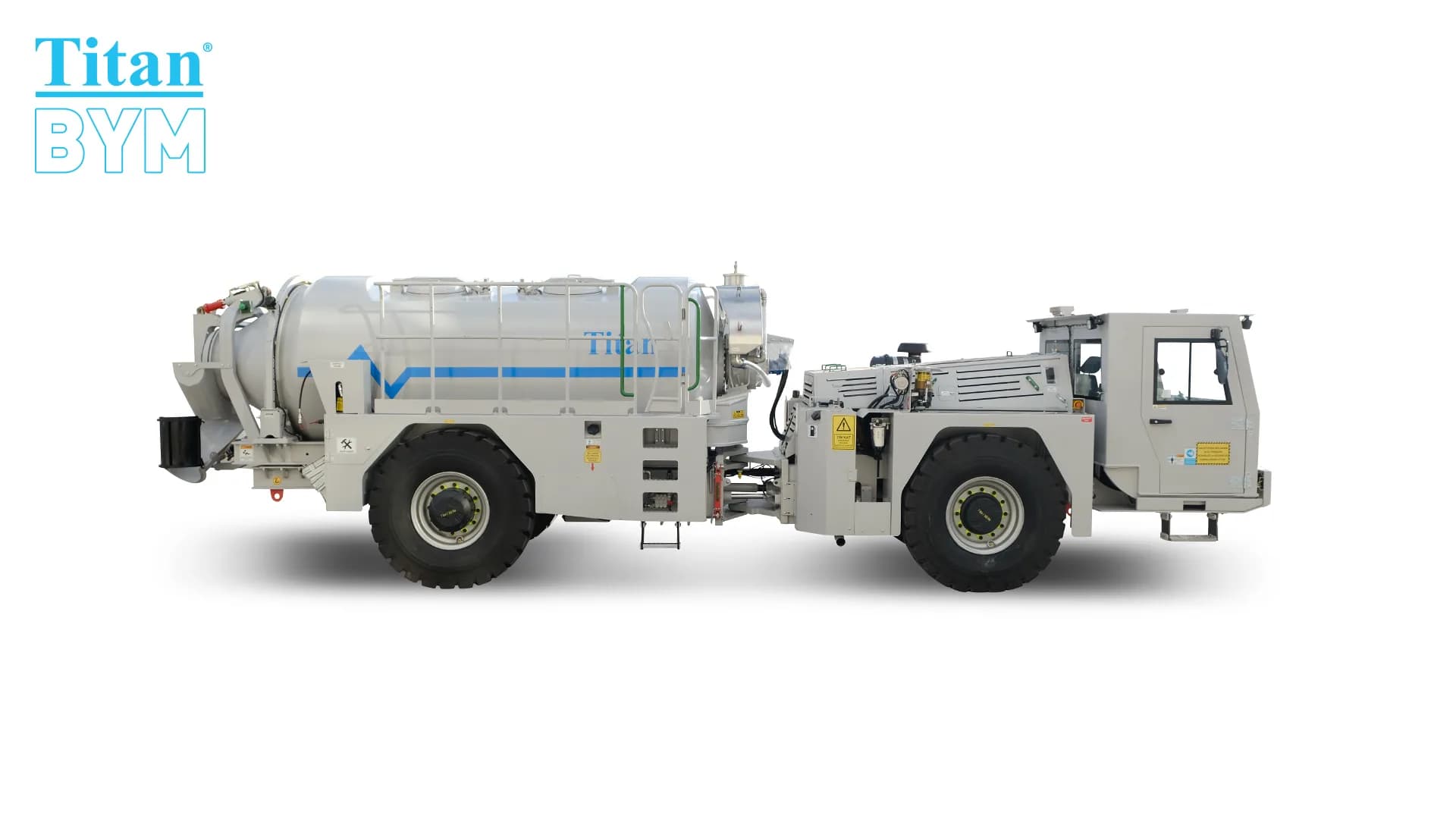

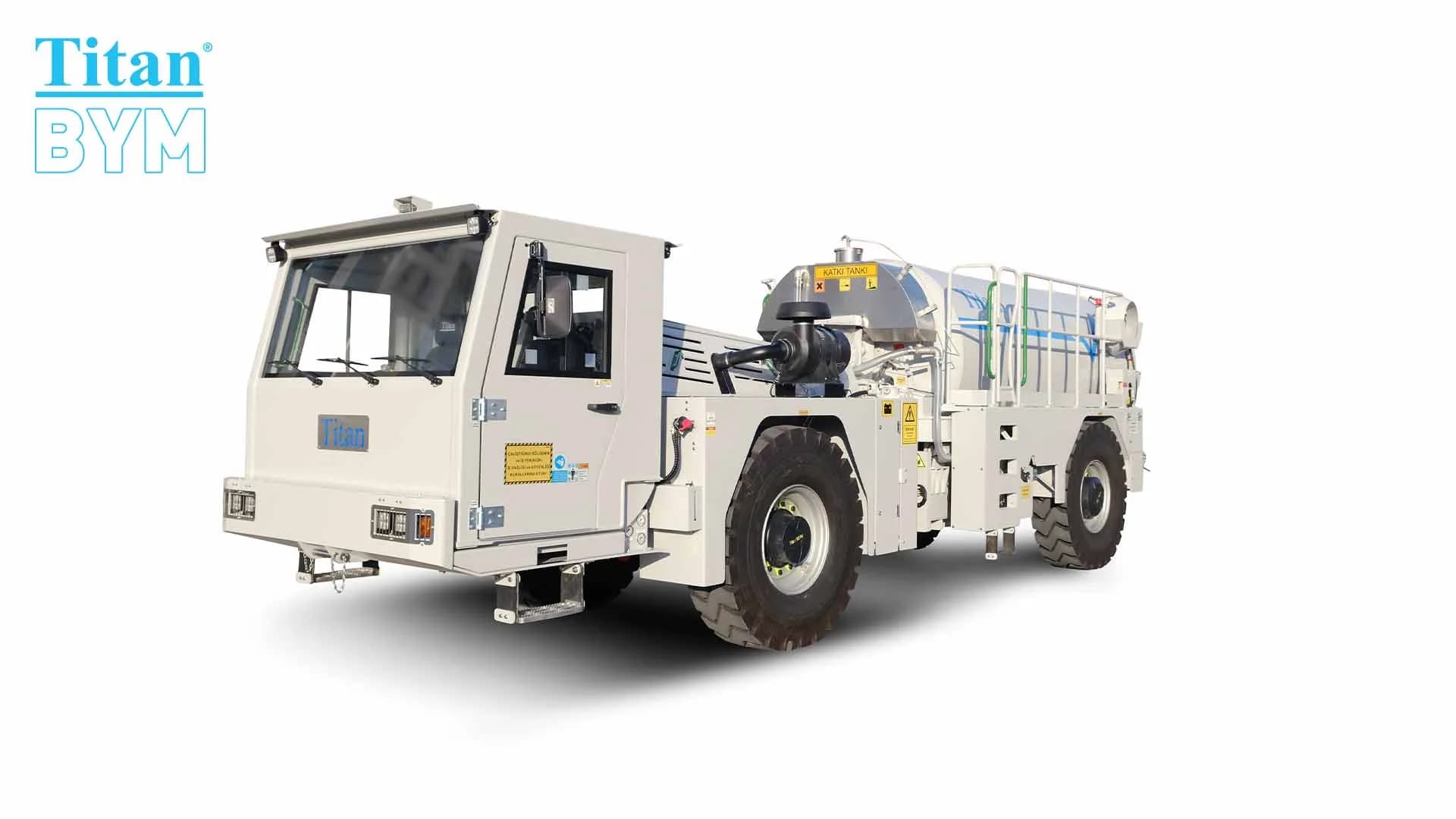

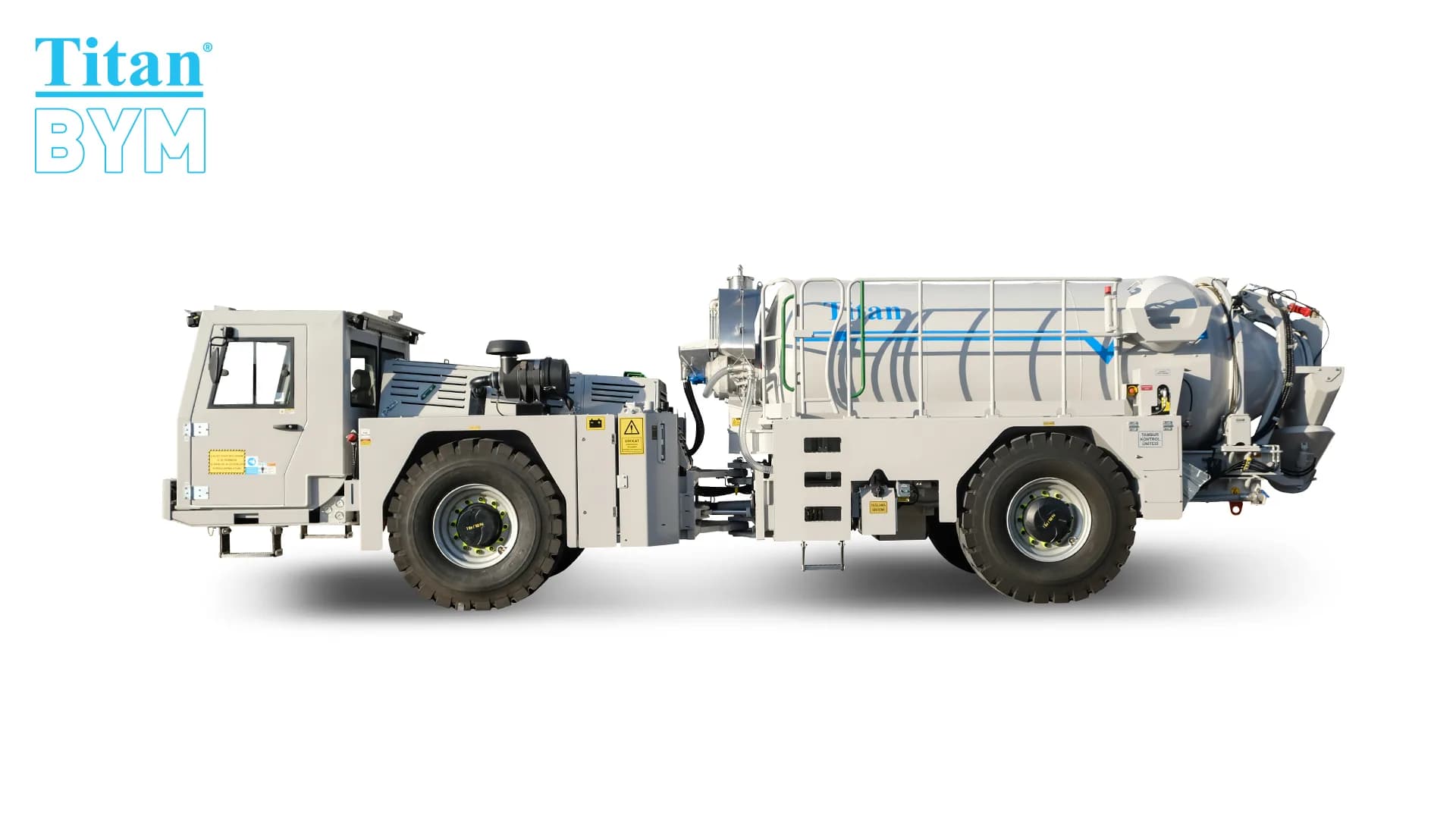

Horizontal concrete transmixer with 7 m³ capacity, a 200 kW Stage V engine and 33,500 kg maximum laden weight.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2012 L6Deutz TCD 7.8 L6
Max. PowerDiffers200 kW at 2300 rpm200 kW at 2200 rpm
Max. TorqueDiffers1050 Nm at 1500 rpm1050 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity150 l150 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T14Dana Spicer T14
  • Powershift Transmission
  • Automatic 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelFront Axle: Dana Spicer 113Front Axle: Dana Spicer 113
Rear AxleDana Spicer 114Dana Spicer 114
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires 14.00 - 24
Performance
Max. Gradient30%30%
Max. Speed18.5 km/h18.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
Retarder4 Speed4 Speed
  • Fail Safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers180 l/min at 2300 rpm180 l/min at 2200 rpm
Hydraulic Oil Tank150 l150 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 115 Ah)24V - 2 x (12V 115 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x1800 Lumen LED lights on the drum saddle
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x1800 Lumen LED lights on the drum saddle
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color

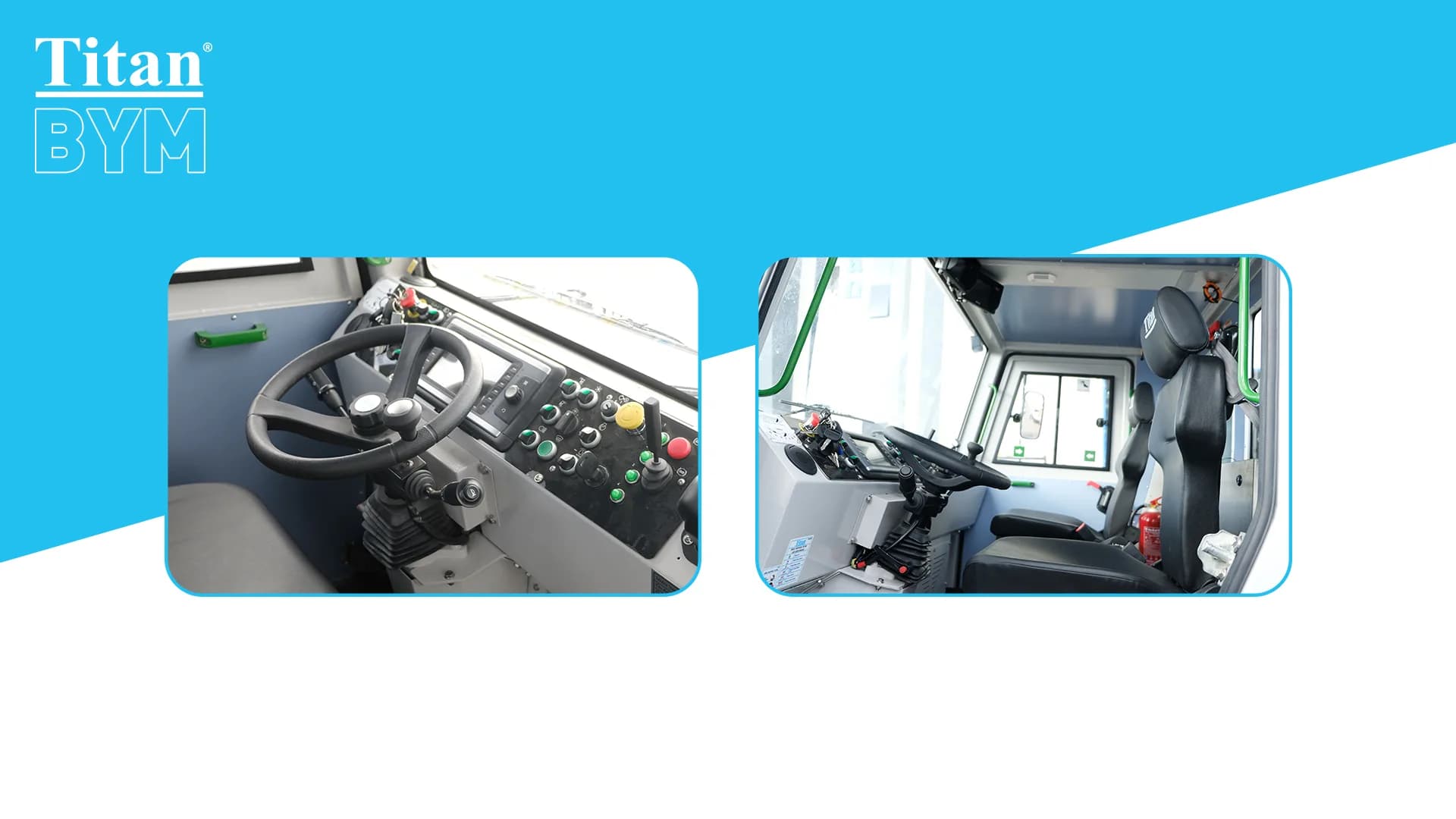

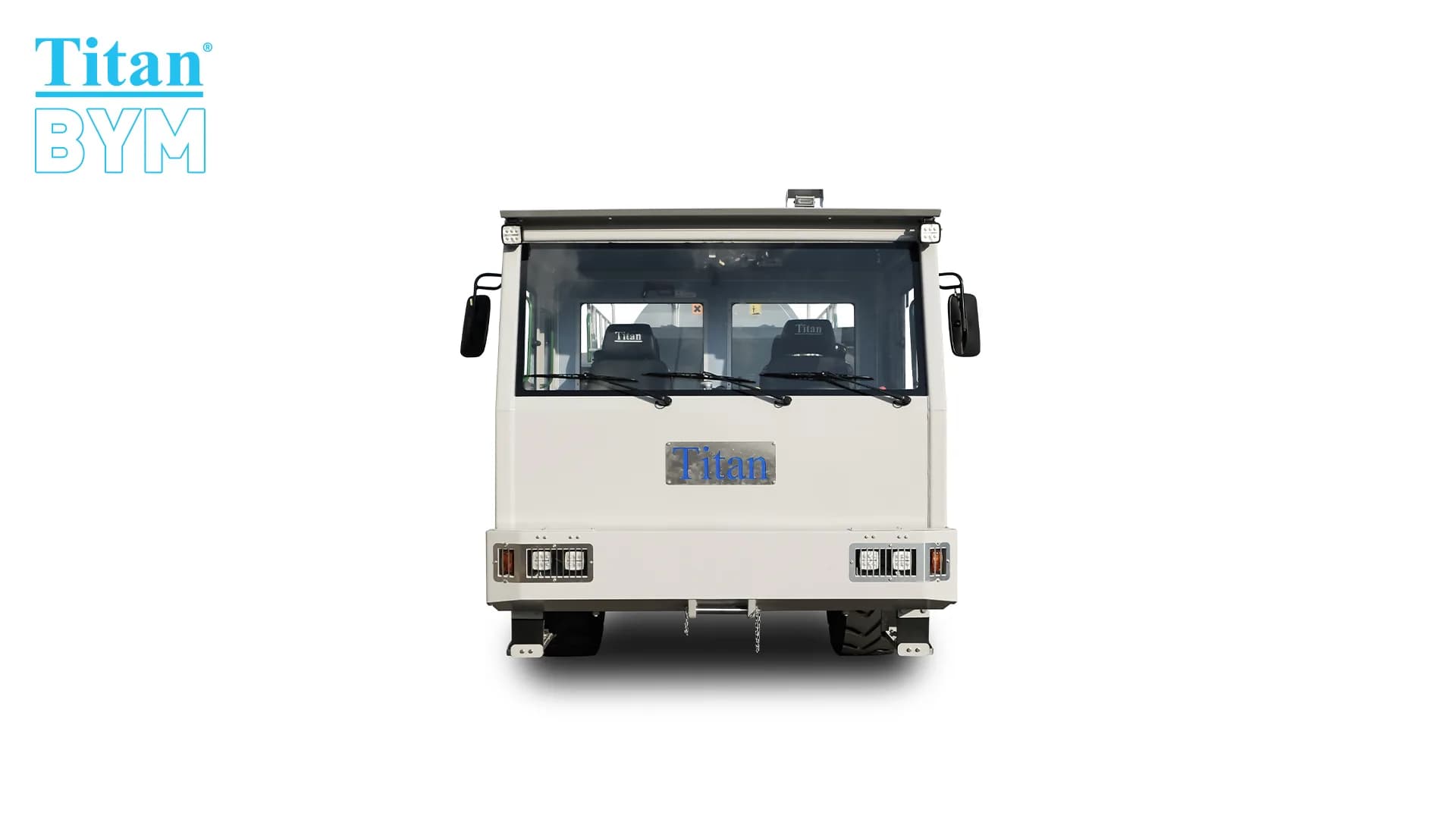

Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
Empty WeightDiffers16,000 kg (Approx.)16,500 kg (Approx.)
Max. Loaded WeightDiffers33,000 kg (Approx.)33,500 kg (Approx.)
LengthDiffers9,900 mm9,700 mm
Width2,300 mm2,300 mm
Height2,720 mm2,720 mm
Inner Turning RadiusDiffers5,020 mm4,910 mm
Outer Turning Radius7,890 mm7,890 mm
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks

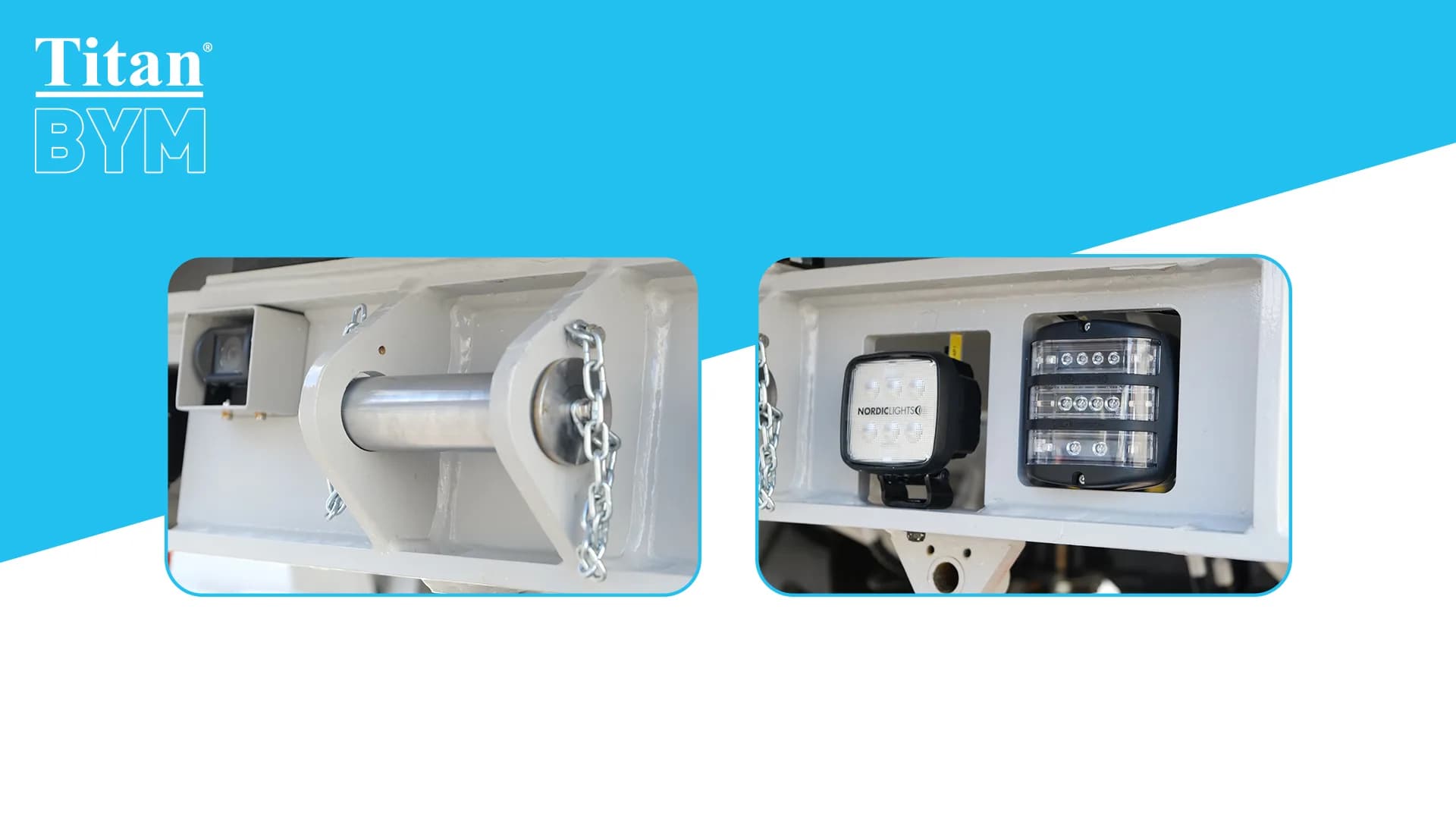

  • Front and rear tow bar
  • Battery Isolator switch
  • Back-up alarm and light

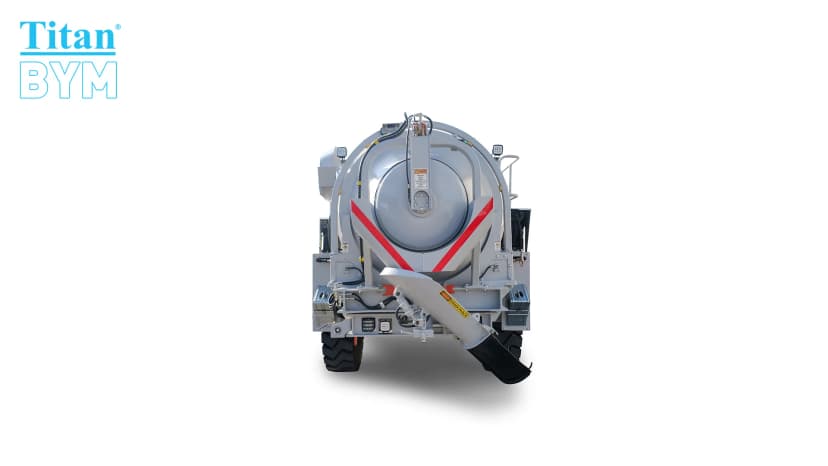

Concrete Drum
Hopper Volume8.75 m³8.75 m³
Max. Concrete Capacity7.0 m³7.0 m³

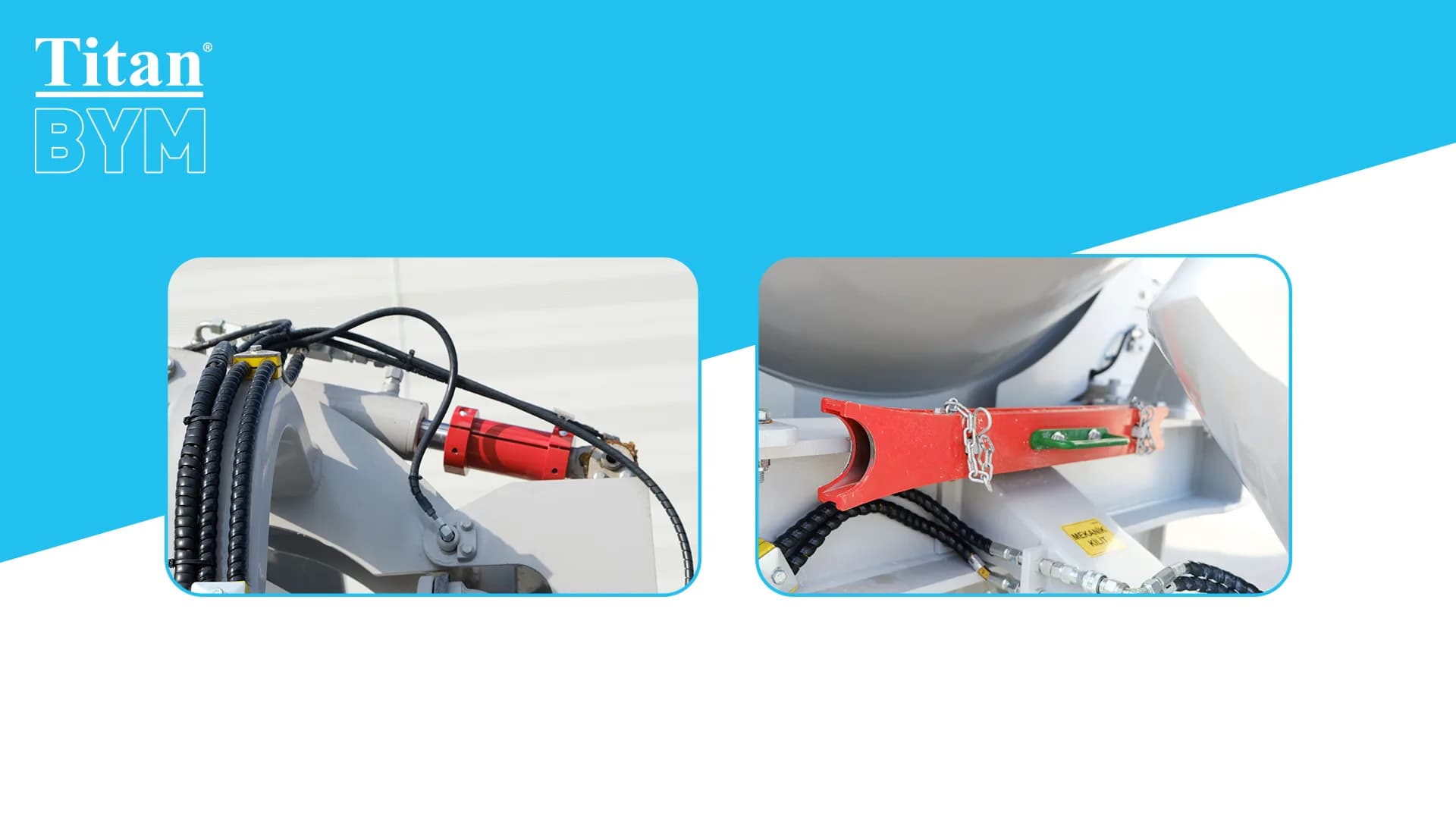

OperationHydraulicHydraulic
Reduction Gearbox with BrakeHydraulicHydraulic
Drum Tilt Angle9°9°
Adjustable Max. Rotation Speed0-18 rpm0-18 rpm

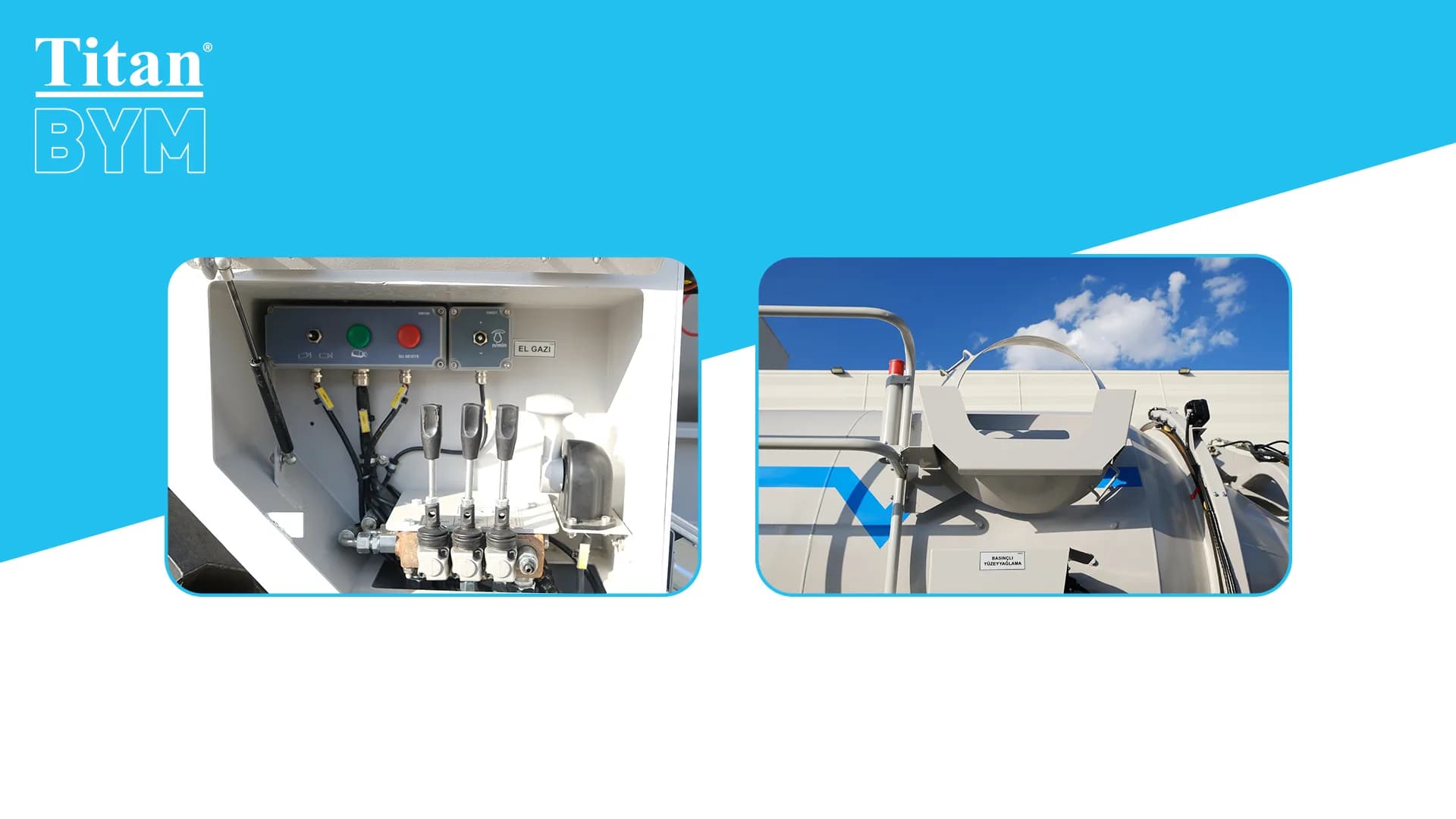

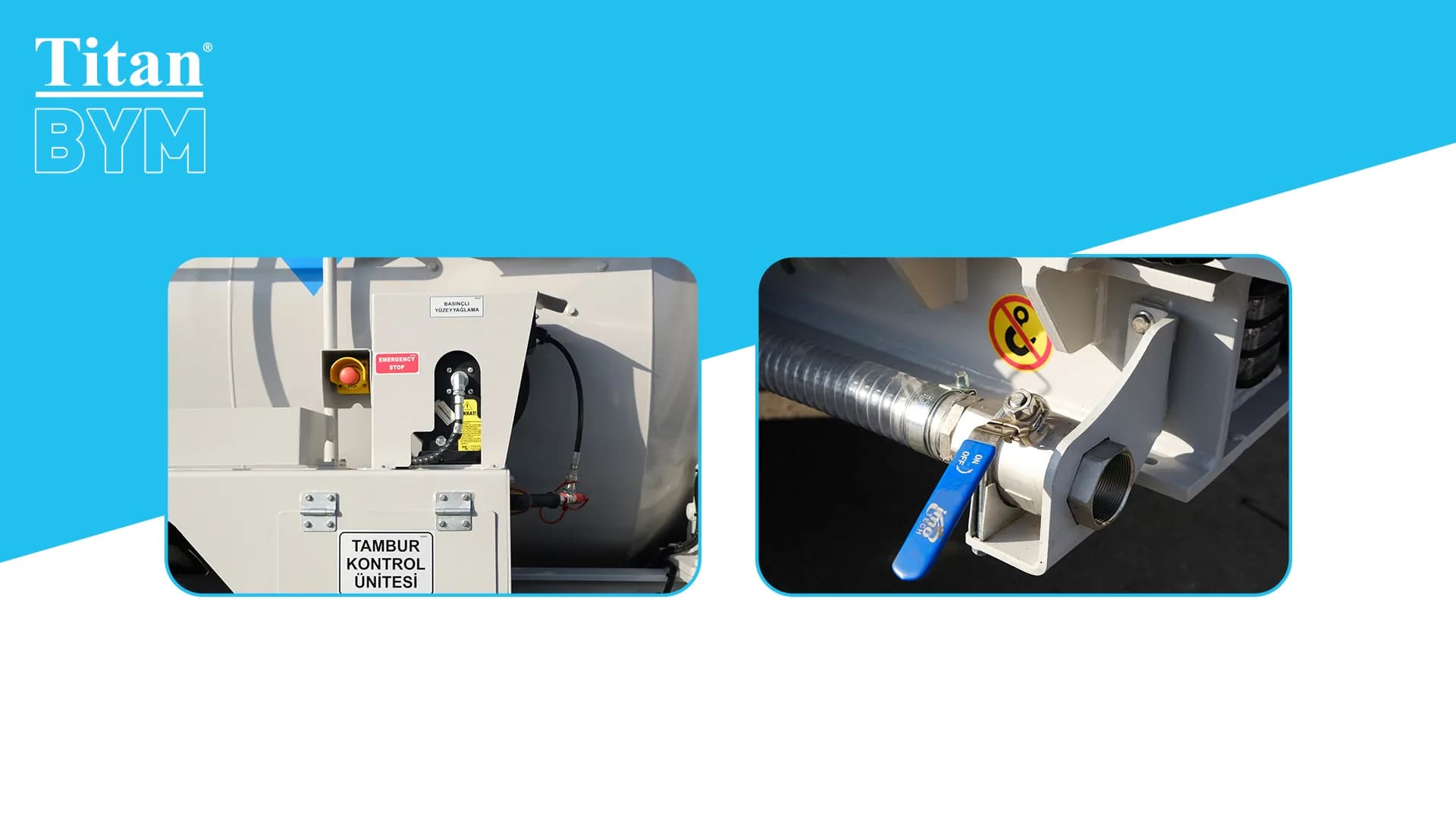

Control PanelOperator Side (Left rear) Safety-locked drum for fillingOperator Side (Left rear) Safety-locked drum for filling
Discharge Hatch and ChuteHydraulicHydraulic
  • Manual filling hatch
  • Drum braking system
  • Drum chassis locking system
  • Concrete Discharge Gate
High Pressure Washing System
Pump DriveHydraulicHydraulic
Pressure135 bar135 bar
Flow Rate16 l/min16 l/min
Hose Length13 m13 m
Water Tank75 l75 l
Additive Tank
Additive Tank Capacity
  • 220 l (Stainless)
  • Level Indicator
  • 220 l (Stainless)
  • Level Indicator
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Surface lubrication system
  • -Hose Reel
  • -Oil Tank
  • -Pump
  • -Gun
