BLT - Tyre Carrier

Tyre Handling Vehicle

BLT - Tyre Carrier

Underground Utility Vehicles

BLT - Tyre Carrier

MODEL · BLT

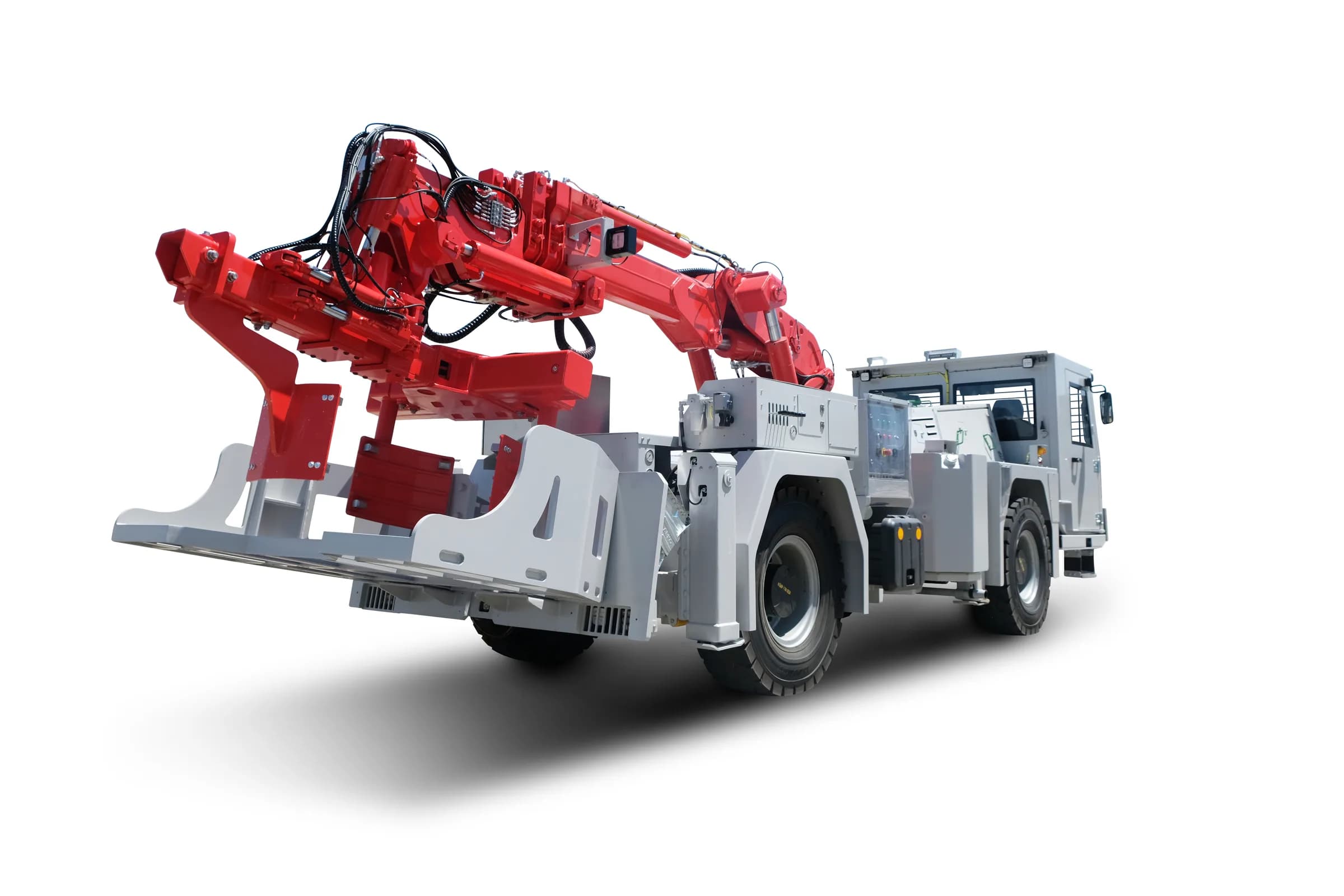

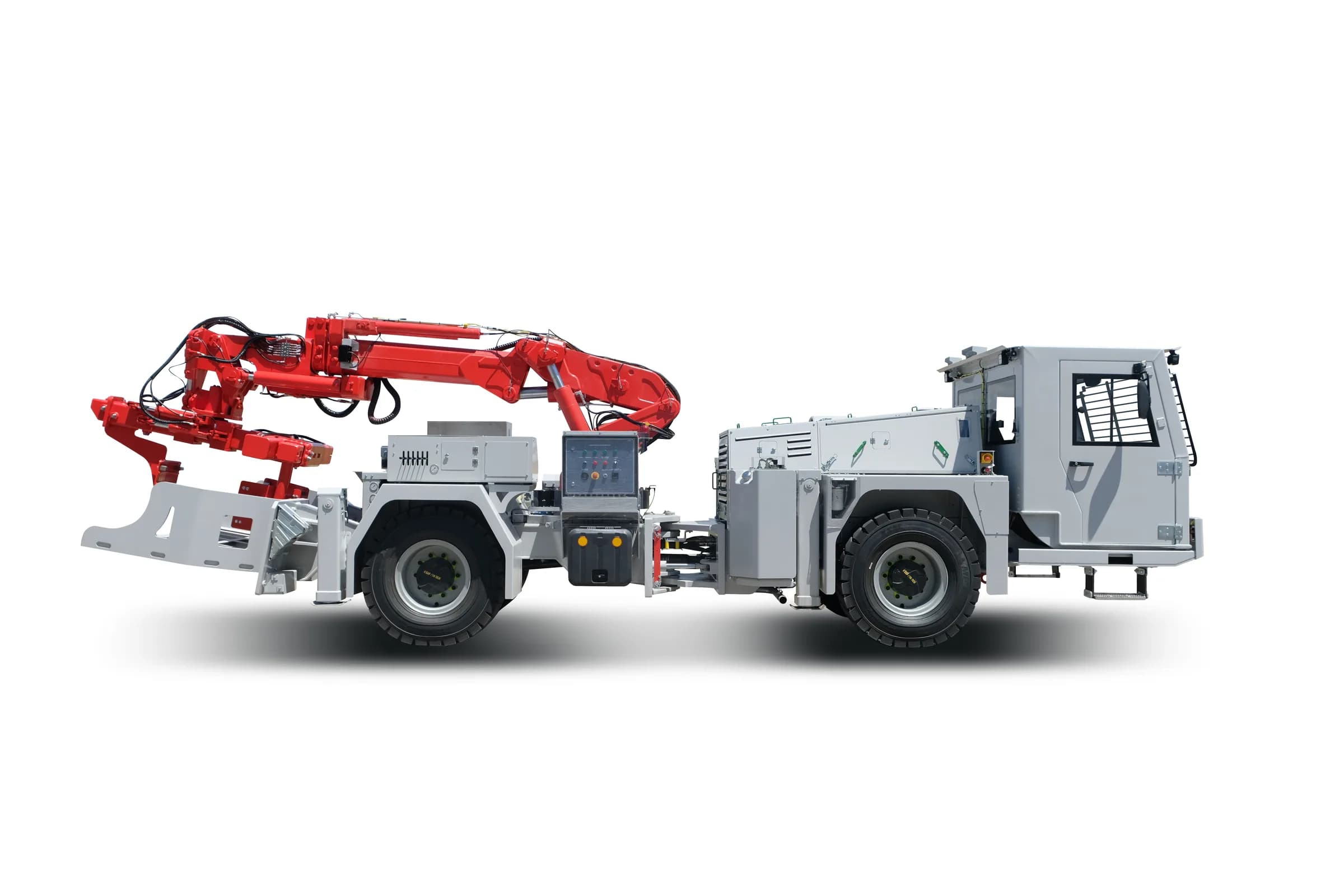

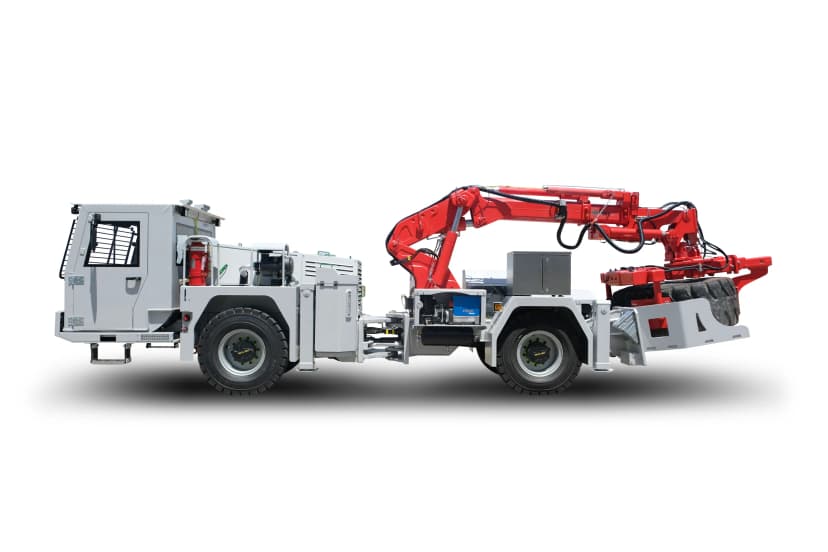

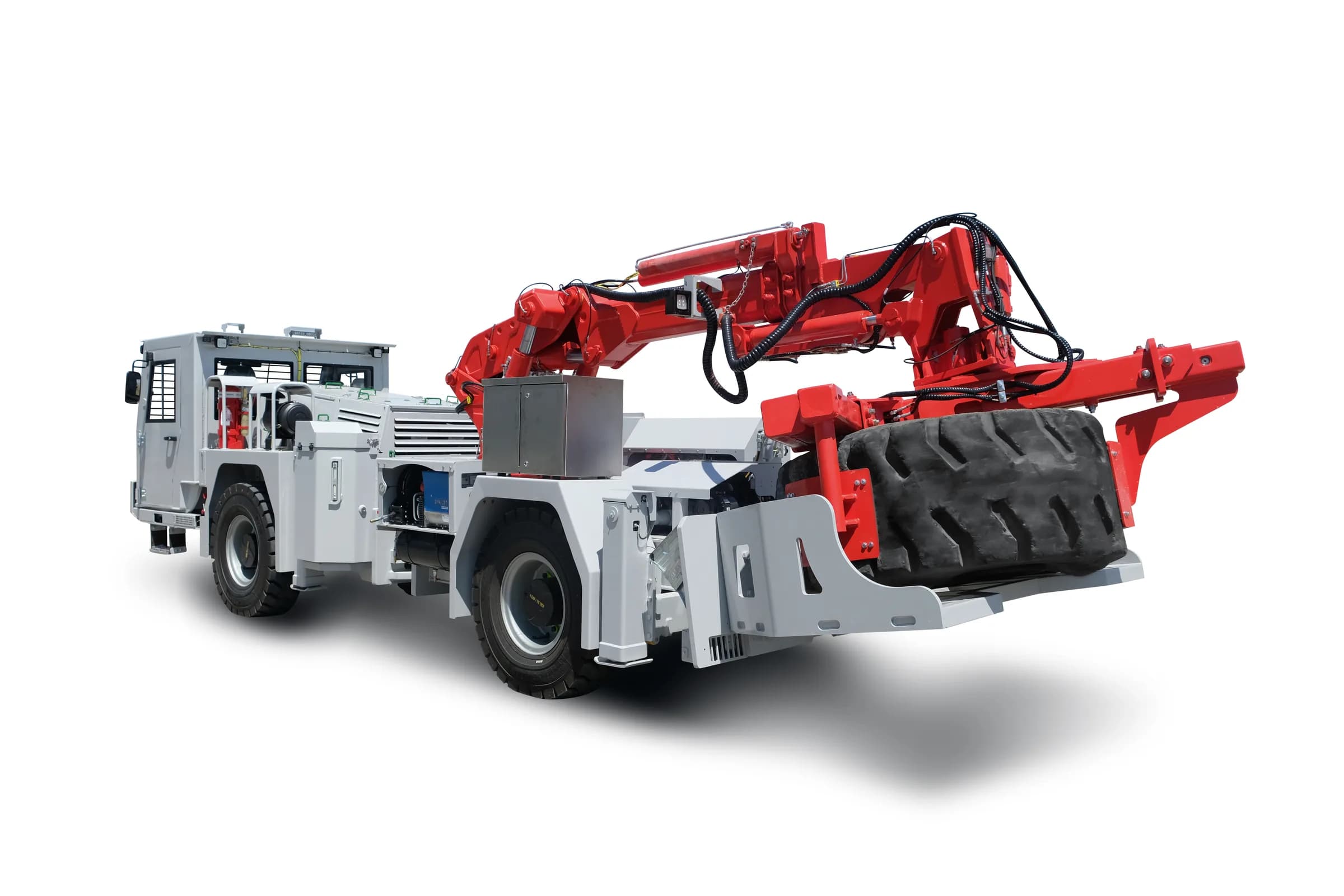

Underground tyre handling vehicle with a 3-tonne boom capacity and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank CapacityDiffers115 l125 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic StabilisersFront, 2 pcs fixedFront, 2 pcs fixed
  • Rear, 2 pcs extendible
Hydraulic System
Pump TypeVariable DisplacementVariable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers135 l/min at 2300 rpm (Diesel)135 l/min at 2200 rpm (Diesel)
Hydraulic Oil TankDiffers115 l125 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working LightsOperator Cabin Front 8 x 1800 Lumen LED LightOperator Cabin Front 8 x 1800 Lumen LED Light
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 lumen LED lights on the boom
  • Turn Signals
Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • Heated Windshield and Wing Mirrors
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
WeightDiffers14,000 kg (Approx.)14,500 kg (Approx.)
LengthDiffers9,260 mm9,490 mm
Width2,200 mm2,200 mm
Height2,520 mm2,520 mm
Inner Turning RadiusDiffers4,050 mm4,010 mm
Outer Turning RadiusDiffers6,900 mm6,860 mm
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front tow bar
  • Battery Isolator switch
  • Back-up alarm and light
Manipulator
Boom Carrying Capacity3 Ton3 Ton
Boom Vertical Reach4 m4 m
Tire Carrying Size Range (With Chains)R12 - R29R12 - R29
Boom Slewing Angle (Horizontal)+/- 15°+/- 15°
Attachment Rotation Angle+/- 45°+/- 45°
  • Titan Boom
  • Cable Remote Control
  • Compressor
  • Welding Machine
Safety
  • Sensor system preventing manipulator movement unless the stabilisers are lowered to the ground
  • 2 pcs stop buttons on the vehicle
  • Load Moment Control System
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Wireless Remote Control
