BVK05 - Crane Truck

MODEL · BVK05

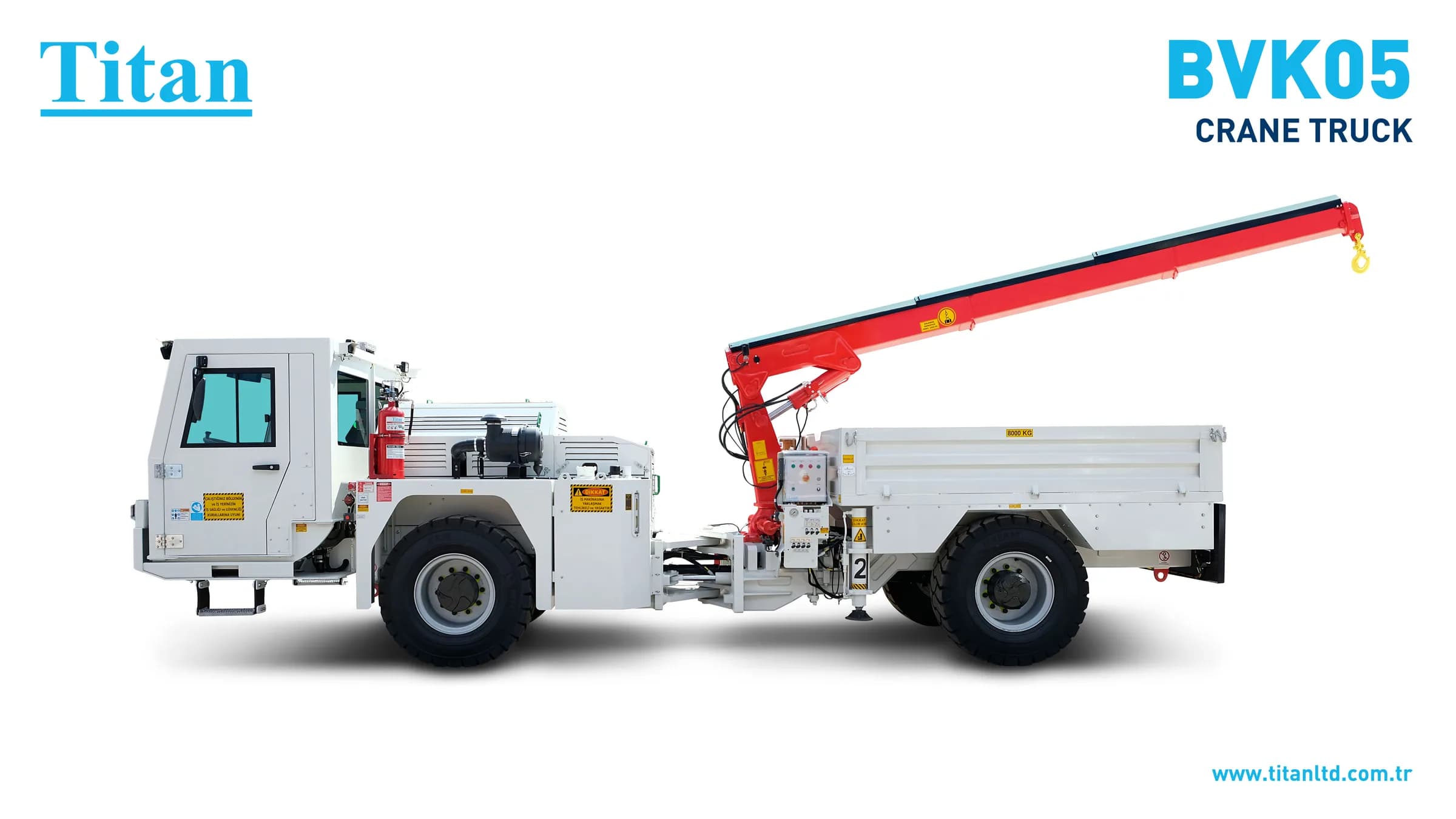

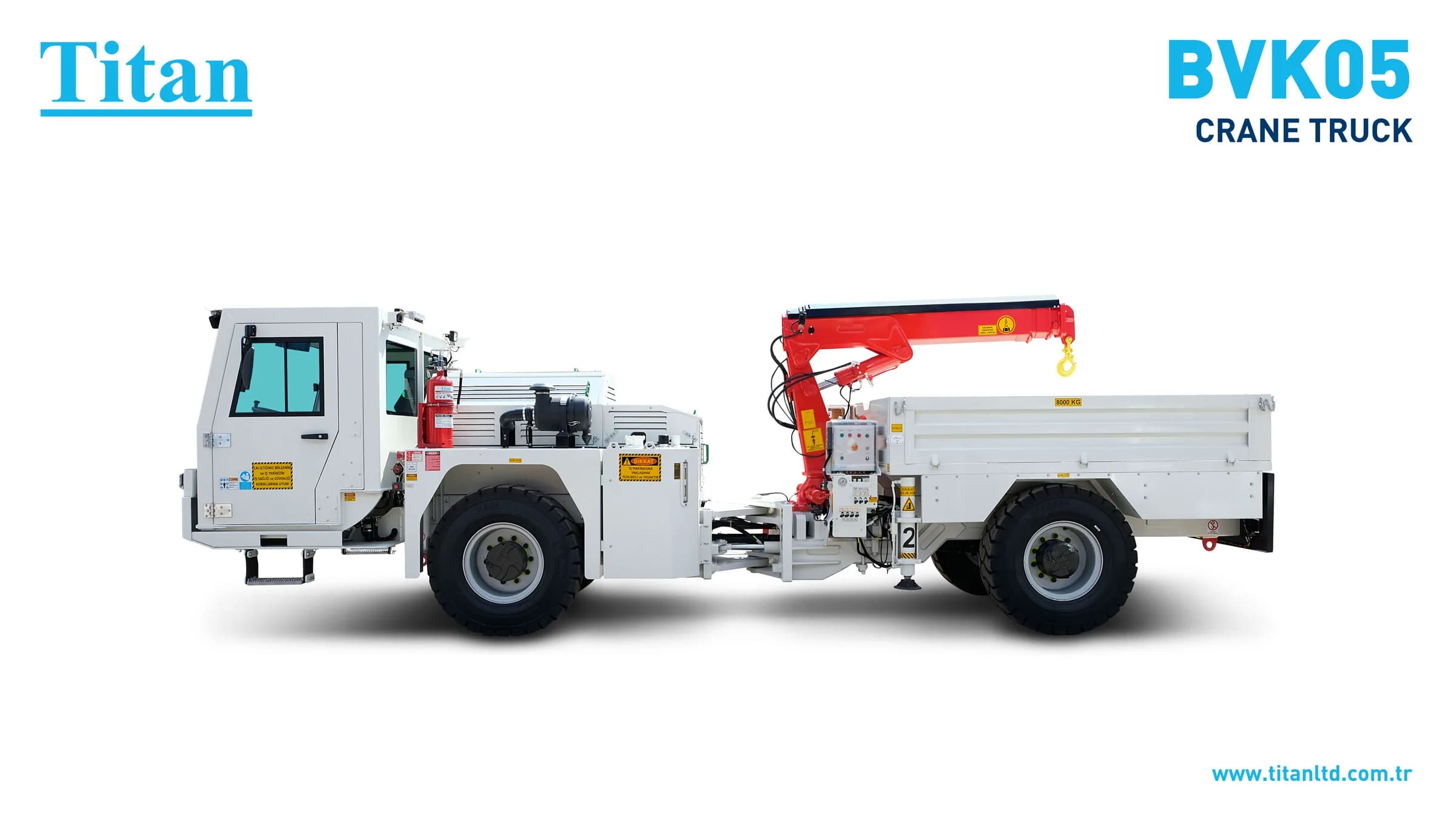

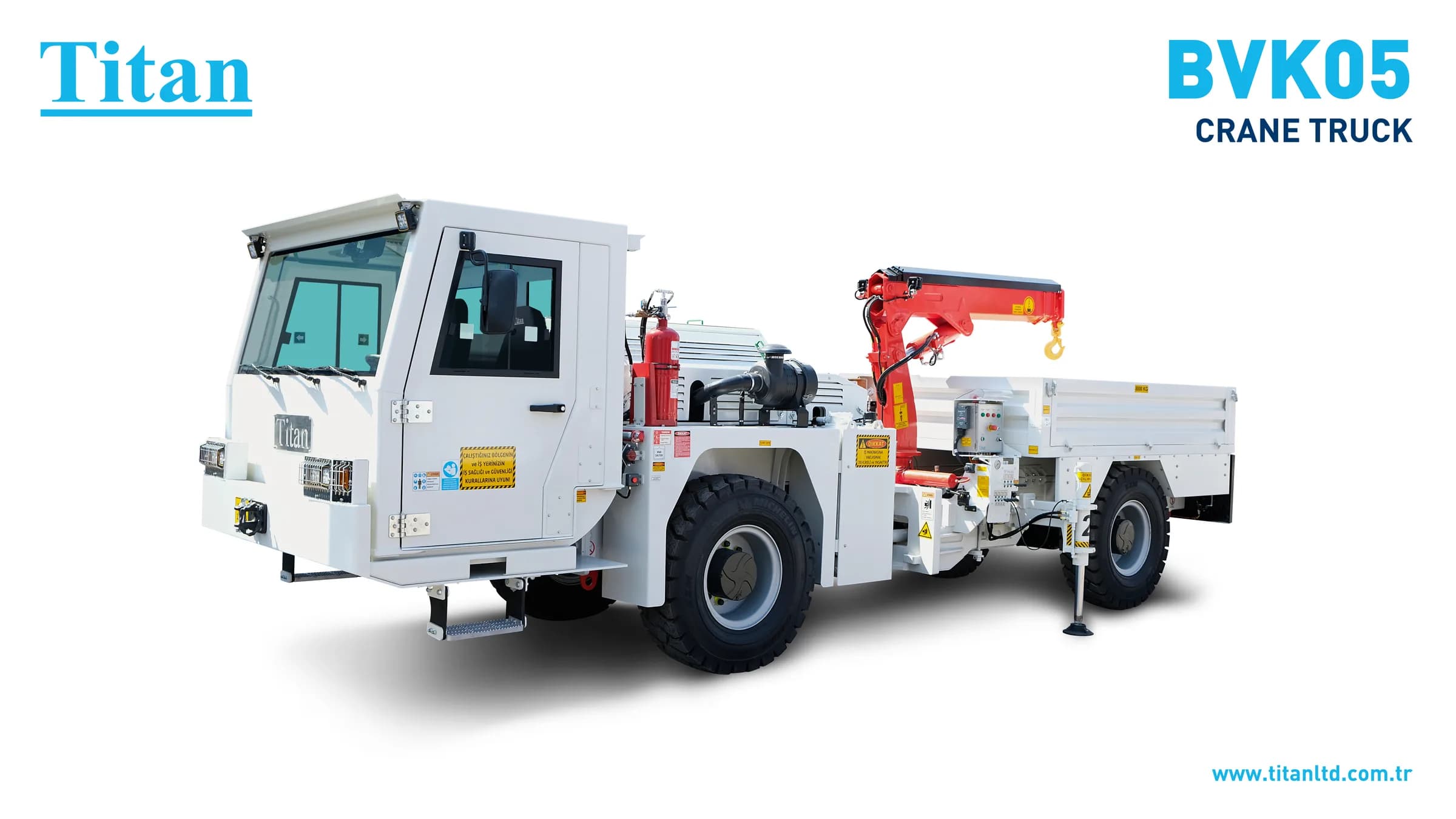

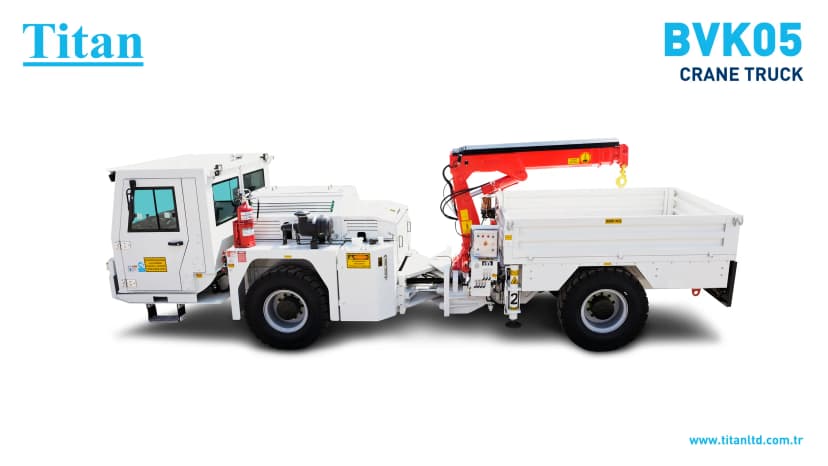

Crane truck with 5 m + 5 m horizontal and 6.75 m vertical boom reach, and a 129 kW Stage V engine.

Request a quote →Request datasheet

Field video

On the seam, in motion.

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i
Diesel Tank Capacity150 l150 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic StabilisersRear, 2 pcs extendibleRear, 2 pcs extendible
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers120 l/min at 2300 rpm120 l/min at 2200 rpm
Hydraulic Oil Tank150 l150 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 lumen LED lights on the boom
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 2 x 1800 lumen LED lights on the boom
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color

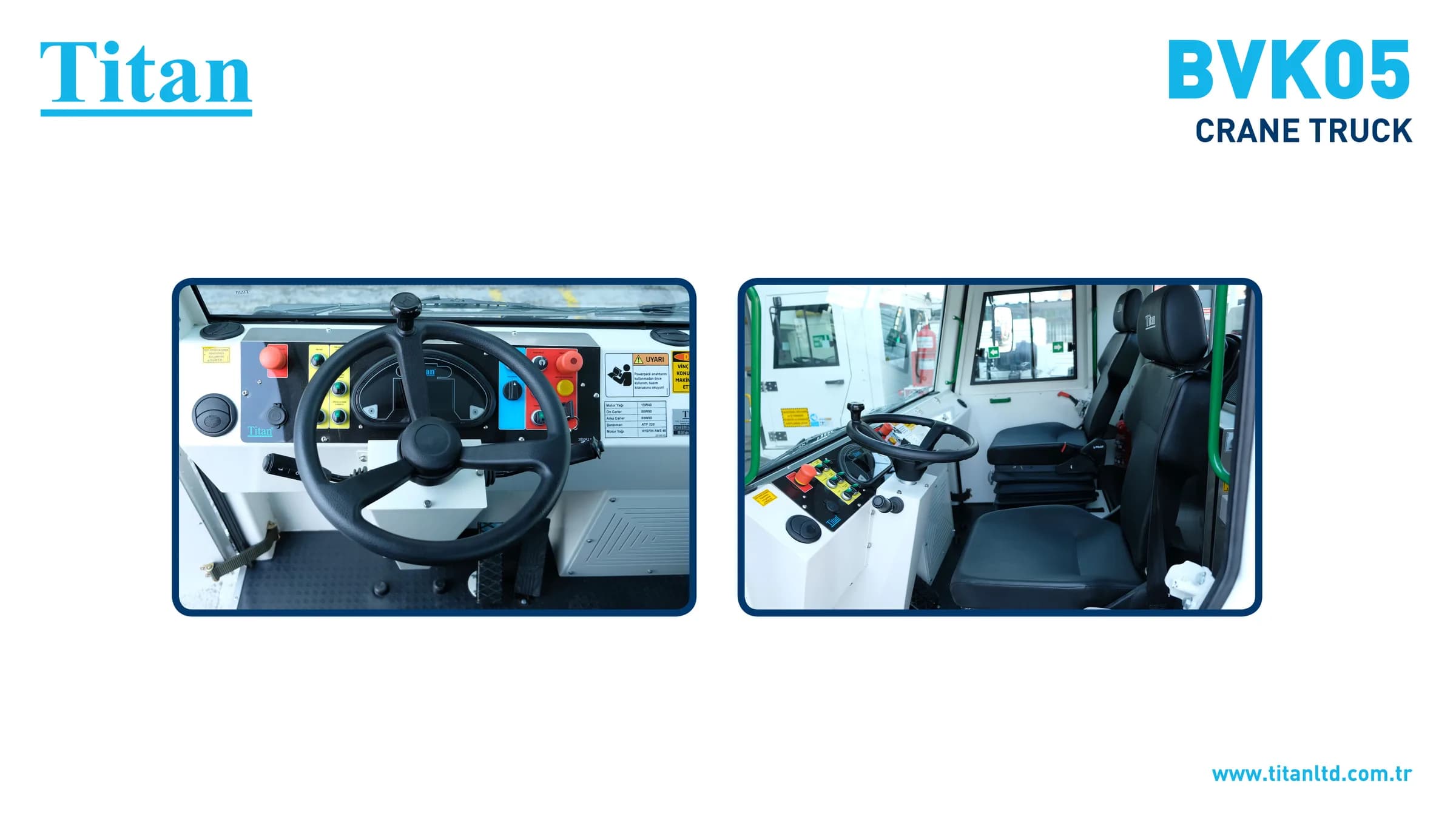

Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt

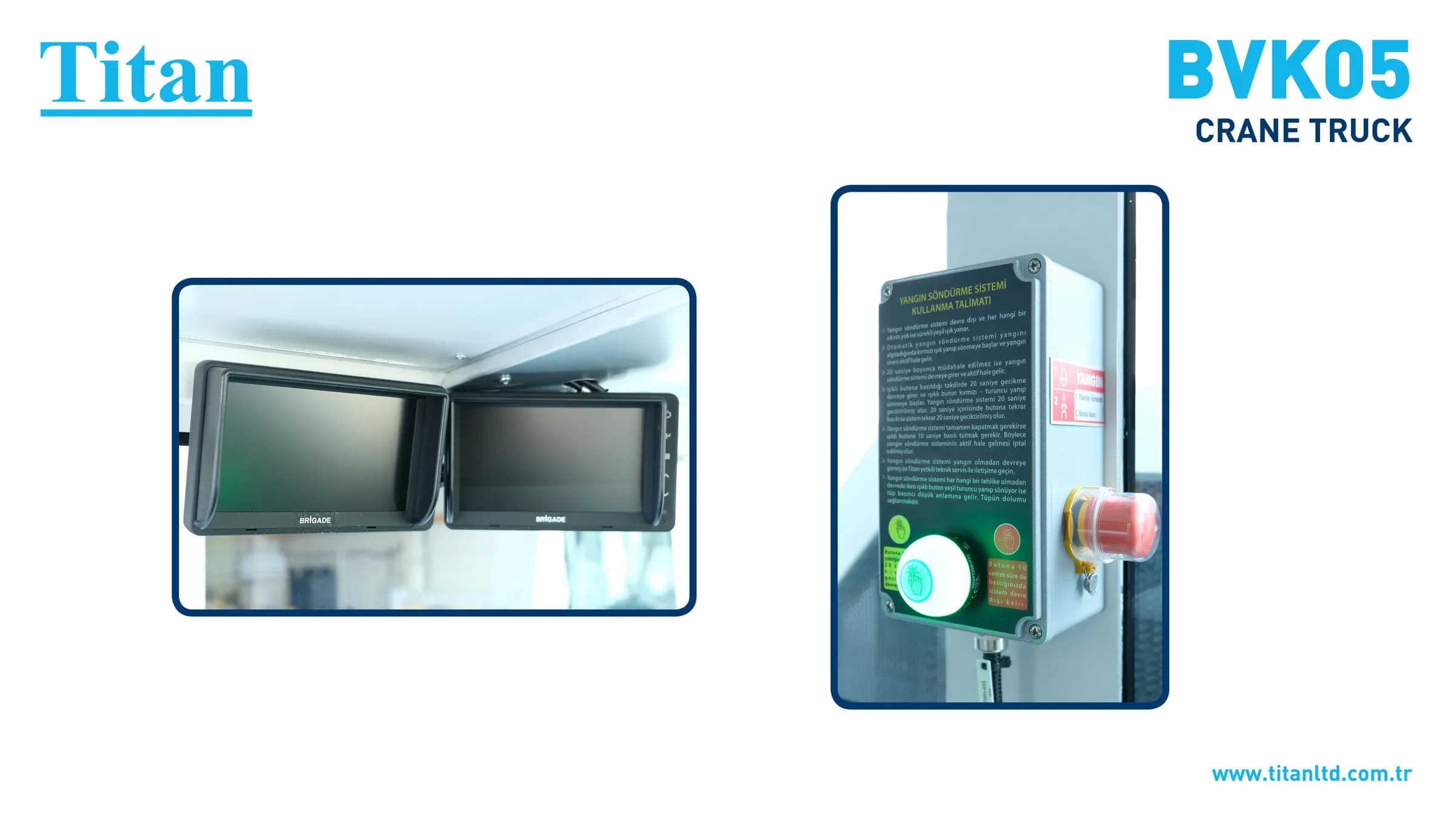

  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
WeightDiffers11,500 kg (Approx.)12,000 kg (Approx.)
LengthDiffers8,030 mm8,260 mm
Width2,000 mm2,000 mm
Height2,560 mm2,560 mm
Inner Turning Radius4,490 mm4,490 mm
Outer Turning Radius7,270 mm7,270 mm
Accessories
  • Warning plates and decals
  • Tool Box
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Front and rear tow bar
  • Battery Isolator switch
  • Back-up alarm and light

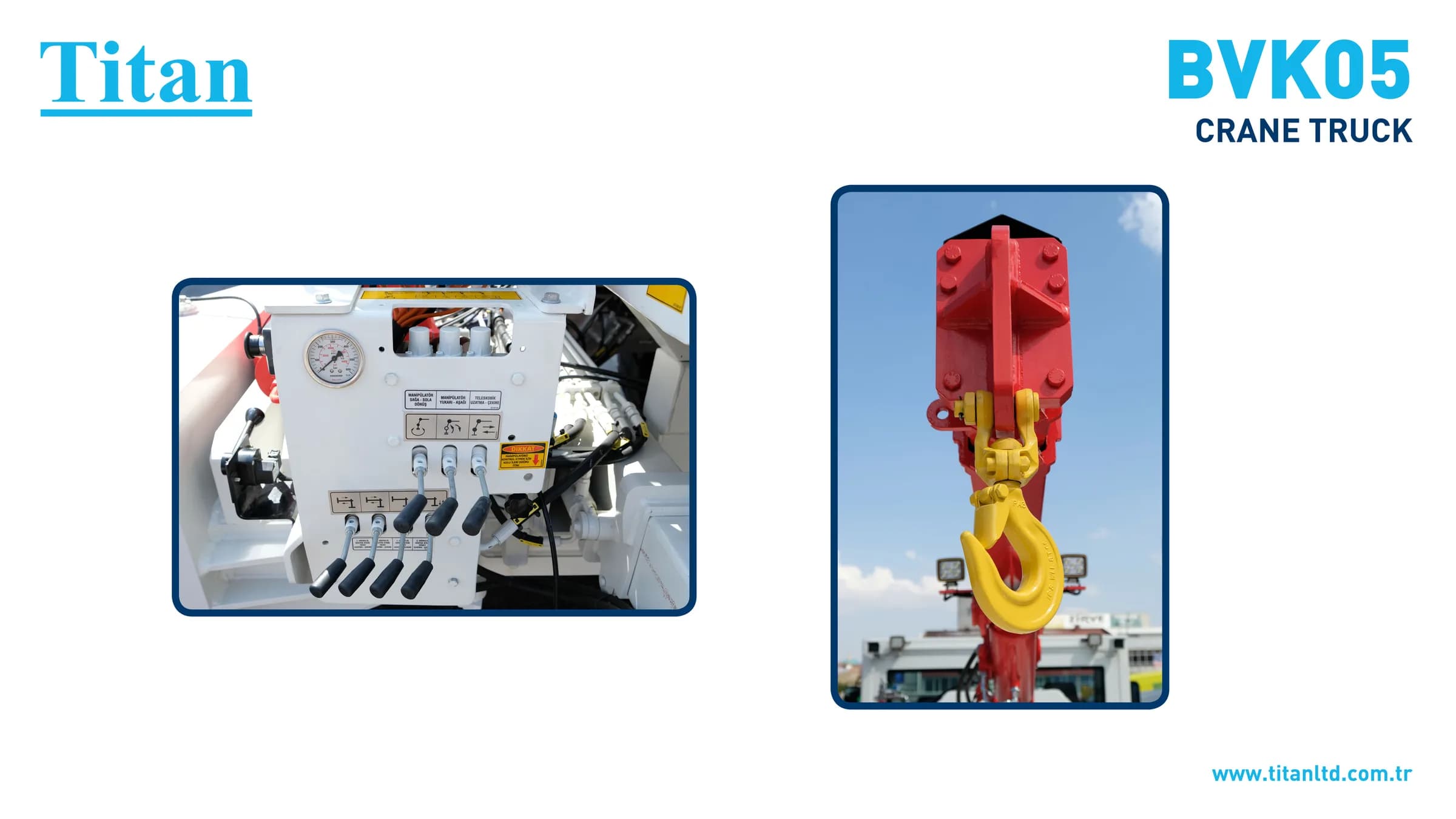

Crane
Boom Horizontal Reach5 m + 5 m5 m + 5 m
Boom Vertical Reach6.75 m6.75 m
  • Titan Boom
  • 1 ton capacity at 5 meters
  • Rack and pinion system
  • Hydraulically extendible stabilisers
  • Load Control System

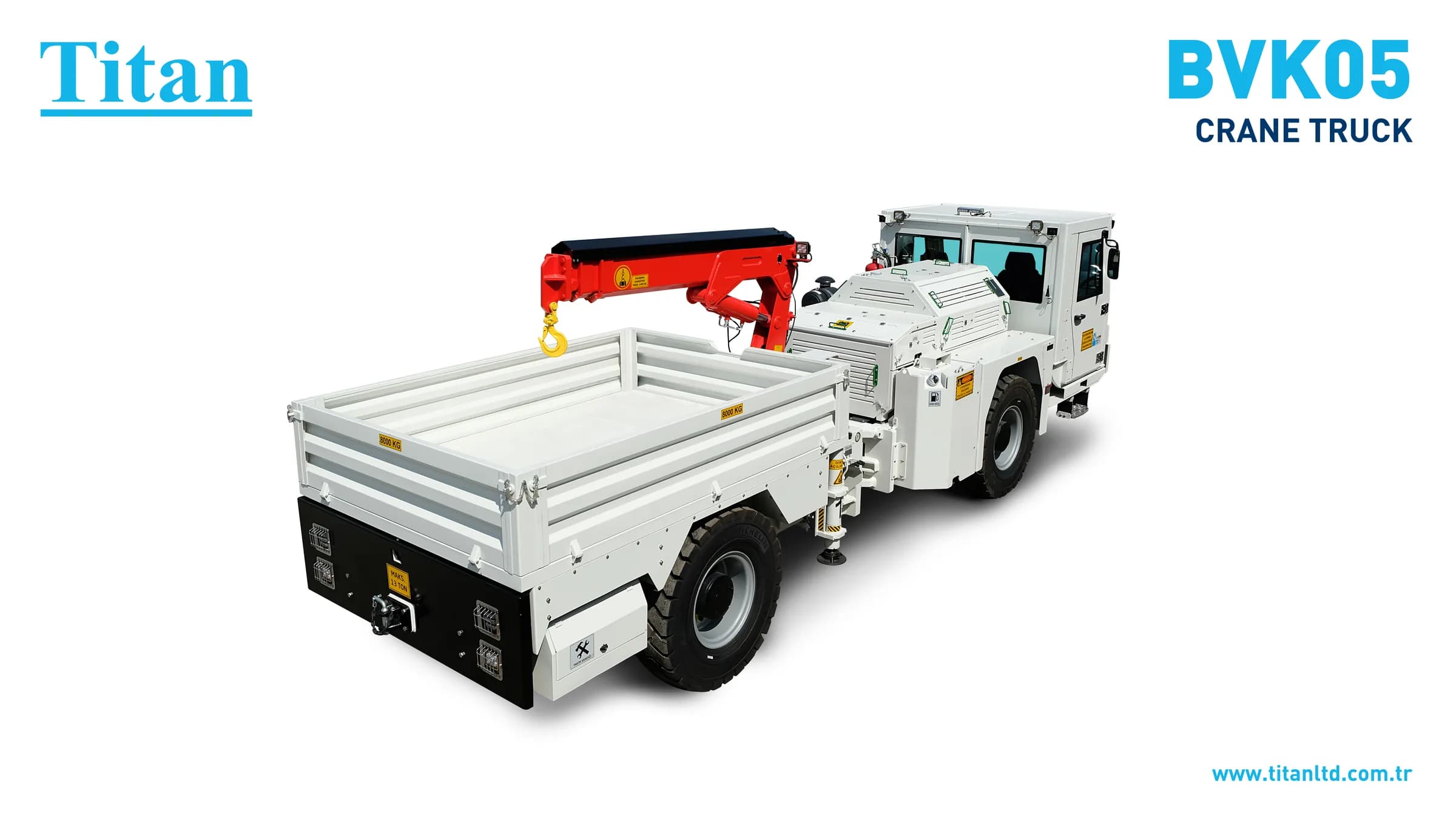

Cargo Body
Cargo Body Dimensions2,000 mm x 2,840 mm x 500 mm2,000 mm x 2,840 mm x 500 mm
Capacity8 Ton8 Ton
  • Cargo body right, left and rear gates can be opened and closed
Cable Remote Control
Specifications
  • Crane movements
  • Emergency stop
  • Horn
  • Crane movements
  • Emergency stop
  • Horn
Other

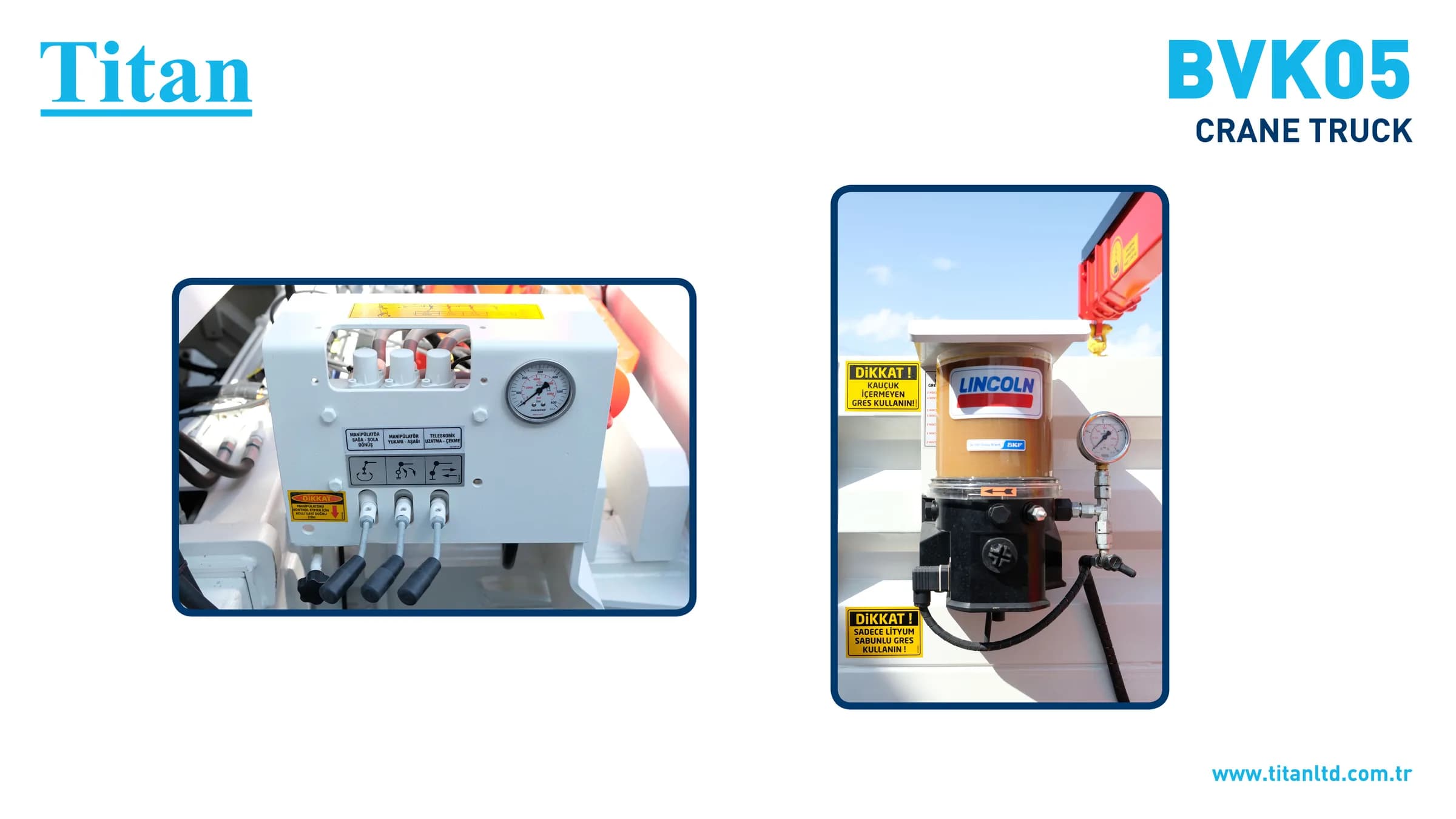

  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • Wireless Remote Control
