How high does the basket reach?

Up to 5.9 m. EN280-compliant automatic parallelism, ±35° basket swing.

Roof bolting, cable pulling and gallery maintenance. Closed ROPS/FOPS L2 cabin, Deutz 129 kW.

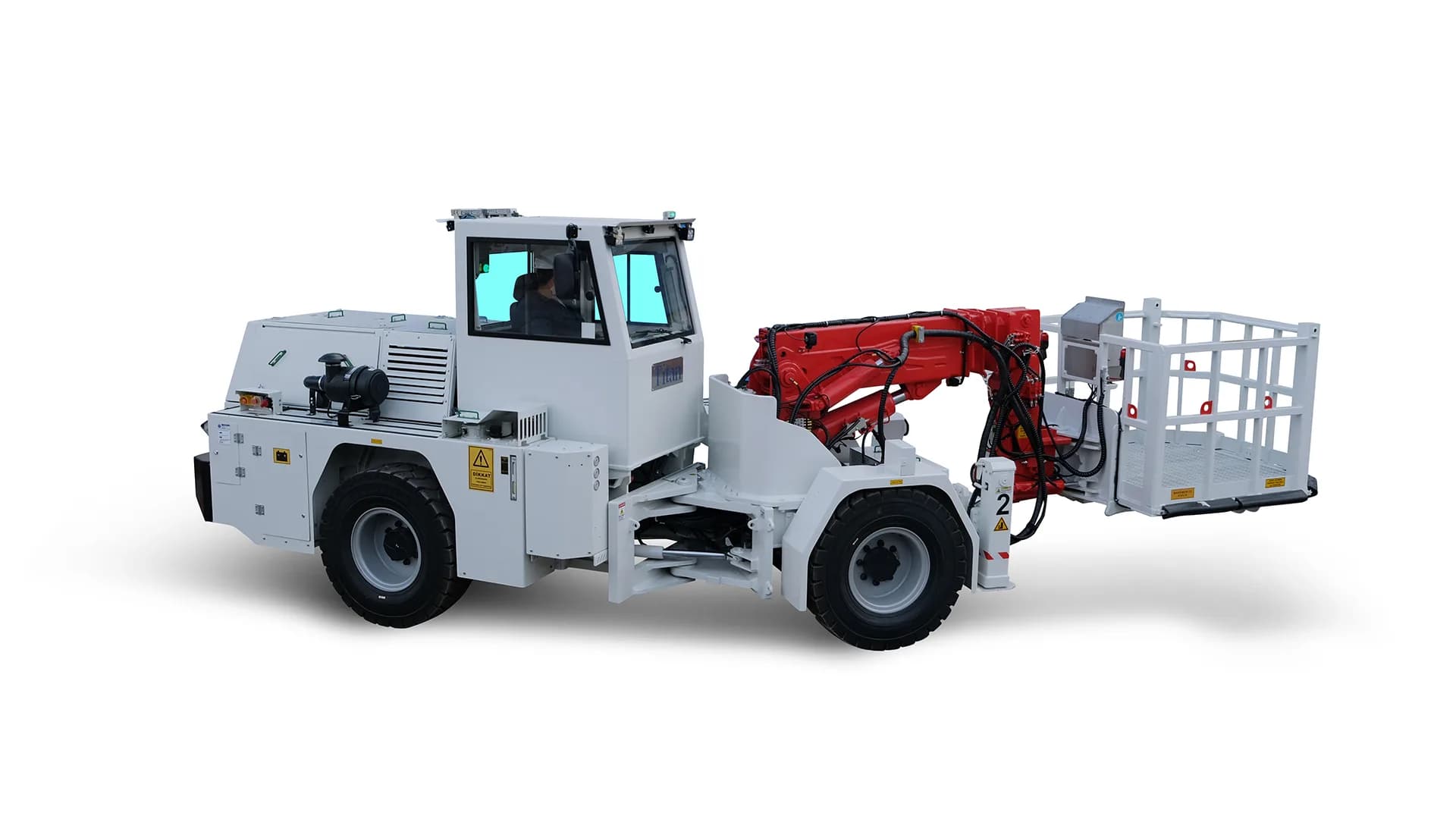

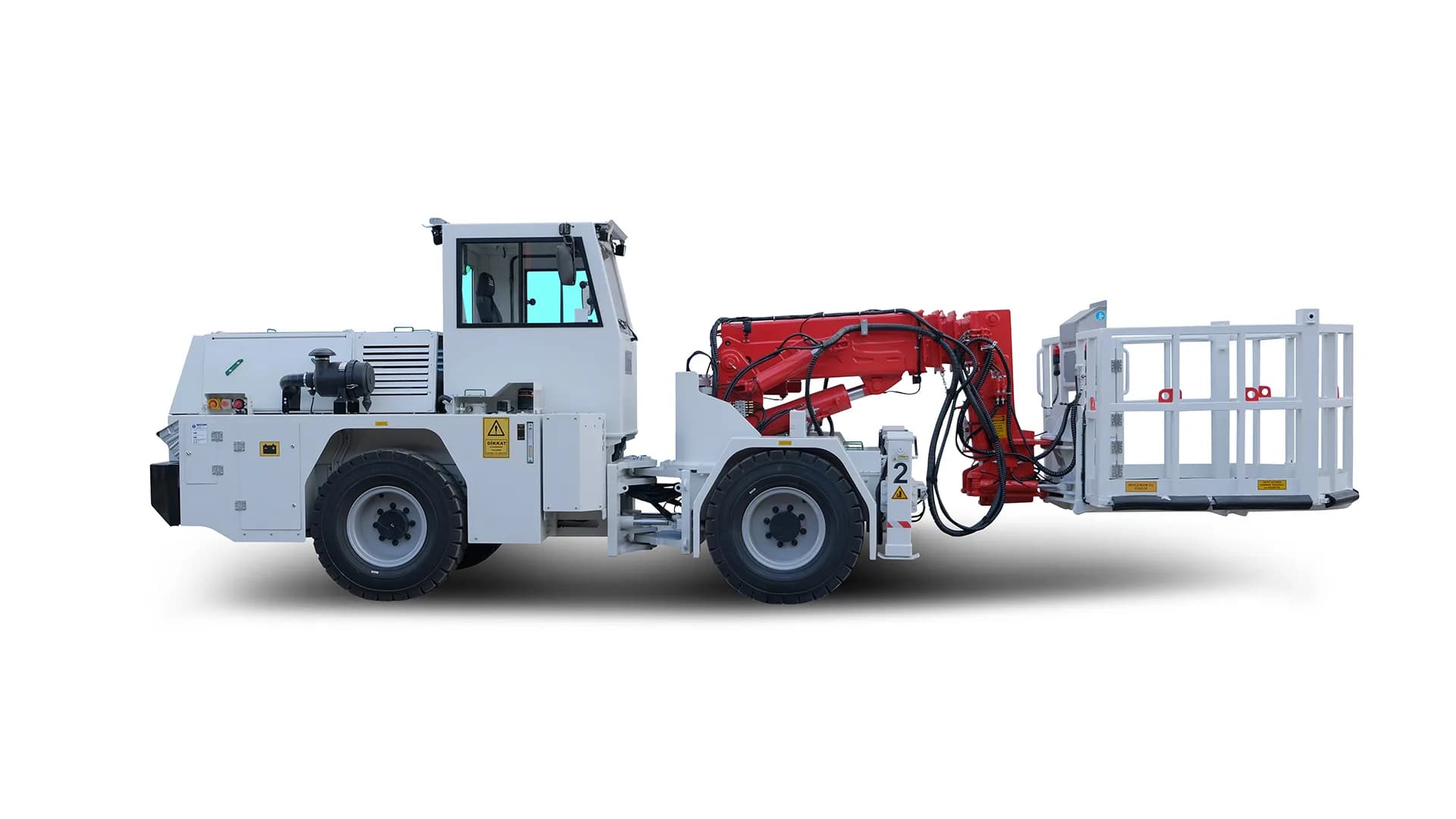

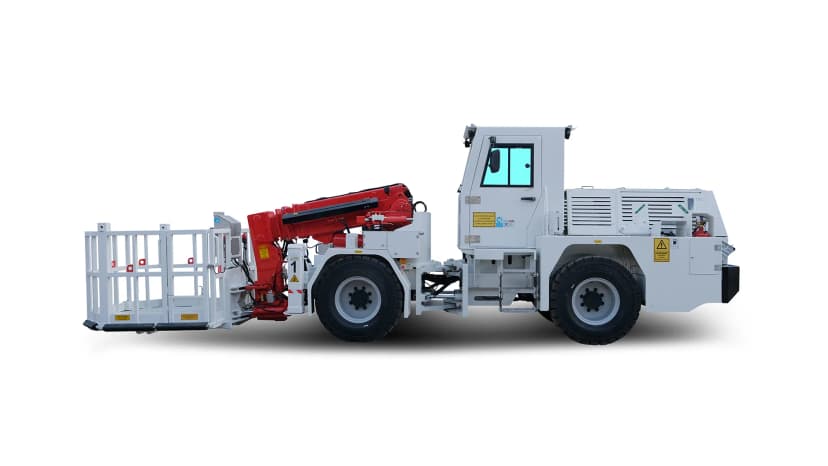

BKOS - Front Basket Truck

Name: BKOS - Front Basket Truck
Brand: Titan Makina
SKU: BKOS

Basket Boom Platform

Working Platforms

BKOS - Front Basket Truck

MODEL · BKOS

EN280-compliant front basket truck lifting up to 5.9 m for service and access.

Request a quote →Request datasheet

Highlighted features

Highlighted features ·

Engine power

129 kW

Operating weight

14.5 t

Reach / payload

5.9 m lift height

Field video

On the seam, in motion.

Datasheet

Specifications by engine stage

Show differences only(10)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank CapacityDiffers	140 l	150 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Transmission System	Hydrostatic Transmission	Hydrostatic Transmission
4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Rear Axle	+/- 8° Oscillating	+/- 8° Oscillating
Front Axle	Rigid	Rigid
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 43° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic Stabilisers	2 pcs, Front extendible	2 pcs, Front extendible
Hydraulic System
Pump Type	Fixed and Variable Displacement	Fixed and Variable Displacement
Max. Pressure	380 bar	380 bar
Flow RateDiffers	120 l/min at 2300 rpm (For Operation) 410 l/min at 2200 rpm (For Transmission)	120 l/min at 2200 rpm (For Operation) 410 l/min at 2200 rpm (For Transmission)
Hydraulic Oil TankDiffers	140 l	150 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 2 x 3000 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 3000 Lumen LED lights on the front fenders 2 x 1800 lumen LED lamps on the boom 4 x 1800 Lumen LED lamps on the basket Turn Signals	Operator Cabin Front 2 x 3000 Lumen LED Light Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 2 x 3000 Lumen LED lights on the front fenders 2 x 1800 lumen LED lamps on the boom 4 x 1800 Lumen LED lamps on the basket Turn Signals
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
Titan Closed Operator Cabin
1-Person Cabin ROPS and level 2 FOPS certified cabin (EN ISO 3471/ EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box In-Cabin Heater
Dimensions and Weight
WeightDiffers	14,500 kg (Approx.)	15,000 kg (Approx.)
LengthDiffers	9,380 mm	9,580 mm
Width	2,000 mm	2,000 mm
Height	2,740 mm	2,740 mm
Inner Turning Radius	3,070 mm	3,070 mm
Outer Turning RadiusDiffers	5,700 mm	5,630 mm
Accessories
Warning plates and decals 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Rear tow bar Battery Isolator switch Back-up alarm and light

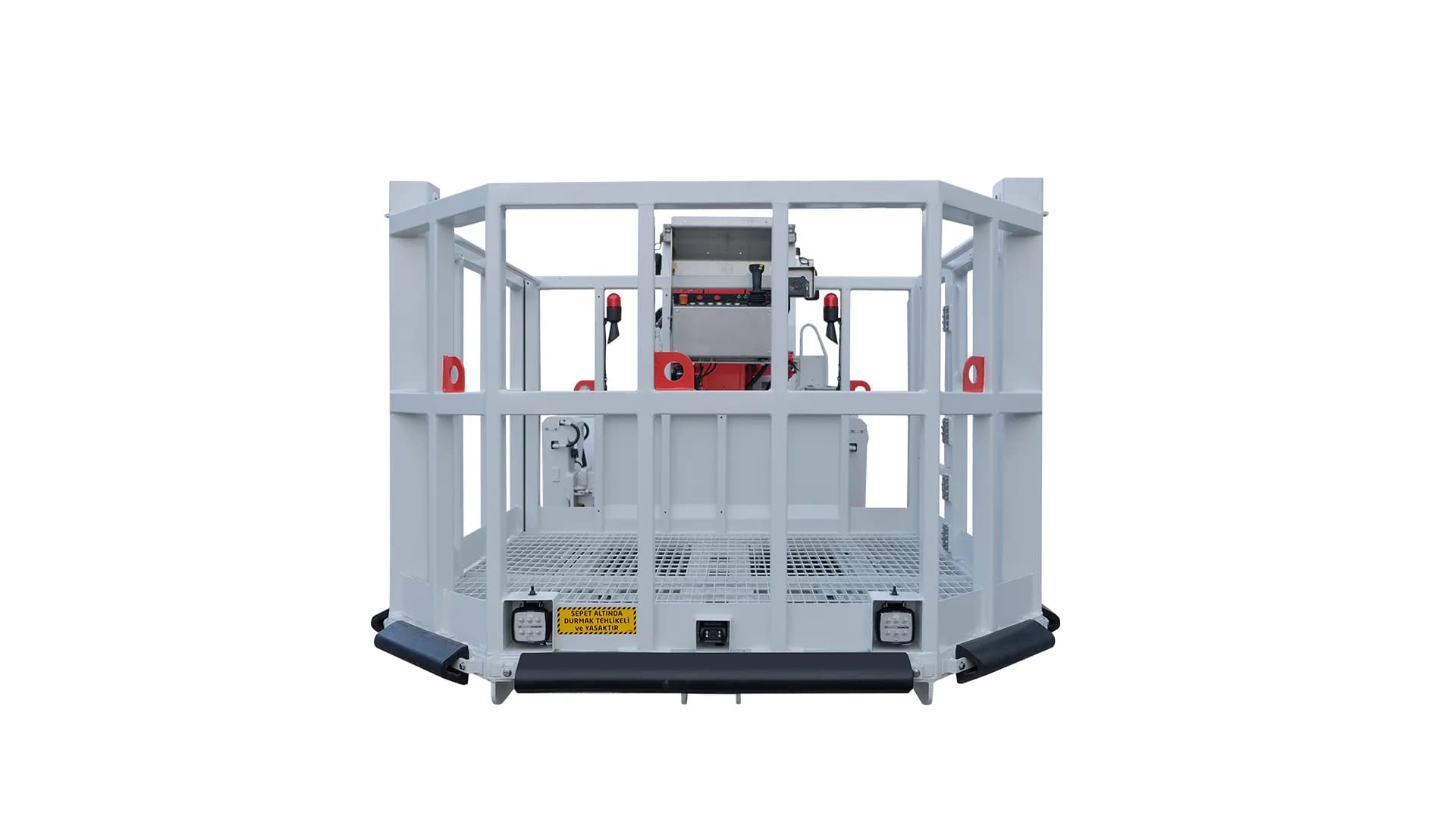

Basket
Basket Dimensions	1,950 mm x 1,950 mm	1,950 mm x 1,950 mm
Max. Carrying Capacity (Boom Extended)	500 kg	500 kg
Max. Carrying Capacity (Boom Retracted)	1,500 kg	1,500 kg

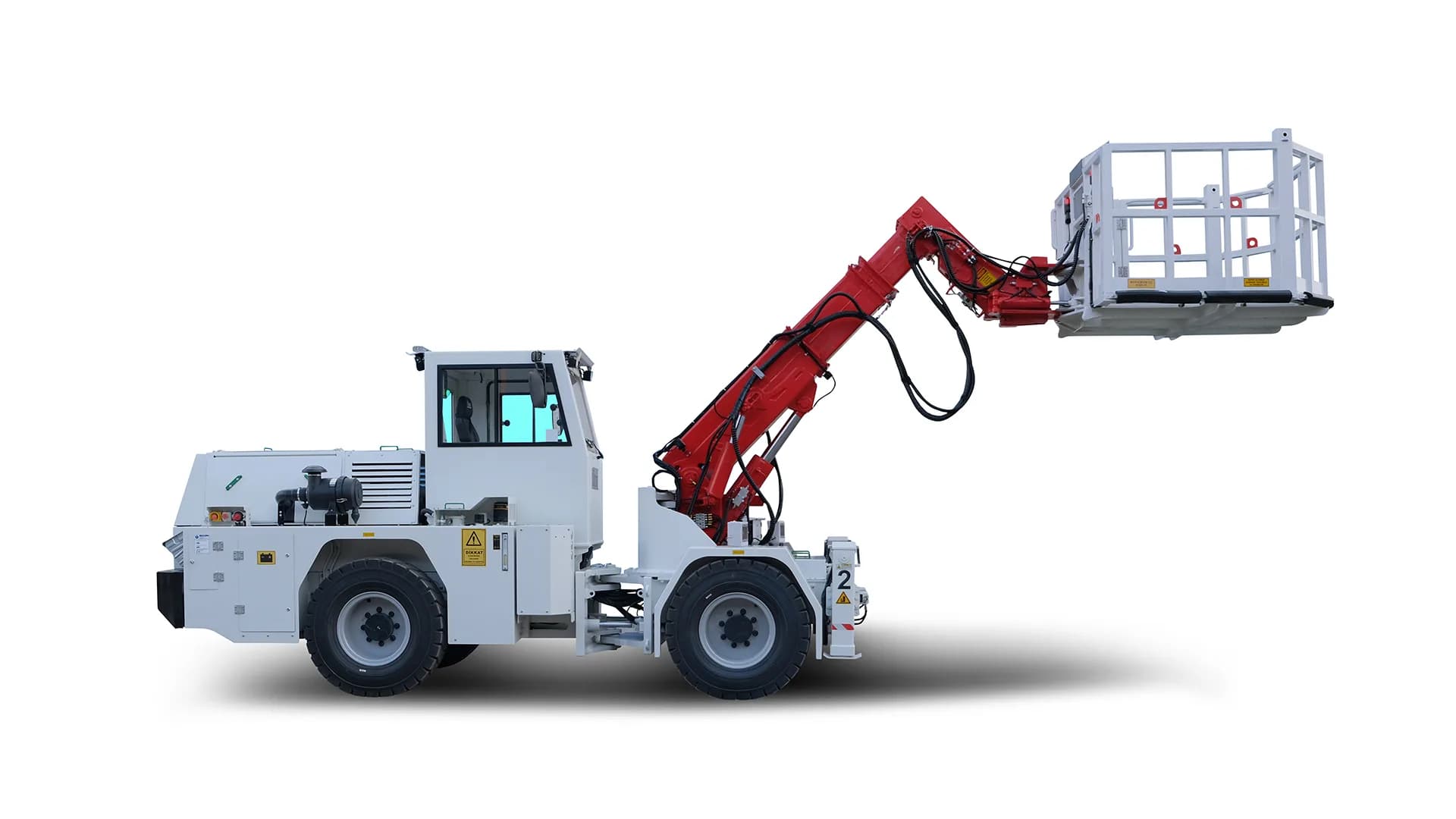

Max. Lifting Height	5.9 m	5.9 m

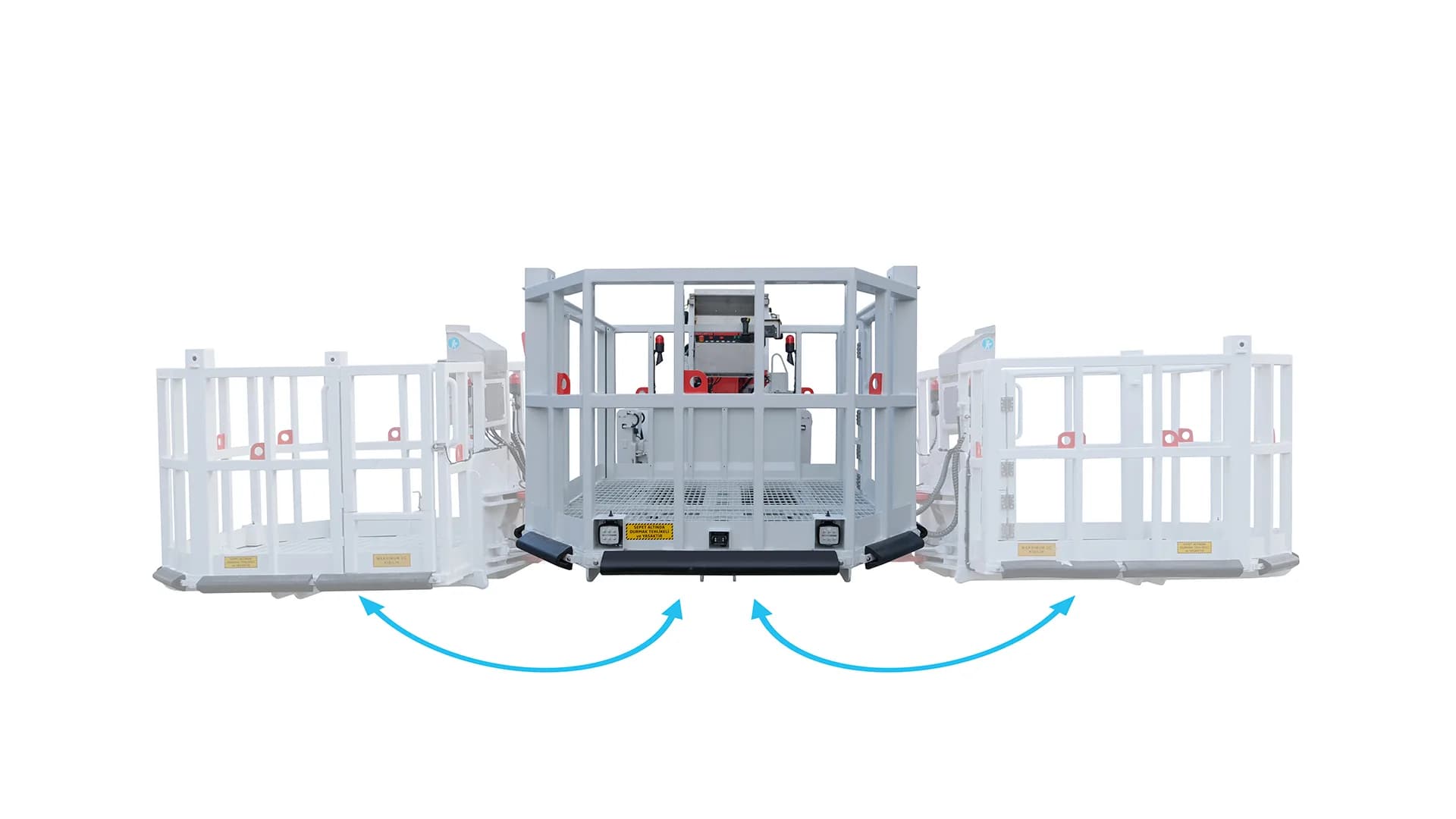

Basket Rotation Angle Horizontal	+/- 35°	+/- 35°

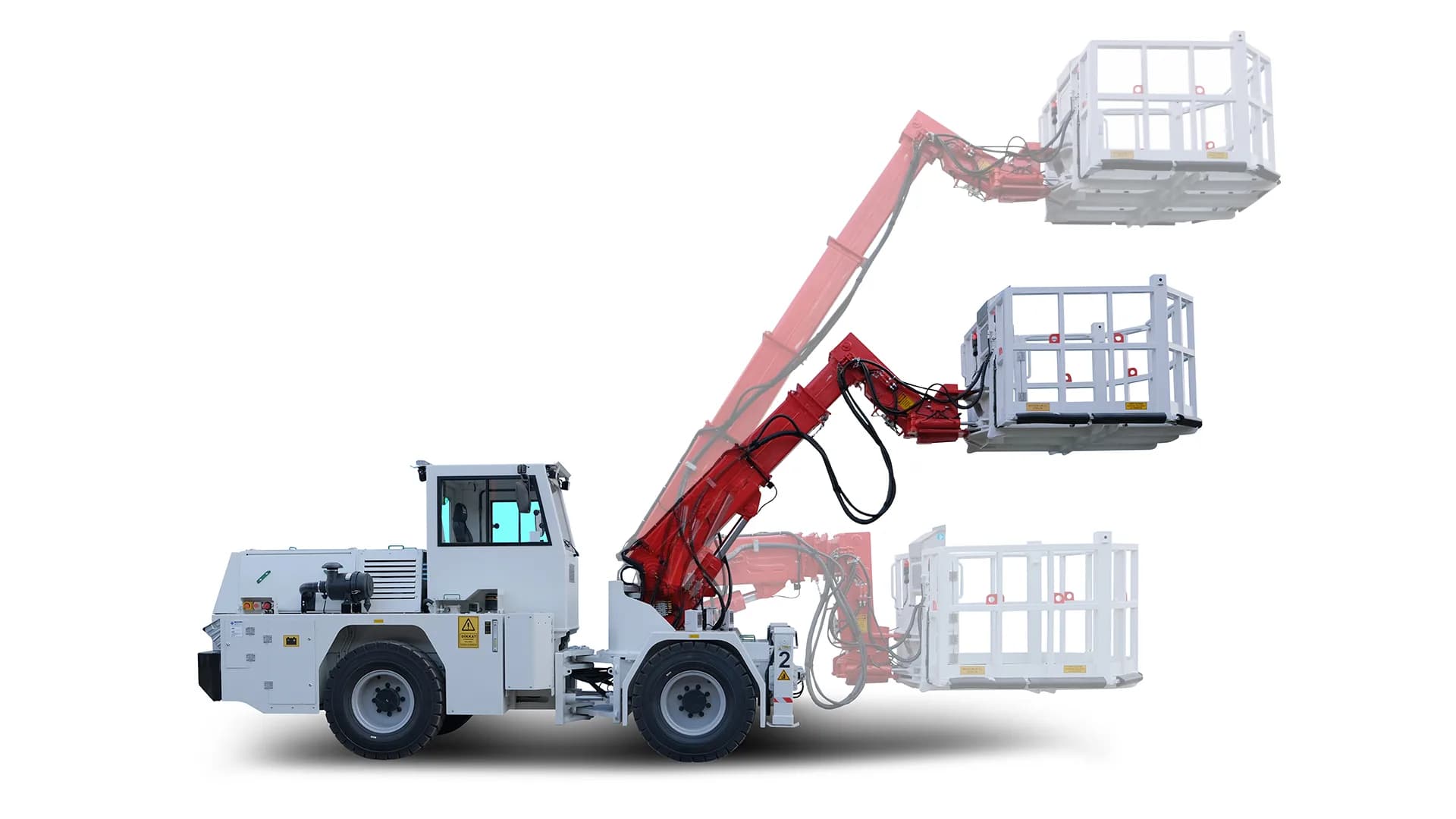

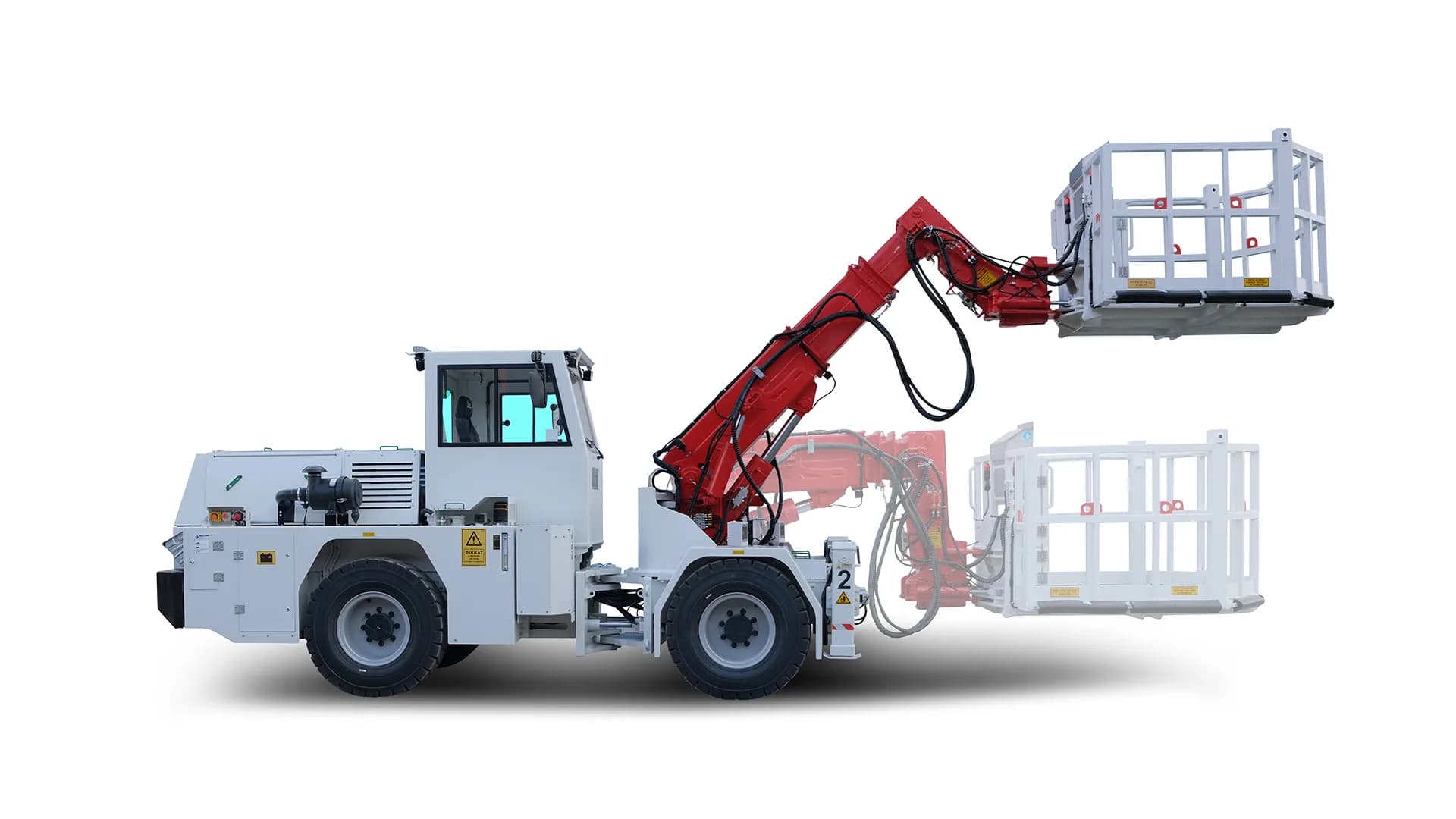

Boom Working Angle Vertical	-10° / +60°	-10° / +60°
Boom Slewing Angle Horizontal	+/- 35°	+/- 35°

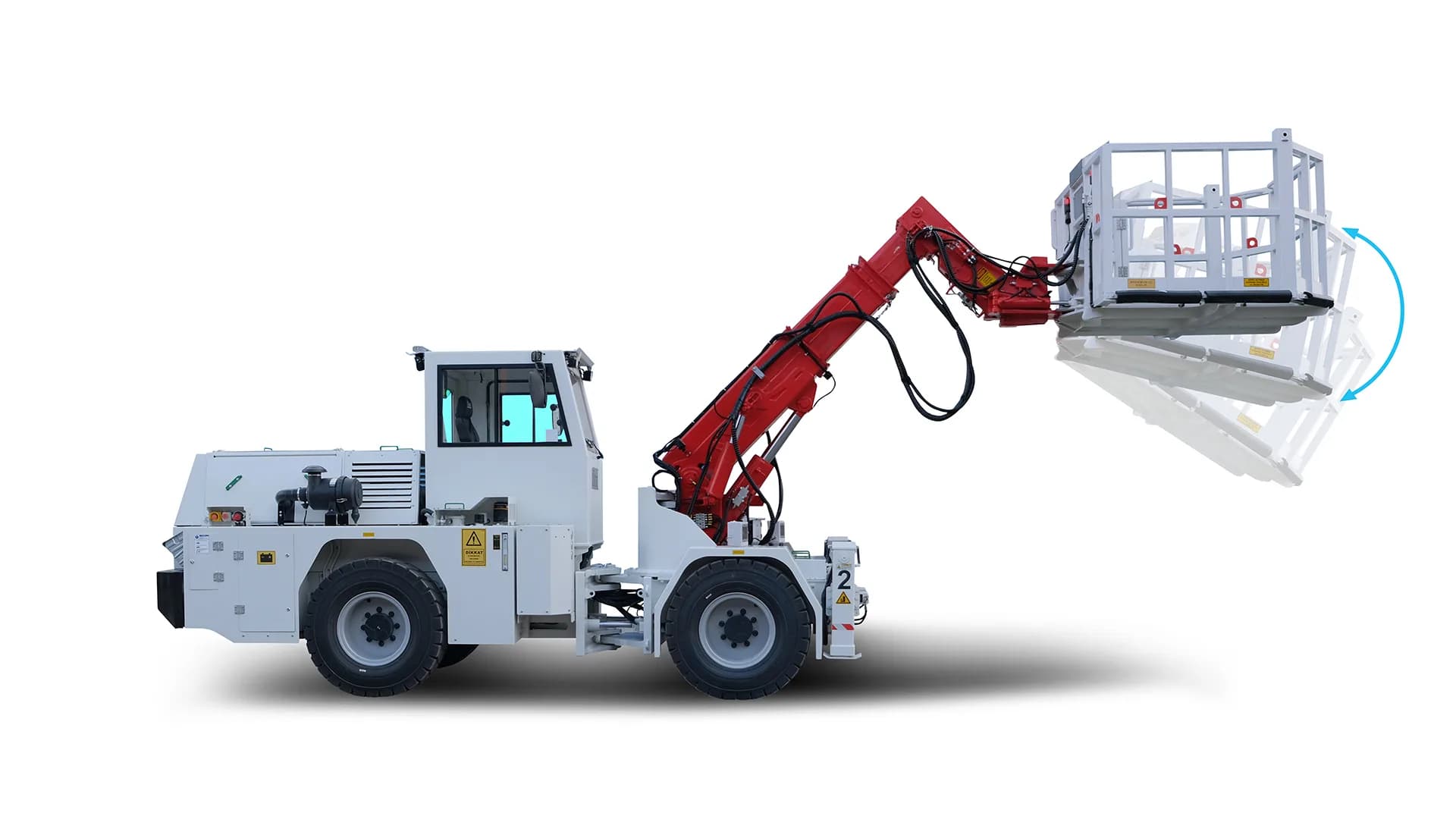

Basket Tilt Limit	+/-5°	+/-5°
Levelling	Automatic	Automatic
Hooks on Basket Edges	2 x Ø30	2 x Ø30
Tool Box	1.000x400x300 (Metal) Electro-hydraulically Driven Control Unit	1.000x400x300 (Metal) Electro-hydraulically Driven Control Unit
Communication system between cabin and basket 1 pcs basket view camera Protective rubber buffers around the basket
Safety
Complies with EN280 standards Emergency Boom Lowering Sensor system preventing basket movement unless the stabilisers are lowered to the ground 3 pcs emergency stop buttons placed on the machine, 1 of them inside the basket Tilt sensor limiting chassis lateral tilt to ± 4° Tilt sensor limiting basket angle to ± 5° Sensor system that prevents the stabilisers from being retracted until the basket is fully lowered Load Moment Control System 2 pcs spirit-level inclinometers mounted on the machine chassis
Other
Centralized greasing system Hydraulic suspension system on the boom
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only

All specifications

All specifications ·

Engine power	129kW
Operating weight	14.5t
Reach / payload	5.9 m lift height
Warranty	12 mo / 4,000 h
Emission tier	EU Stage 3A / Tier 3
Operator seats	1

Documents

Catalog

BKOS.pdf
578 KB
Free download

About BKOS

About BKOS ·

Up to 5.9 m. EN280-compliant automatic parallelism, ±35° basket swing.
Roof bolting, cable pulling and gallery maintenance. Closed ROPS/FOPS L2 cabin, Deutz 129 kW.
