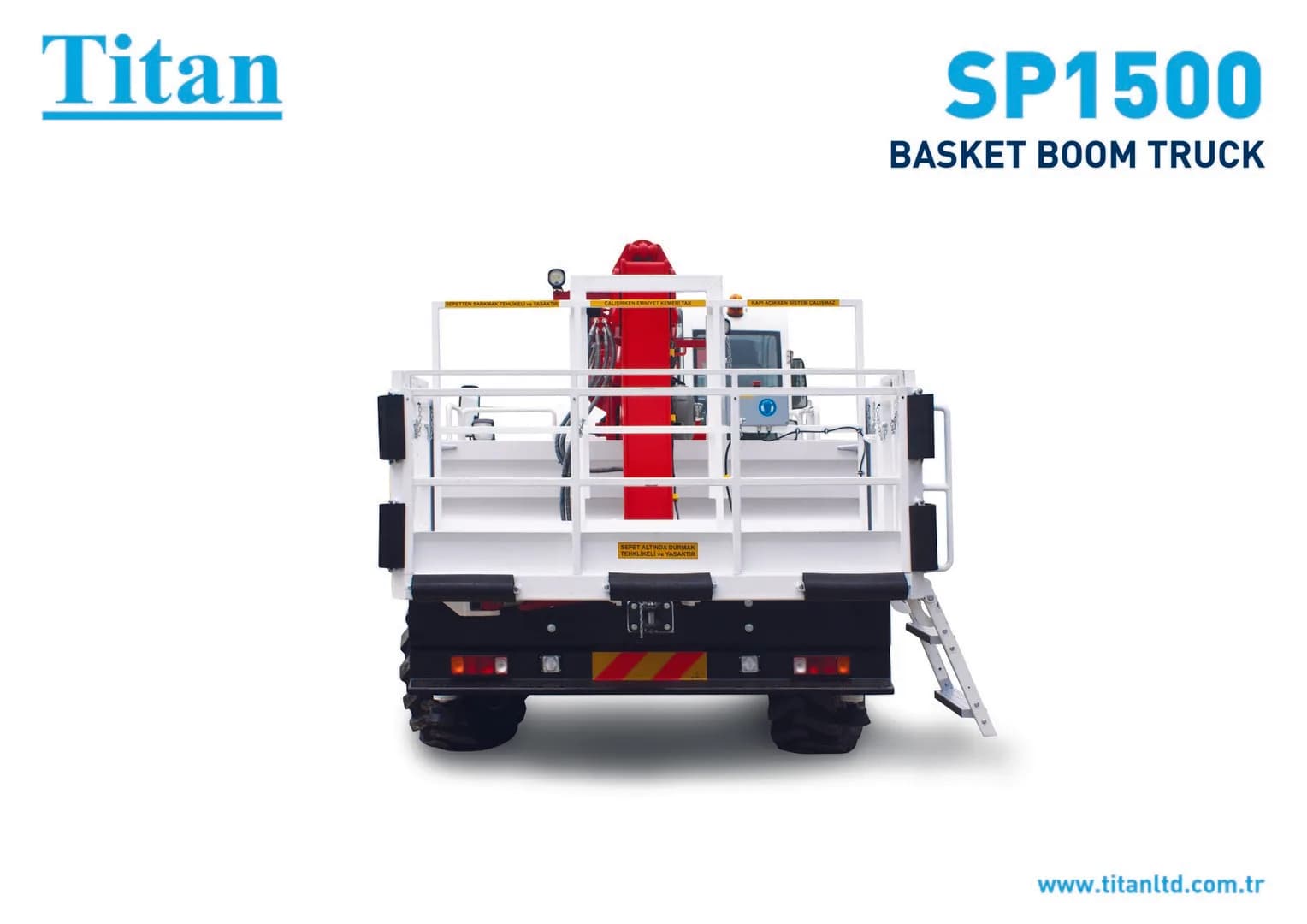

SP1500 - Basket Boom Truck

MODEL · SP1500

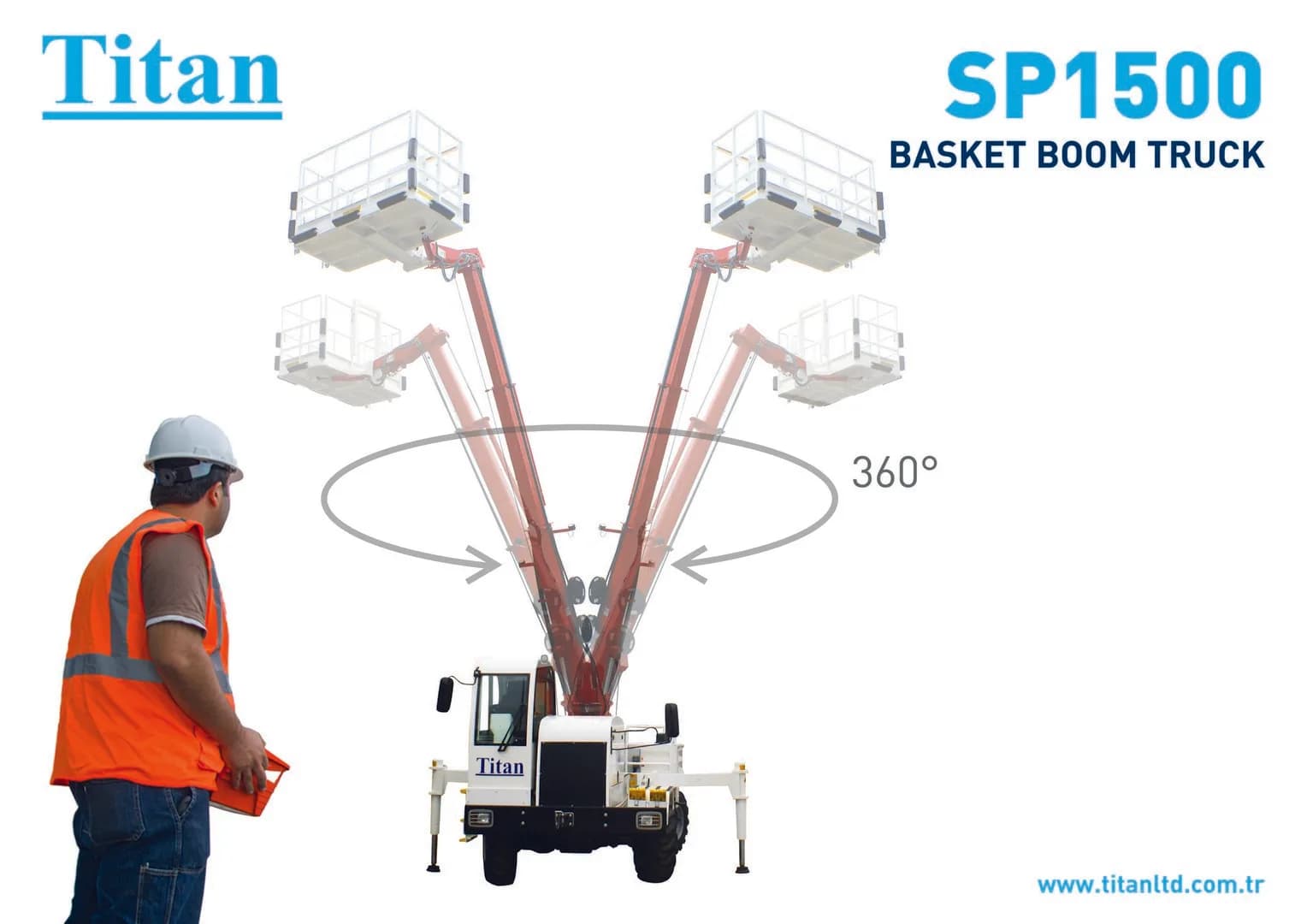

Basket boom truck with 7.96 m lift height, 800 kg basket capacity and an 85 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(4)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	140 l	140 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift Transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Rigid and Steerable	Rigid and Steerable
Tires	365/80 R20	365/80 R20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis

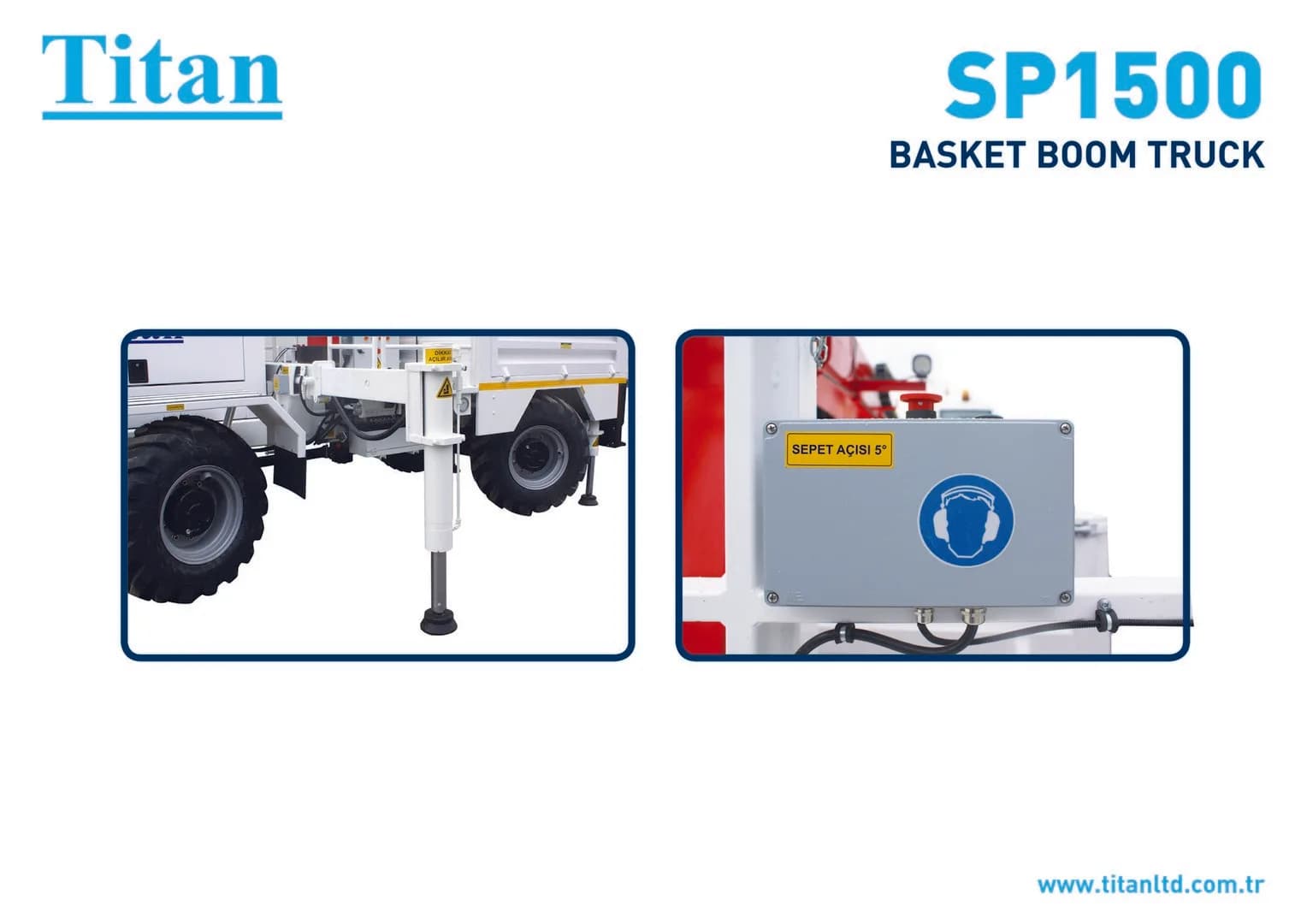

Hydraulic Stabilisers	Front, 2 pcs extendible	Front, 2 pcs extendible
Rear, 2 pcs fixed
Hydraulic System
Pump Type	Gear Pump	Gear Pump
Max. Pressure	210 bar	210 bar
Flow Rate	65 l/min at 2300 rpm	65 l/min at 2300 rpm
Hydraulic Oil Tank	105 l	105 l
Return Oil Filter	25 µm	25 µm
Oil level, temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 lumen LED lamps on the front bumper 2 x 1800 Lumen LED lights in the operator cabin 2 x 1800 Lumen LED lights on the rear bumper 2 x 1800 lumen LED lights on the boom 2 x 1800 lumen LED lamps on the basket Turn Signals

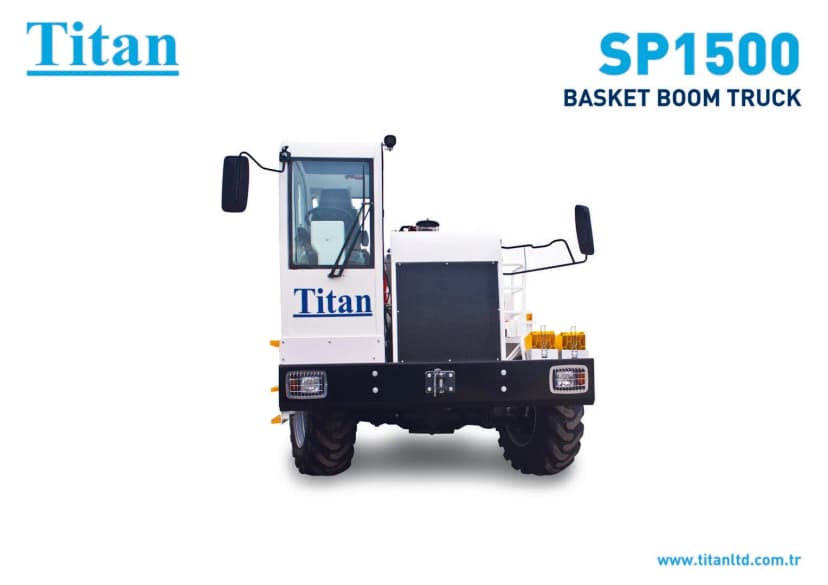

Titan Closed Operator Cabin
1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Cabin Lighting In-Cabin Heater
Dimensions & Weight
WeightDiffers	12,400 kg (Approx.)	12,900 kg (Approx.)
Length	7,290 mm	7,290 mm
Width	2,400 mm	2,400 mm
Height	2,820 mm	2,820 mm
Inner Turning Radius	3,230 mm	3,230 mm
Outer Turning Radius	7,200 mm	7,200 mm
Accessories

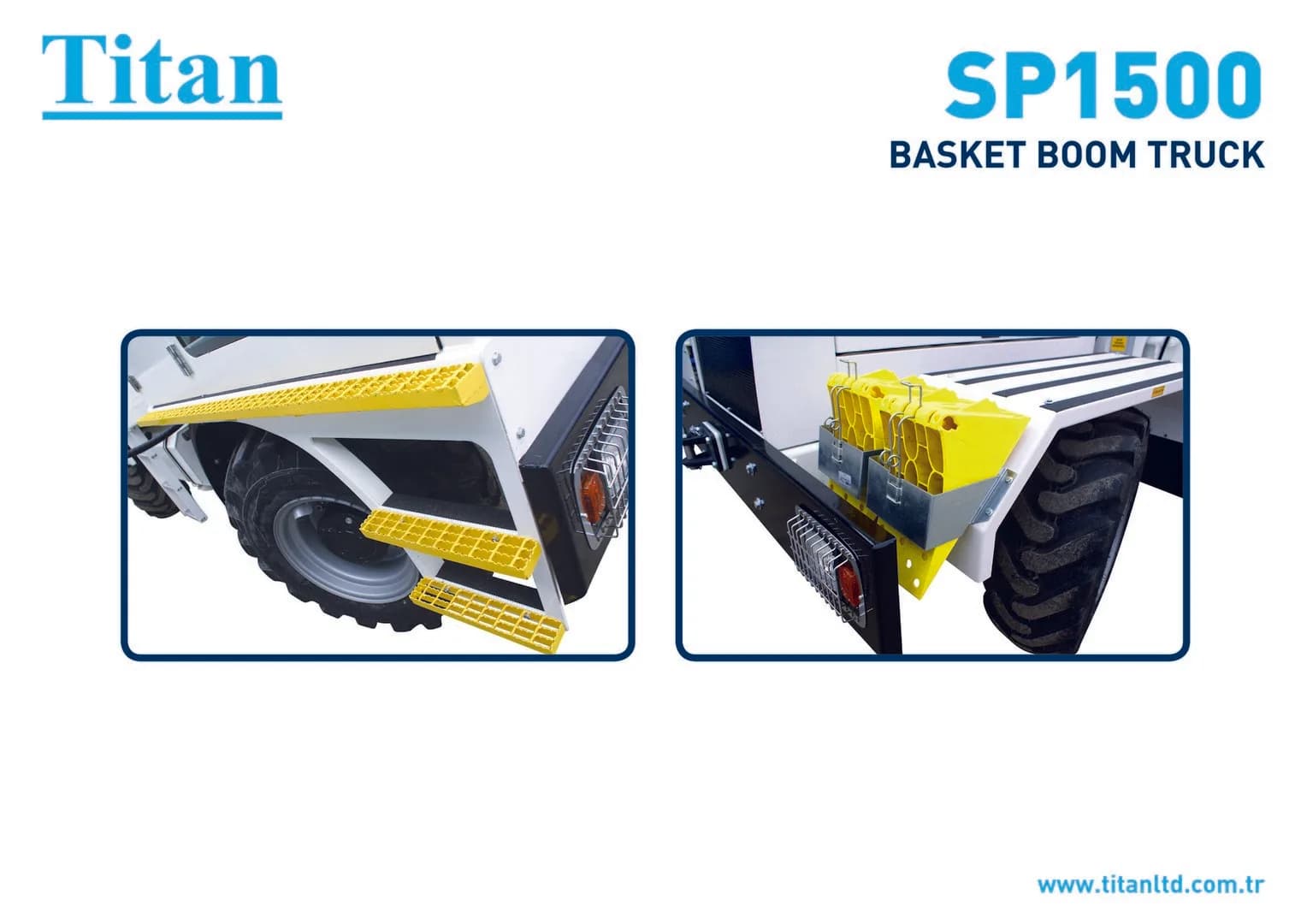

Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front and rear tow bar Battery Isolator switch Back-up alarm and light
Boom & Basket
Basket Dimensions	2000 x 1000 mm	2000 x 1000 mm
Max. Carrying Capacity	800 kg	800 kg

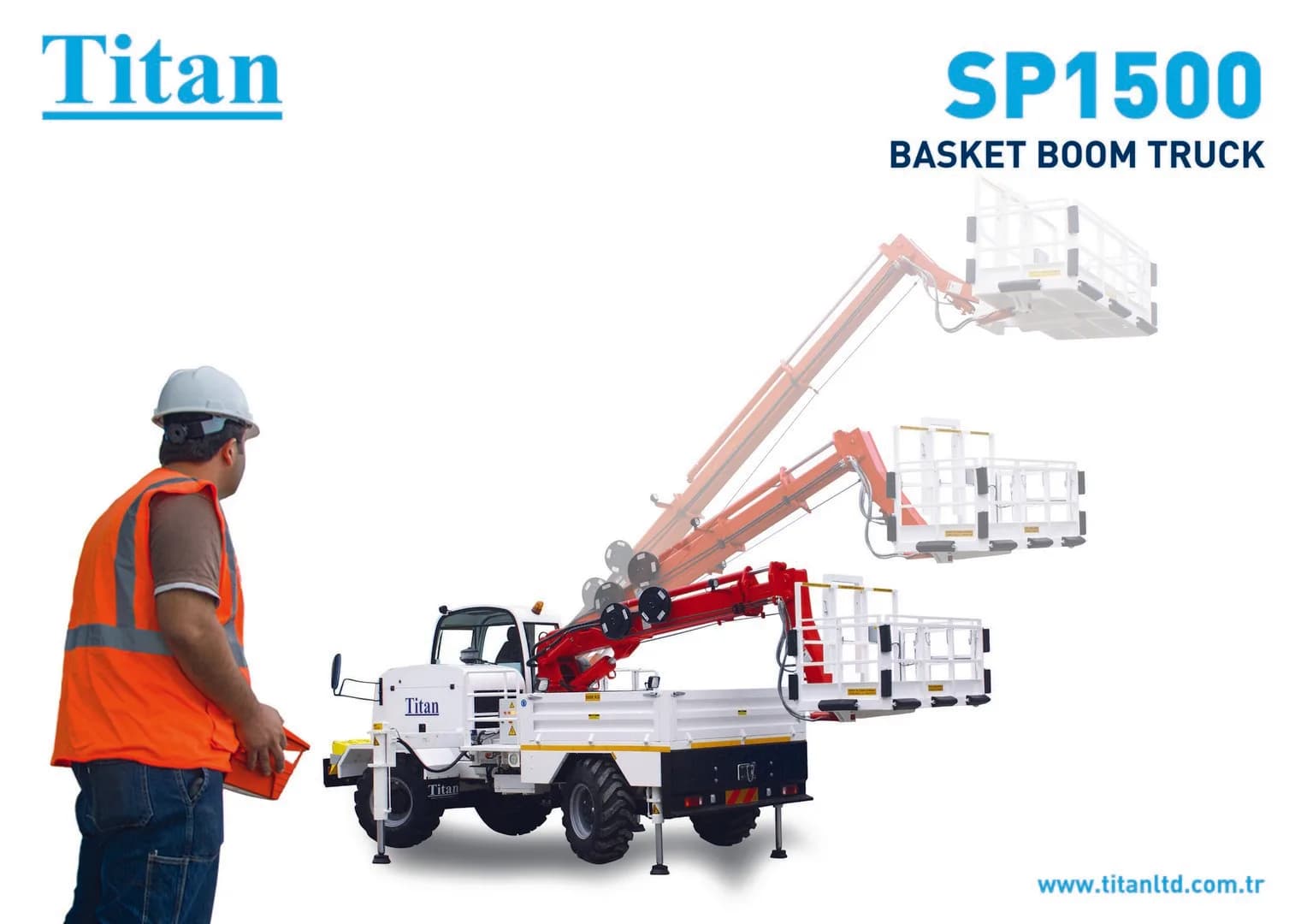

Max. Lifting Height	7.96 m	7.96 m

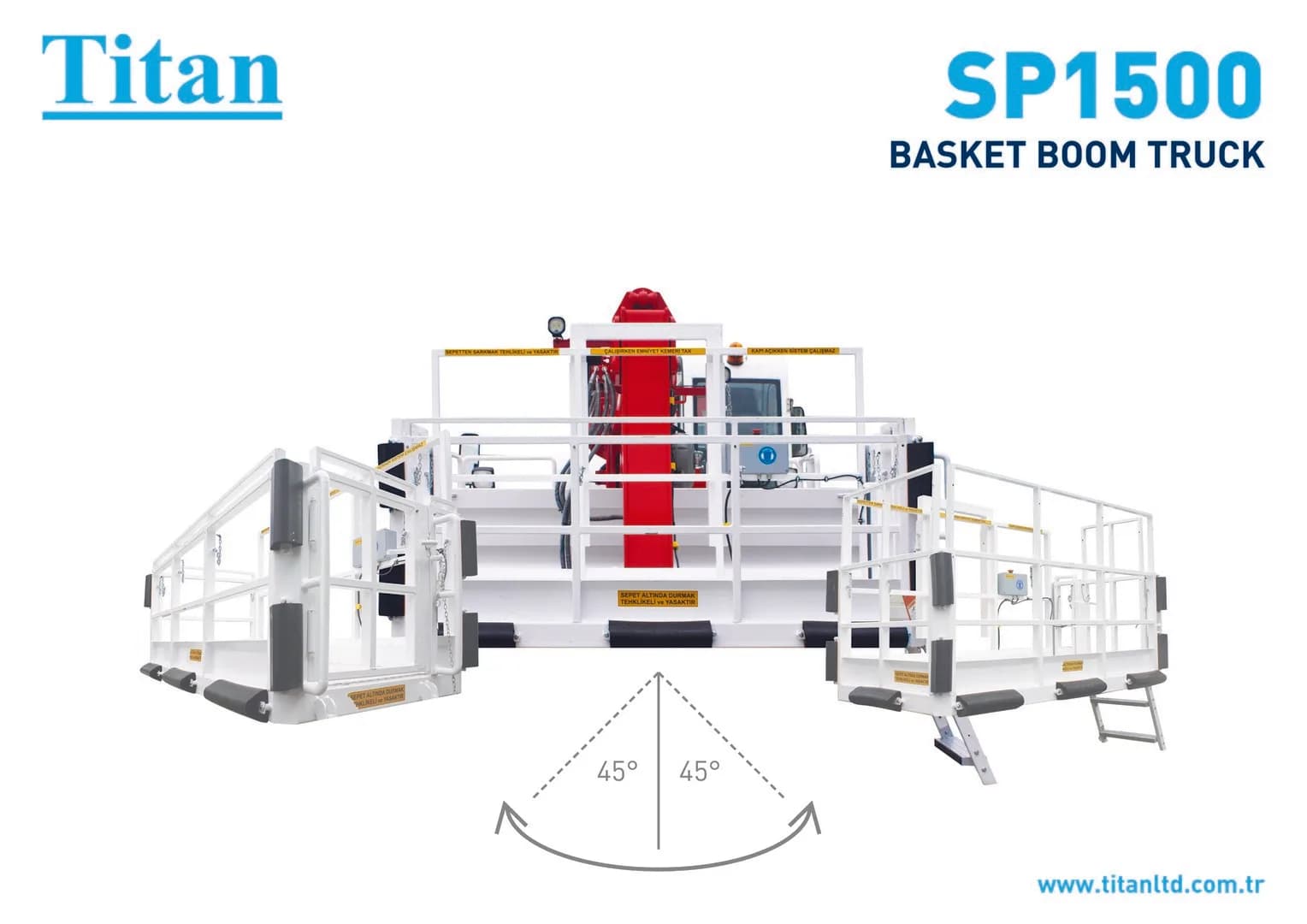

Basket Rotation Angle Horizontal	+/- 45°	+/- 45°
Max. Boom Angle	65°	65°

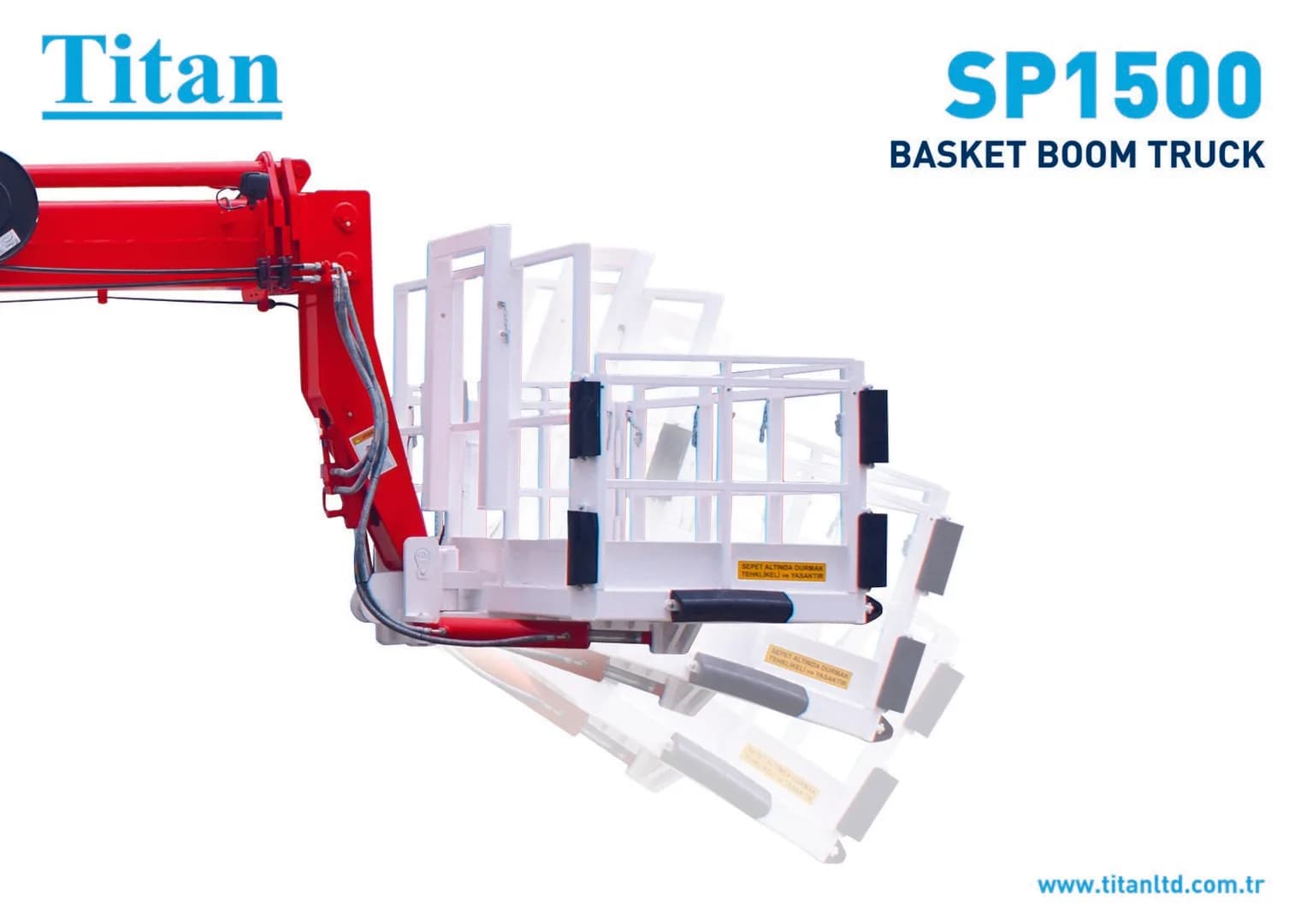

Basket Tilt Limit	+/- 5°	+/- 5°
Levelling	Automatic	Automatic
Electro-hydraulically driven control unit Cable Remote Control
Safety
Complies with EN280 standards Emergency Boom Lowering Sensor system preventing basket movement unless the stabilisers are lowered to the ground 2 pcs emergency stop buttons placed on the machine, 1 of them inside the basket 2 pcs spirit-level inclinometers mounted on the machine chassis Tilt sensor limiting chassis lateral tilt to ± 4° Tilt sensor limiting basket angle to ± 5° Load Moment Control System
Other
Centralized greasing system
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling Caliper braking system 2nd seat in the cabin Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Wireless Remote Control Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire)
