BMP2x3-VK - Scissor Lift Platform

MODEL · BMP2x3-VK

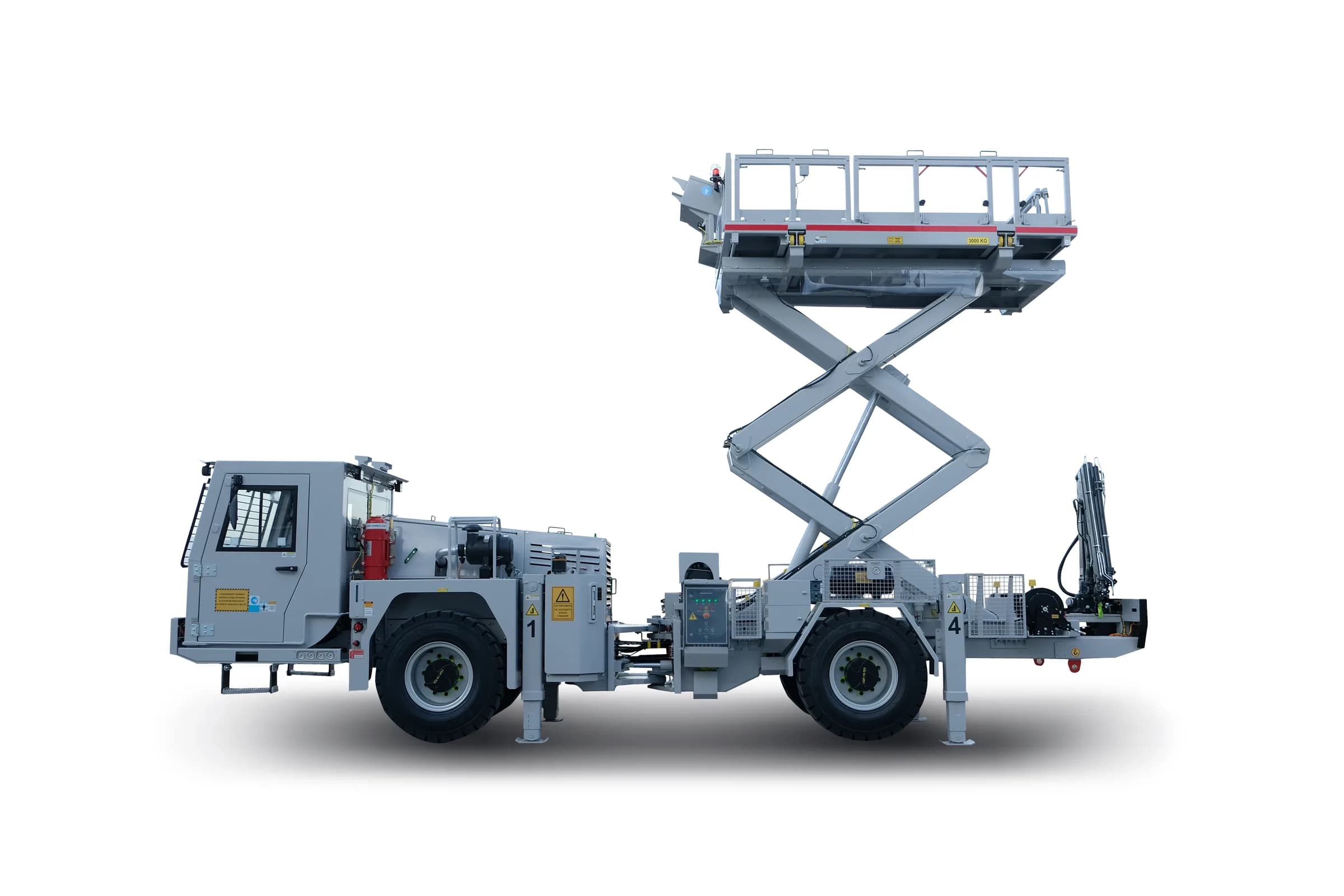

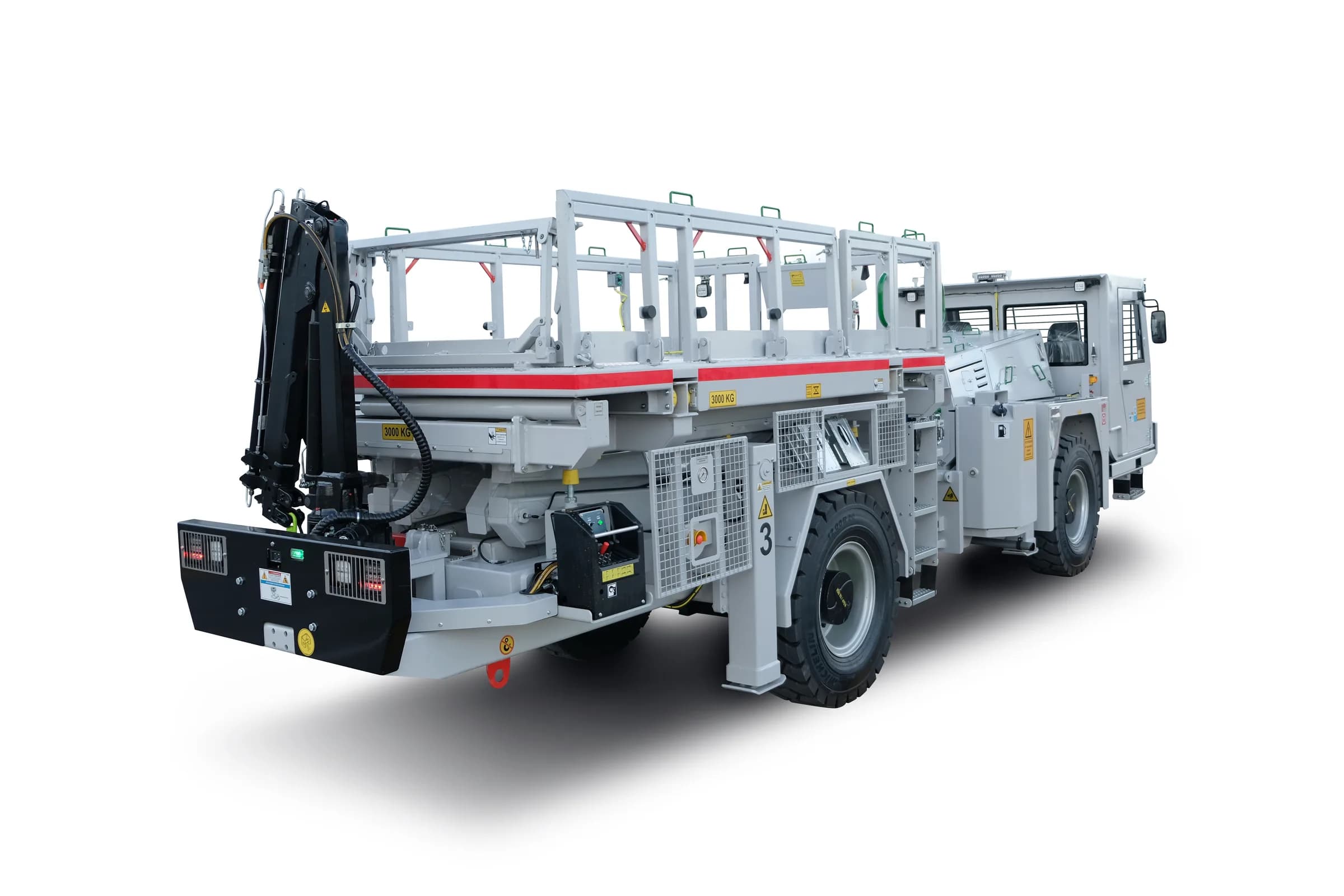

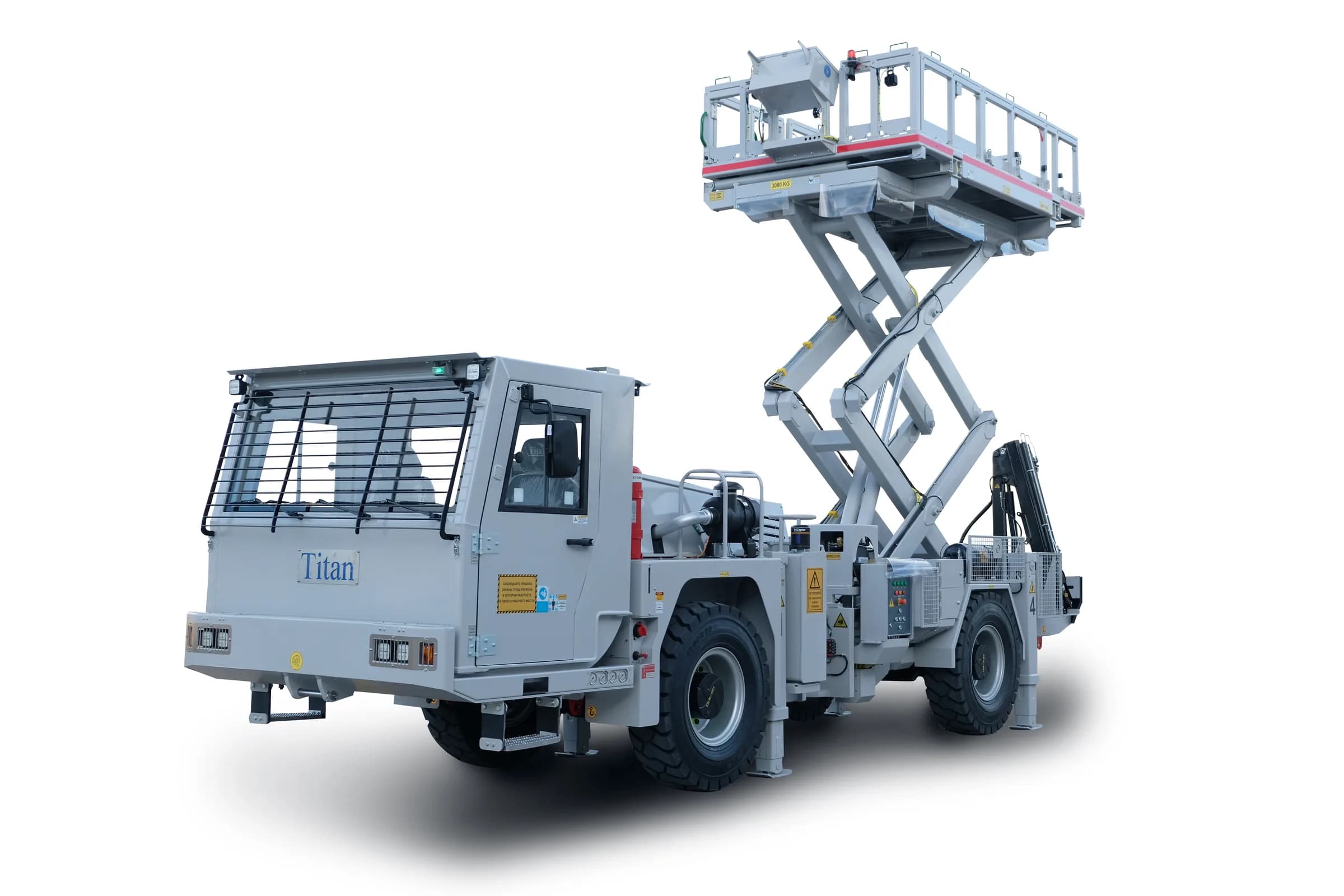

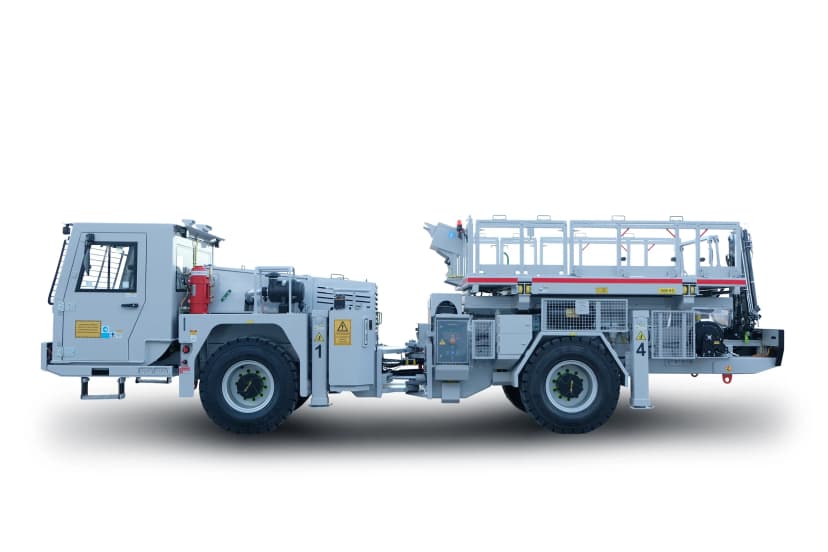

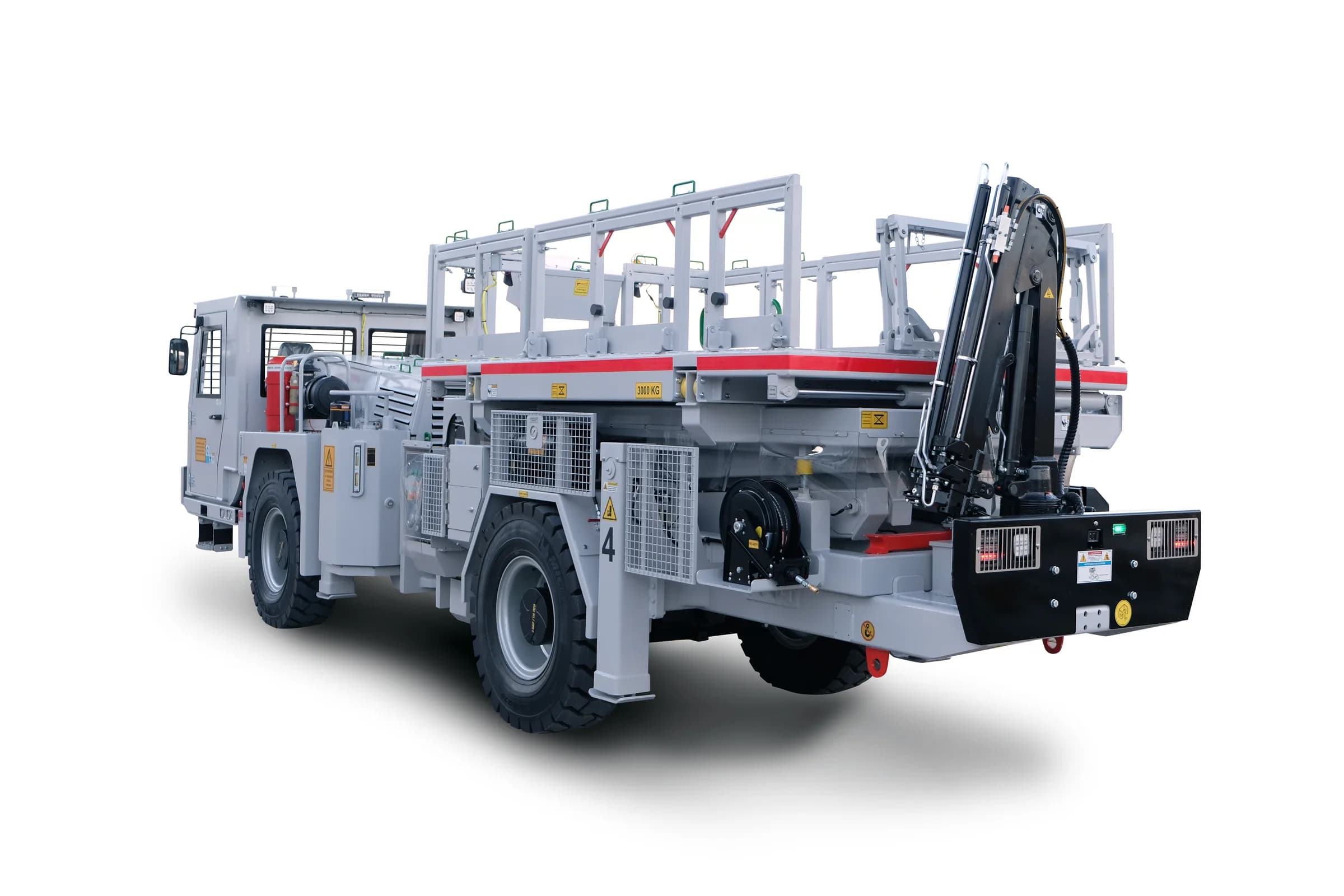

Scissor lift with crane: a 3,200 x 2,000 mm platform, 3,000 kg lifting capacity and a 129 kW Stage V engine.

Request a quote →

Datasheet

Specifications by engine stage

Stage IIIStage V
Diesel Engine
Make / ModelDiffersDeutz TCD 2013 L4 2VDeutz TCD 6.1 L6 Stage V
Max. PowerDiffers129 kW at 2300 rpm129 kW at 2200 rpm
Max. TorqueDiffers670 Nm at 1600 rpm750 Nm at 1450 rpm
Engine EmissionDiffersEU Stage 3A / US EPA Tier 3EU Stage V / US EPA Tier 4i Diesel
Diesel Tank Capacity140 l140 l
AdBlue Tank Capacity-20 l
  • With Catalytic Converter and SilencerStage III only
Transmission
Make / ModelDana Spicer T24.000Dana Spicer T24.000
  • Powershift Transmission
  • Automatic 3-Speed Forward, 3-Speed Reverse
  • 4 Wheel Drive
Axles & Tires
Make / ModelDana Spicer 113Dana Spicer 113
TypePlanetaryPlanetary
Front Axle+/- 8° Oscillating+/- 8° Oscillating
Rear AxleRigidRigid
  • Tires: 12.00 - 20
Performance
Max. Gradient30%30%
Max. Speed24.5 km/h24.5 km/h
Steering
  • Articulated, +/- 40°
  • Orbitrol Type
Braking System
Service BrakeOil-Immersed Multidisc BrakeOil-Immersed Multidisc Brake
Parking BrakeSAHRSAHR
  • Fail safe
Chassis
TypeArticulated, high strength steel chassisArticulated, high strength steel chassis
Hydraulic StabilisersFront, 2 pcs fixedFront, 2 pcs fixed
  • Rear, 2 pcs fixed
Hydraulic System
Pump TypeFixed and Variable DisplacementFixed and Variable Displacement
Max. Pressure210 bar210 bar
Flow RateDiffers130 l/min at 2300 rpm130 l/min at 2200 rpm
Hydraulic Oil Tank140 l140 l
Return Oil Filter25 µm25 µm
  • Oil level, filtration and temperature indicators
Electric System
Battery24V - 2 x (12V 105 Ah)24V - 2 x (12V 105 Ah)
ProtectionIP65IP65
Working Lights
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 1x1800 Lumen LED lamp on the scissor platform
  • Turn Signals
  • Operator Cabin Front 8 x 1800 Lumen LED Light
  • Operator Cabin Rear 2 x 1800 Lumen LED Lamp
  • Rear Bumper 2 x 1800 Lumen LED Lamp
  • 1x1800 Lumen LED lamp on the scissor platform
  • Turn Signals
Panel TypeStainless SteelStainless Steel
Beacon LightAmber ColorAmber Color
Titan Closed Operator Cabin
  • 2-Person Cabin
  • ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
  • T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
  • Levers and Indicators for All Driving Controls
  • In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
  • Heated Windshield and Wing Mirrors
  • Cabin Lighting
  • Under-Seat Document Box
  • Equipment Box
  • In-Cabin Heater
Dimensions and Weight
WeightDiffers12,000 kg (Approx.)12,500 kg (Approx.)
LengthDiffers7,790 mm8,020 mm
Width2,000 mm2,000 mm
Height2,740 mm2,740 mm
Inner Turning RadiusDiffers3,970 mm4,000 mm
Outer Turning RadiusDiffers6,670 mm6,700 mm
Accessories
  • Warning plates and decals
  • 2x4 kg portable fire extinguisher
  • 2 pcs Wheel chocks
  • Back-up alarm and light
  • Front and rear tow bar
  • Battery Isolator switch
Scissor Platform
Scissor Platform Dimensions3,200 mm x 2,000 mm3,200 mm x 2,000 mm
Max. Lifting Capacity3,000 kg3,000 kg
Max. Lifting Height3.5 m3.5 m
  • Platform and stabilisers controllable from both control panels
  • Tool Box on the platform
  • Standard-compliant toe boards around the platform
  • Manual emergency lowering system while the platform is in the open position
Safety
  • Complies with EN280 standards
  • Manual emergency platform lowering system
  • Scissor cannot be moved unless the stabilisers are lowered to the ground
  • Platform access steps
  • 4 pcs Emergency stop button placed on the machine (in the cabin, on the panel, right rear and on the platform)
  • 2 pcs spirit-level inclinometers mounted on the machine chassis
  • Inclinometer limiting chassis lateral tilt to ±4°
  • Stabilisers cannot be retracted unless the scissor platform is fully lowered
  • Door open warning system
Other
  • Centralized greasing system
Options
  • CANBus
  • Automatic Lubrication System
  • Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
  • Hydraulic Power Unit (Emergency Steering)
  • Oil Transfer Pump (for Hydraulic, Transmission and Engine)
  • Air Conditioning in the Operator Cabin
  • T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
  • Electrical Outlet In The Cabin (220 V - 150 W)
  • Wi-Fi Data Logging and Transfer
  • DVR Video Recorder
  • Front Windshield Protection
  • Additional View Camera
  • Spare Wheel (Rim And Tire)
  • Manual Jack
  • Double-Walled Exhaust PipesStage III only
  • Diesel Particulate Filter (DPF)Stage III only
  • 300 mm right-left sliding platform
  • 500 mm right-left sliding platform
  • Crane (HIAB T-CLX 018-2, 1.84 tm)
