MP2x3 - Scissor Lift

Name: MP2x3 - Scissor Lift
Brand: Titan Makina
SKU: MP2x3

Scissor Lift Platform

Working Platforms

MP2x3 - Scissor Lift

MODEL · MP2x3

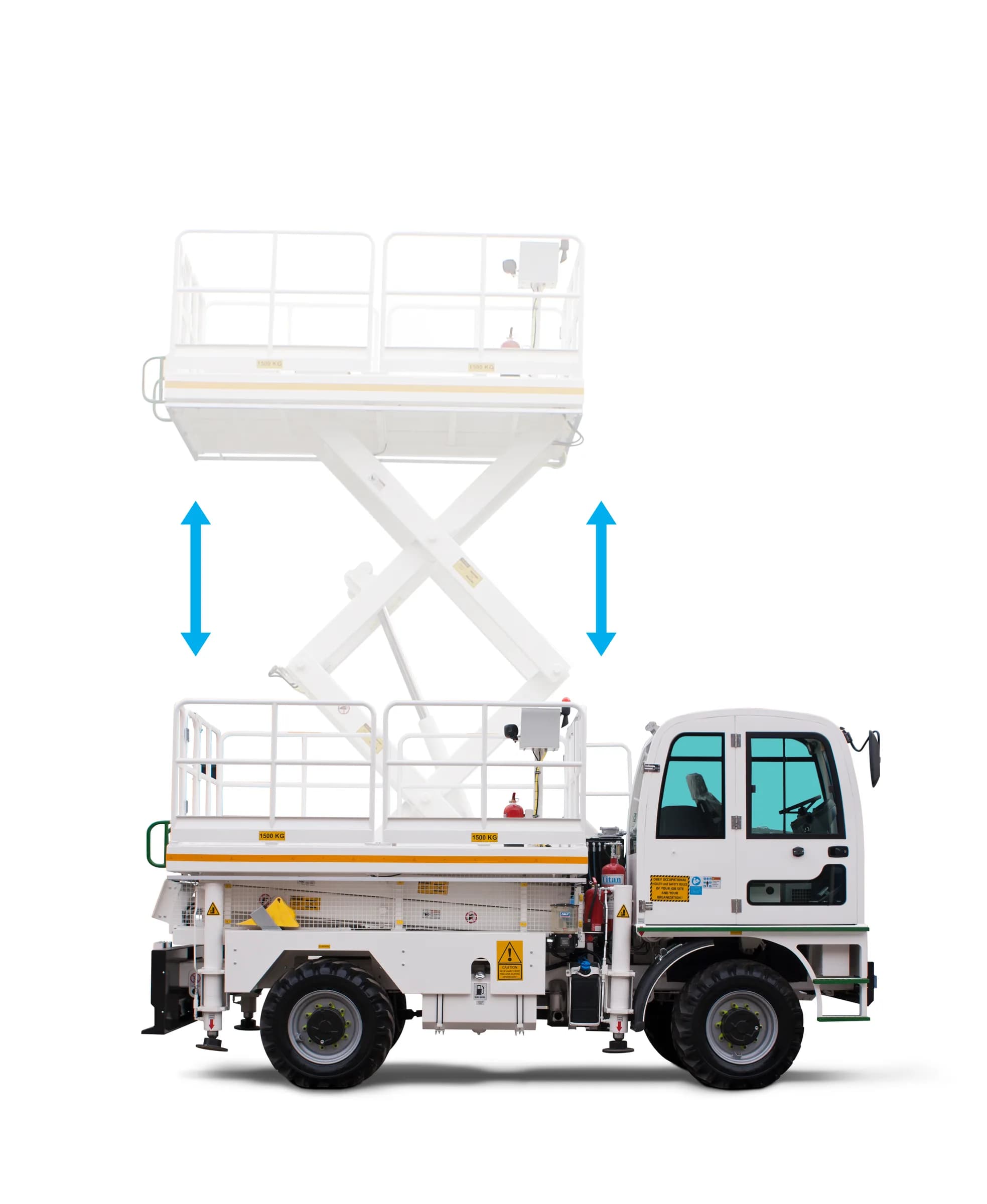

Scissor lift with a 3,200 x 2,000 mm platform, 3.56 m lift height and 1,500 kg capacity.

Request a quote →Request datasheet

Field video

On the seam, in motion.

Datasheet

Specifications by engine stage

Show differences only(4)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 3.6 L4	Deutz TCD 3.6 L4 Stage V
Max. Power	85 kW at 2300 rpm	85 kW at 2300 rpm
Max. TorqueDiffers	430 Nm at 1600 rpm	460 Nm at 1600 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V
Diesel Tank Capacity	125 l	125 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T20.000	Dana Spicer T20.000
Powershift Transmission Automatic and Manual 3-Speed Forward, Manual 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 212	Dana Spicer 212
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating and Steerable	+/- 8° Oscillating and Steerable
Rear Axle	Rigid and Steerable	Rigid and Steerable
Tires	12.5-20 / 10-20	12.5-20 / 10-20
Performance
Max. Gradient	40%	40%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Four-wheel steering Crab steering Front-wheel steering
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Rigid, high strength steel chassis	Rigid, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs fixed	Front, 2 pcs fixed
Rear, 2 pcs fixed
Hydraulic System
Pump Type	Gear pump	Gear pump
Max. Pressure	210 bar	210 bar
Flow Rate	160 l/min at 2300 rpm	160 l/min at 2300 rpm
Hydraulic Oil Tank	130 l	130 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	1800 Lumen	1800 Lumen
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
2 x 1800 Lumen LED lamps on the front bumper 2 x 1800 Lumen LED lamps on top of the operator cabin 2 x 1800 Lumen LED lamps on the rear bumper 1 x 1800 Lumen LED lamp on the scissor platform Turn Signals
Titan Closed Operator Cabin
1-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) Height-adjustable ergonomic suspension operator seat with seat belt Rear view camera and LCD monitor in the operator cabin Levers and Indicators for All Driving Controls In-cabin vehicle two-way radio outlet and mounting point (12V) Heated Windshield and Wing Mirrors Cabin Lighting In-Cabin Heater
Dimensions & Weight
WeightDiffers	7,500 kg (Approx.)	8,000 kg (Approx.)
Length	5,600 mm	5,600 mm
Width	2,000 mm	2,000 mm
Height	2,930 mm	2,930 mm
Inner Turning Radius	3,350 mm	3,350 mm
Outer Turning Radius	6,220 mm	6,220 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front and rear tow bar Battery Isolator switch Back-up alarm and light

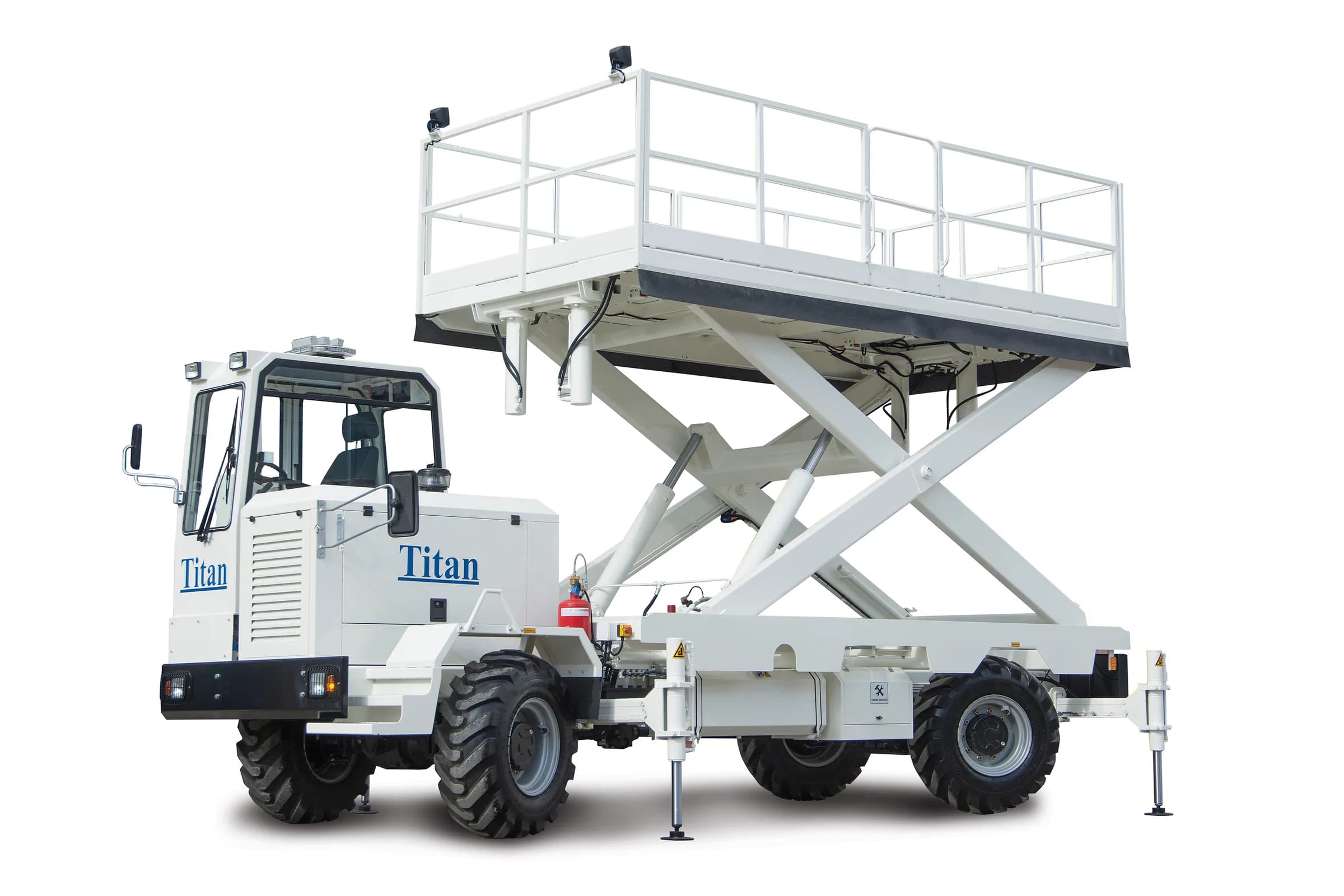

Scissor Platform
Scissor Platform Dimensions	3200 x 2000 mm	3200 x 2000 mm
Max. Lifting Capacity	1500 kg	1500 kg
Max. Lifting Height	3.56 m	3.56 m
Platform and stabilisers controllable from both control panels Tool Box on the platform Standard-compliant toe boards around the platform Manual emergency lowering system while the platform is in the open position
Safety
Complies with EN280 standards Manual emergency platform lowering system Scissor cannot be moved unless the stabilisers are lowered to the ground Platform access steps 2 pcs emergency stop buttons mounted on the machine (on the panel and on the platform) 2 pcs spirit-level inclinometers mounted on the machine chassis Inclinometer limiting chassis lateral tilt to ±4° Stabilisers cannot be retracted unless the scissor platform is fully lowered Door open warning system
Other
Centralized greasing system
Options
Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only CANBus Hydraulic Power Unit (Emergency Steering) Air-Conditioned Cabin With Heating And Cooling Automatic Lubrication System Electrical Outlet In The Cabin (220 V - 150 W) Manual Activated Fire Extinguishing System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Caliper braking system 2nd seat in the cabin Spare Wheel (Rim And Tire)
