| Diesel Engine |
|---|
| Make / ModelDiffers | Deutz TCD 2013 L4 2V | Deutz TCD 6.1 L6 Stage V |
|---|
| Max. PowerDiffers | 129 kW at 2300 rpm | 129 kW at 2200 rpm |
|---|
| Max. TorqueDiffers | 670 Nm at 1600 rpm | 750 Nm at 1450 rpm |
|---|
| Engine EmissionDiffers | EU Stage 3A / US EPA Tier 3 | EU Stage V / US EPA Tier 4i |
|---|
| Diesel Tank Capacity | 140 l | 140 l |
|---|
| AdBlue Tank Capacity | - | 20 l |
|---|
- ·With Catalytic Converter and SilencerStage III only
|
| Transmission |
|---|
| Make / Model | Dana Spicer T24.000 | Dana Spicer T24.000 |
|---|
- ·Powershift Transmission
- ·Automatic 3-Speed Forward, 3-Speed Reverse
- ·4 Wheel Drive
|
| Axles & Tires |
|---|
| Make / Model | Dana Spicer 113 | Dana Spicer 113 |
|---|
| Type | Planetary | Planetary |
|---|
| Front Axle | +/- 8° Oscillating | +/- 8° Oscillating |
|---|
| Rear Axle | Rigid | Rigid |
|---|
|
| Performance |
|---|
| Max. Gradient | 30% | 30% |
|---|
| Max. Speed | 24.5 km/h | 24.5 km/h |
|---|
| Steering |
|---|
- ·Articulated, +/- 40°
- ·Orbitrol Type
|
| Braking System |
|---|
| Service Brake | Oil-Immersed Multidisc Brake | Oil-Immersed Multidisc Brake |
|---|
| Parking Brake | SAHR | SAHR |
|---|
|
| Chassis |
|---|
| Type | Articulated, high strength steel chassis | Articulated, high strength steel chassis |
|---|
| Hydraulic Stabilisers | Front, 2 pcs fixed | Front, 2 pcs fixed |
|---|
|
| Hydraulic System |
|---|
| Pump Type | Fixed and Variable Displacement | Fixed and Variable Displacement |
|---|
| Max. Pressure | 210 bar | 210 bar |
|---|
| Flow RateDiffers | 130 l/min at 2300 rpm | 130 l/min at 2200 rpm |
|---|
| Hydraulic Oil Tank | 140 l | 140 l |
|---|
| Return Oil Filter | 25 µm | 25 µm |
|---|
- ·Oil level, filtration and temperature indicators
|
| Electric System |
|---|
| Battery | 24V - 2 x (12V 105 Ah) | 24V - 2 x (12V 105 Ah) |
|---|
| Protection | IP65 | IP65 |
|---|
| Working Lights | - ·Operator Cabin Front 8 x 1800 Lumen LED Light
- ·Operator Cabin Rear 2 x 1800 Lumen LED Lamp
- ·Rear Bumper 2 x 1800 Lumen LED Lamp
- ·1 x 1800 lumen LED light on the scissor platform
- ·Turn Signals
| - ·Operator Cabin Front 8 x 1800 Lumen LED Light
- ·Operator Cabin Rear 2 x 1800 Lumen LED Lamp
- ·Rear Bumper 2 x 1800 Lumen LED Lamp
- ·1 x 1800 lumen LED light on the scissor platform
- ·Turn Signals
|
|---|
| Panel Type | Stainless Steel | Stainless Steel |
|---|
| Beacon Light | Amber Color | Amber Color |
|---|

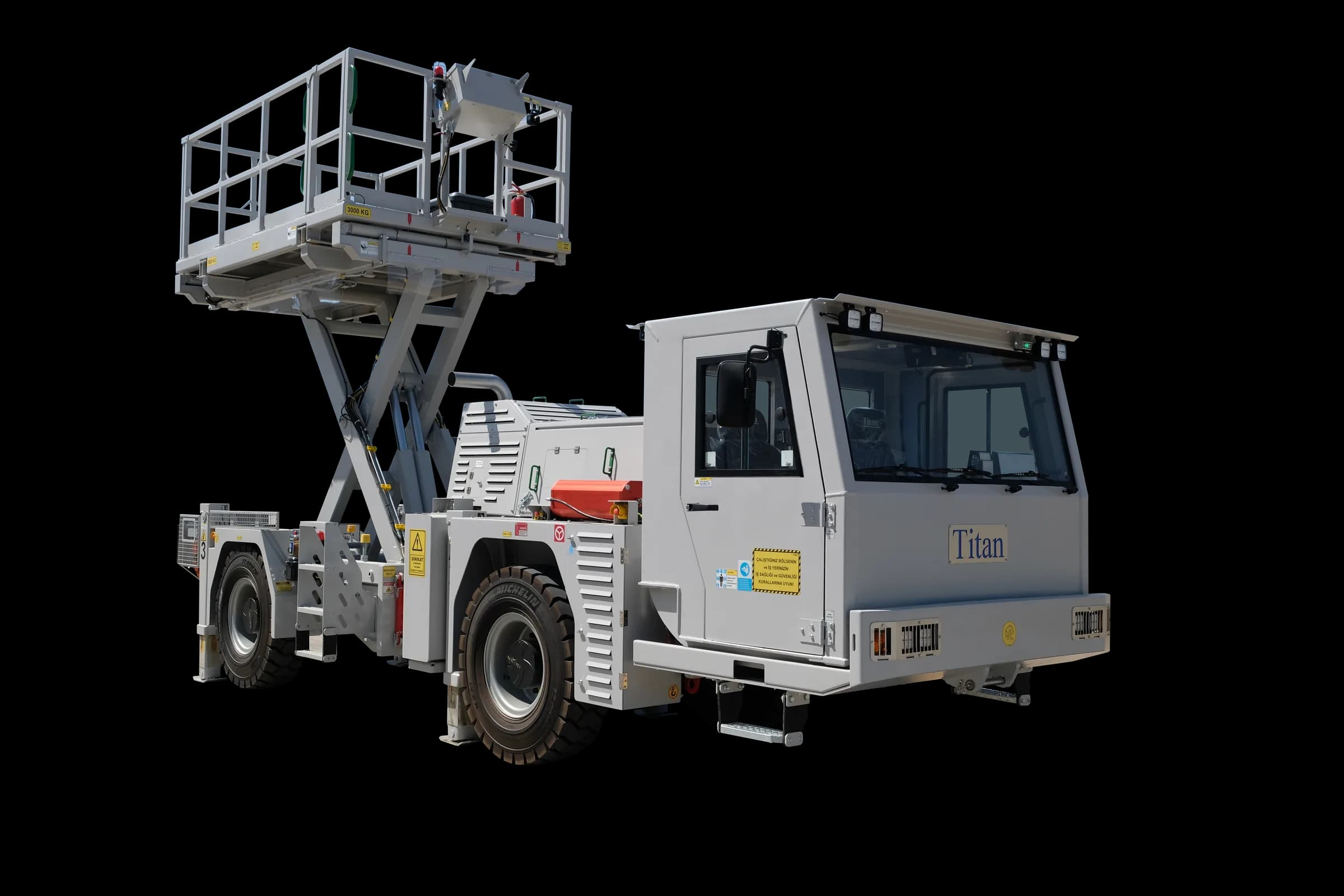

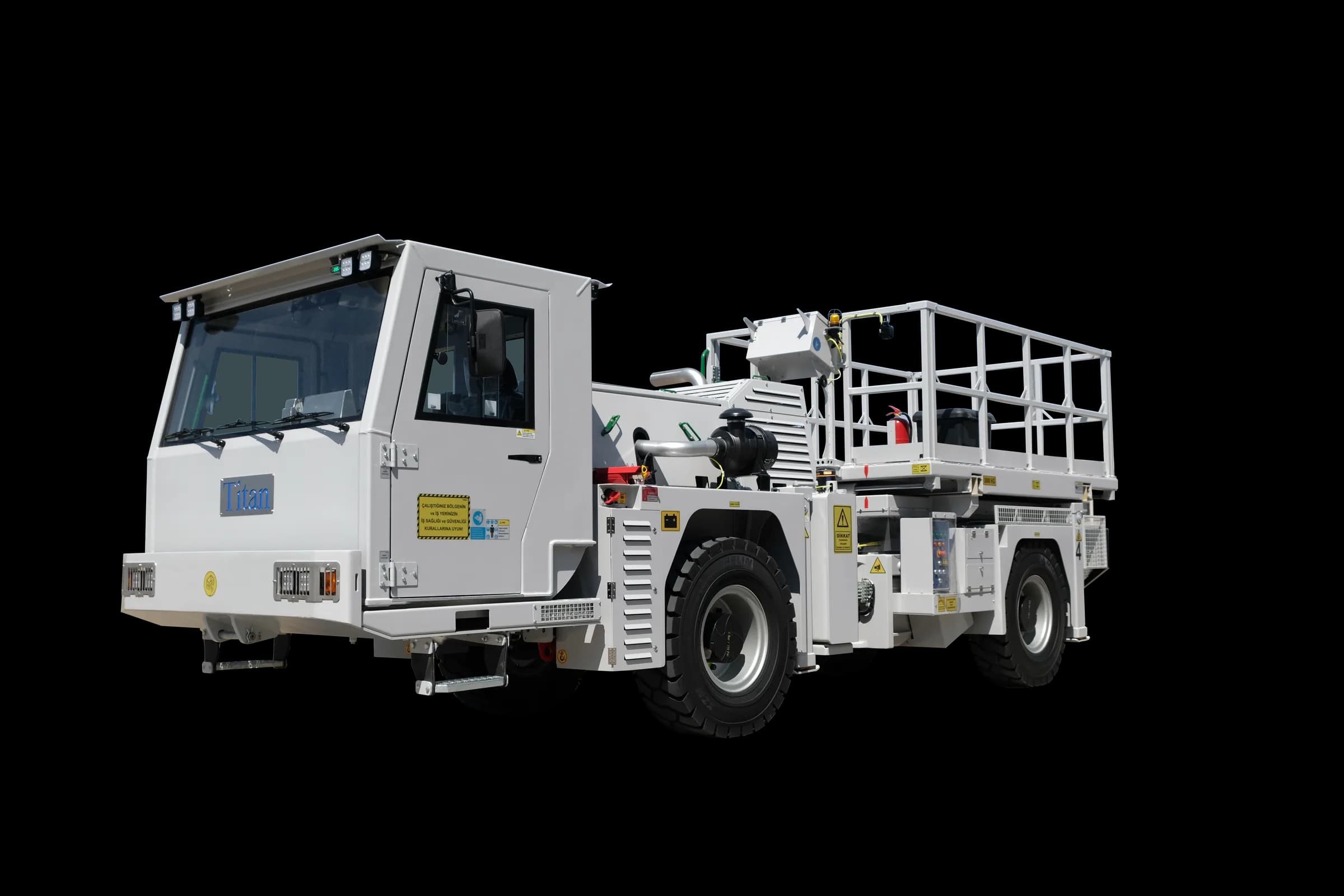

| Titan Closed Operator Cabin |
|---|
- ·2-Person Cabin
- ·ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449)
- ·T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt
- ·1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin
- ·Levers and Indicators for All Driving Controls
- ·In-Cabin Two-Way Radio Outlet and Mounting Location (12V)
- ·Heated Windshield and Wing Mirrors
- ·Cabin Lighting
- ·Under-Seat Document Box
- ·Equipment Box
- ·In-Cabin Heater
|
| Dimensions and Weight |
|---|
| WeightDiffers | 12,600 kg (Approx.) | 13,100 kg (Approx.) |
|---|
| LengthDiffers | 7,790 mm | 8,020 mm |
|---|
| Width | 2,000 mm | 2,000 mm |
|---|
| Height | 2,460 mm | 2,460 mm |
|---|
| Inner Turning Radius | 4,000 mm | 4,000 mm |
|---|
| Outer Turning RadiusDiffers | 6,660 mm | 6,700 mm |
|---|
| Accessories |
|---|
- ·Warning plates and decals
- ·2x4 kg portable fire extinguisher
- ·2 pcs Wheel chocks
- ·Front and rear tow bar
- ·Battery Isolator switch
- ·Back-up alarm and light
|

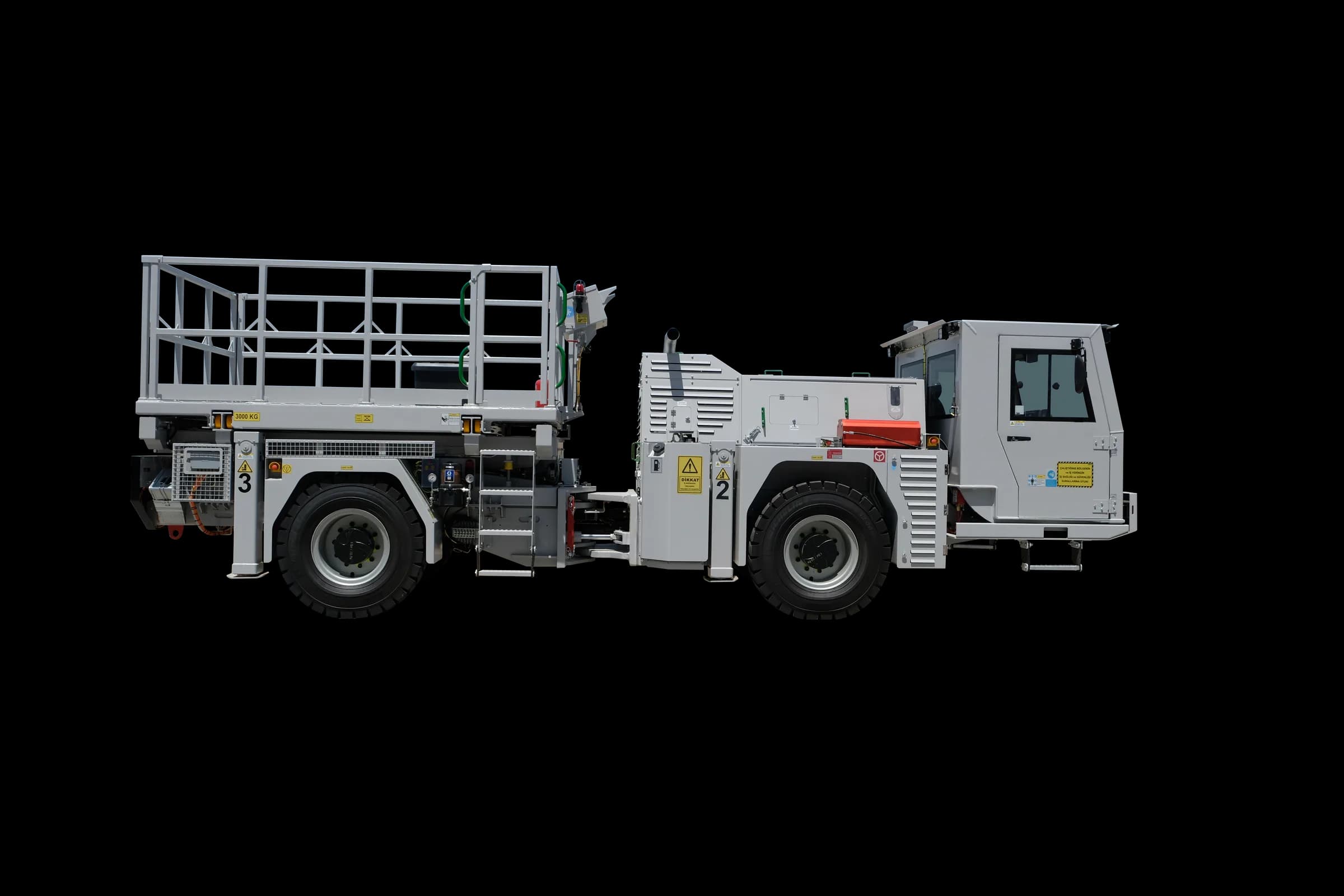

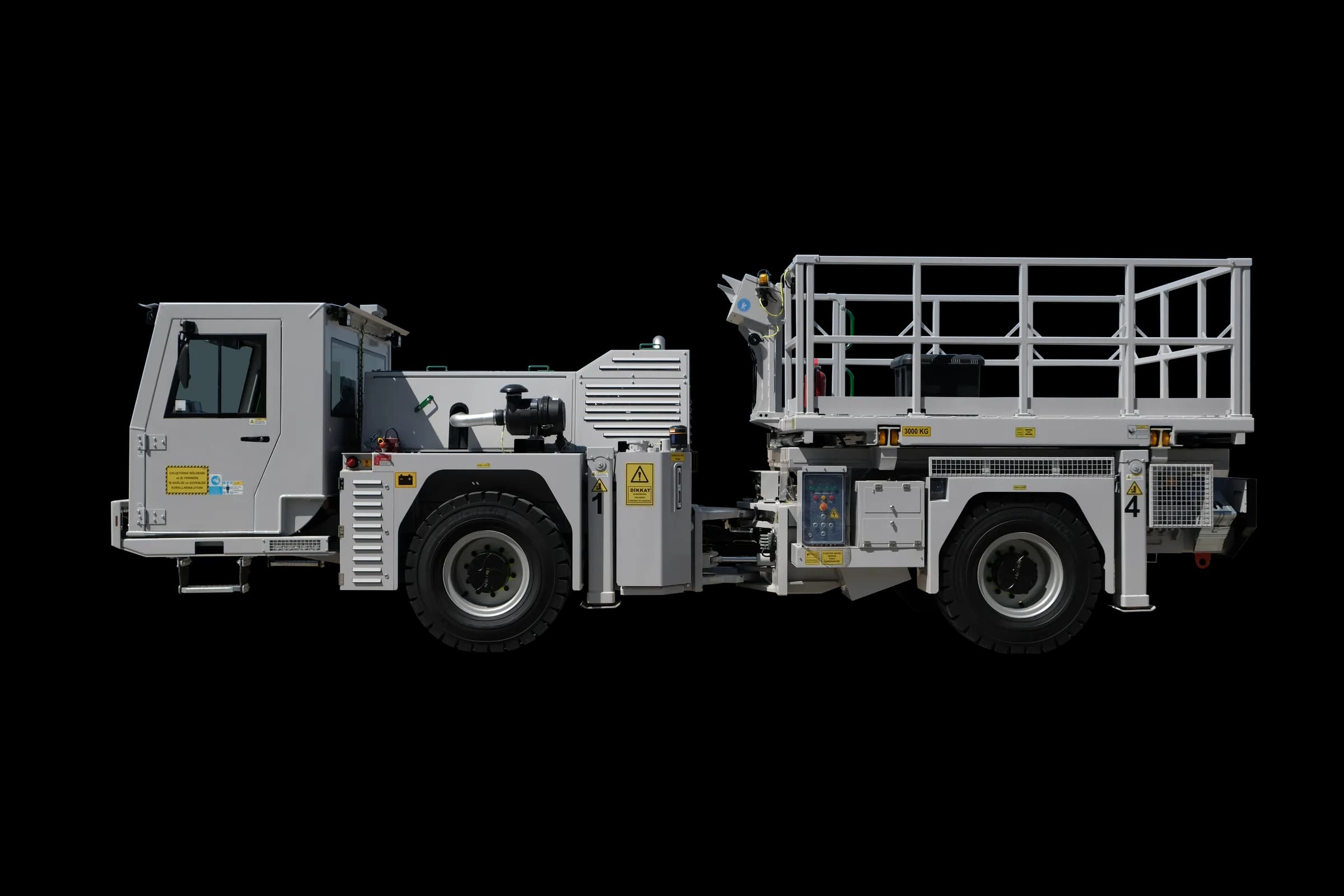

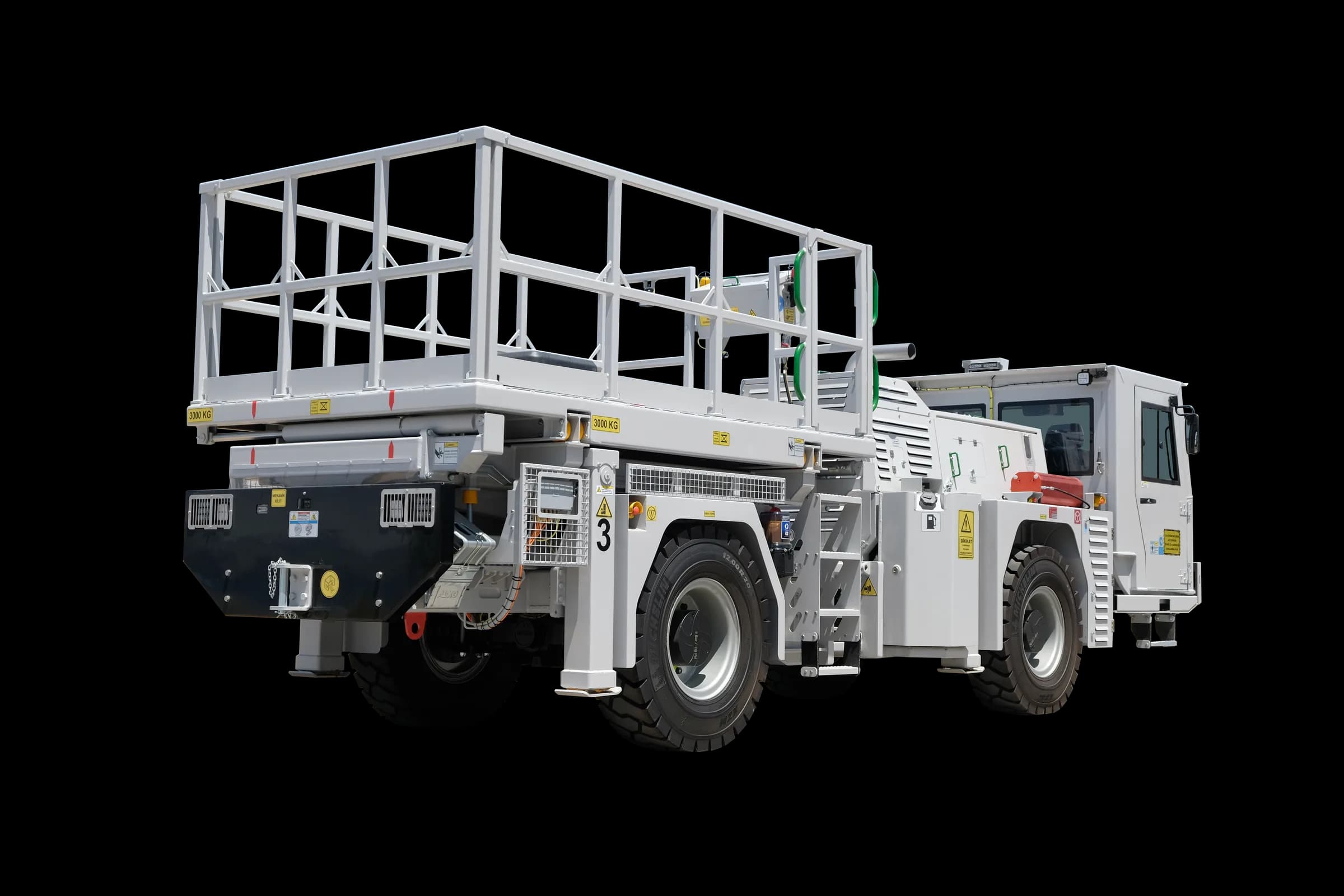

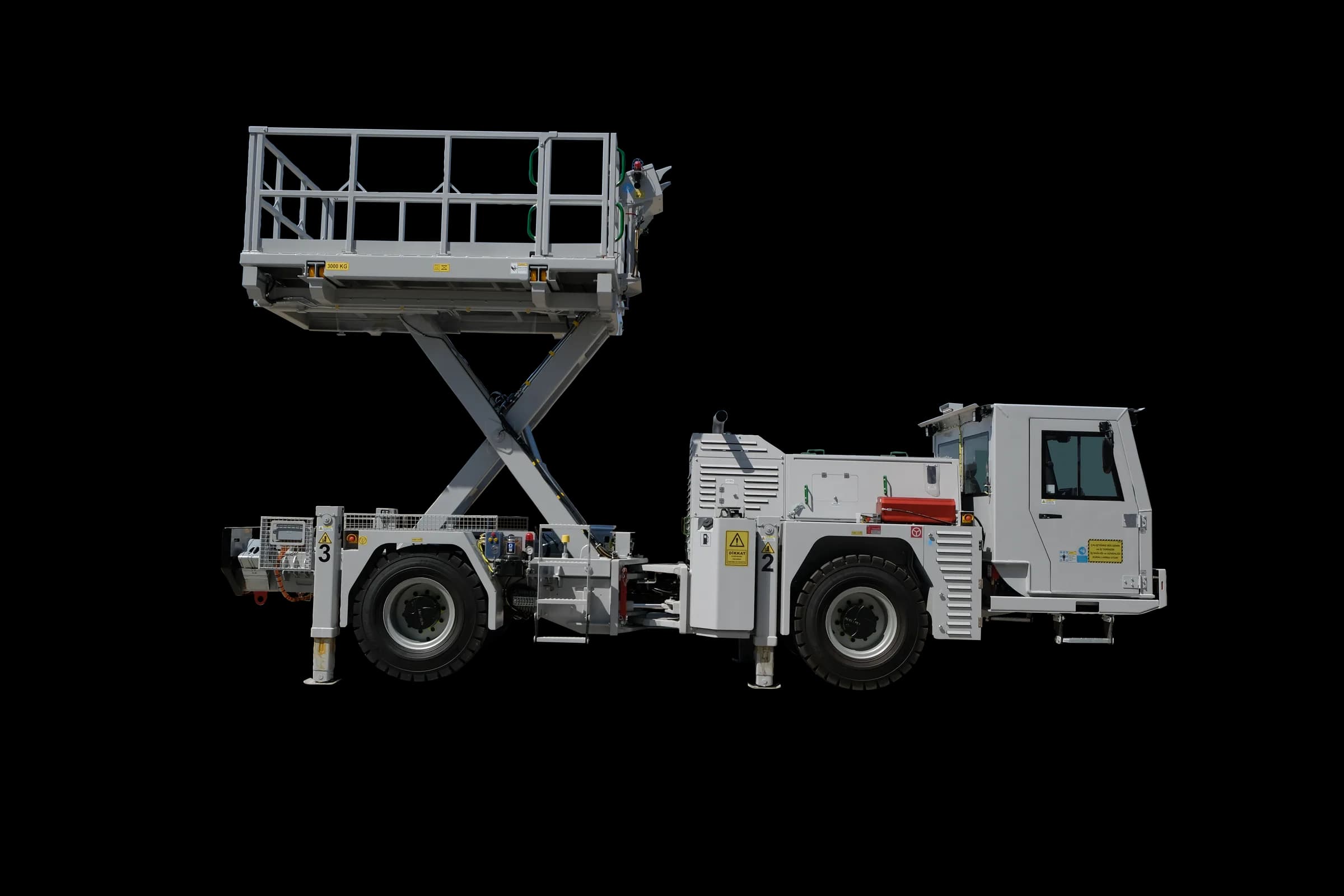

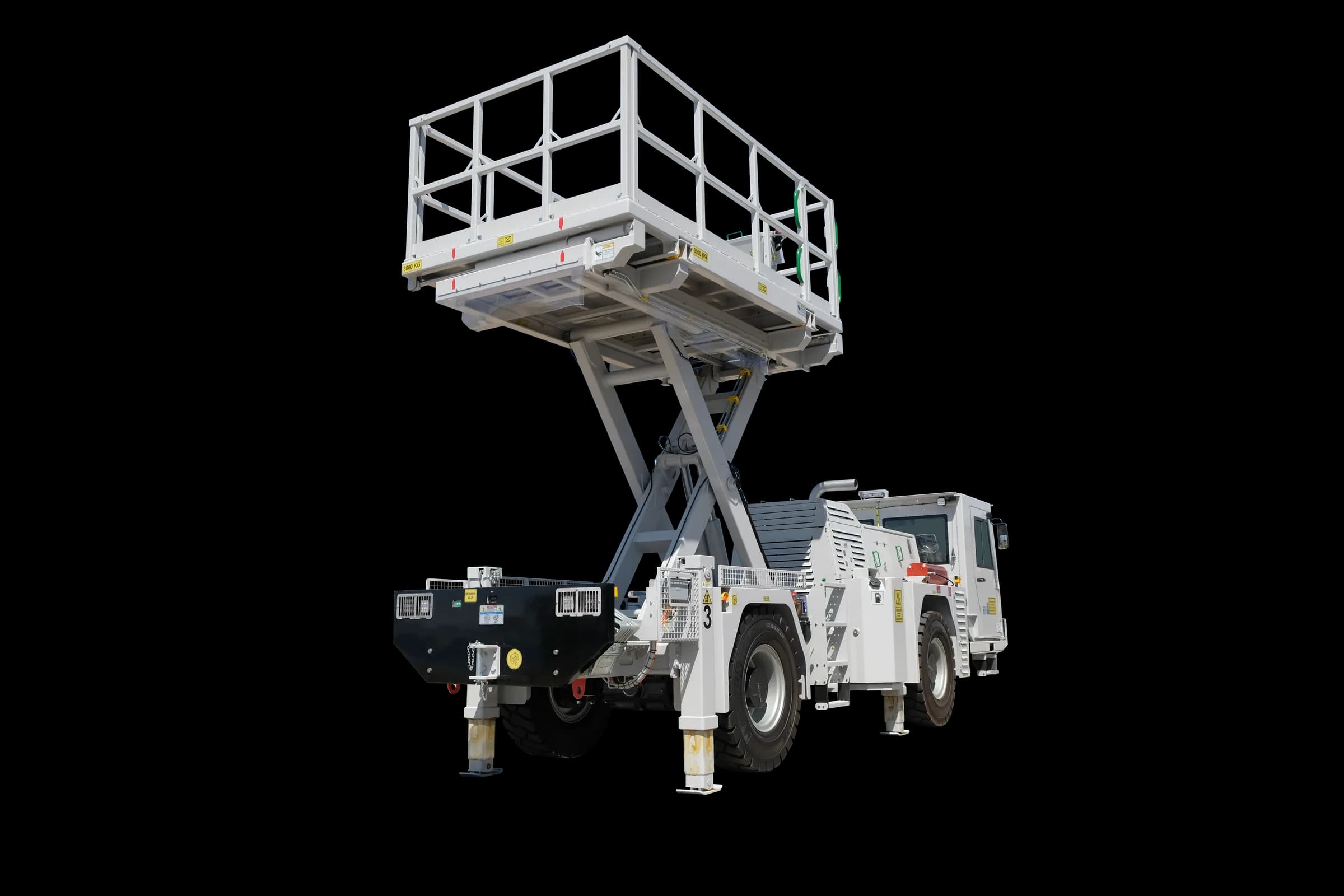

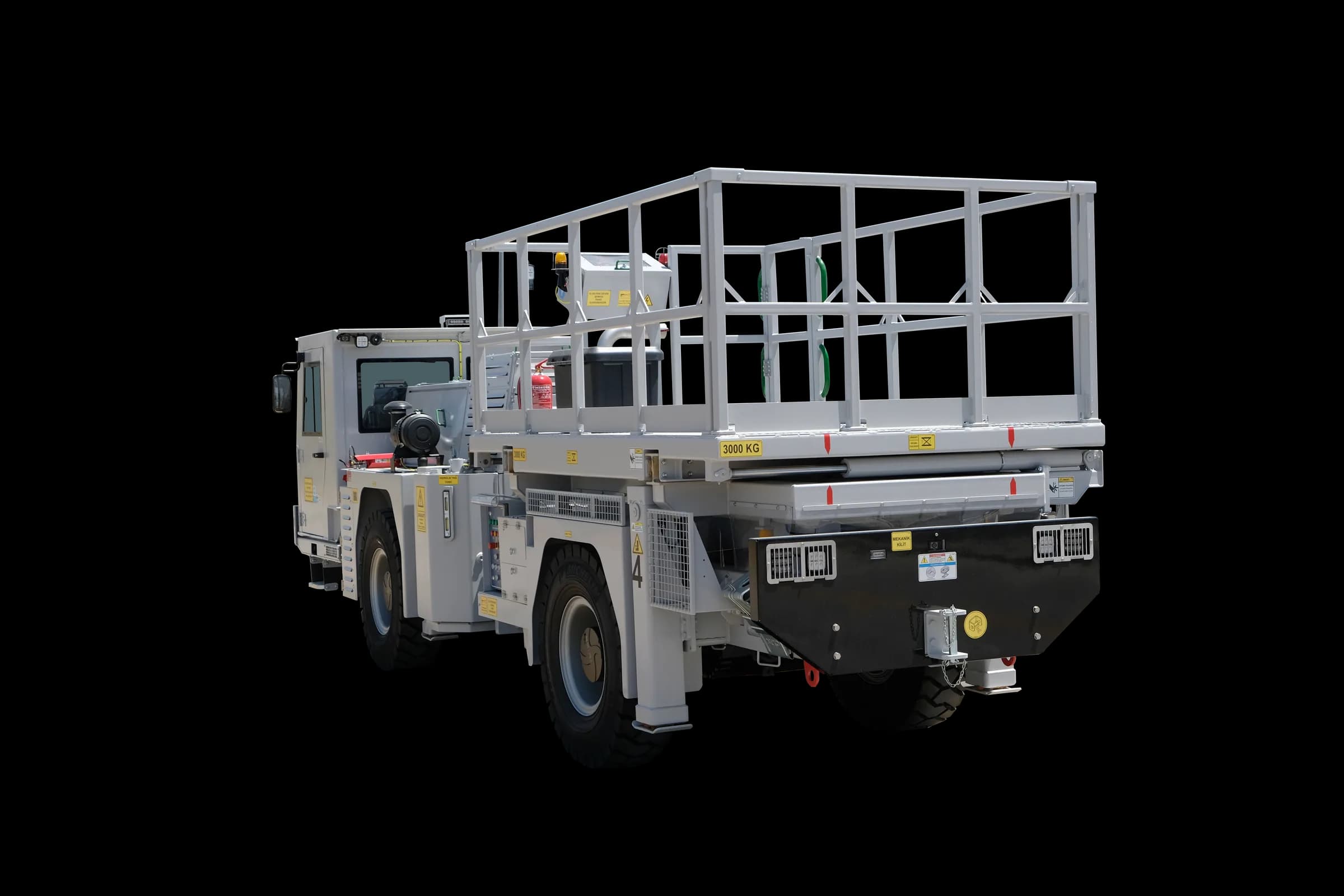

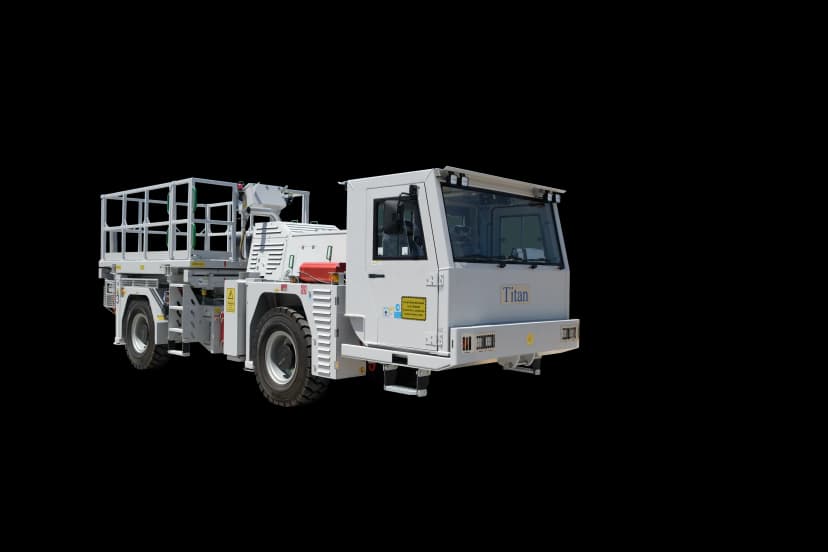

| Scissor Platform |
|---|
| Scissor Platform Dimensions | 3,200 mm x 2,000 mm | 3,200 mm x 2,000 mm |
|---|
| Max. Lifting Capacity | 2,000 kg | 2,000 kg |
|---|
| Max. Lifting Height | 4.5 m | 4.5 m |
|---|
- ·Platform and stabilisers controllable from both control panels
- ·Tool Box on the platform
- ·Foldable platform guard rails
- ·Manual emergency lowering system while the platform is in the open position
- ·Standard-compliant toe boards around the platform
|
| Safety |
|---|
- ·Complies with EN280 standards
- ·Manual emergency platform lowering system
- ·Scissor cannot be moved unless the stabilisers are lowered to the ground
- ·Platform access steps
- ·4 pcs Emergency stop button placed on the machine (in the cabin, on the panel, right rear and on the platform)
- ·2 pcs spirit-level inclinometers mounted on the machine chassis
- ·Inclinometer limiting chassis lateral tilt to ±4°
- ·Stabilisers cannot be retracted unless the scissor platform is fully lowered
- ·Door open warning system
|
| Other |
|---|
- ·Centralized greasing system
|
| Options |
|---|
- ·CANBus
- ·Automatic Lubrication System
- ·Automatic And Manual Activated Fire Extinguishing System (Linear Wired)
- ·Hydraulic Power Unit (Emergency Steering)
- ·Oil Transfer Pump (for Hydraulic, Transmission and Engine)
- ·Air Conditioning in the Operator Cabin
- ·T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt
- ·Electrical Outlet In The Cabin (220 V - 150 W)
- ·Wi-Fi Data Logging and Transfer
- ·DVR Video Recorder
- ·Front Windshield Protection
- ·Additional View Camera
- ·Spare Wheel (Rim And Tire)
- ·Manual Jack
- ·Double-Walled Exhaust PipesStage III only
- ·Diesel Particulate Filter (DPF)Stage III only
- ·300 mm right-left sliding platform
- ·500 mm right-left sliding platform
- ·Crane (HIAB T-CLX 018-2, 1.84 tm)
|
