BSP8 - Basket Platform

Name: BSP8 - Basket Platform
Brand: Titan Makina
SKU: BSP8

Basket Boom Platform

Working Platforms

BSP8 - Basket Platform

MODEL · BSP8

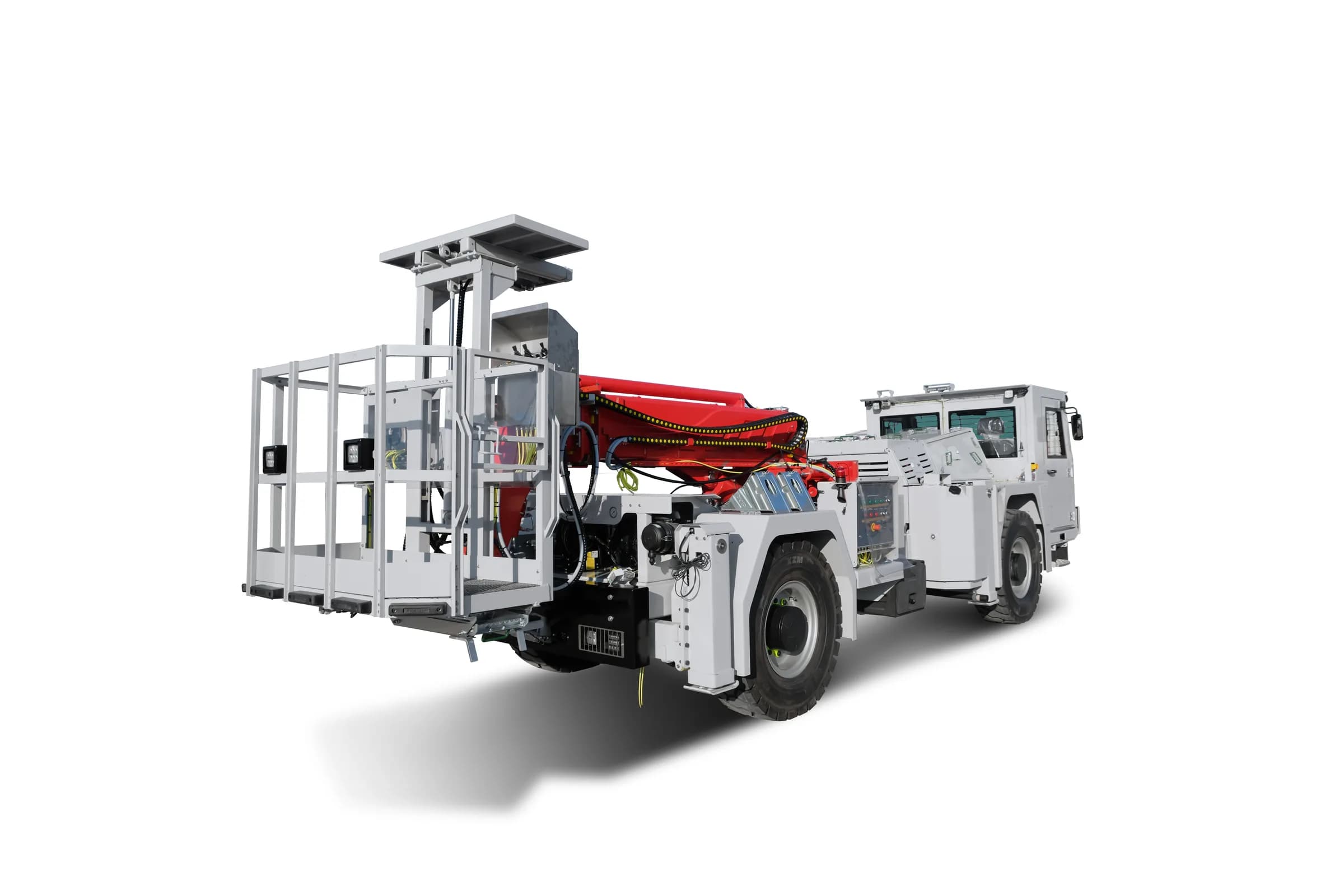

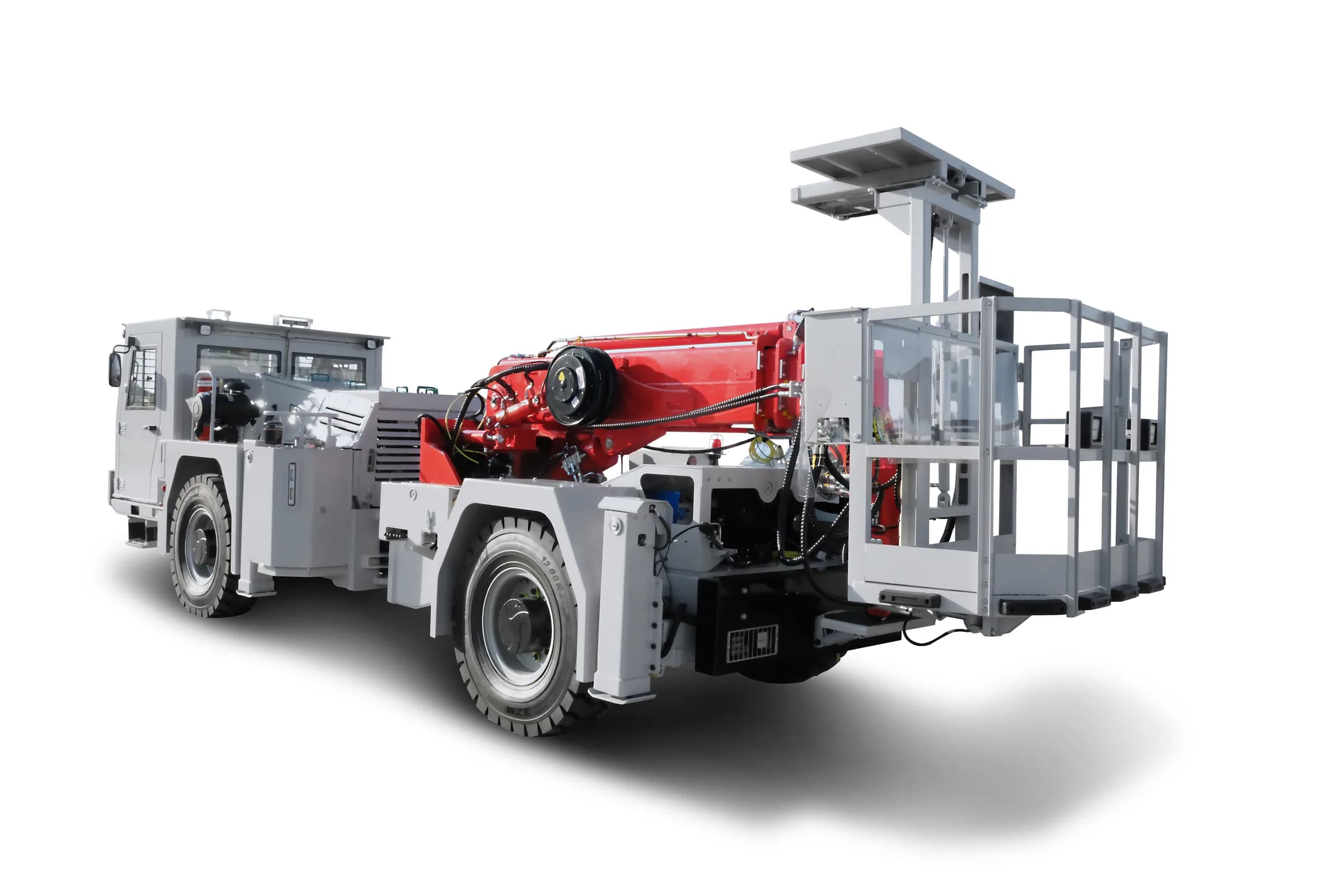

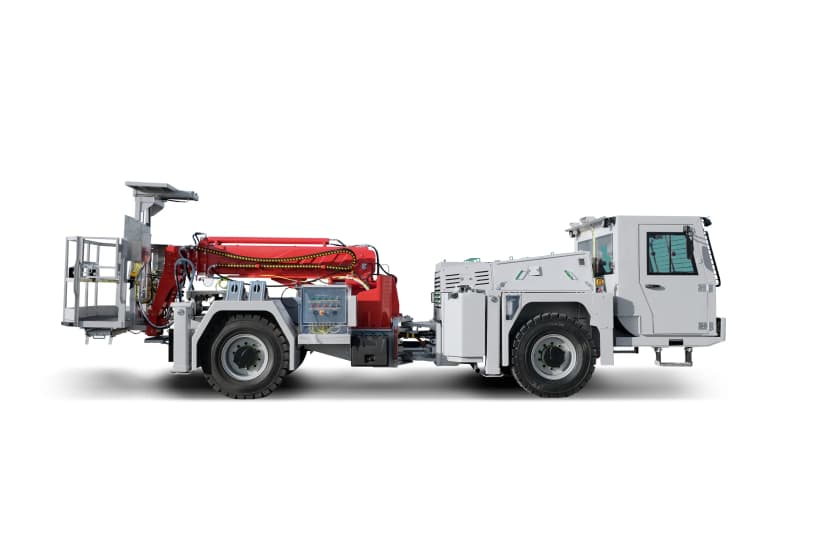

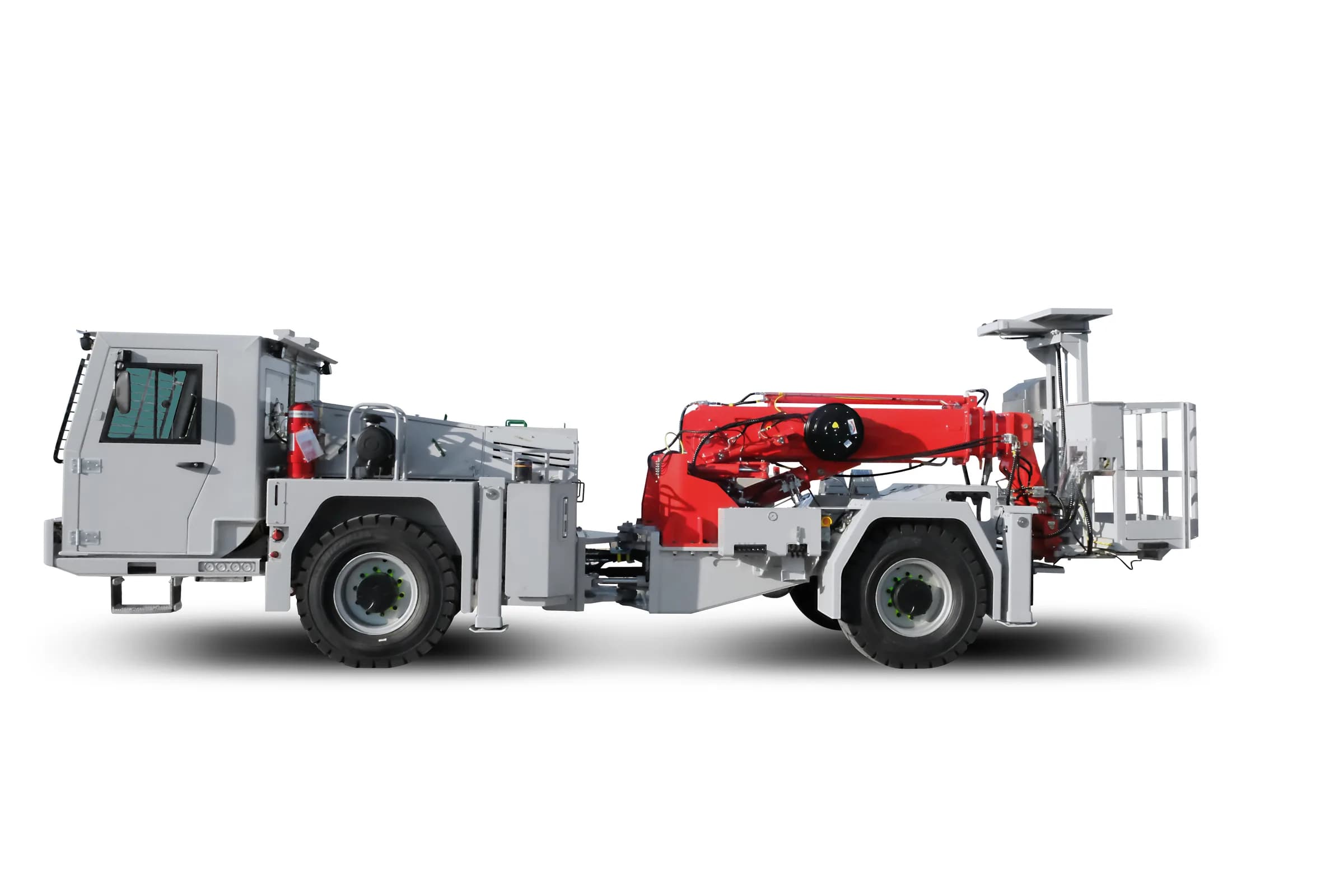

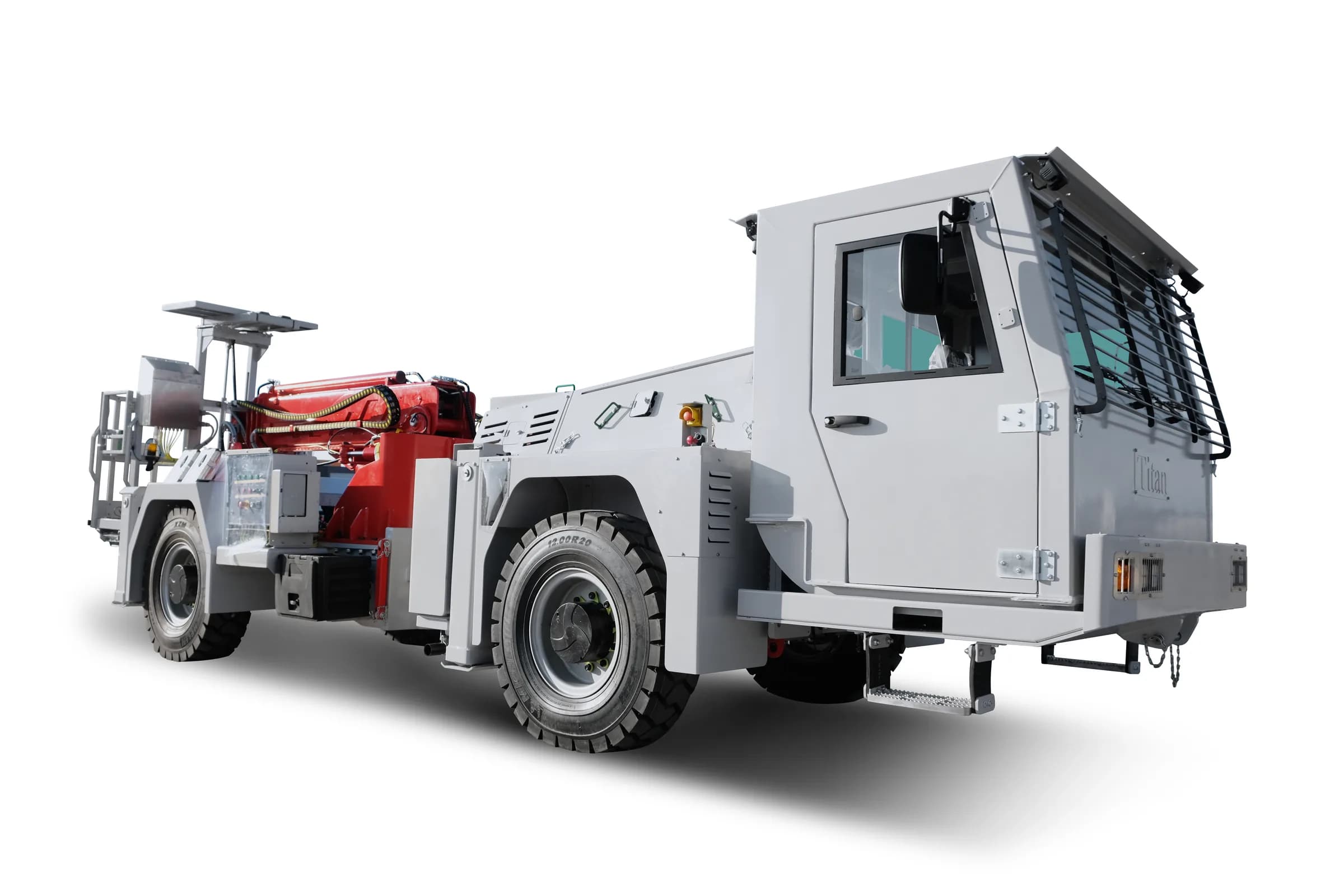

Basket boom platform with a 1,590 x 790 mm basket, 16,000 kg operating weight and a 129 kW Stage V engine.

Request a quote →Request datasheet

Datasheet

Specifications by engine stage

Show differences only(9)

	Stage III	Stage V
Diesel Engine
Make / ModelDiffers	Deutz TCD 2013 L4 2V	Deutz TCD 6.1 L6 Stage V
Max. PowerDiffers	129 kW at 2300 rpm	129 kW at 2200 rpm
Max. TorqueDiffers	670 Nm at 1600 rpm	750 Nm at 1450 rpm
Engine EmissionDiffers	EU Stage 3A / US EPA Tier 3	EU Stage V / US EPA Tier 4i
Diesel Tank Capacity	150 l	150 l
AdBlue Tank Capacity	-	20 l
With Catalytic Converter and SilencerStage III only
Transmission
Make / Model	Dana Spicer T24.000	Dana Spicer T24.000
Powershift Transmission 3-Speed Forward, 3-Speed Reverse 4 Wheel Drive
Axles & Tires
Make / Model	Dana Spicer 113	Dana Spicer 113
Type	Planetary	Planetary
Front Axle	+/- 8° Oscillating	+/- 8° Oscillating
Rear Axle	Rigid	Rigid
Tires: 12.00 - 20
Performance
Max. Gradient	30%	30%
Max. Speed	24.5 km/h	24.5 km/h
Steering
Articulated, +/- 40° Orbitrol Type
Braking System
Service Brake	Oil-Immersed Multidisc Brake	Oil-Immersed Multidisc Brake
Parking Brake	SAHR	SAHR
Fail safe
Chassis
Type	Articulated, high strength steel chassis	Articulated, high strength steel chassis
Hydraulic Stabilisers	Front, 2 pcs fixed	Front, 2 pcs fixed
Rear, 2 pcs extendible
Hydraulic System
Pump Type	Variable Displacement	Variable Displacement
Max. Pressure	210 bar	210 bar
Flow RateDiffers	240 l/min at 2300 rpm	240 l/min at 2200 rpm
Hydraulic Oil Tank	150 l	150 l
Return Oil Filter	25 µm	25 µm
Oil level, filtration and temperature indicators
Electric System
Battery	24V - 2 x (12V 105 Ah)	24V - 2 x (12V 105 Ah)
Protection	IP65	IP65
Working Lights	Operator Cabin Front 8 x 1800 Lumen LED Light	Operator Cabin Front 8 x 1800 Lumen LED Light
Panel Type	Stainless Steel	Stainless Steel
Beacon Light	Amber Color	Amber Color
Operator Cabin Rear 2 x 1800 Lumen LED Lamp Rear Bumper 2 x 1800 Lumen LED Lamp 4 x 1800 lumen LED lights on the boom 2 x 1800 lumen LED lamps on the basket Turn Signals
Titan Closed Operator Cabin
2-Person Cabin ROPS and Level 2 FOPS certified cabin (EN ISO 3471 / EN ISO 3449) T-Shaped Seat with Manually Adjusted Mechanical Suspension, Weight and Height Adjustment and 3-Point Seat Belt 1 pcs Rear View Camera and 2 pcs Side View Camera - 2 pcs LCD Monitor in the Cabin Levers and Indicators for All Driving Controls In-Cabin Two-Way Radio Outlet and Mounting Location (12V) Heated Windshield and Wing Mirrors Cabin Lighting Under-Seat Document Box Equipment Box In-Cabin Heater
Dimensions and Weight
WeightDiffers	15,500 kg (Approx.)	16,000 kg (Approx.)
LengthDiffers	8,950 mm	9,180 mm
Width	2,400 mm	2,400 mm
Height	2,420 mm	2,420 mm
Inner Turning RadiusDiffers	4,260 mm	4,200 mm
Outer Turning RadiusDiffers	7,120 mm	7,150 mm
Accessories
Warning plates and decals Tool Box 2x4 kg portable fire extinguisher 2 pcs Wheel chocks Front tow bar Battery Isolator switch Back-up alarm and light
Basket
Basket Dimensions	1,590 mm x 790 mm	1,590 mm x 790 mm
Max. Carrying Capacity	500 kg	500 kg
Max. Lifting Height	8 m	8 m
Basket Rotation Angle Horizontal	+/- 35°	+/- 35°
Max. Boom Angle	60°	60°
Boom Slewing Angle Horizontal	+/- 35°	+/- 35°
Basket Tilt Limit	+/-5°	+/-5°
Levelling	Automatic	Automatic
Electro-hydraulically driven control unit
Compressor
Model	Hydraulically Driven Screw	Hydraulically Driven Screw
Power	23 kW	23 kW
Max. Working Pressure	7 bar	7 bar
Max. Air Flow Rate 3.5 m³/min
Safety
Complies with EN280 standards Emergency Boom Lowering Sensor system preventing basket movement unless the stabilisers are lowered to the ground 3 pcs emergency stop buttons placed on the machine, 1 of them inside the basket Tilt sensor limiting chassis lateral tilt to ± 4° Tilt sensor limiting basket angle to ± 5° Sensor system that prevents the stabilisers from being retracted until the basket is fully lowered Load Moment Control System 2 pcs spirit-level inclinometers mounted on the machine chassis Hydraulically driven safety canopy on the basket
Other
Centralized greasing system
Options
CANBus Automatic Lubrication System Automatic And Manual Activated Fire Extinguishing System (Linear Wired) Hydraulic Power Unit (Emergency Steering) Oil Transfer Pump (for Hydraulic, Transmission and Engine) Air Conditioning in the Operator Cabin T-Shaped Seat with Air Suspension, Weight and Height Adjustment and 3-Point Seat Belt Electrical Outlet In The Cabin (220 V - 150 W) Wi-Fi Data Logging and Transfer DVR Video Recorder Front Windshield Protection Additional View Camera Spare Wheel (Rim And Tire) Manual Jack Double-Walled Exhaust PipesStage III only Diesel Particulate Filter (DPF)Stage III only Radio Frequency Remote Control
